Product Overview
The Wandfluh AS4Z60b-S1269 is a high-performance solenoid-operated directional spool valve engineered by Wandfluh AG, a globally recognized Swiss manufacturer of precision hydraulic components. This 4-way, 3-position (4/3) directional control valve operates on the proven spool-and-sleeve principle, utilizing a precision-ground steel spool that slides within a hardened bore to direct hydraulic flow between ports P, T, A, and B. Actuated by a robust AC/DC solenoid, the valve provides reliable switching of flow paths for controlling double-acting cylinders, bidirectional hydraulic motors, and other linear or rotary actuators. The AS4Z60b series is designed for direct mounting on standard ISO 4401 / CETOP 03 (NG6) subplates and manifolds, making it a versatile building block for industrial hydraulic power and control systems. Its compact design, high flow capacity relative to size, and precise spool metering characteristics make it ideal for demanding machine applications where repeatable directional control and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (4/3 Way) |
| Model Designation | AS4Z60b-S1269 |
| Manufacturer | Wandfluh AG |
| Operating Pressure | Up to 350 bar (max. working pressure, port P) |
| Nominal Flow Rate | Up to 60 L/min (NG6 / CETOP 03 size) |
| Spool Configuration | 4-Way, 3-Position (4/3), closed or tandem center options |
| Actuation Type | Solenoid actuated, spring return / spring centered |
| Mounting & Connection | ISO 4401 / CETOP 03 (NG6) subplate mounting interface |
| Solenoid Voltage | Standard AC/DC coil options (e.g., 24V DC, 110V AC, 230V AC) |
| Seal Material | NBR (Buna-N) standard; FKM (Viton) available for high-temperature service |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP, HV) per DIN 51524 |
Engineering Features & Advantages
- Precision Performance: The solenoid directional spool valve (4/3 way) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Wandfluh specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Its compact design, high flow capacity relative to size, and precise spool metering characteristics make it ideal for demanding machine applications where repeatable directional control and long service life are essential.
PRODUCT IMAGES

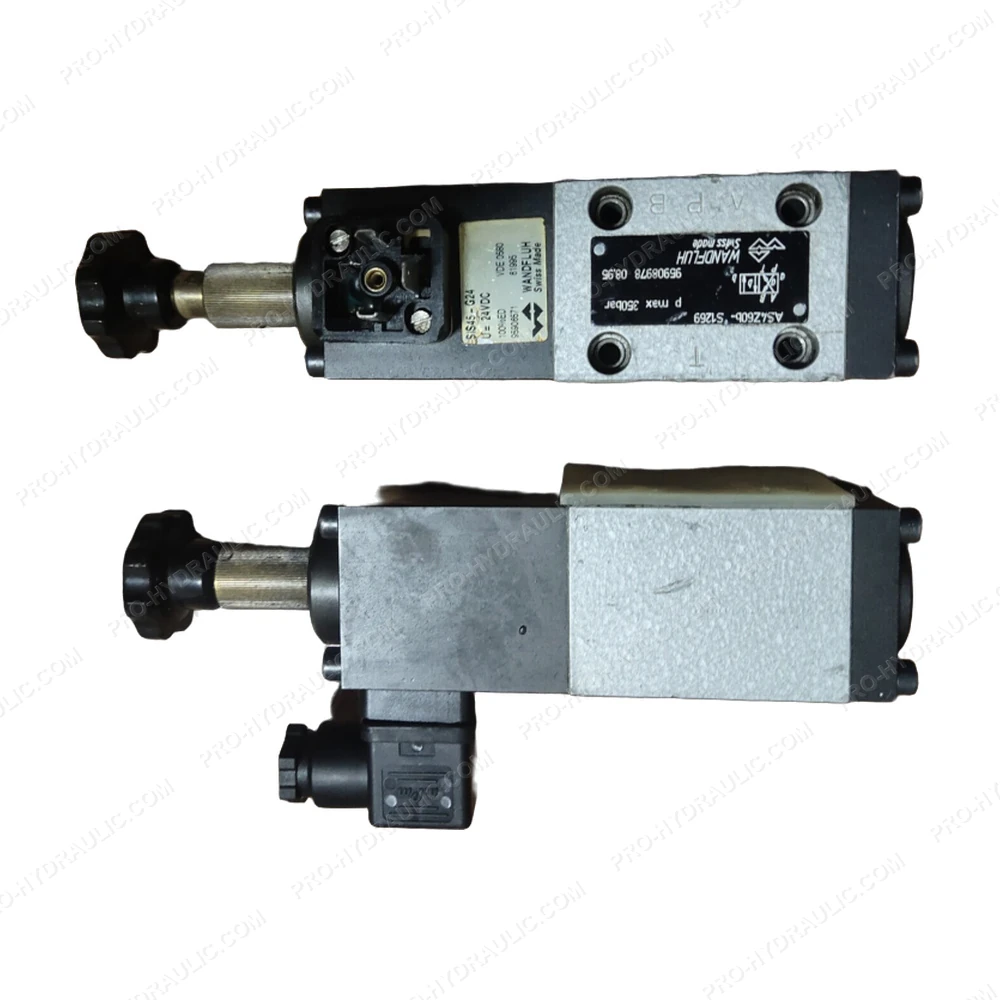

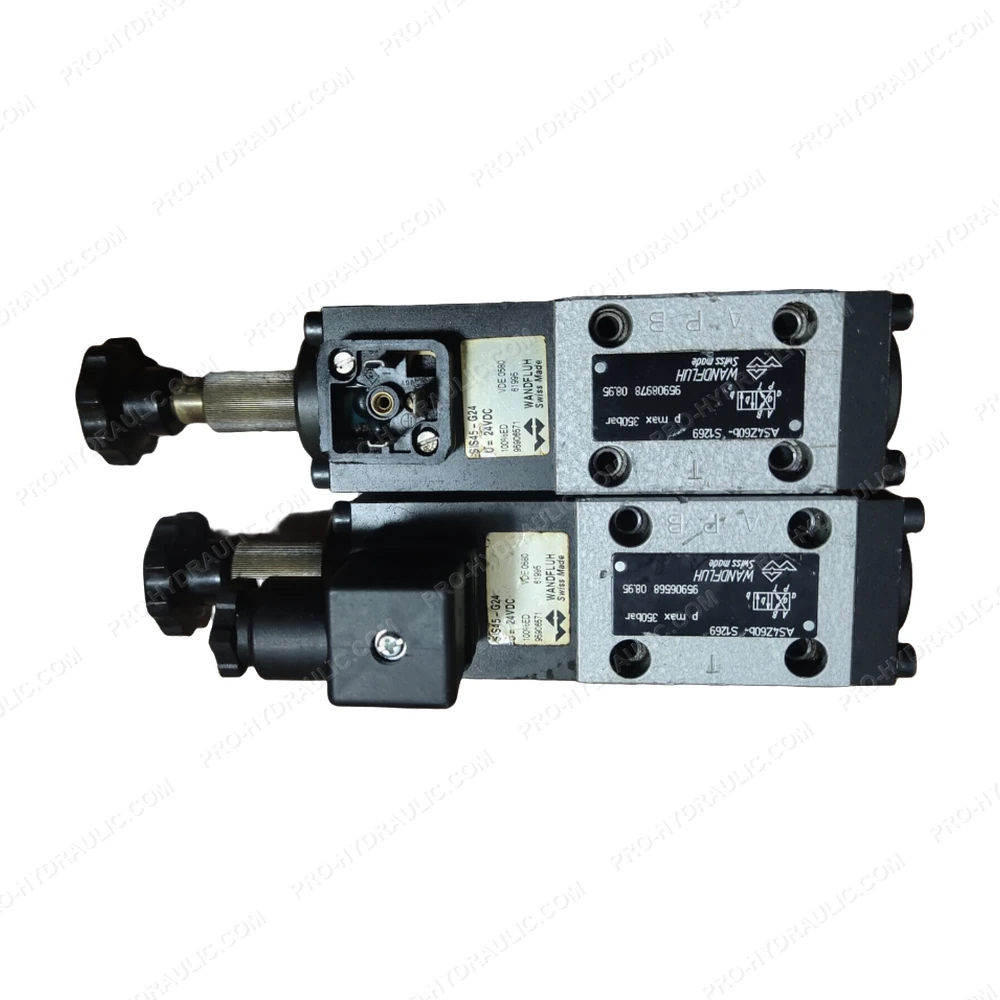

Wandfluh AS4Z60b-S1269 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine WANDFLUH AS4Z60b-S1269 Solenoid Directional Valve. This Switzerland-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
