Product Overview
The WANDFLUH CVUA-6-PDW is a direct-acting, solenoid-operated poppet valve engineered for leak-free directional control in demanding industrial hydraulic circuits. Manufactured by Wandfluh AG, a recognized Swiss specialist in high-pressure hydraulic valves, the CVUA series utilizes a seated poppet design rather than a sliding spool, delivering zero internal leakage in the closed position and reliable sealing even after extended periods of inactivity. With a nominal size of 6 (NG6 / CETOP 3 interface), the CVUA-6-PDW functions as a 2/2 or 3/2 style seat valve depending on configuration, making it suitable for holding, clamping, isolation, and pilot control functions where pressure integrity is critical. The “PDW” designation indicates the specific solenoid voltage, connector type, and manual override configuration supplied for this variant. Its compact cartridge-style construction allows direct installation into manifold blocks or standard subplate bodies, supporting high working pressures typical of modern industrial power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Poppet Valve (Seat-Type Directional Control Valve) |
| Model Designation | CVUA-6-PDW |
| Manufacturer | Wandfluh AG |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03 interface) |
| Operating Pressure | High-pressure industrial grade, up to rated bar per Wandfluh CVUA data sheet |
| Actuation | Direct-acting solenoid with spring return |
| Sealing Principle | Metallic poppet seat — zero leakage in closed position |
| Mounting & Connection | Standard ISO / CETOP subplate or manifold cartridge mounting |
| Electrical Connection | Solenoid with plug-in connector (PDW variant) |
Engineering Features & Advantages
- Zero Leakage Sealing: The seated poppet design eliminates internal leakage across the closed valve, ensuring load holding and pressure retention without drift — a decisive advantage over spool-type directional valves.
- Direct-Acting Response: Solenoid force acts directly on the poppet, providing fast, deterministic switching independent of pilot pressure availability.
- Contamination Tolerance: The simple seat geometry is less sensitive to particulate contamination than close-clearance spool valves, extending service intervals in real-world industrial systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid encapsulation and hardened seat surfaces.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original WANDFLUH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Its compact cartridge-style construction allows direct installation into manifold blocks or standard subplate bodies, supporting high working pressures typical of modern industrial power units.
PRODUCT IMAGES

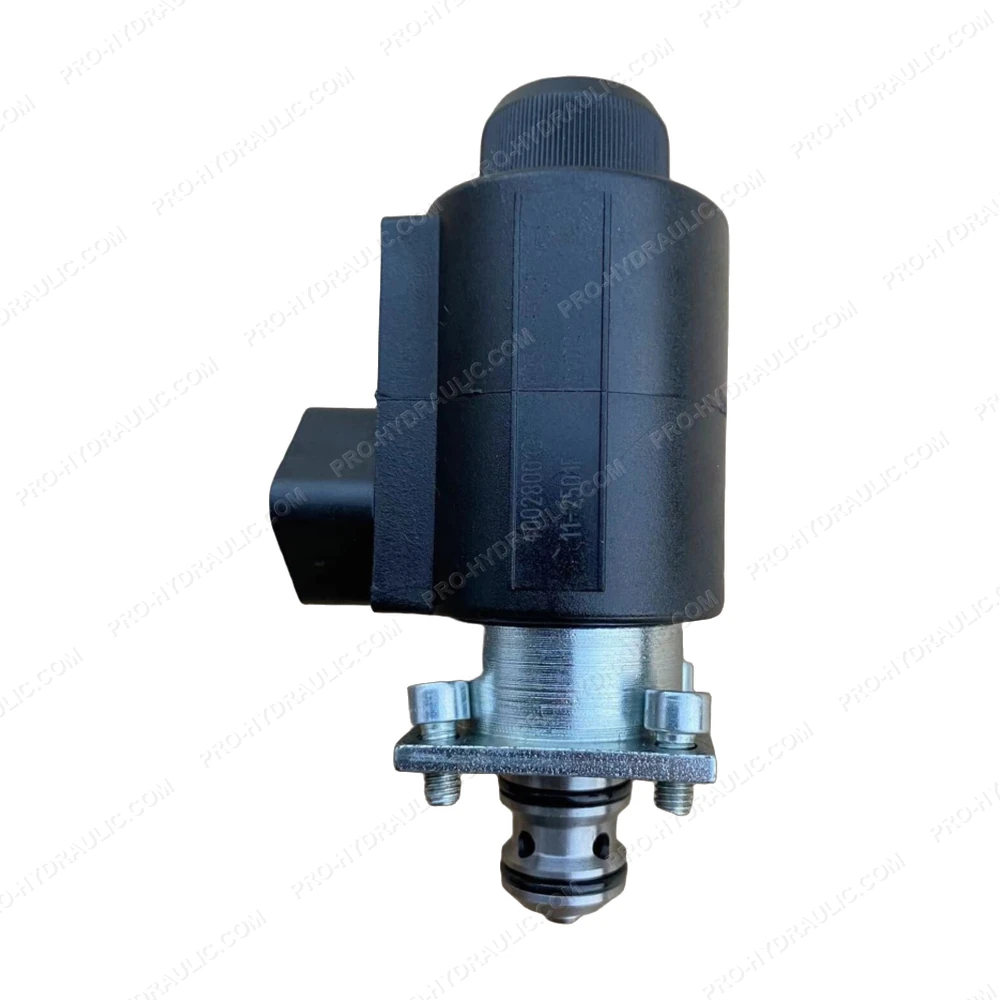

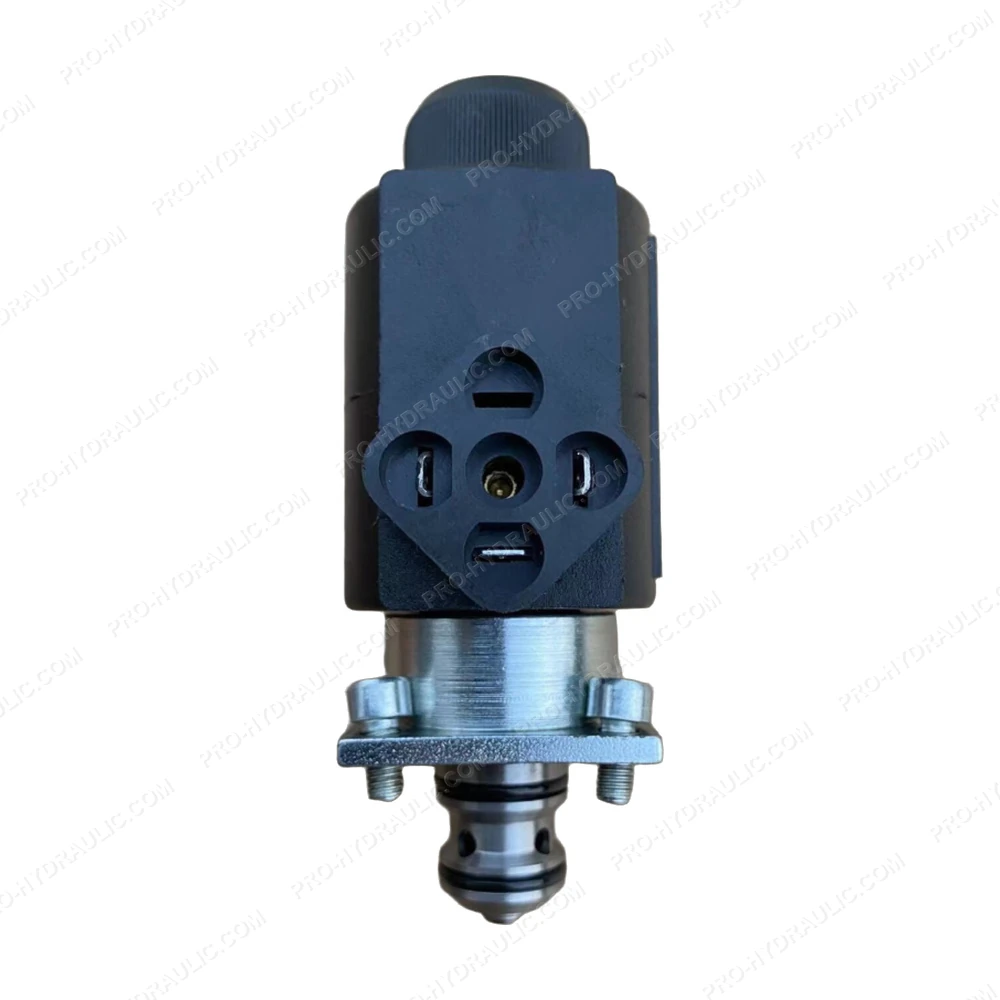

WANDFLUH CVUA-6-PDW Solenoid Operated Poppet Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine WANDFLUH CVUA-6-PDW Solenoid Operated Poppet Valve. This Swiss-made hydraulic component features a poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
