The WANDFLUH MKY45/18×60-G24/L15 is a heavy-duty industrial directional control valve engineered for precise flow direction and reliable operation in hydraulic systems. This solenoid-operated spool valve features a robust design suitable for high-pressure applications and demanding duty cycles.
WANDFLUH MKY45/18×60-G24/L15 Technical Specifications
| Parameter | Value |
|---|---|
| Valve Type | Directional control valve, spool type |
| Actuation | Solenoid, 24 V DC |
| Nominal Flow Rate | Up to 60 L/min |
| Maximum Operating Pressure | 350 bar |
| Number of Ports | 4 (P, T, A, B) |
| Spool Configuration | 3-position, spring-centered |
| Mounting Interface | ISO 4401 / CETOP 3 |
| Electrical Connection | DIN 43650 connector |
| Protection Class | IP65 |
| Operating Temperature Range | -20 °C to +80 °C |
Key Engineering Features
- Precision-machined spool and sleeve for low leakage and long service life
- High flow capacity with minimal pressure drop
- Robust solenoid with manual override for emergency operation
- Wet-pin armature design for quiet and reliable switching
- Standard mounting pattern for easy integration into manifold systems
Industrial Applications
- Machine tools and production equipment
- Hydraulic presses and forming machinery
- Mobile and industrial hydraulic systems
- Material handling and lifting equipment
- Test stands and specialized hydraulic circuits
For technical inquiries, dimensional drawings, or replacement support for WANDFLUH MKY45/18×60-G24/L15, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

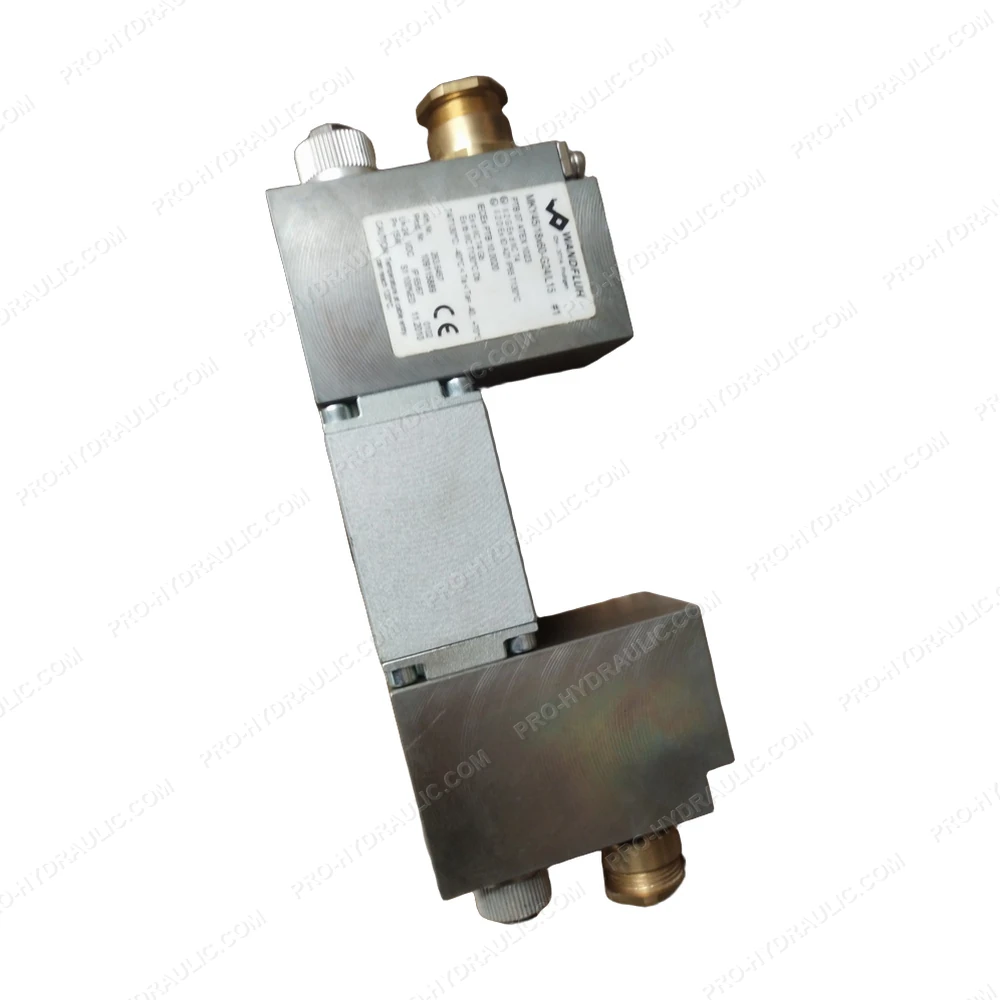

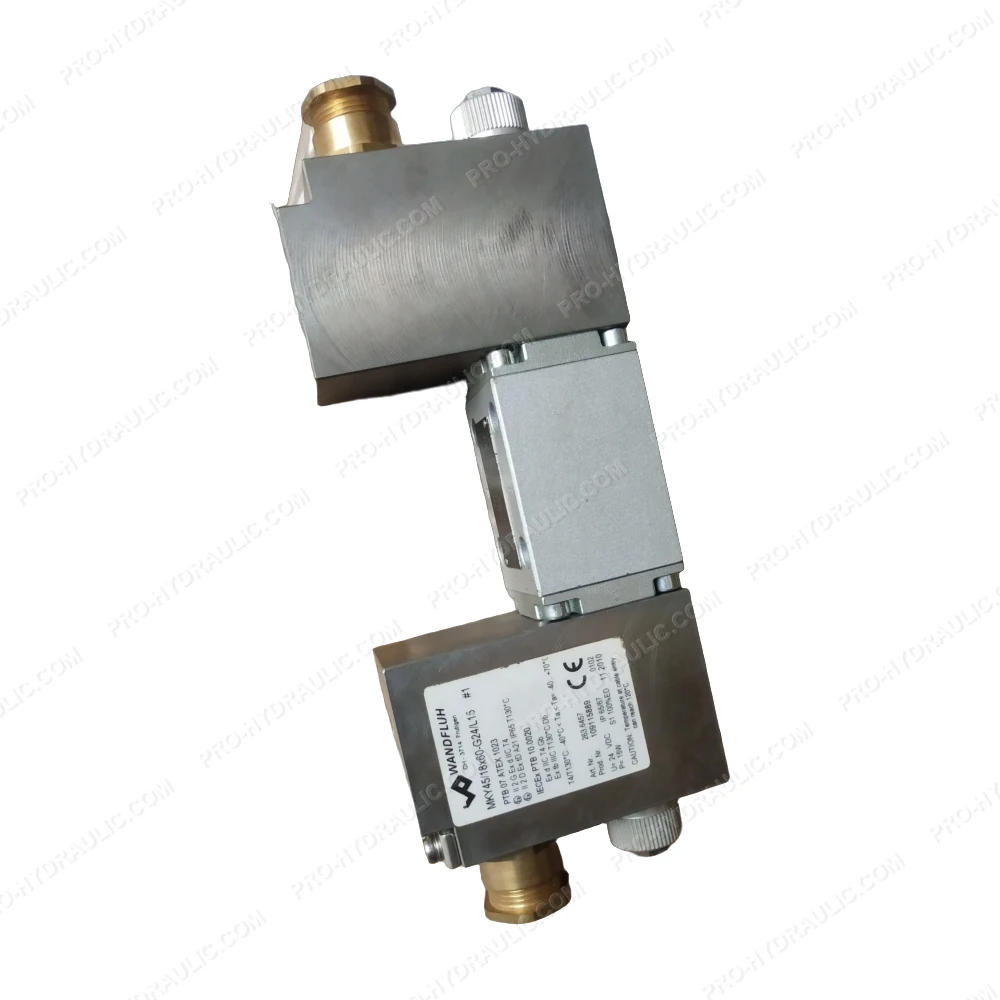

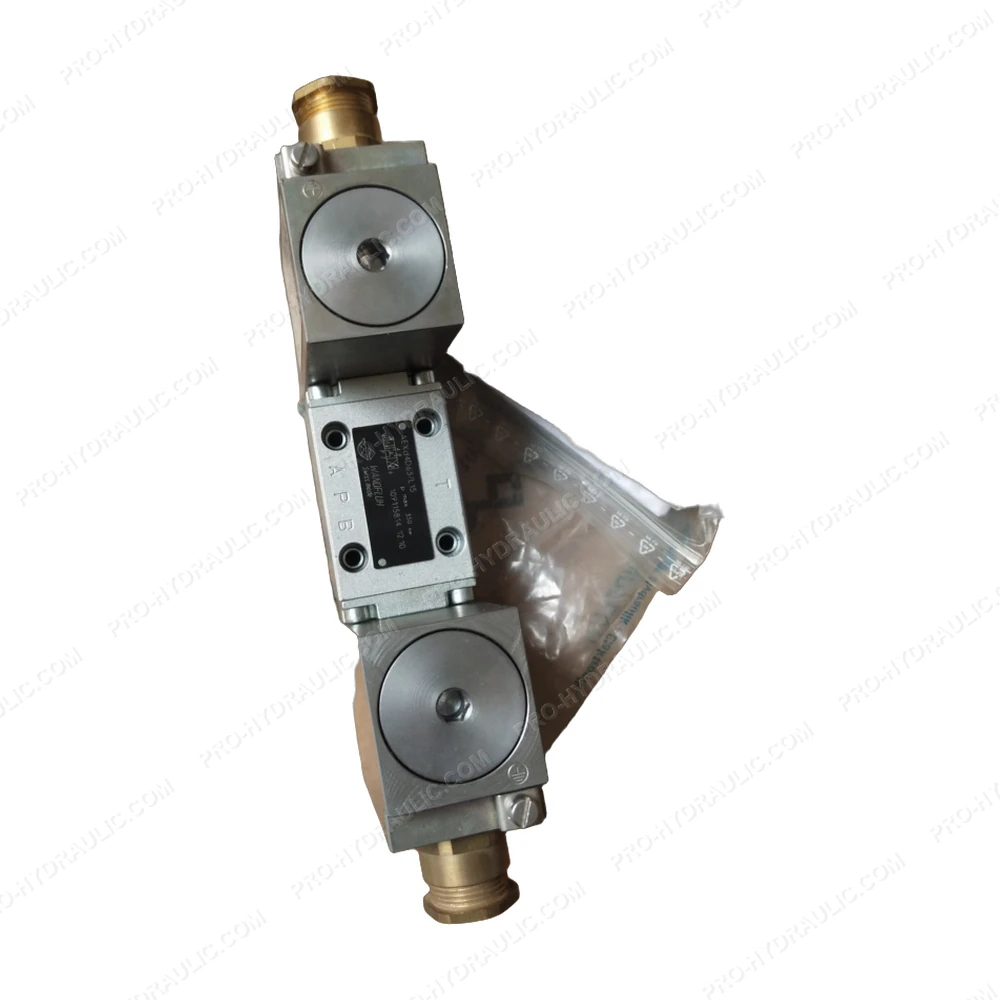

WANDFLUH MKY45/18×60-G24/L15 Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the WANDFLUH MKY45/18×60-G24/L15 Directional Valve. This precision-engineered hydraulic component delivers reliable performance and accurate flow control for demanding industrial systems.
