Product Overview
The WHITE OMS 250 (Part Number: 151F0505) is a high-performance hydraulic orbital motor engineered by the renowned manufacturer White Hydraulics (now part of the Danfoss Power Solutions portfolio). This motor operates on the proven gerotor/geroller orbital principle, where hydraulic pressure acts on a set of internal gear teeth to generate smooth, high-torque rotary motion. The OMS series is specifically designed as a medium-duty, high-torque motor capable of delivering reliable performance in both open and closed loop hydraulic systems. With a displacement of 250 cc/rev, this model is optimized for applications requiring substantial torque output at moderate speeds, making it a critical component in mobile and industrial machinery drive systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Orbital Motor (Gerotor/Geroller) |
| Model Designation | OMS 250 / 151F0505 |
| Displacement | 250 cc/rev (15.25 cu.in/rev) |
| Operating Pressure | Continuous: Up to 175 bar (2538 psi) / Intermittent: Up to 210 bar (3046 psi) |
| Peak Pressure | Up to 225 bar (3263 psi) |
| Torque Output | Continuous: 550 Nm (405 lb-ft) at 175 bar |
| Speed Range | Continuous: Up to 375 RPM |
| Mounting & Connection | Standard 4-Bolt Square Flange / SAE Ports |
Engineering Features & Advantages
- High Torque Density: The advanced orbital gear set design delivers exceptional torque output relative to its compact frame size, enabling efficient power transmission in space-constrained installations.
- Smooth Low-Speed Operation: Precision-machined geroller geometry ensures stable, pulsation-free rotation even at very low speeds, ideal for applications requiring precise positioning or consistent feed rates.
- Robust Shaft & Bearing Support: Equipped with heavy-duty tapered roller bearings capable of withstanding significant radial and axial loads, extending service life in demanding drive applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and high-quality sealing systems to resist contamination and wear.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM White OMS series specifications, ensuring drop-in replacement without modification.
Typical Industrial Applications
This hydraulic orbital motor is widely deployed across heavy-duty industrial and mobile equipment sectors. Common applications include: plastic injection molding machines (for clamping and ejection drives), metallurgical presses and forging equipment, construction machinery such as skid steer loaders and excavators (for track and wheel drives), agricultural equipment including combine harvesters and balers, marine winches and deck machinery
PRODUCT IMAGES

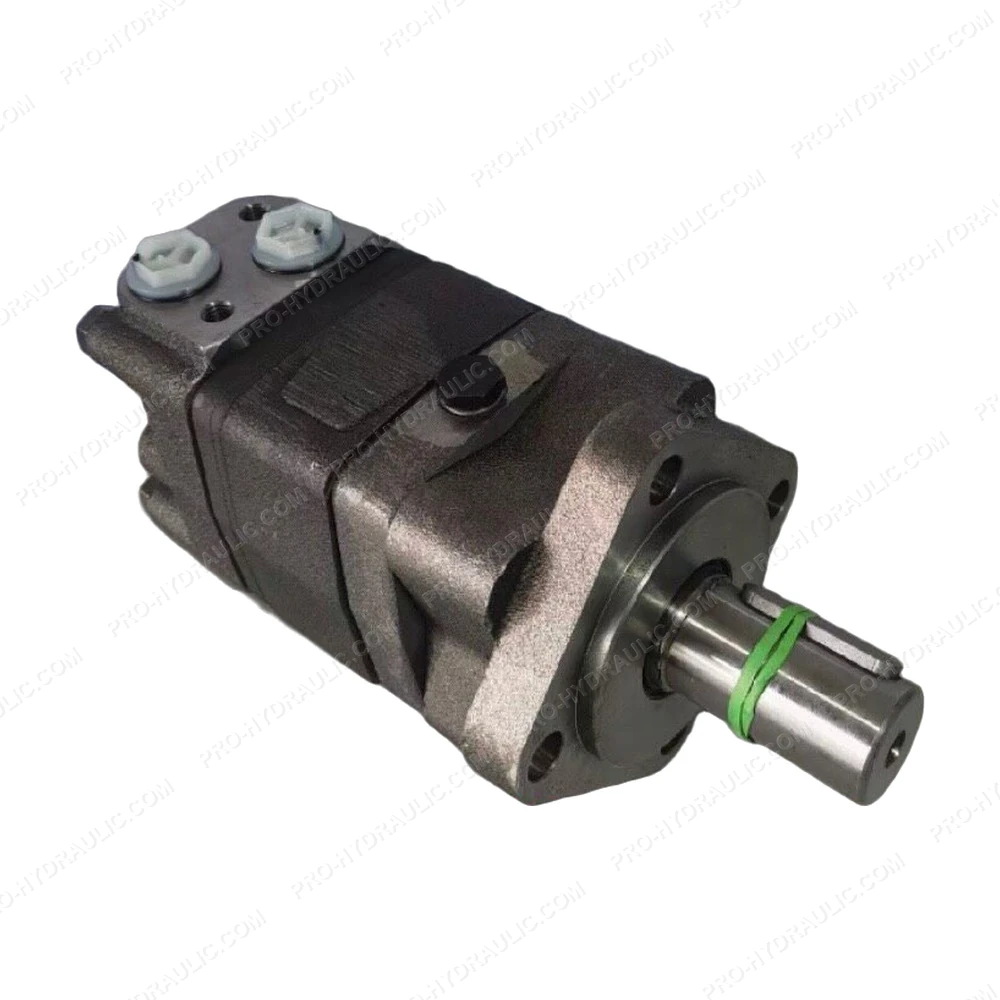

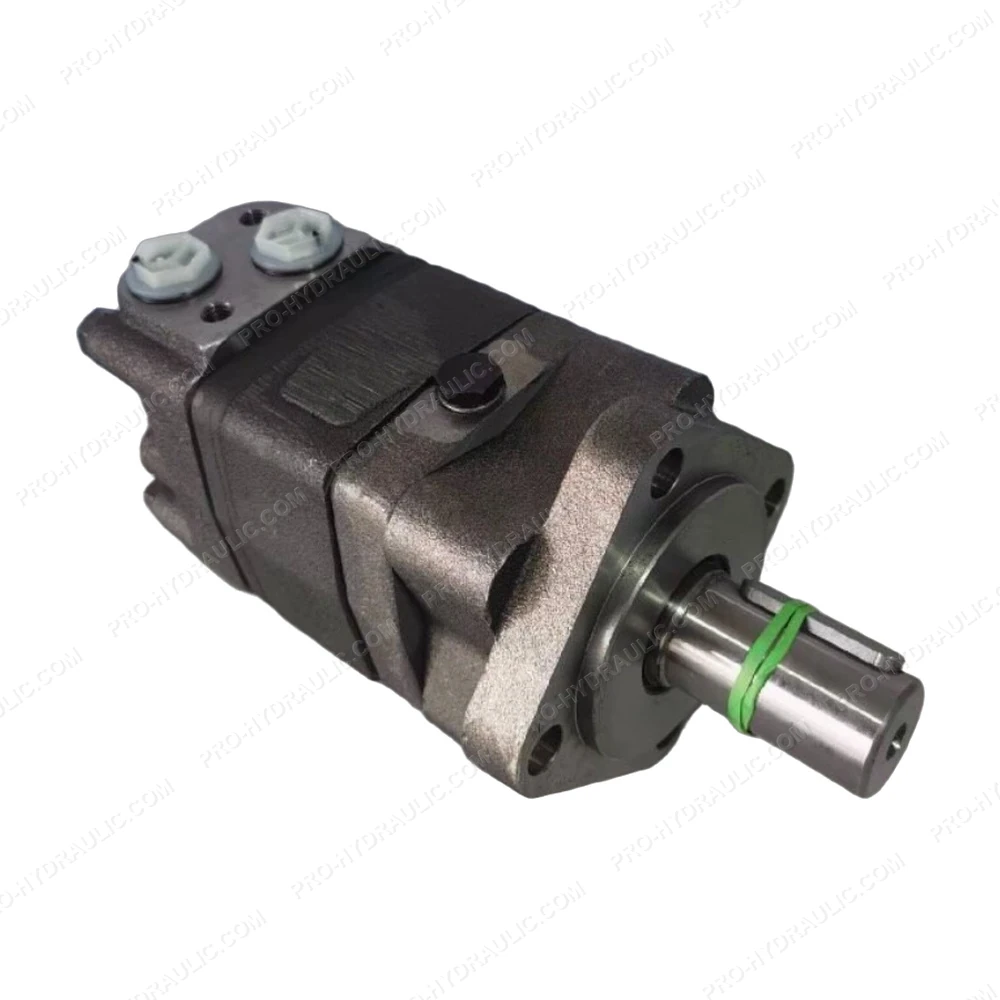

WHITE OMS 250 / 151F0505 Hydraulic Orbital Motor
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine WHITE OMS 250 / 151F0505 Hydraulic Motor. This US-made high-torque hydraulic component features a gerotor/gerolor design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
