Product Overview
The WHITE OMS 315 (Part Number: 151F0506) is a high-torque, low-speed hydraulic orbital motor engineered by White Hydraulics (now part of the Danfoss Power Solutions portfolio). This motor operates on the proven gerotor/gerolor orbital principle, where pressurized hydraulic fluid drives an internal gear set to produce smooth, high-torque rotation at low speeds. The OMS series is specifically designed for heavy-duty industrial and mobile applications requiring reliable starting torque, excellent volumetric efficiency, and the ability to withstand high radial and axial shaft loads. With a displacement of 315 cc/rev, this model delivers substantial torque output suitable for direct-drive and heavy-load positioning tasks in demanding hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Orbital Motor (Low-Speed, High-Torque) |
| Model Designation | WHITE OMS 315 / 151F0506 |
| Displacement | 315 cc/rev (19.2 cu in/rev) |
| Operating Pressure | Continuous: up to 175 bar (2,540 psi); Intermittent: up to 225 bar (3,260 psi); Peak: up to 275 bar (3,990 psi) |
| Torque Output | Continuous: approx. 780 Nm at 175 bar; Intermittent: approx. 1,000 Nm at 225 bar |
| Speed Range | Continuous: up to 250 rpm; Intermittent: up to 350 rpm |
| Mounting & Connection | Standard SAE 4-bolt flange (Ø 82.5 mm pilot); 1-1/4″ BSPP or SAE ports; 35 mm keyed shaft (standard) |
| Shaft Load Capacity | Max radial: 6,500 N; Max axial: 3,500 N (at shaft end) |
| Oil Temperature Range | -20°C to +80°C (continuous), up to +90°C intermittent |
| Filtration Requirement | ISO 4406 20/18/15 or better (10 µm nominal) |
Engineering Features & Advantages
- High Starting Torque: The orbital gerotor/gerolor design delivers exceptional breakaway torque, ensuring reliable startup under full load conditions without stalling — ideal for heavy-duty winching, auger drives, and conveyor systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original WHITE specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The OMS series is specifically designed for heavy-duty industrial and mobile applications requiring reliable starting torque, excellent volumetric efficiency, and the ability to withstand high radial and axial shaft loads.
PRODUCT IMAGES

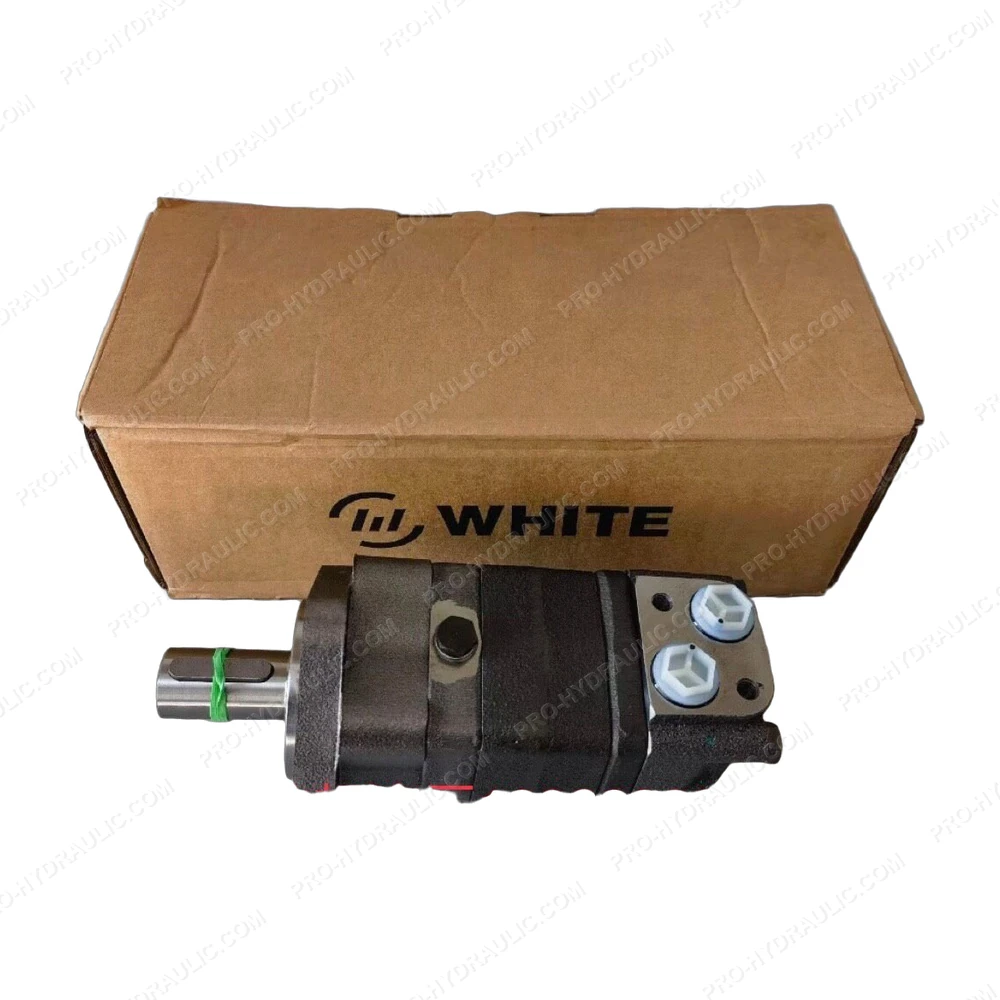

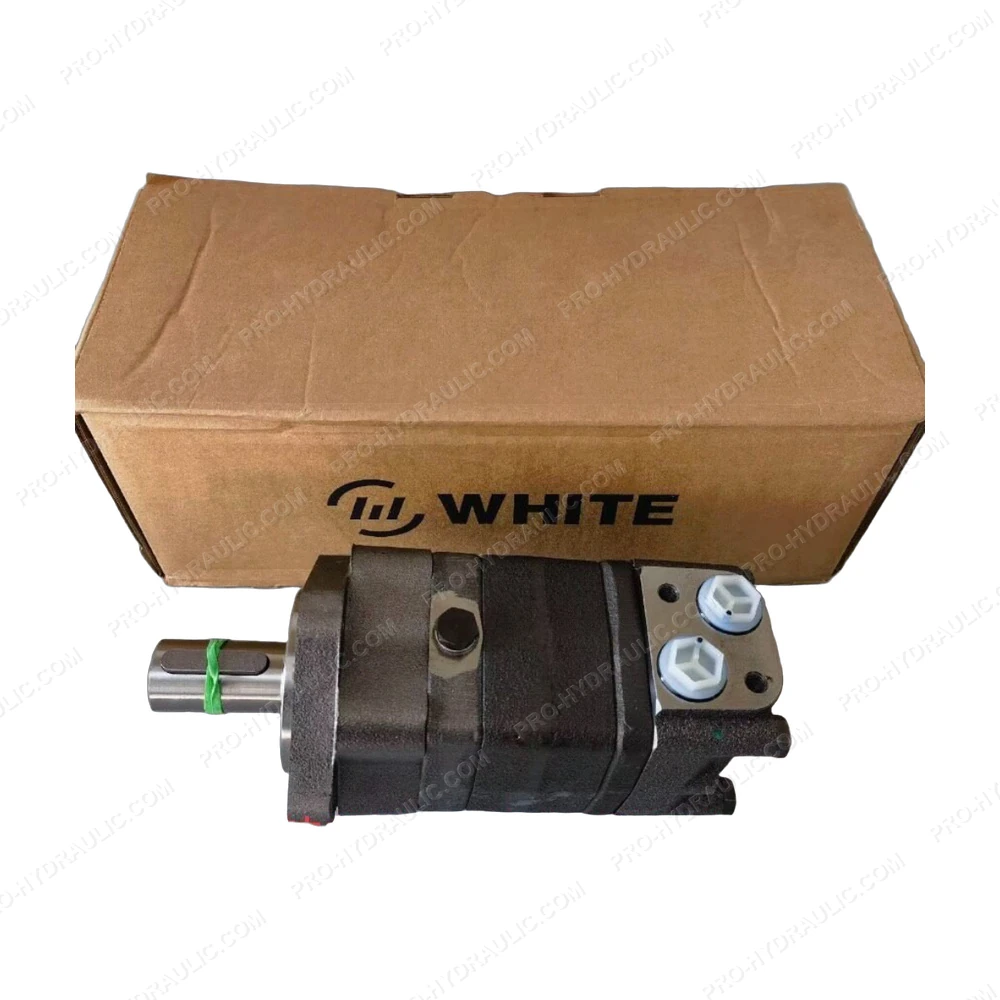

WHITE OMS 315 / 151F0506 Hydraulic Orbital Motor
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine WHITE OMS 315 / 151F0506 Hydraulic Motor. This US-made high-torque hydraulic component features a gerotor/geroler design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
