Product Overview
The WHITE OMS 315 (Part Number: 151F0548) is a high-torque, low-speed hydraulic orbital motor engineered by the White Drive Products division of Danfoss Power Solutions. Operating on the proven gerotor/geroler orbital displacement principle, this motor converts hydraulic fluid power into reliable rotational mechanical output without the need for gearboxes or speed reduction devices. The OMS series is specifically designed to deliver smooth, high-torque performance at low speeds, making the 315 displacement variant an ideal choice for heavy-duty industrial applications requiring direct-drive capability, high starting torque, and exceptional resistance to shock loads. As a direct-fit replacement for OEM part number 151F0548, it ensures seamless integration into existing hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Orbital Motor (Geroler / Low-Speed High-Torque) |
| Model Designation | OMS 315 / 151F0548 |
| Geometric Displacement | 315 cc/rev (approx. 19.2 cu.in/rev) |
| Operating Pressure | Continuous: up to 175 bar (2537 psi) / Intermittent: up to 210 bar (3045 psi) |
| Peak Pressure | Up to 240 bar (3480 psi) for shock load tolerance |
| Torque Output | Continuous: approx. 780 Nm at 175 bar / Intermittent: approx. 940 Nm at 210 bar |
| Speed Range | Continuous: 5 – 250 RPM (dependent on flow and load) |
| Mounting & Connection | Standard SAE 4-bolt flange, 1/2″ BSPP or SAE ports (OEM configuration) |
| Shaft Type | Standard 1-1/4″ straight keyed shaft (or OEM specified) |
| Direction of Rotation | Bi-directional (reversible) |
Engineering Features & Advantages
- High Starting Torque: The advanced Geroler gear set design provides exceptional starting torque and smooth operation even at very low speeds, eliminating the need for additional reduction gearing.
- Robust Construction: Features a high-strength cast iron housing and a patented shaft seal and bearing system that withstands high radial and axial loads, ensuring long service life in demanding environments.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original WHITE standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The OMS series is specifically designed to deliver smooth, high-torque performance at low speeds, making the 315 displacement variant an ideal choice for heavy-duty industrial applications requiring direct-drive capability, high starting torque, and exceptional resistance to shock loads.
PRODUCT IMAGES

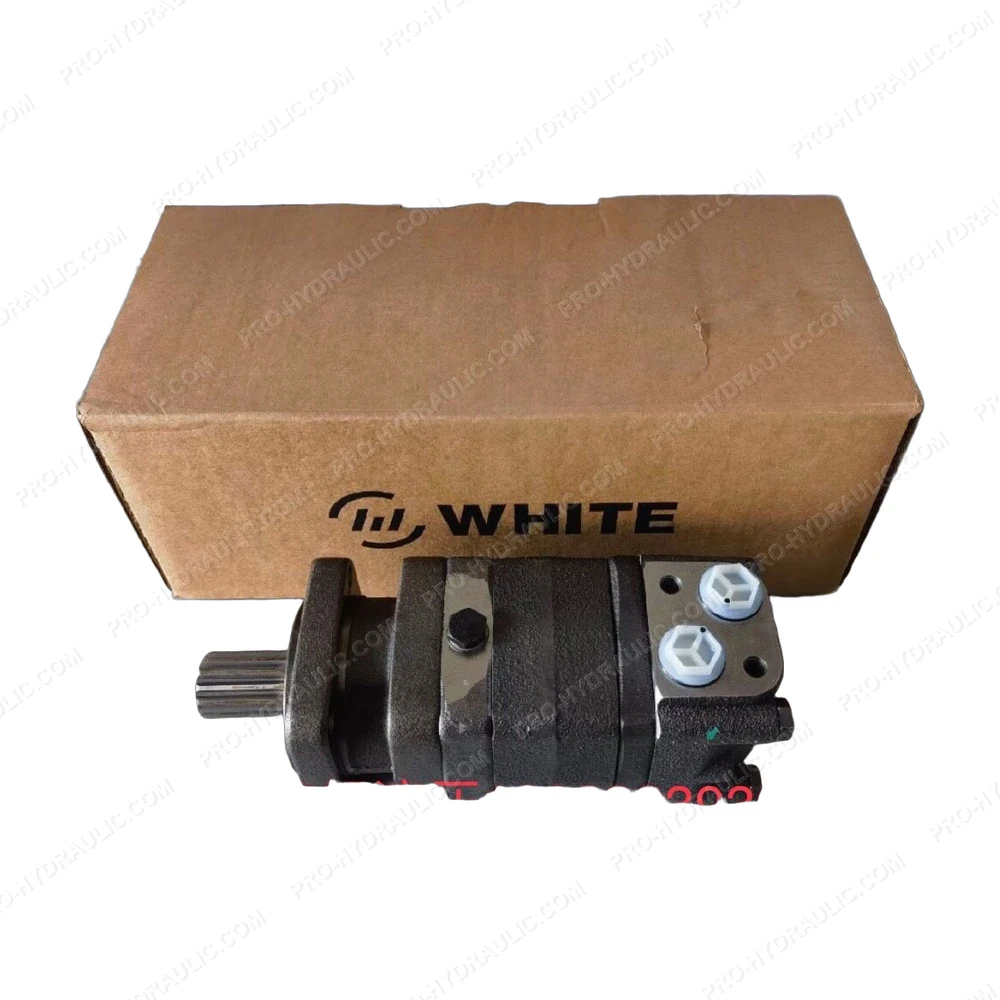

WHITE OMS 315 / 151F0548 Hydraulic Orbital Motor
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine WHITE OMS 315 / 151F0548 Hydraulic Motor. This US-made high-torque hydraulic component features a gerotor/geroler design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
