Product Overview
The YTC YT-1000RDN132H00 is a high-precision electro-pneumatic valve positioner manufactured by Young Tech Co., Ltd. (YTC), a globally recognized brand in valve automation and control instrumentation. This unit receives a standard electrical input signal (typically 4–20 mA DC) and precisely modulates a pneumatic actuator’s supply air to position a control valve stem or rotary shaft in direct proportion to the command signal. As a core component in process control loops, the YT-1000R series positioner delivers accurate, repeatable valve positioning for throttling and on/off service, ensuring tight process control in demanding industrial environments. Its robust die-cast aluminum housing and advanced force-balance feedback mechanism make it a reliable choice for both linear and rotary valve applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Valve Positioner (Automation & Control Instrument) |
| Model Designation | YT-1000RDN132H00 |
| Input Signal | 4–20 mA DC (standard); split-range configurable |
| Supply Air Pressure | 1.4–7.0 bar (20–100 psi), filtered dry air |
| Action Type | Single-acting, direct or reverse acting (field selectable) |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Air Connection | 1/4″ NPT (standard) |
| Gauge Connection | 1/8″ NPT |
| Enclosure Protection | IP66 / NEMA 4X (weatherproof, corrosion-resistant) |
| Housing Material | Die-cast aluminum with polyester powder coating |
| Mounting & Connection | Standard IEC 60534 / NAMUR interface for linear and rotary actuators |
| Feedback Type | Mechanical force-balance with torque motor / nozzle-flapper pilot |
Engineering Features & Advantages
- Precision Performance: The electro-pneumatic valve positioner (automation & control instrument) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YTC OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings of 1.4–7.0 bar (20–100 psi), filtered dry air, supporting stable operation across the full working range.
Typical Industrial Applications
Its robust die-cast aluminum housing and advanced force-balance feedback mechanism make it a reliable choice for both linear and rotary valve applications.
PRODUCT IMAGES

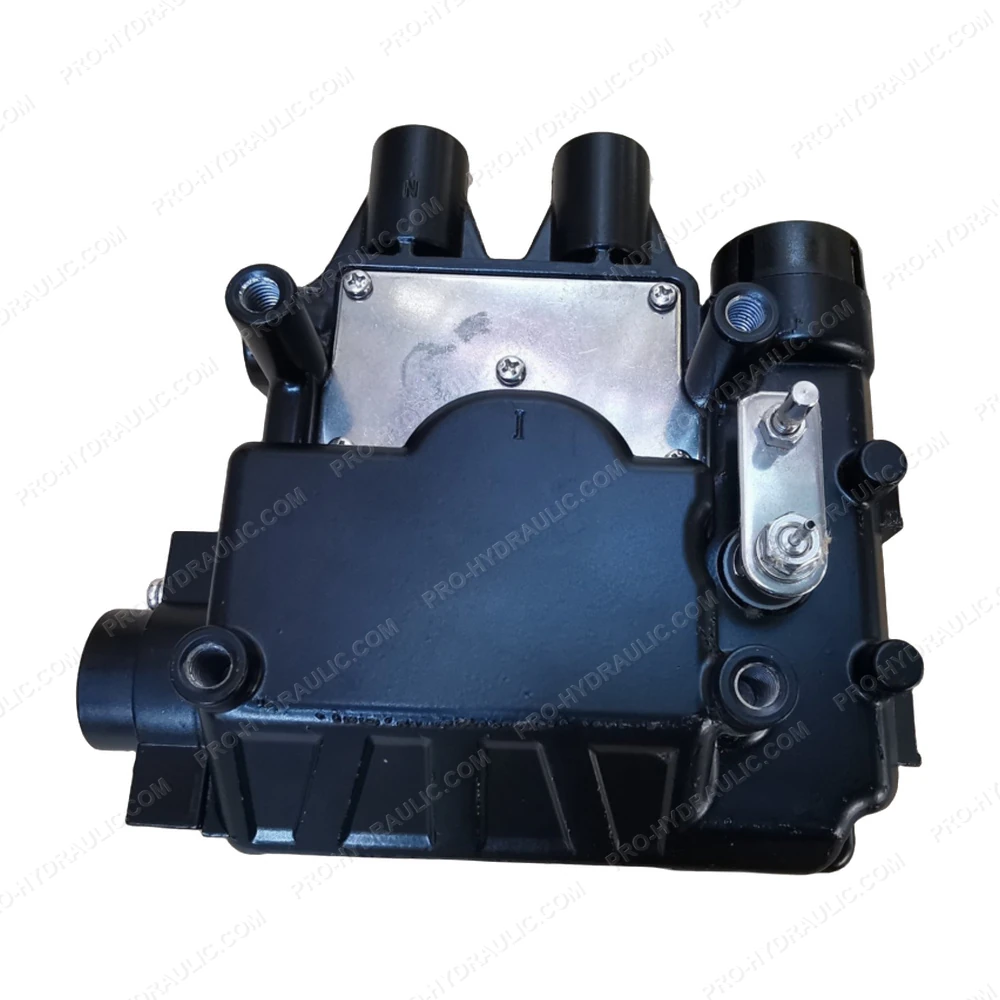

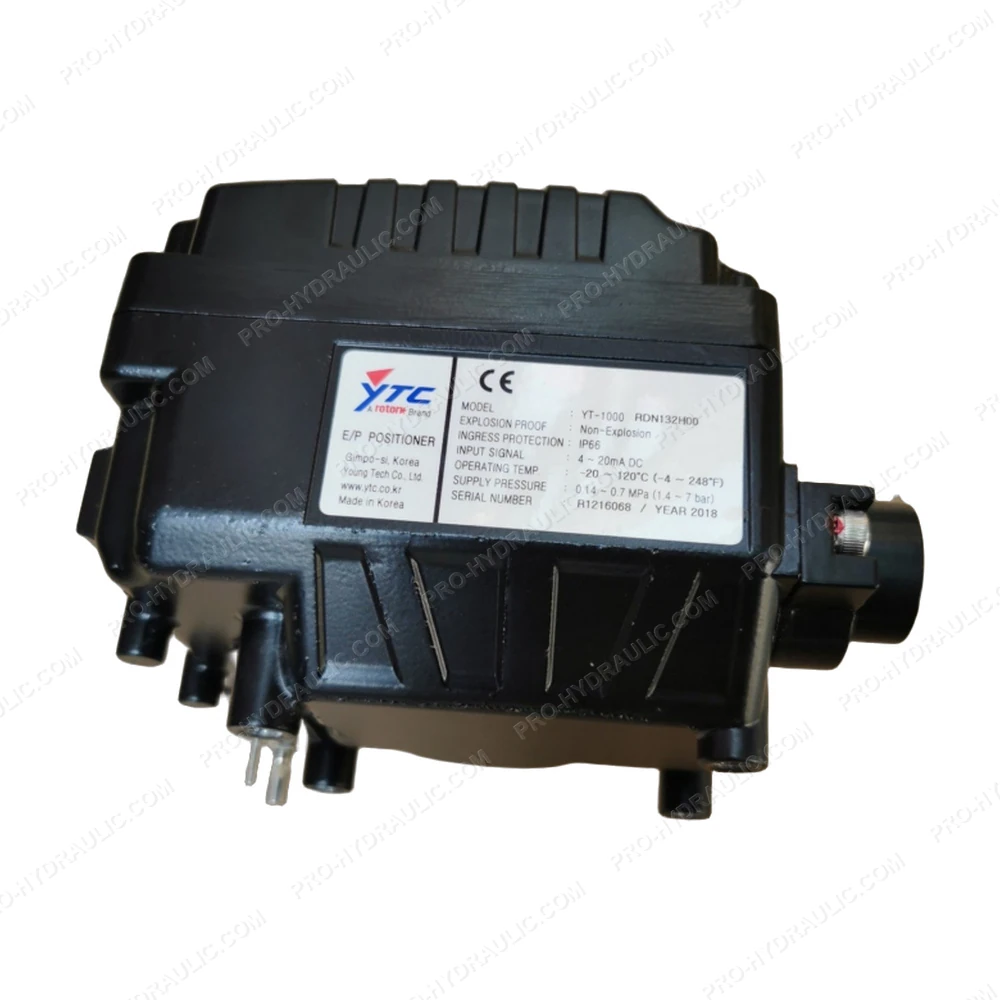

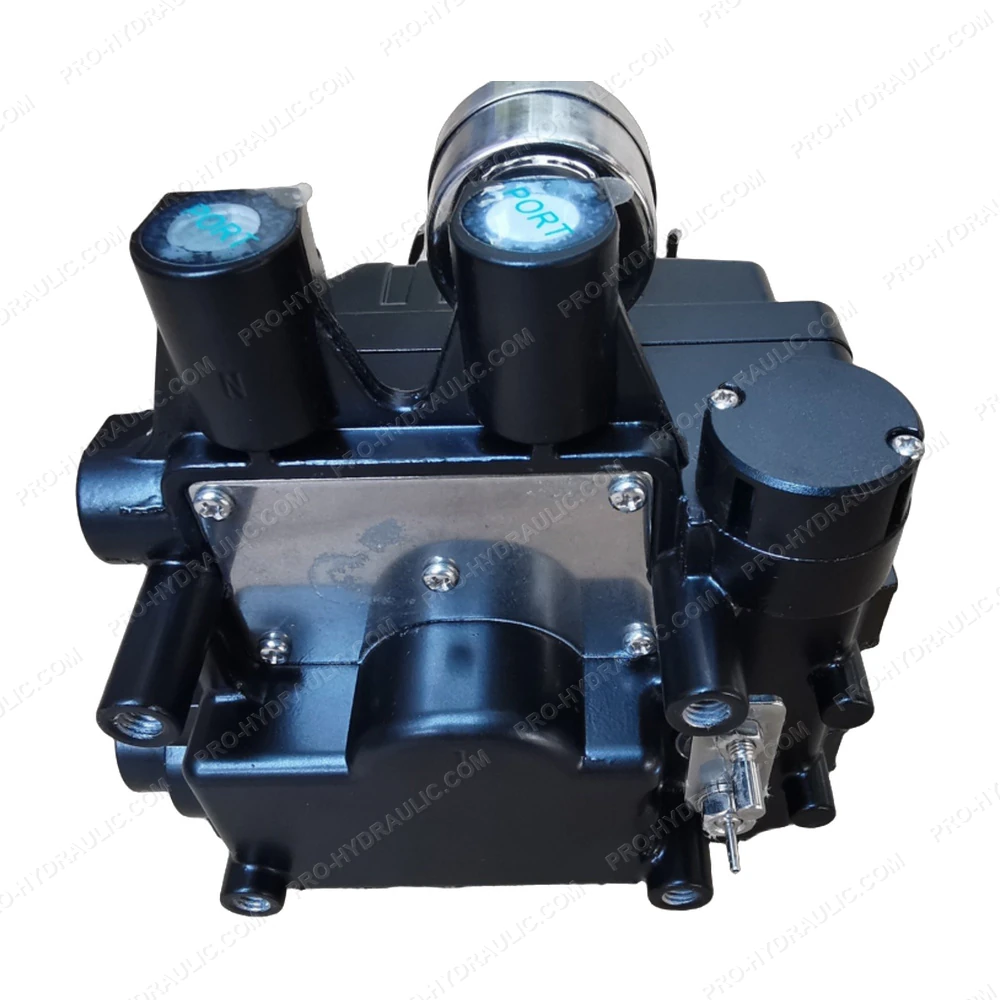

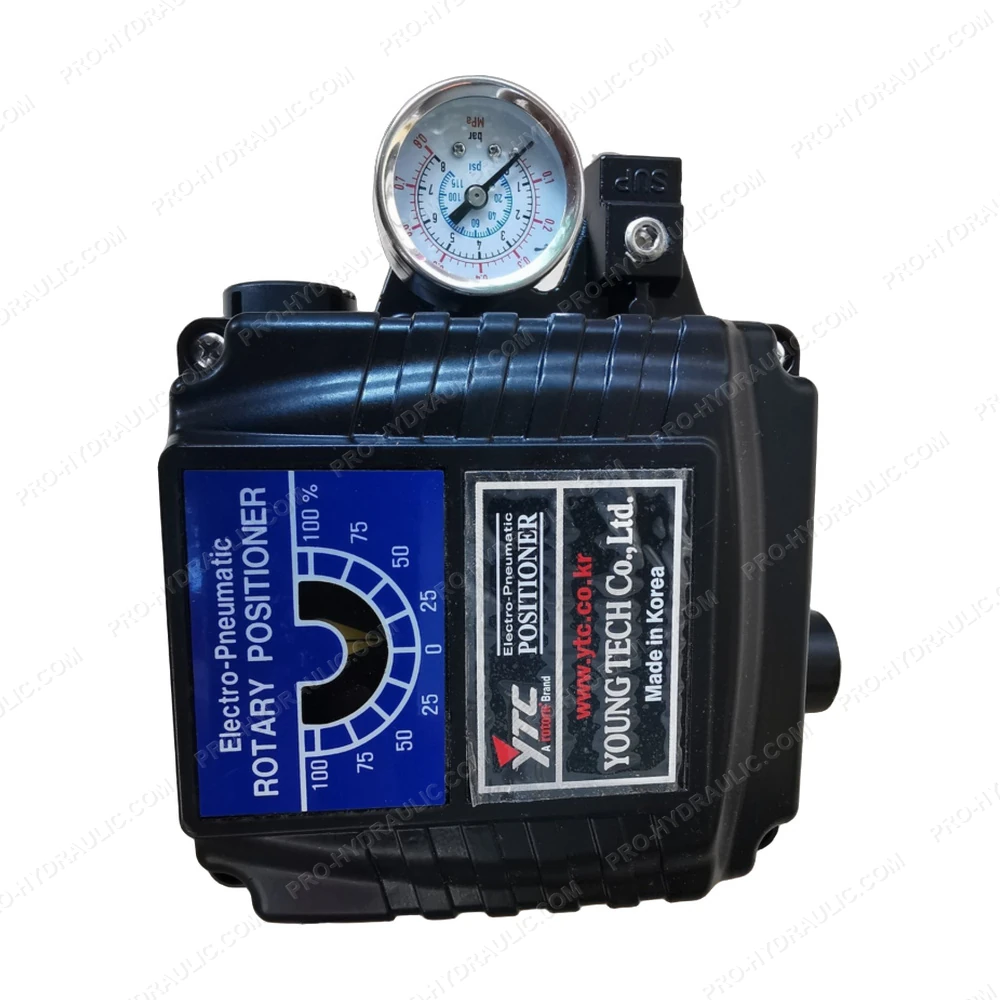

YTC YT-1000RDN132H00 Electro-Pneumatic Valve Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YTC YT-1000RDN132H00 Electro-Pneumatic Valve Positioner. This Korea-made 4-20mA hydraulic component features a force-balance design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
