Product Overview
The YUKEN A16-F-R-01-B-K-32 is a variable displacement axial piston pump from the YUKEN A Series, engineered for high-pressure industrial hydraulic systems requiring precise flow control and energy-efficient operation. Utilizing an inclined swashplate working principle, the pump converts rotary mechanical input into hydraulic power through a set of axial pistons reciprocating within a cylinder barrel. Displacement is varied by adjusting the swashplate angle, allowing stepless modulation of output flow to match system demand. The “F” designation indicates a pressure-compensated (pressure-controlled) displacement control, “R” denotes clockwise rotation, and the “01” control variant provides reliable pressure cut-off behavior for demanding duty cycles. This pump is a direct-fit replacement for OEM YUKEN A16 installations and is widely deployed in plastic injection molding machines, metallurgical equipment, and precision machine tools where stable pressure and quiet operation are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Piston Pump (Variable Displacement Axial Piston) |
| Model Designation | YUKEN A16-F-R-01-B-K-32 |
| Displacement | 16 cm³/rev nominal (A16 frame size) |
| Working Principle | Inclined swashplate, axial piston, variable displacement |
| Displacement Control | Pressure-compensated (F type) with 01 control variant |
| Rotation Direction | Clockwise (R) viewed from shaft end |
| Operating Pressure | Standard Industrial Grade (up to rated bar per A Series) |
| Mounting & Connection | Standard ISO / YUKEN A Series flange and port interface |
| Shaft Configuration | Keyed straight shaft (B designation) |
Engineering Features & Advantages
- Precision Performance: The inclined swashplate axial piston design delivers smooth, stepless flow adjustment with high volumetric efficiency, enabling accurate pressure and flow matching across the full operating range.
- Pressure-Compensated Control: The F-type pressure control automatically reduces displacement as system pressure approaches the set point, minimizing heat generation and power consumption during holding phases.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust cylinder barrel, piston shoe, and valve plate construction for long service life.
- Low Noise & Low Pulsation: Optimized porting and piston timing reduce pressure ripple and audible noise, ideal for precision machine tool and injection molding environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This pump is a direct-fit replacement for OEM YUKEN A16 installations and is widely deployed in plastic injection molding machines, metallurgical equipment, and precision machine tools where stable pressure and quiet operation are critical.
PRODUCT IMAGES

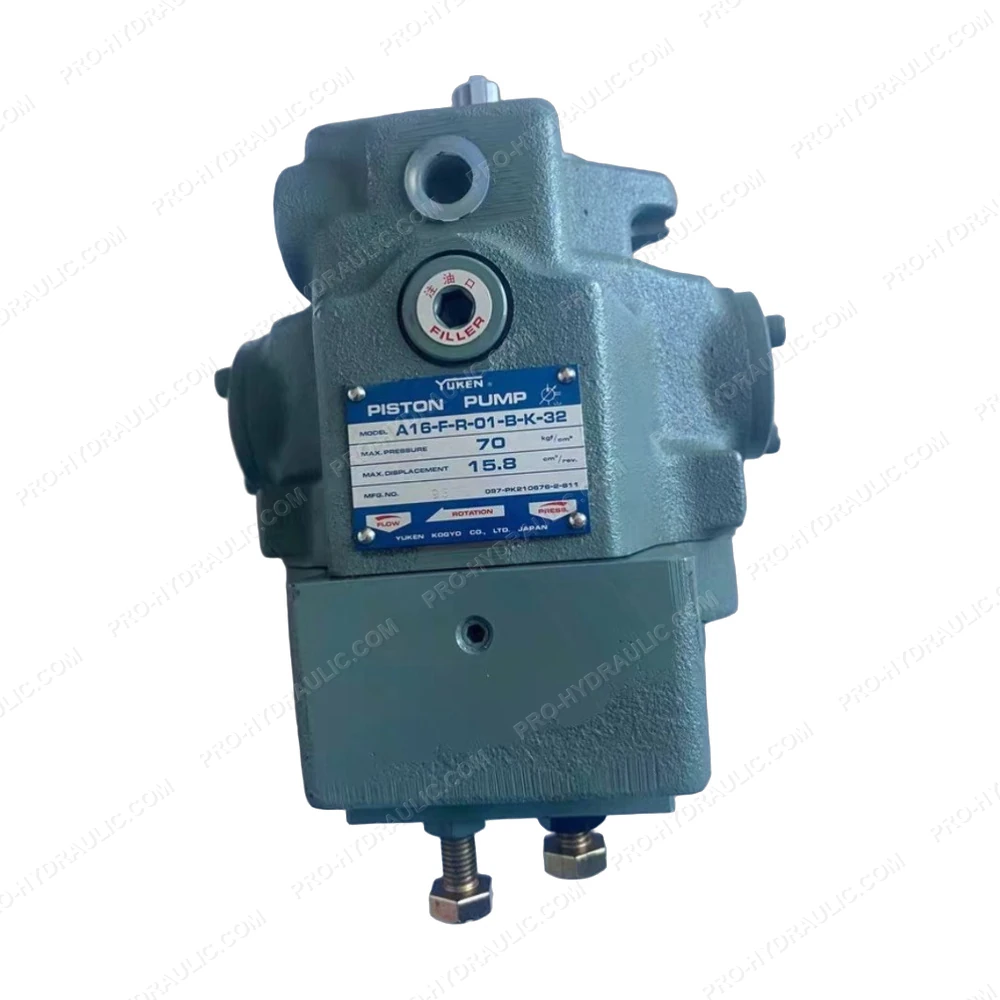

YUKEN A16-F-R-01-B-K-32 Variable Displacement Axial Piston Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN A16-F-R-01-B-K-32 Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a spring-centered, pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
