Product Overview
The YUKEN A37-F-R-01-C-K-32 is a variable displacement axial piston pump engineered by YUKEN, a globally recognized manufacturer of high-performance hydraulic components. Operating on the proven swashplate principle, this pump delivers infinitely variable flow output by adjusting the angle of the swashplate, which in turn modulates the stroke of the axial pistons within the cylinder barrel. This design enables precise control of actuator speed and force without the need for energy-wasting throttling. The A37-F-R-01-C-K-32 is a compact, high-pressure pump ideally suited for demanding industrial hydraulic systems where efficiency, responsiveness, and reliable continuous operation are critical. Its model code indicates a specific displacement size, mounting configuration, pressure rating, and control type, making it a direct-fit solution for a wide range of OEM and retrofit applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Piston Pump (Variable Displacement, Axial) |
| Model Designation | A37-F-R-01-C-K-32 |
| Operating Pressure | Standard Industrial Grade (Up to 280 bar continuous, 350 bar peak) |
| Mounting & Connection | Standard ISO / YUKEN Interface (SAE flange or threaded ports) |
| Displacement | 37 cm³/rev nominal (variable) |
| Control Type | Pressure compensated / load sensing (as per model code) |
| Rotation | Clockwise (viewed from shaft end) |
| Shaft Type | Straight keyed (standard) |
Engineering Features & Advantages
- Precision Performance: The axial piston swashplate design provides high volumetric efficiency and precise flow control, enabling smooth acceleration and deceleration of actuators with minimal pressure loss.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust bearings and hardened piston/cylinder interfaces ensuring long service life even at elevated pressures.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN A37 series pumps, allowing drop-in replacement without modification to existing manifolds or drive couplings.
- Variable Displacement Control: Multiple control options (pressure, flow, load sensing) allow the pump to match system demand, reducing heat generation and energy consumption.
- Low Noise Operation: Optimized porting and rigid construction minimize pressure pulsations and noise, improving workplace conditions.
Typical Industrial Applications
This pump is widely used in heavy industrial scenarios such as plastic injection molding machines, metallurgical presses, construction and marine hydraulics, CNC machine tools, and other high-pressure hydraulic systems requiring variable flow and precise pressure control.
PRODUCT IMAGES

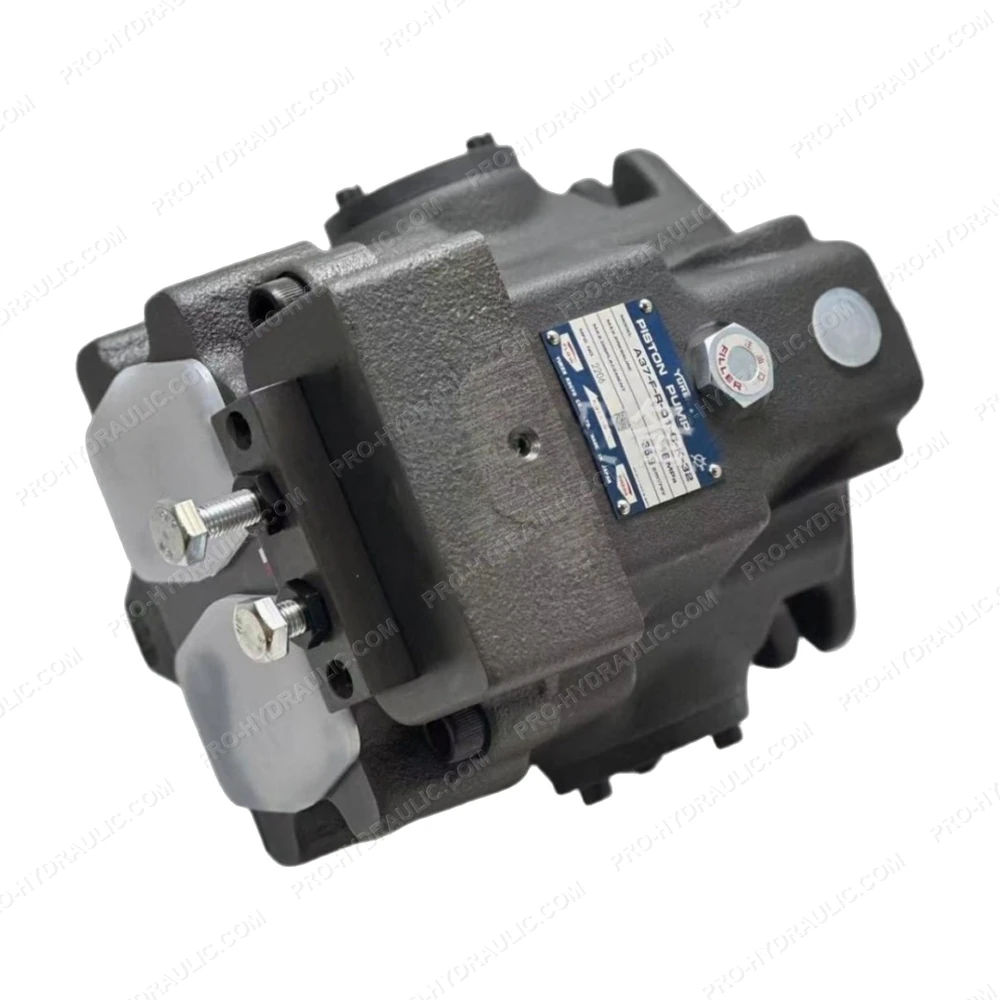

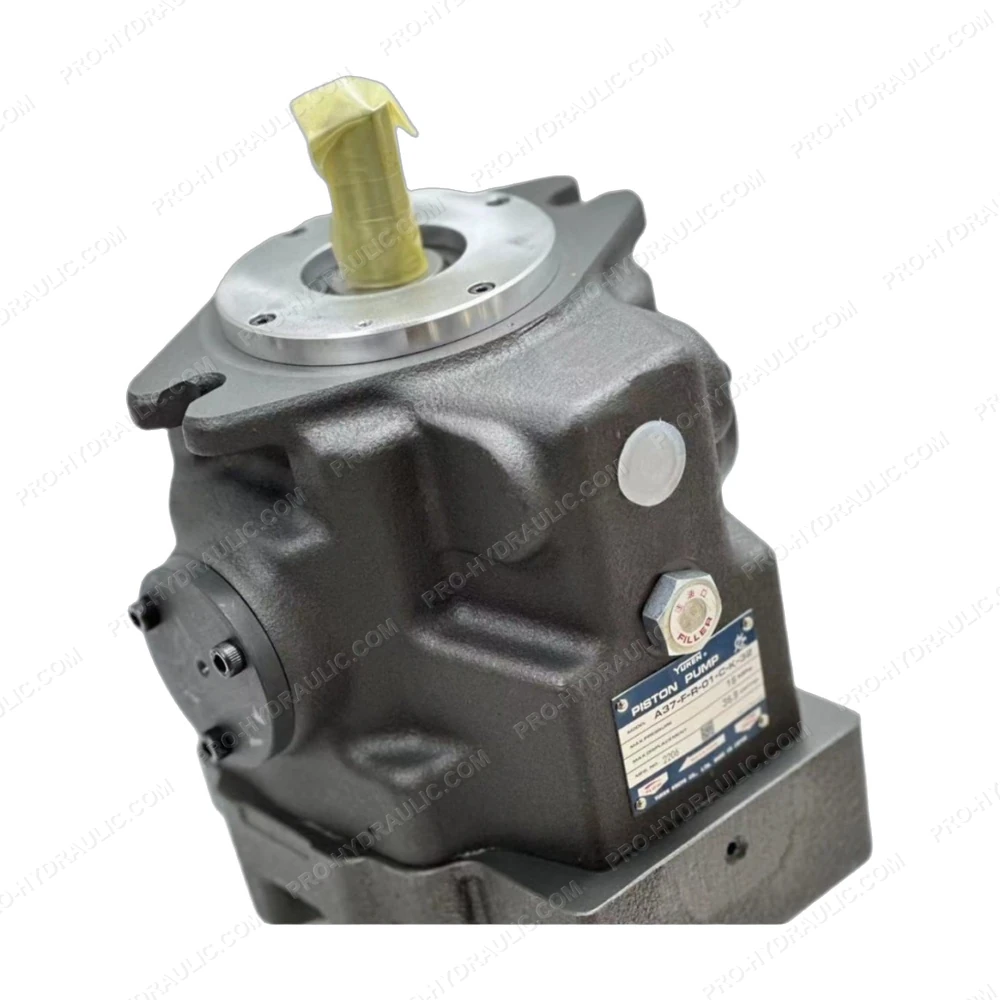

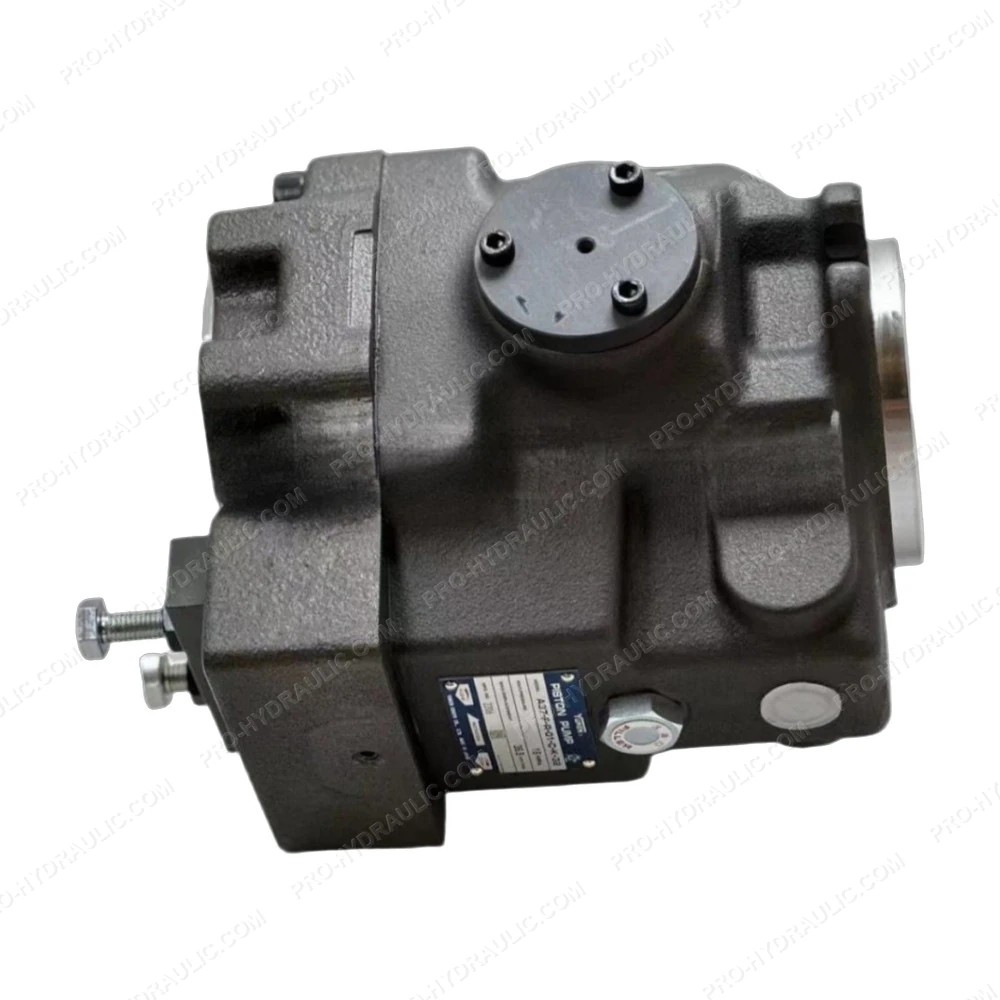

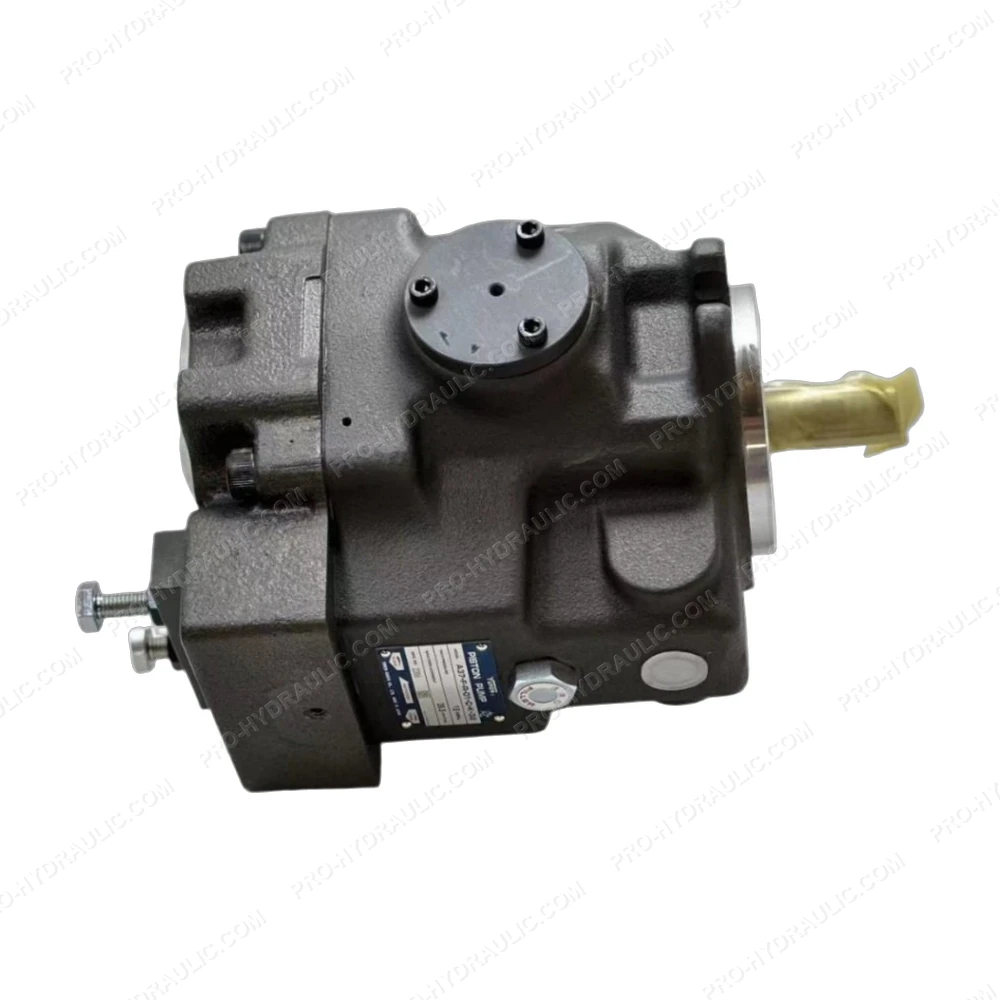

YUKEN A37-F-R-01-C-K-32 Variable Displacement Axial Piston Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN A37-F-R-01-C-K-32 Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a spring-centered, pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
