Product Overview
The YUKEN AR16-FR01B-22 is a variable displacement axial piston pump engineered for high-pressure industrial hydraulic systems requiring precise flow control and energy-efficient operation. Manufactured by YUKEN, a globally recognized leader in hydraulic technology, this pump utilizes an axial piston design with a swashplate mechanism that allows stepless adjustment of displacement to match system demand. The AR16-FR01B-22 is a pressure-compensated, variable volume pump that automatically adjusts its output flow based on load pressure, reducing power consumption and heat generation in continuous-duty applications. With a nominal displacement of 16 cm³/rev, this model is widely deployed in plastic injection molding machines, hydraulic presses, and precision machine tools where accurate pressure and flow regulation are critical to process quality and system longevity.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Variable Displacement Axial Piston Pump |
| Model Designation | AR16-FR01B-22 |
| Nominal Displacement | 16 cm³/rev |
| Operating Pressure | Up to 210 bar (rated), 250 bar (peak) |
| Control Type | Pressure Compensator (FR01B) |
| Mounting & Connection | Standard ISO / YUKEN Flange Interface |
| Rotation | Clockwise (viewed from shaft end) |
Engineering Features & Advantages
- Precision Performance: The axial piston swashplate design delivers smooth, stepless displacement control with minimal pressure ripple, ensuring stable actuator movement and repeatable process outcomes in high-cycle industrial machinery.
- Energy-Efficient Pressure Compensation: The FR01B pressure compensator automatically reduces pump displacement as system pressure approaches the set point, minimizing power loss and fluid heating during holding or idle phases.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust bearings, hardened piston shoes, and a durable valve plate that extend service life even in high-duty-cycle environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN AR16 series mounting and port standards, enabling drop-in replacement without system modification.
Typical Industrial Applications
This pump is commonly specified in plastic injection molding machines, metallurgical presses, CNC machine tools, and construction & marine hydraulic systems where variable flow and precise pressure control are essential for productivity and energy savings.
PRODUCT IMAGES

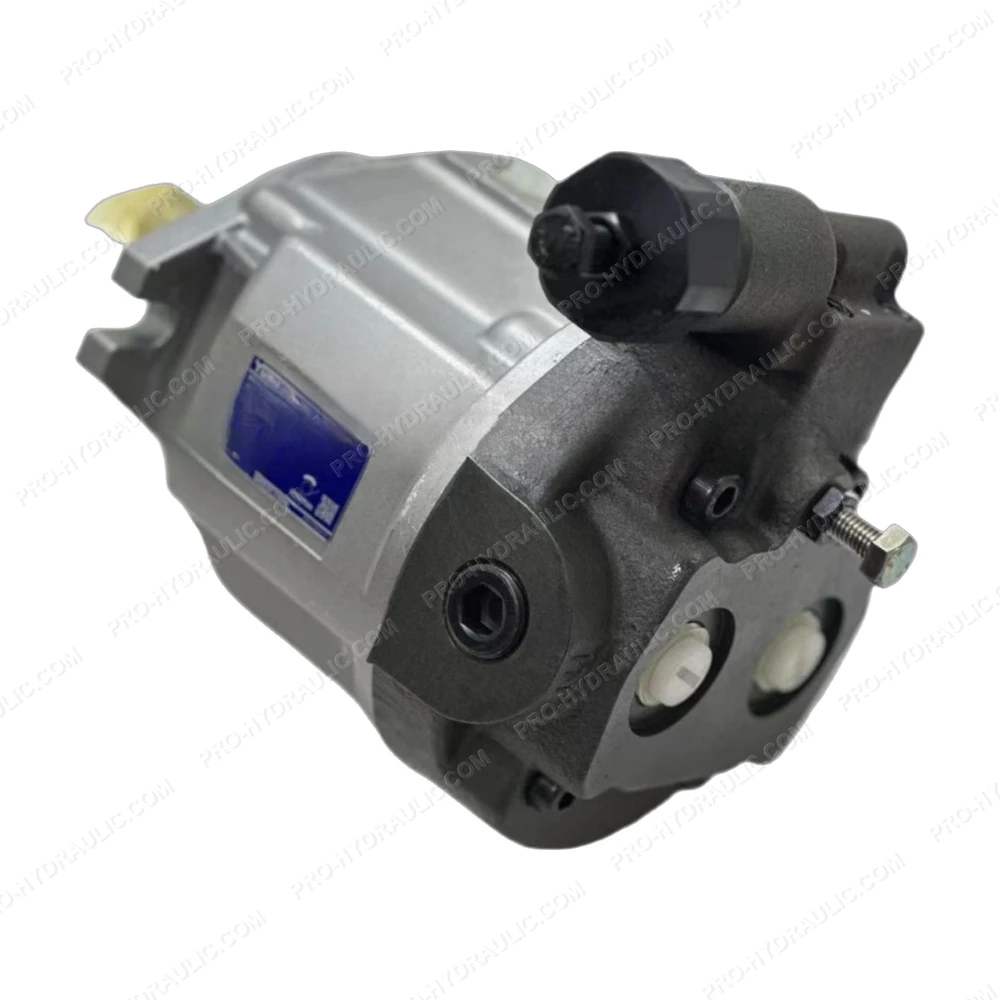

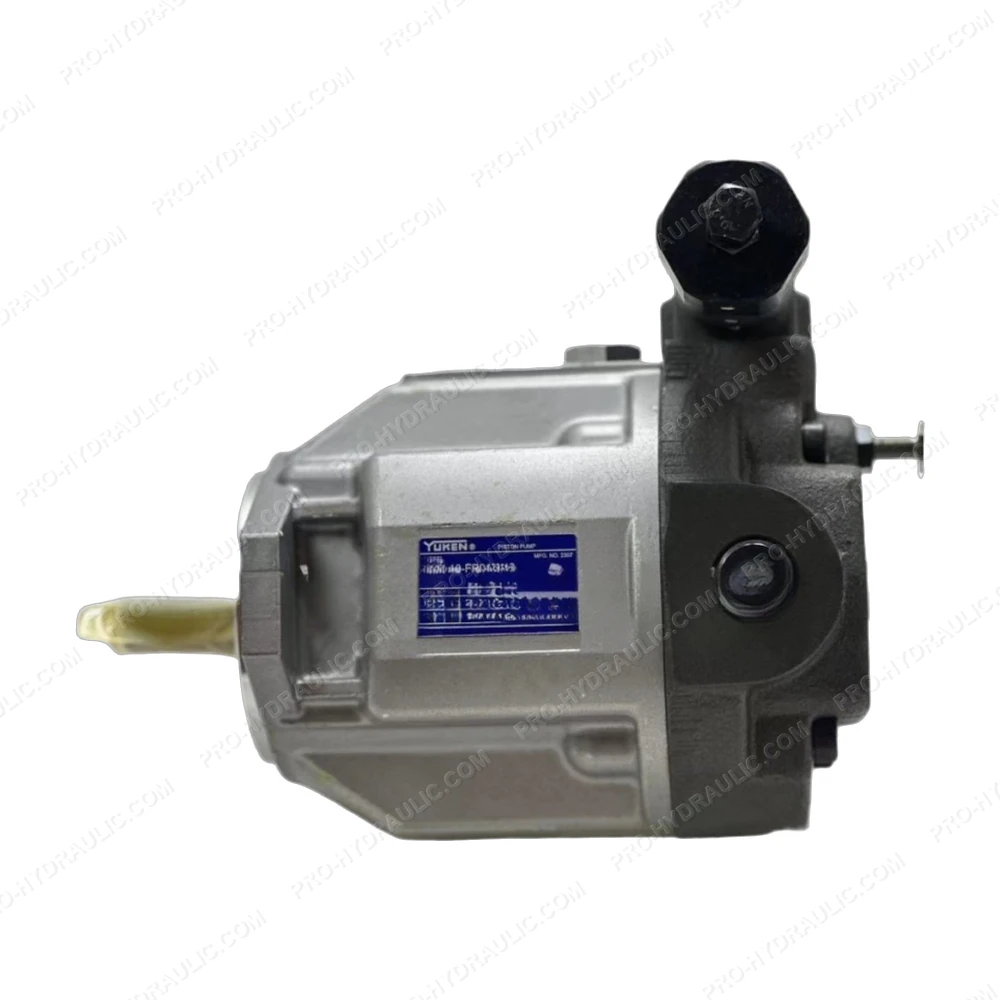

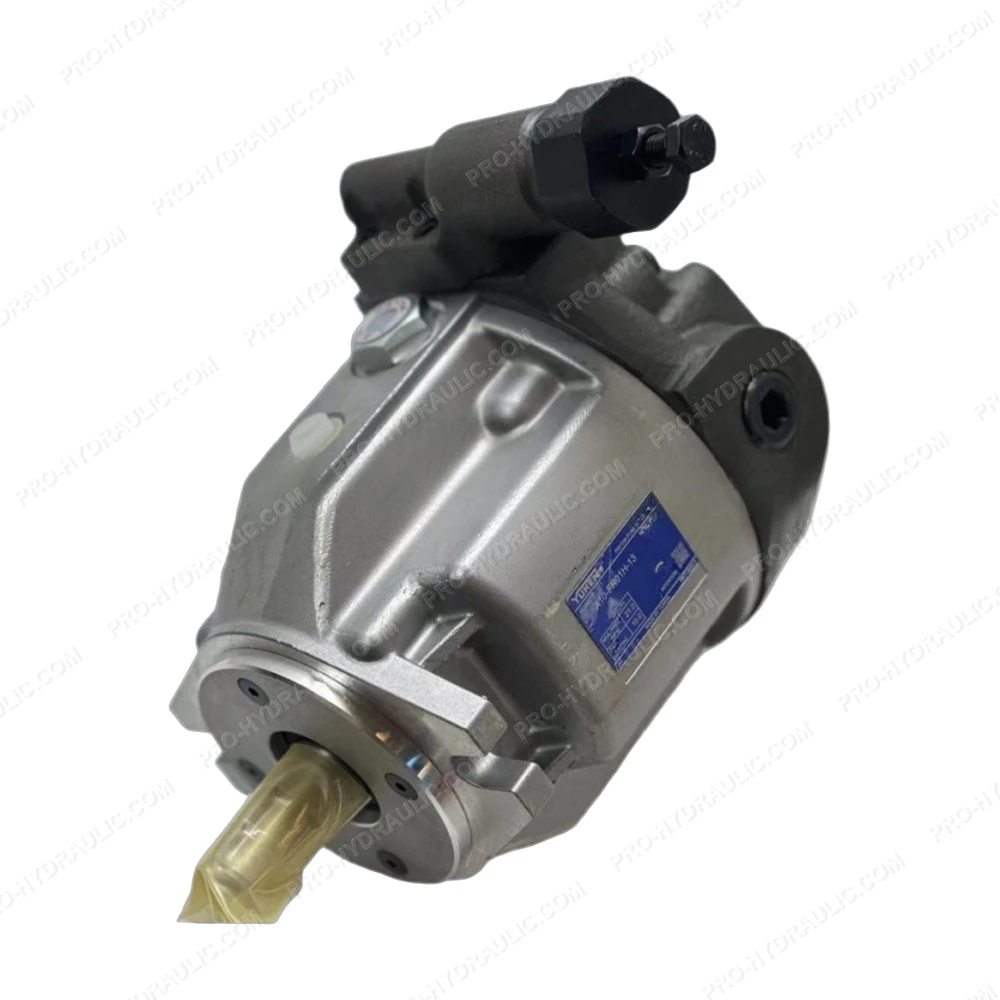

YUKEN AR16-FR01B-22 Variable Displacement Axial Piston Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN AR16-FR01B-22 Pressure Control Valve. This Japan-made hydraulic component features a direct-acting relief design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
