Product Overview
The YUKEN AR22-FR01C-22 is a high-performance variable displacement axial piston pump engineered by YUKEN, a globally recognized leader in hydraulic technology. Utilizing a precision swashplate design, this pump delivers infinitely variable flow control by adjusting the angle of the swashplate, which in turn alters the stroke length of the axial pistons within the cylinder barrel. This model is specifically configured for open-loop industrial hydraulic systems requiring high pressure, precise flow modulation, and superior volumetric efficiency. The AR22 series is renowned for its robust construction, low noise operation, and ability to maintain stable performance under continuous heavy-duty cycles, making it a critical component in complex hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Piston Pump (Variable Displacement Axial) |
| Model Designation | AR22-FR01C-22 |
| Operating Pressure | Standard Industrial Grade (Up to 210 bar rated / 250 bar peak) |
| Mounting & Connection | Standard ISO / YUKEN Flange Interface (SAE Splined Shaft) |
| Displacement Control | Pressure Compensator / Remote Control (FR01C Type) |
| Theoretical Displacement | 22.0 cm³/rev (Nominal) |
Engineering Features & Advantages
- Precision Swashplate Performance: The axial piston design with a variable swashplate allows for precise, stepless adjustment of output flow, enabling exact matching of pump output to system demand for optimized energy efficiency.
- High-Pressure Capability: Engineered to withstand continuous high-pressure operation, the AR22 series utilizes heavy-duty bearings and a rigid cylinder barrel to ensure minimal internal leakage and long service life.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, featuring a robust casing and advanced hydrostatic balancing of the piston shoes to reduce wear and extend maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring seamless integration into existing hydraulic power units without modification.
Typical Industrial Applications
This variable displacement axial piston pump is ideally suited for high-cycle industrial environments including plastic injection molding machines, metallurgical presses, CNC machine tools, and construction & marine hydraulics. Its ability to maintain high pressure while varying flow makes it essential for systems requiring rapid response and precise force control.
PRODUCT IMAGES

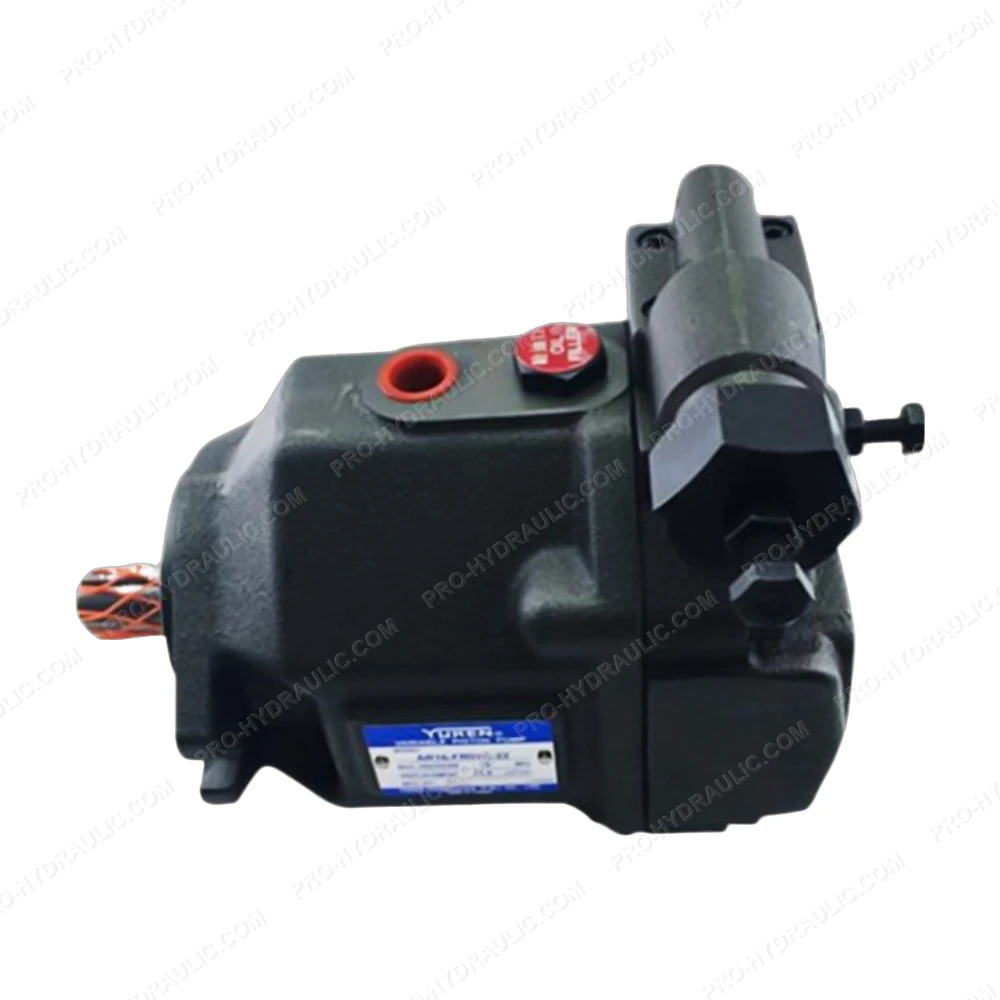

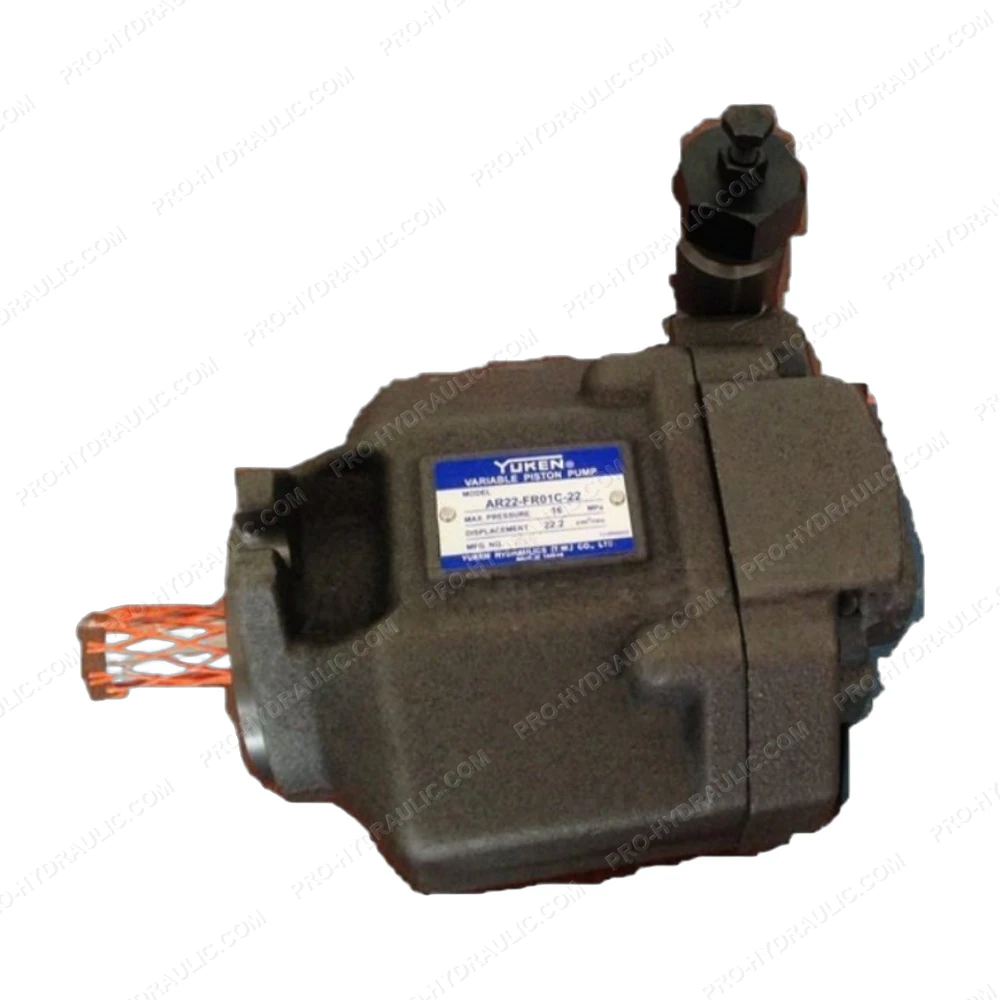

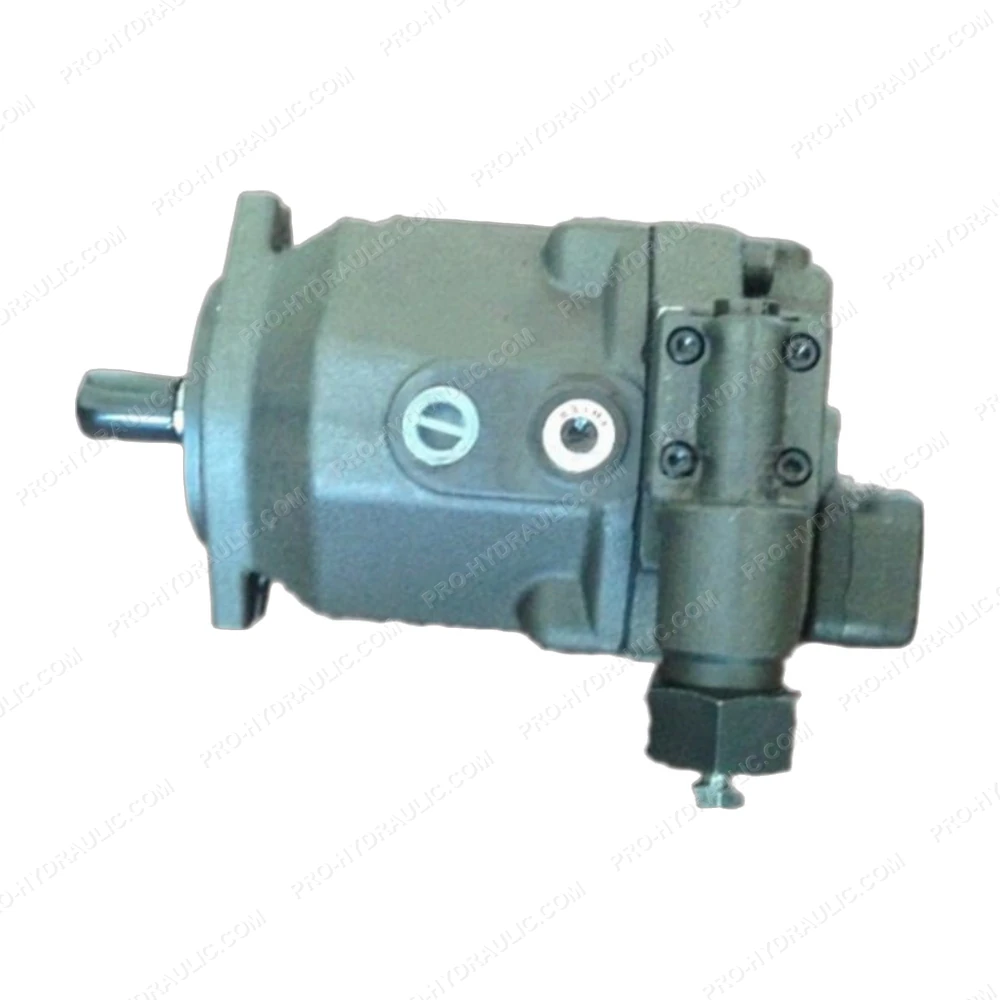

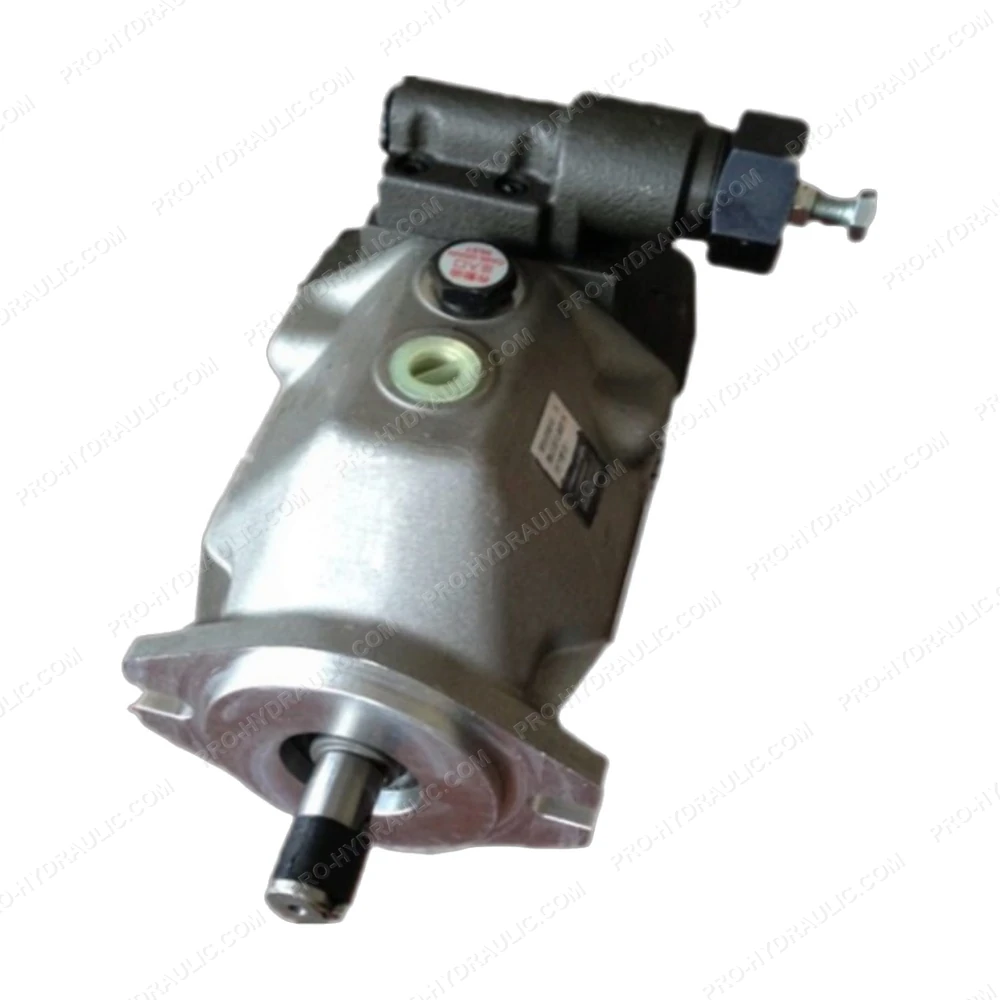

YUKEN AR22-FR01C-22 Variable Displacement Axial Piston Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN AR22-FR01C-22 Pressure Control Valve. This Japan-made hydraulic component features a direct-operated relief design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
