Product Overview
The YUKEN DSG-01-2B2-A110-50 is a solenoid operated directional control valve from Yuken’s DSG series, engineered for precise control of hydraulic fluid flow direction in industrial power units. This valve utilizes a wet-type AC solenoid to shift a hardened, precision-ground spool within the valve body, directing flow between ports according to the 2B2 spool configuration. Designed for subplate mounting in accordance with ISO 4401 / CETOP 3 / NFPA D03 interface standards, it serves as a critical control element in hydraulic circuits requiring reliable directional switching, holding, and load control. The DSG-01 series is widely recognized for its high flow capacity relative to size, low pressure drop, and long service life in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-01-2B2-A110-50 |
| Spool Type | 2B2 Configuration (Two-Position, Spring Offset, Closed Center) |
| Solenoid Voltage | AC 110V (A110 Coil Rating) |
| Maximum Operating Pressure | Up to 315 bar (Rated for P, A, B Ports) |
| Maximum Flow Rate | Up to 63 L/min (Nominal) |
| Mounting Interface | ISO 4401-03 / CETOP 3 / NFPA D03 Subplate Mounting |
| Port Connections | P, T, A, B Ports via Subplate (Manifold Mounted) |
| Electrical Connection | DIN 43650 Standard Connector |
| Seal Material | NBR (Buna-N) Standard; FKM Optional |
| Operating Temperature Range | -20°C to +70°C (Ambient) |
| Filtration Requirement | ISO 4406 Code 18/16/13 or Better |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 63 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The DSG-01 series is widely recognized for its high flow capacity relative to size, low pressure drop, and long service life in demanding industrial environments.
PRODUCT IMAGES

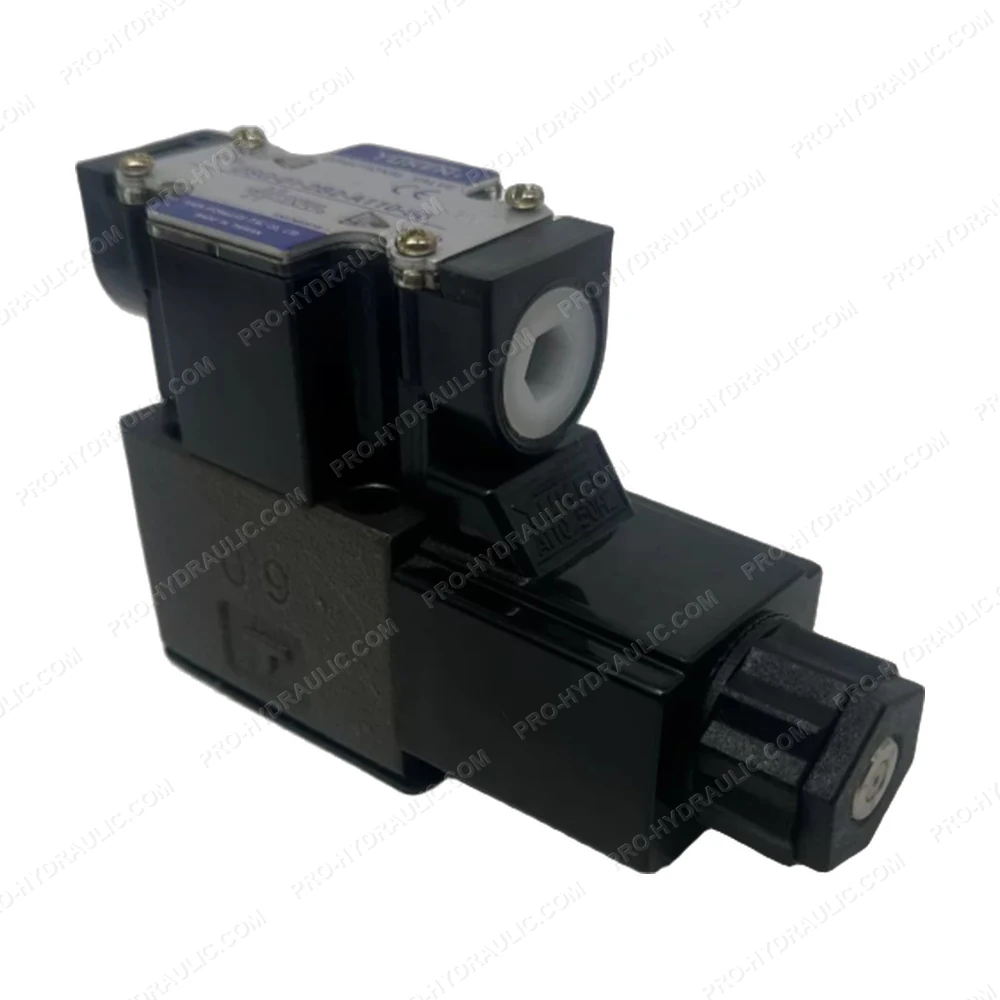

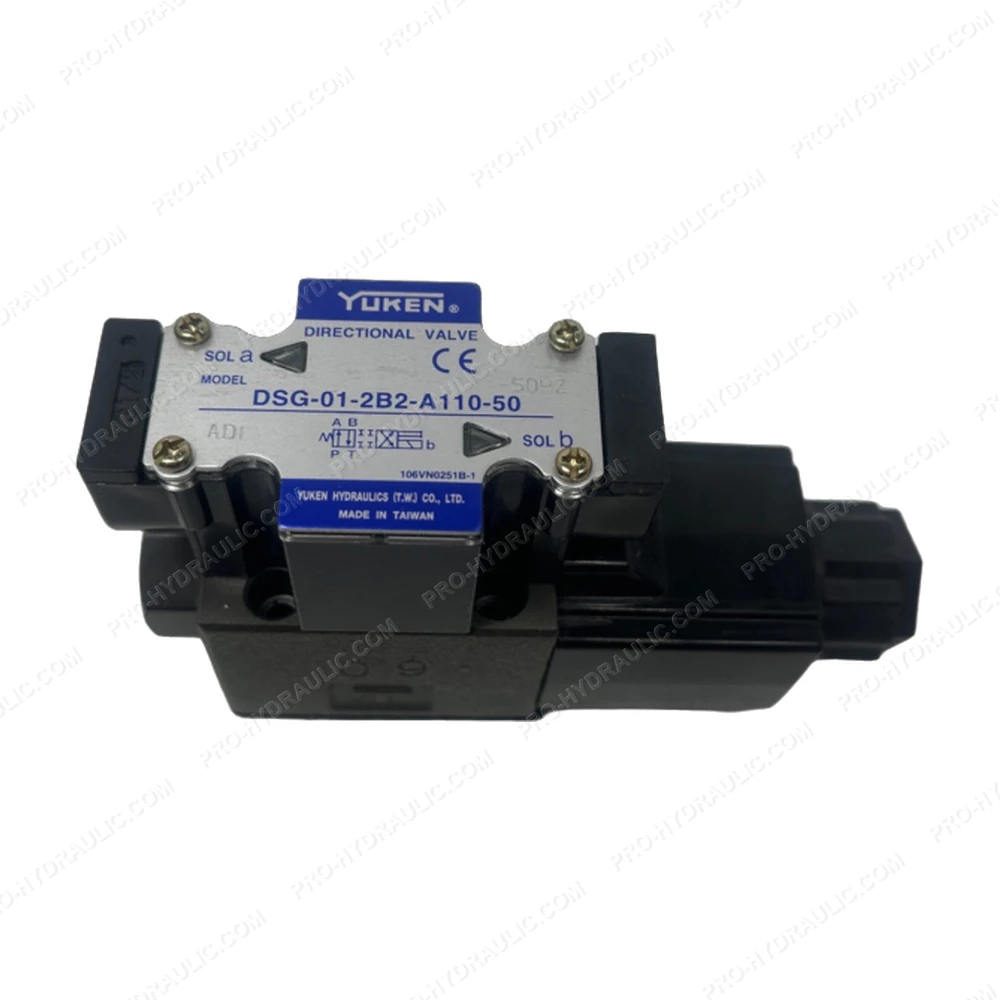

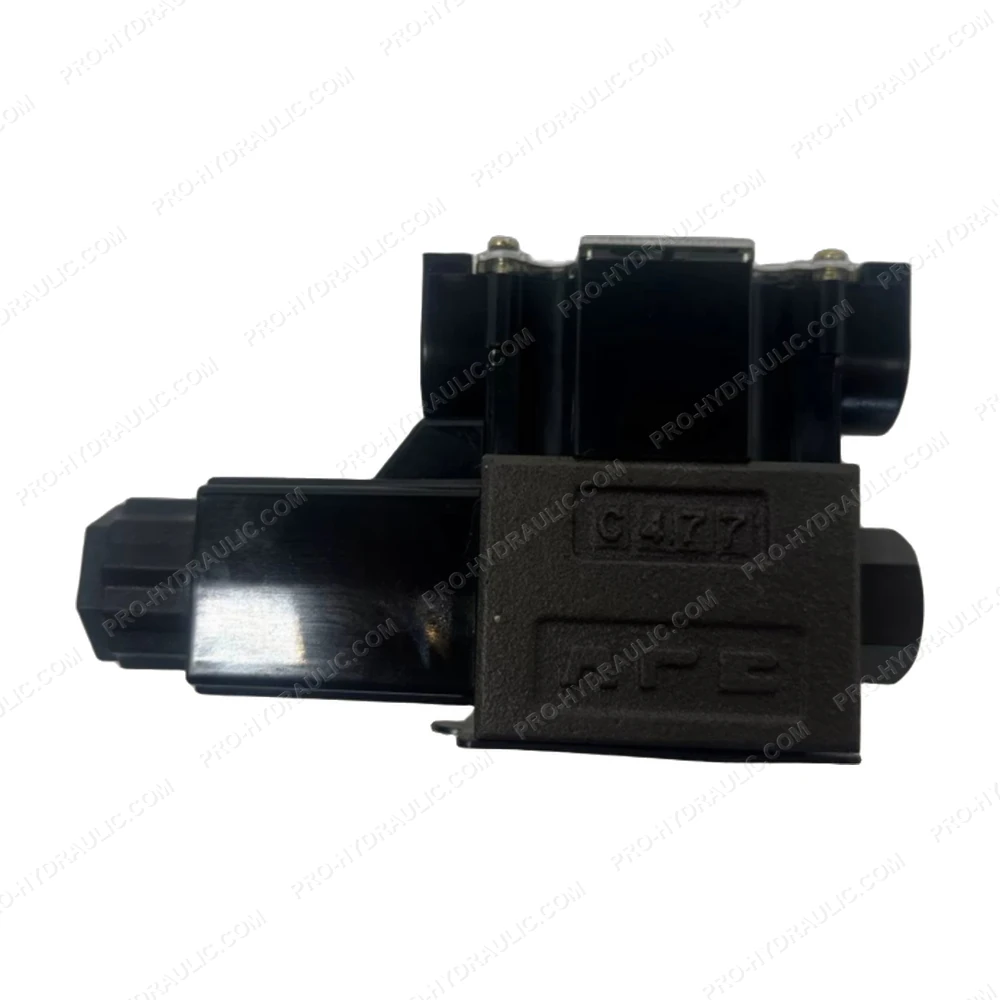

YUKEN DSG-01-2B2-A110-50 Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-2B2-A110-50 Solenoid Directional Valve. This Japan-made 110V AC hydraulic component features a 4-way, spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
