Product Overview
The YUKEN DSG-01-2B2-A220-50 is a high-performance solenoid operated directional valve from YUKEN’s renowned DSG series, engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. This direct-acting, spring-centered directional control valve features a robust wet-armature solenoid design that ensures reliable shifting performance and long service life. The DSG-01 series is a globally recognized standard for directional control, offering exceptional response times, low pressure drop, and high flow capacity relative to its compact size. With an A220 AC solenoid coil rated for standard industrial voltages, this valve is designed for continuous duty operation in demanding hydraulic circuits, providing dependable directional control for actuators, cylinders, and motors in complex industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-01-2B2-A220-50 |
| Valve Configuration | 2-Position, 2-Way / Spring Centered (2B2 Spool Type) |
| Solenoid Voltage | A220 (AC 220V, 50/60 Hz) |
| Operating Pressure | Up to 315 bar (Standard Industrial Grade) |
| Rated Flow Capacity | Up to 63 L/min (Nominal) |
| Mounting & Connection | Subplate Mounting, ISO 4401-03 / CETOP 3 / NG6 Interface |
| Seal Type | NBR (Buna-N) Standard, Optional FKM Available |
| Electrical Connection | DIN 43650 Standard Connector |
Engineering Features & Advantages
- Precision Spool Performance: The DSG-01-2B2 spool is precision-ground and matched to the valve body bore for minimal internal leakage, ensuring accurate flow direction control and consistent actuator response in critical hydraulic circuits.
- Wet-Armature Solenoid Design: The solenoid armature operates immersed in hydraulic fluid, providing superior lubrication, reduced wear, and efficient heat dissipation for extended duty cycles and quiet operation.
- Fast Response & High Reliability: Direct-acting solenoid actuation delivers rapid spool shifting with minimal response time, essential for high-cycle industrial applications requiring precise timing and repeatability.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust cast iron body and hardened spool and sleeve assembly that withstands high pressure and demanding duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With an A220 AC solenoid coil rated for standard industrial voltages, this valve is designed for continuous duty operation in demanding hydraulic circuits, providing dependable directional control for actuators, cylinders, and motors in complex industrial machinery.
PRODUCT IMAGES

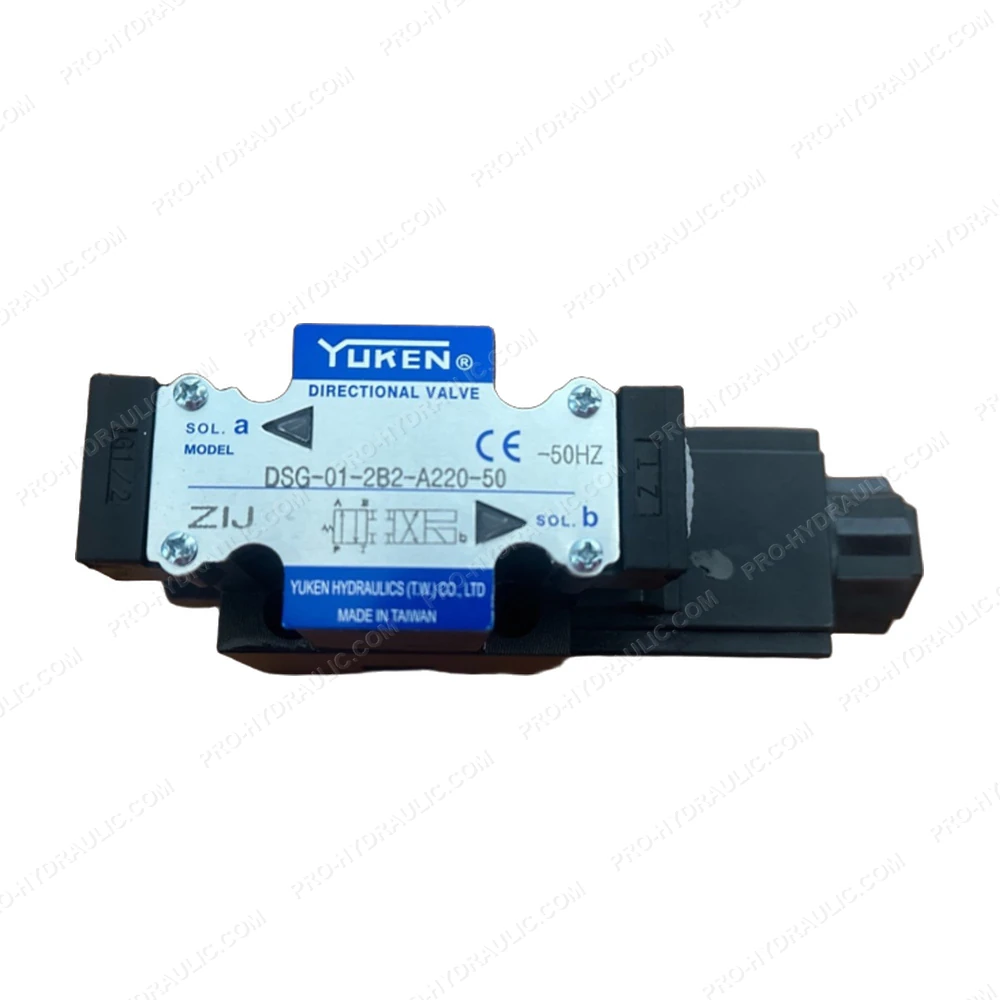

YUKEN DSG-01-2B2-A220-50 Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-2B2-A220-50 Solenoid Directional Valve. This Japan-made 220V AC hydraulic component features a 4-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
