Product Overview
The YUKEN DSG-01-2B2-A220-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series. Engineered for precise hydraulic circuit control, this valve utilizes a wet-type AC solenoid to shift a precision-ground spool within a hardened valve body, directing hydraulic flow to actuate cylinders, motors, or other downstream components. The DSG-01 series is a globally recognized standard for reliable directional control in industrial hydraulic systems, offering fast response, low pressure drop, and exceptional service life. This model features a 2-position, 2-way (2B2) spool configuration with spring return and is designed for AC 220V solenoid operation, making it ideal for demanding industrial applications requiring dependable flow direction control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-2B2-A220-51T |
| Series | YUKEN DSG-01 Series (NG6 / CETOP 3 / ISO 4401 Size 03) |
| Spool Configuration | 2B2 — 2-Position, 2-Way |
| Solenoid Type | AC Wet-Type Solenoid, 220V AC |
| Return Type | Spring Return (Spring Offset) |
| Maximum Operating Pressure | Up to 315 bar (Rated Industrial Grade) |
| Maximum Flow Rate | Up to 63 L/min (Nominal) |
| Mounting & Connection | Subplate Mounting — ISO 4401-03 / CETOP 3 / NG6 Interface |
| Electrical Connection | DIN 43650 Standard Connector |
| Seal Material | NBR (Buna-N) — Standard Industrial Hydraulic Fluid Compatible |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32–68) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This model features a 2-position, 2-way (2B2) spool configuration with spring return and is designed for AC 220V solenoid operation, making it ideal for demanding industrial applications requiring dependable flow direction control.
PRODUCT IMAGES

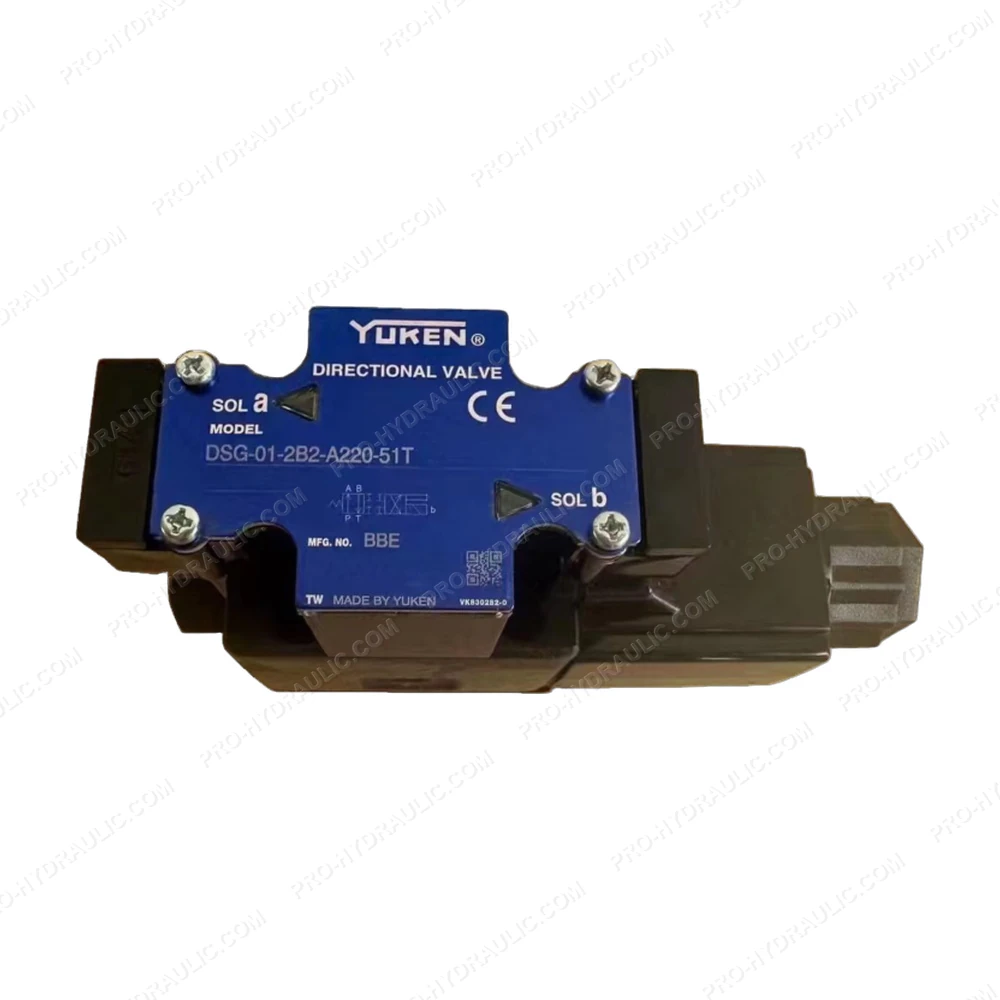

YUKEN DSG-01-2B2-A220-51T Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-2B2-A220-51T Solenoid Operated Directional Valve. This Japan-made 220V AC hydraulic component features a 2-position, 4-way design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
