Product Overview
The YUKEN DSG-01-2B2-D24-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series. Engineered for precise hydraulic circuit control, this valve utilizes a wet-type AC/DC solenoid actuator to shift a precision-ground spool within the valve body, directing flow between ports to control the start, stop, and direction of hydraulic actuators. The DSG-01 series is a globally recognized standard for industrial hydraulic systems, offering exceptional reliability, fast response times, and low pressure drop. The “2B2” spool configuration provides a closed-center, two-position function, making it ideal for holding actuator position when the solenoid is de-energized. With a D24 (24V DC) coil and the “51T” design series, this valve ensures consistent performance in demanding continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-2B2-D24-51T |
| Valve Size | 01 (NG6 / CETOP 3 / ISO 4401-03) |
| Spool Type | 2B2 — Two-position, closed center, spring offset |
| Solenoid Voltage | 24V DC (D24 coil) |
| Operating Pressure | Up to 315 bar (rated working pressure) |
| Max. Flow Rate | Up to 60 L/min (dependent on spool configuration) |
| Mounting & Connection | Subplate mounting, ISO 4401-03 / CETOP 3 interface |
| Electrical Connection | DIN 43650 connector with indicator light (standard) |
| Seal Material | NBR (Buna-N) — compatible with mineral-based hydraulic fluids |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: The spool and sleeve are precision-ground and matched to micron tolerances, ensuring minimal internal leakage, smooth shifting, and repeatable directional control across millions of cycles.
- Wet-Type Solenoid Design: The solenoid armature operates immersed in hydraulic oil, providing superior heat dissipation, reduced wear, and quieter operation compared to dry-type solenoids. This design enables high cycle rates and long service life.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a D24 (24V DC) coil and the “51T” design series, this valve ensures consistent performance in demanding continuous-duty applications.
PRODUCT IMAGES

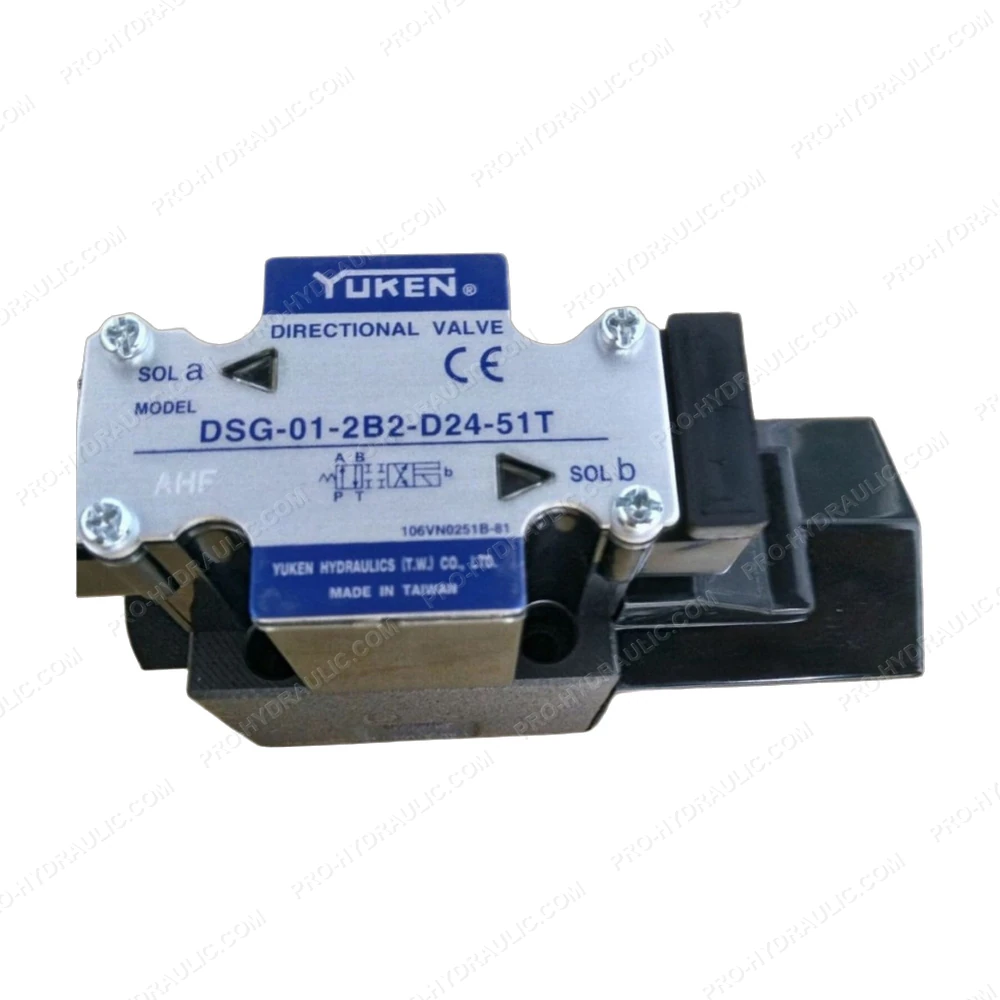

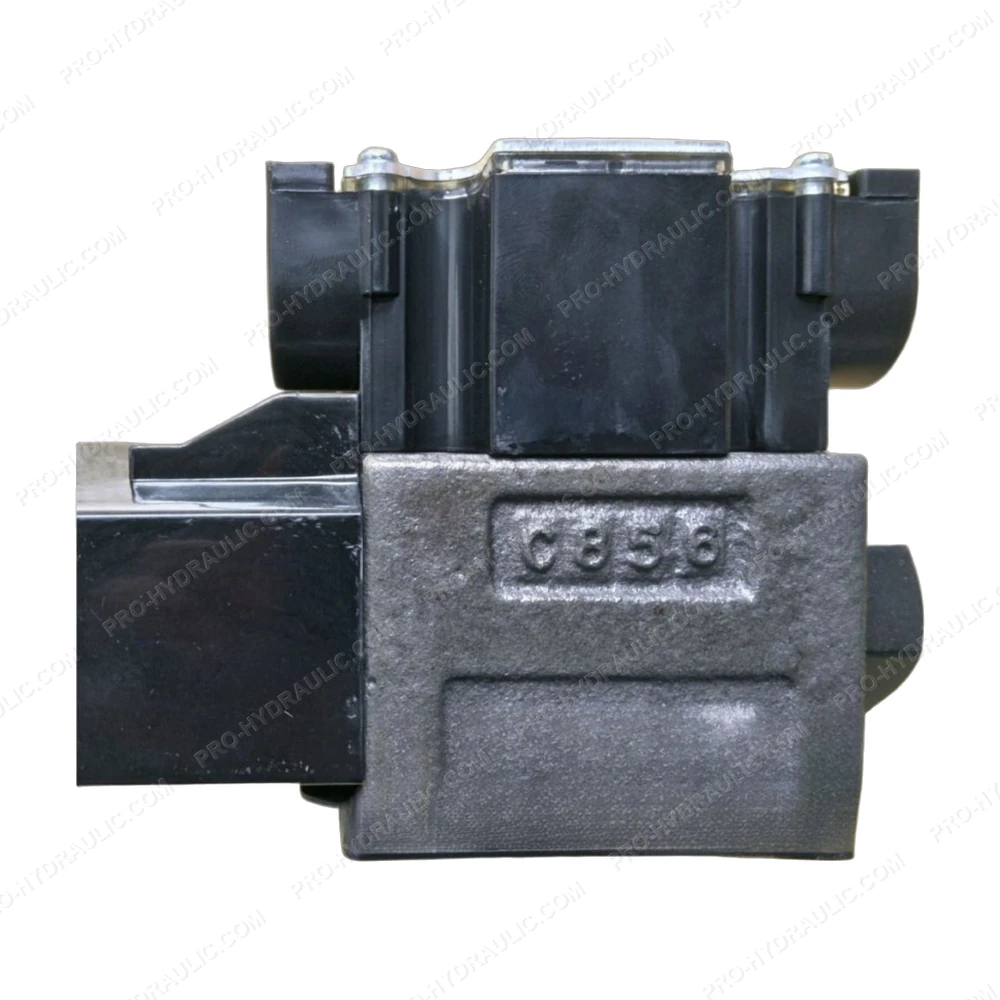

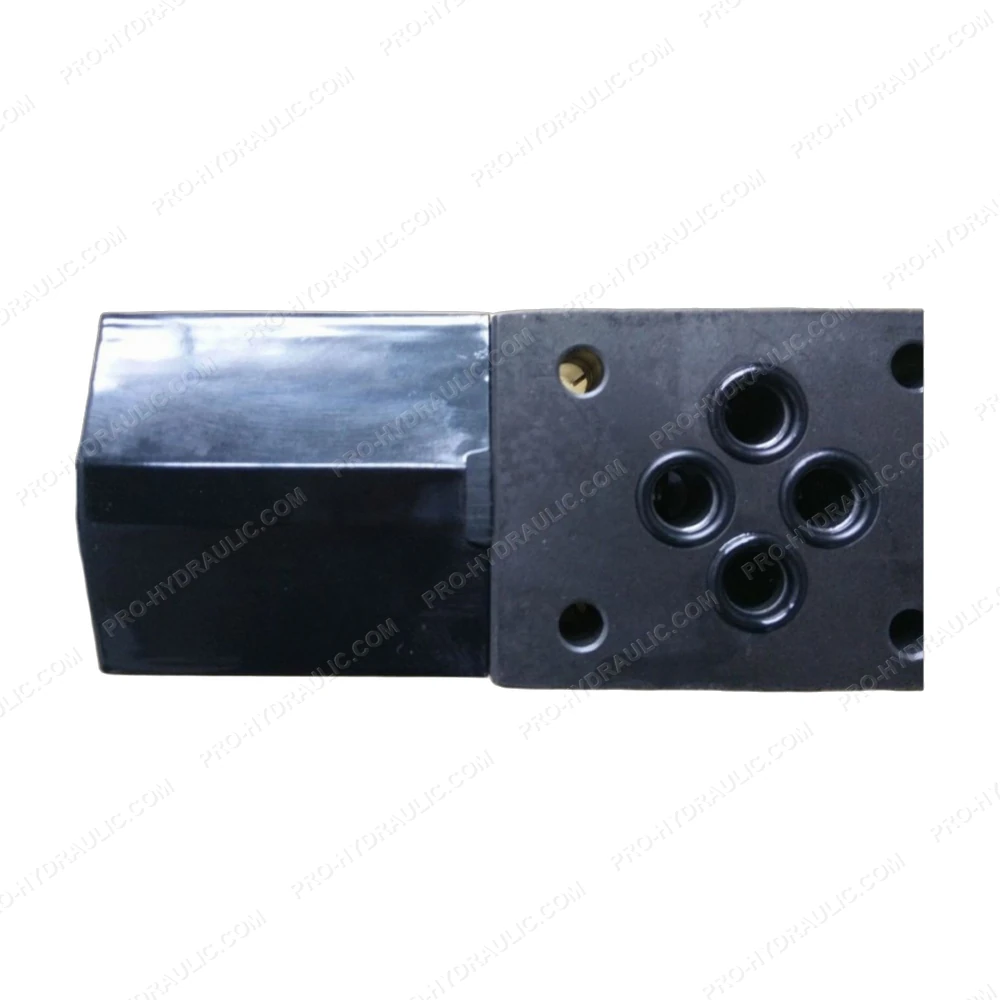

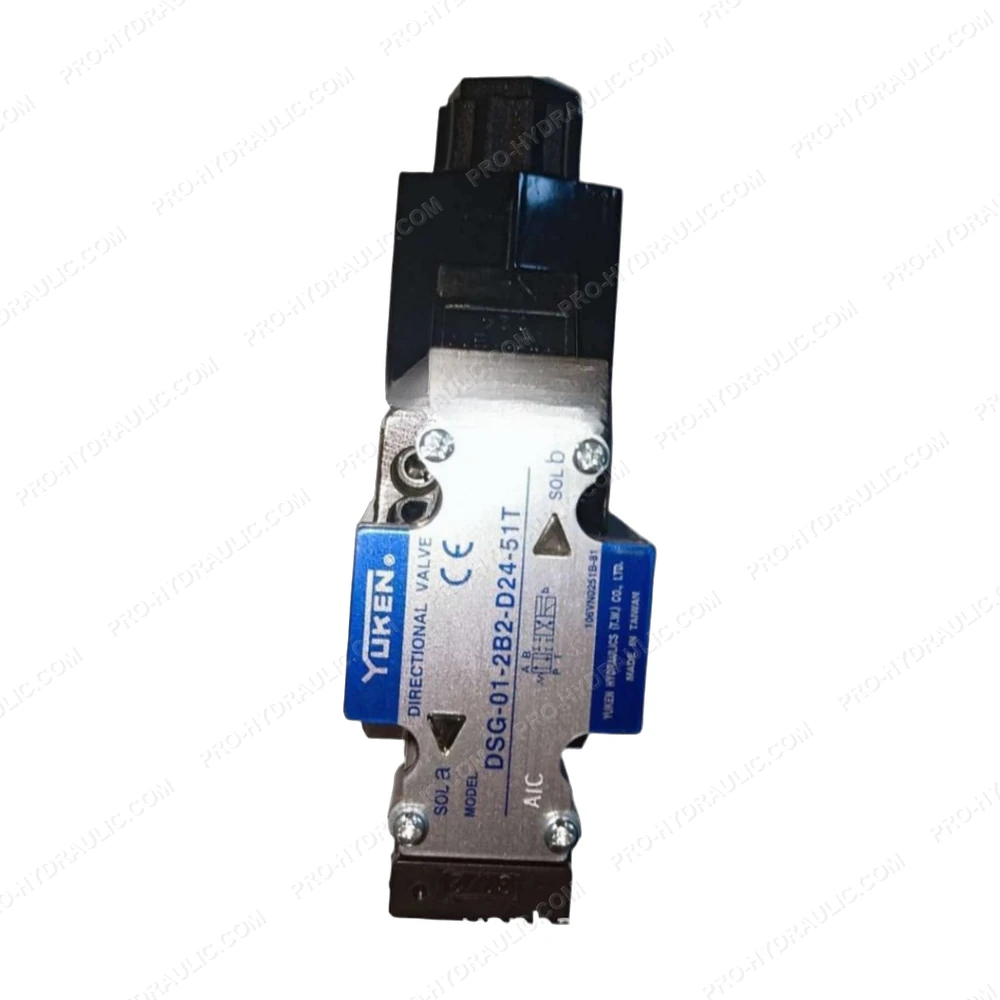

YUKEN DSG-01-2B2-D24-51T Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-2B2-D24-51T Solenoid Operated Directional Valve. This Japan-made 24V DC hydraulic component features a 2-position, 4-way design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
