Product Overview
The YUKEN DSG-01-2B3-D24-N1-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered to direct hydraulic flow with exceptional precision and reliability in demanding industrial circuits. This valve utilizes a wet-type AC/DC solenoid actuator acting on a hardened, precision-ground spool within a high-strength cast iron body, enabling rapid, positive shifting between flow paths for controlled extension, retraction, and holding of hydraulic actuators. As a compact NG6 (CETOP 3 / ISO 4401-03) size valve, the DSG-01 series is a global industry standard for manifold-mounted directional control, offering low pressure drop, minimal leakage, and consistent response across millions of operating cycles. The “2B3” spool configuration provides a two-position, spring-centered or spring-offset function with a closed-center characteristic, making it ideal for applications requiring load holding and precise directional sequencing. The “D24” designates a 24V DC solenoid coil, while the “N1” indicates the standard electrical connection style with DIN-style plug, and “51T” denotes the design number and optional features such as a manual override push-button. This valve is a direct-fit replacement for OEM YUKEN installations and is fully interchangeable with standard DSG-01 mounting interfaces.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-2B3-D24-N1-51T |
| Brand / Series | YUKEN / DSG-01 Series |
| Valve Size | NG6 (CETOP 3 / ISO 4401-03 / NFPA D03) |
| Spool Type | 2B3 — Two-position, closed-center, spring-centered/offset |
| Actuation | Single or dual wet-type solenoid, spring return |
| Solenoid Voltage | 24V DC (D24 coil designation) |
| Electrical Connection | N1 — DIN 43650 style plug connector with indicator |
| Operating Pressure | Up to 315 bar (4570 psi) rated |
| Rated Flow | Up to 63 L/min (16.6 GPM) nominal |
Engineering Features & Advantages
- Precision Performance: The integrated single or dual wet-type solenoid, spring return ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 63 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The “2B3” spool configuration provides a two-position, spring-centered or spring-offset function with a closed-center characteristic, making it ideal for applications requiring load holding and precise directional sequencing.
PRODUCT IMAGES

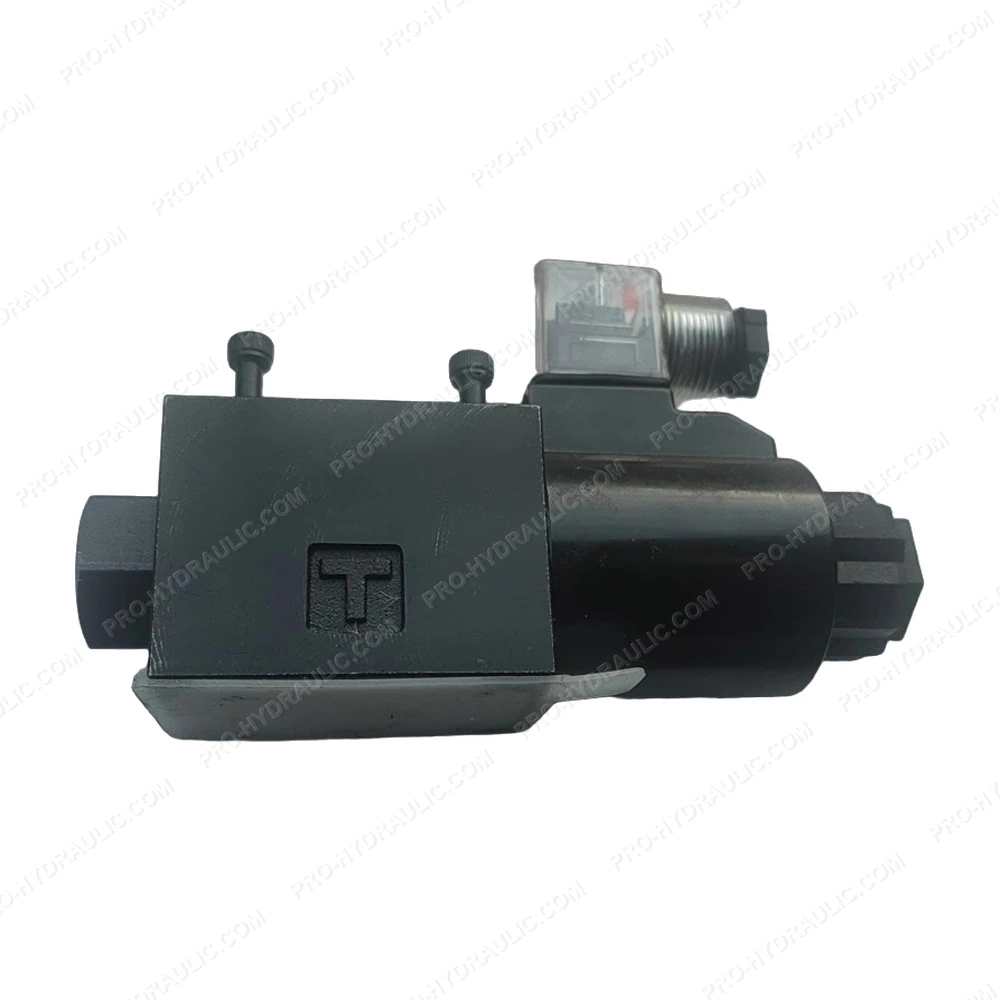

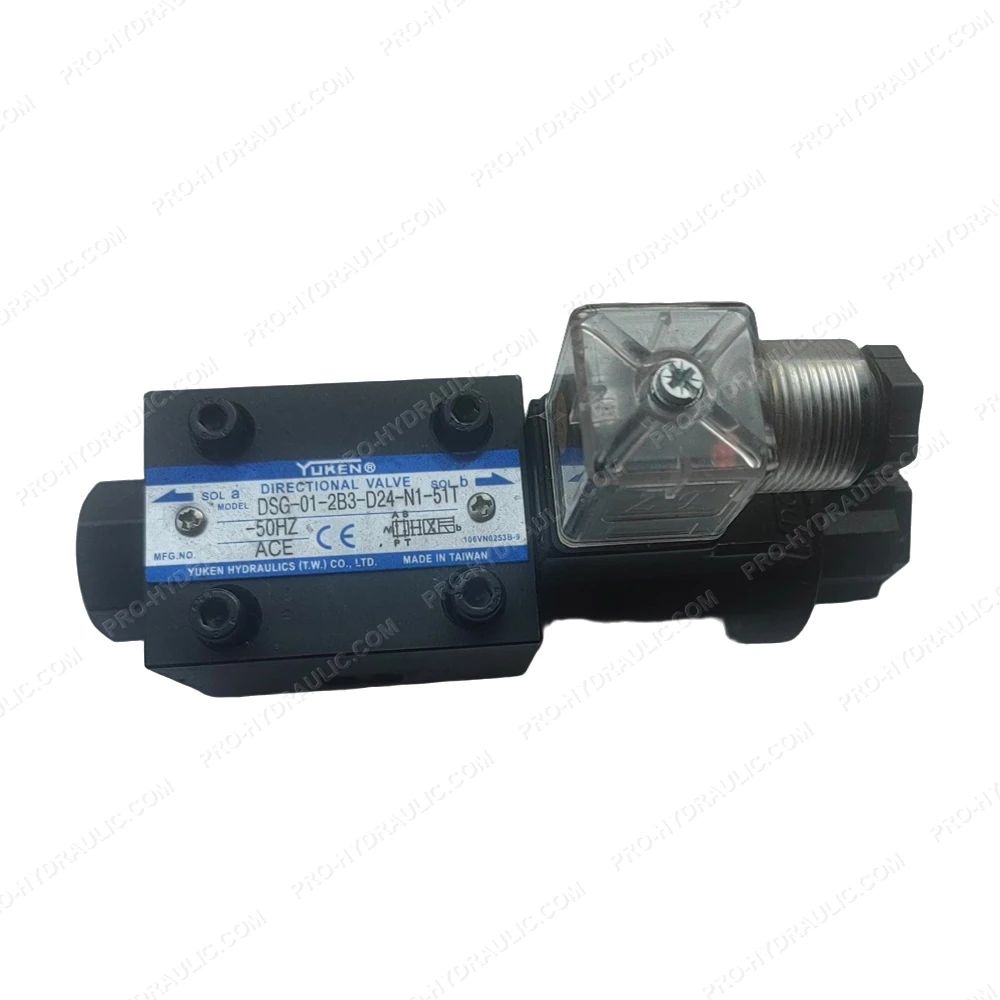

YUKEN DSG-01-2B3-D24-N1-51T Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-2B3-D24-N1-51T Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a 4-way, 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
