Product Overview
The YUKEN DSG-01-3C2-D24-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered to direct hydraulic flow with precision and reliability in demanding industrial circuits. This valve utilizes a wet-armature solenoid design that enables smooth, shockless spool shifting, minimizing hydraulic hammer and extending system component life. As a 3-position, 4-way directional valve with a spring-centered configuration, it serves as a critical control element for managing actuator direction, holding, and neutral bypass functions in complex hydraulic power units and manifold systems. The DSG-01 series is globally recognized for its compact footprint, high flow capacity relative to size, and exceptional repeatability, making it a preferred choice for OEM and MRO applications across heavy industry.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-3C2-D24-51T |
| Series | YUKEN DSG-01 (NG6 / CETOP 3 / ISO 4401-03 Size) |
| Spool Configuration | 3-Position, 4-Way, Spring Centered (3C2) |
| Solenoid Voltage | 24V DC (D24) |
| Operating Pressure | Up to 315 bar (Rated); 250 bar Max Return Line |
| Rated Flow | Up to 63 L/min (Nominal at 315 bar) |
| Mounting & Connection | Subplate Mounting, ISO 4401-03 / CETOP 3 Interface |
| Electrical Connection | DIN 43650 Connector with Indicator Light |
| Seal Material | NBR (Buna-N) Standard; FKM Optional |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32-68) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 63 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The DSG-01 series is globally recognized for its compact footprint, high flow capacity relative to size, and exceptional repeatability, making it a preferred choice for OEM and MRO applications across heavy industry.
PRODUCT IMAGES

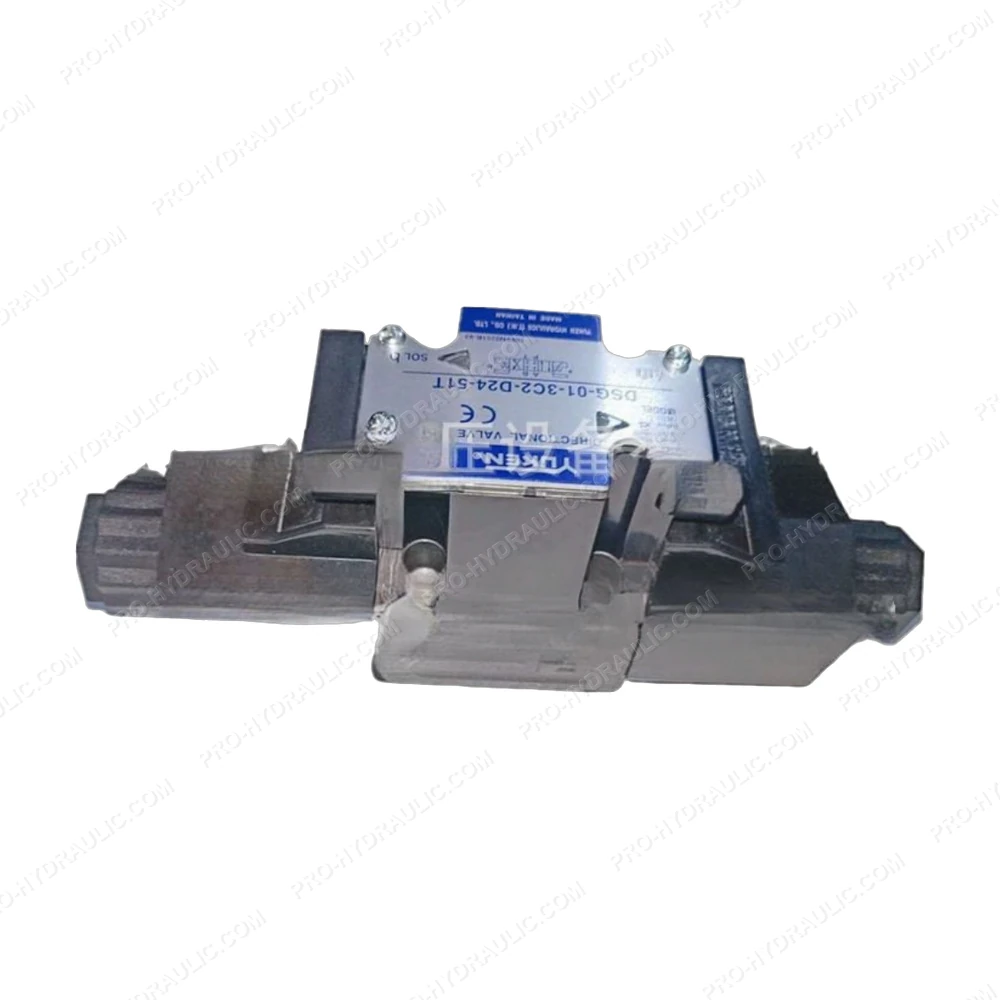

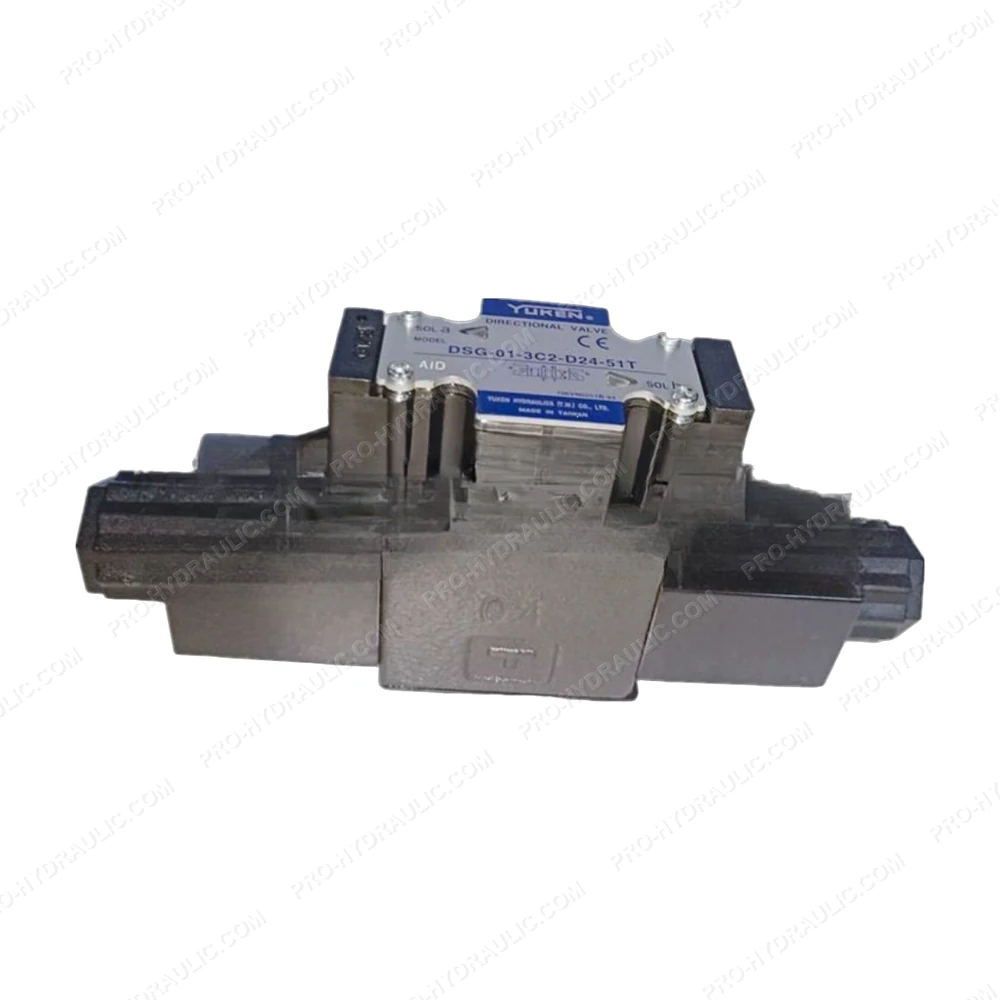

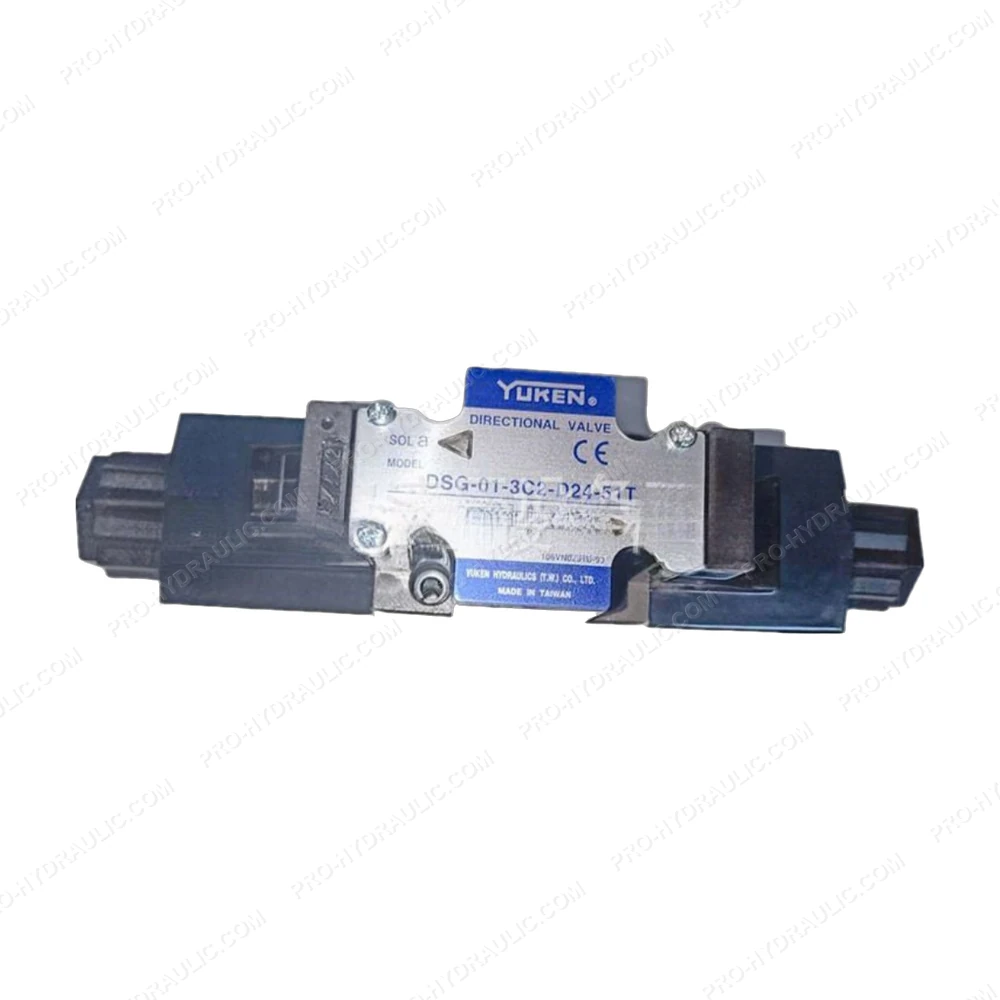

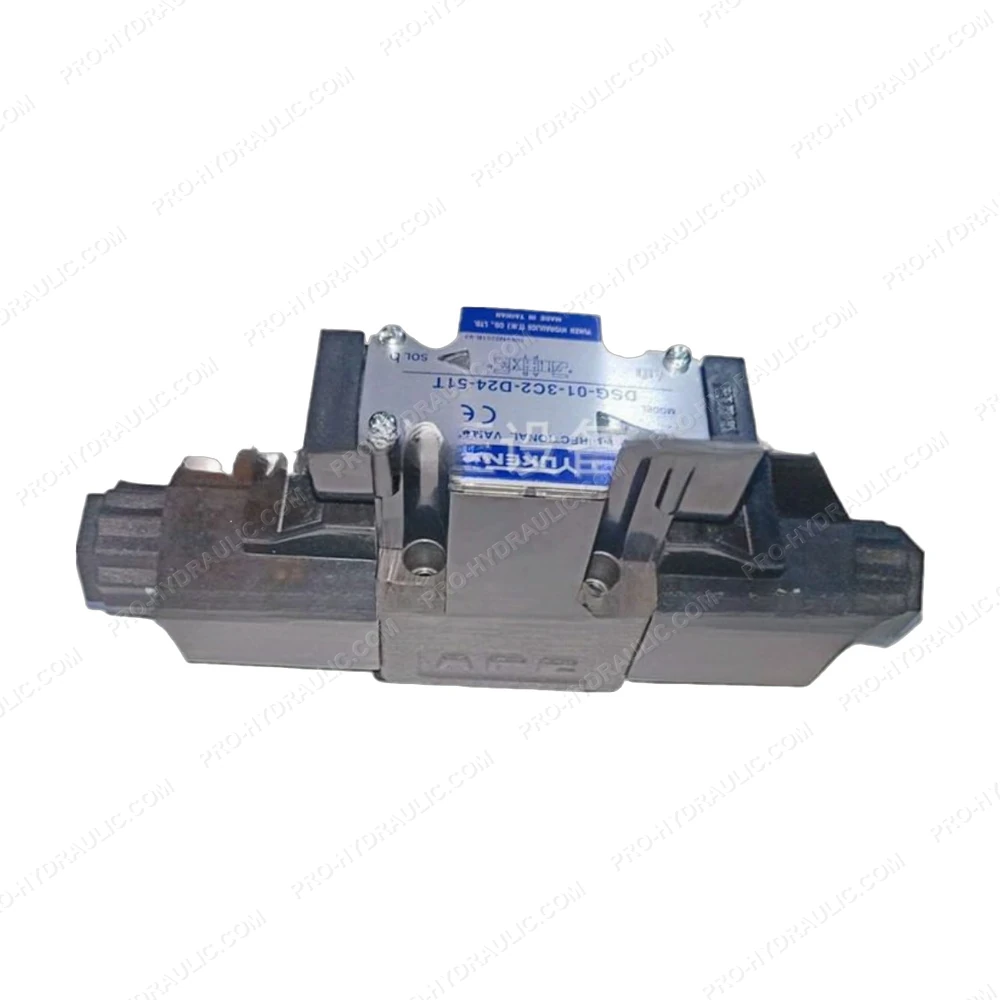

YUKEN DSG-01-3C2-D24-51T Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C2-D24-51T Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a 3-position, 4-way design with spring centered return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
