Product Overview
The YUKEN DSG-01-3C2-D24-51T203 is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered to direct hydraulic flow with precision and reliability in demanding industrial circuits. This valve utilizes a wet-type AC/DC solenoid actuator acting on a hardened, precision-ground spool to shift between flow paths, providing dependable directional control for hydraulic actuators, cylinders, and motors. The “3C2” spool configuration delivers a closed-center, three-position function, making it ideal for holding actuator position and managing load-holding circuits. With a nominal size of 01 (NG6 / CETOP 3 / ISO 4401-03 mounting pattern), this valve is a direct, drop-in replacement for OEM installations and is widely deployed in machine tools, injection molding equipment, and general industrial power units where fast, repeatable spool response and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-3C2-D24-51T203 |
| Nominal Size | 01 (NG6 / CETOP 3 / ISO 4401-03) |
| Spool Type | 3C2 — Three-position, closed-center |
| Actuation | Solenoid operated, spring-centered return |
| Coil Voltage | D24 — 24V DC solenoid coil |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Rated Flow | Up to 63 L/min (nominal, size 01) |
| Mounting & Connection | Subplate mounting, ISO 4401-03 / CETOP 3 interface |
| Seal & Fluid Compatibility | Mineral-based hydraulic oil, standard industrial seals |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, precision-ground spool and sleeve assembly ensures accurate flow metering, minimal internal leakage, and consistent directional response across the full pressure range.
- Fast Solenoid Response: Wet-type 24V DC solenoid delivers rapid, repeatable shifting with low power consumption and reduced heat generation for high-cycle industrial duty.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a nominal size of 01 (NG6 / CETOP 3 / ISO 4401-03 mounting pattern), this valve is a direct, drop-in replacement for OEM installations and is widely deployed in machine tools, injection molding equipment, and general industrial power units where fast, repeatable spool response and long service life are essential.
PRODUCT IMAGES

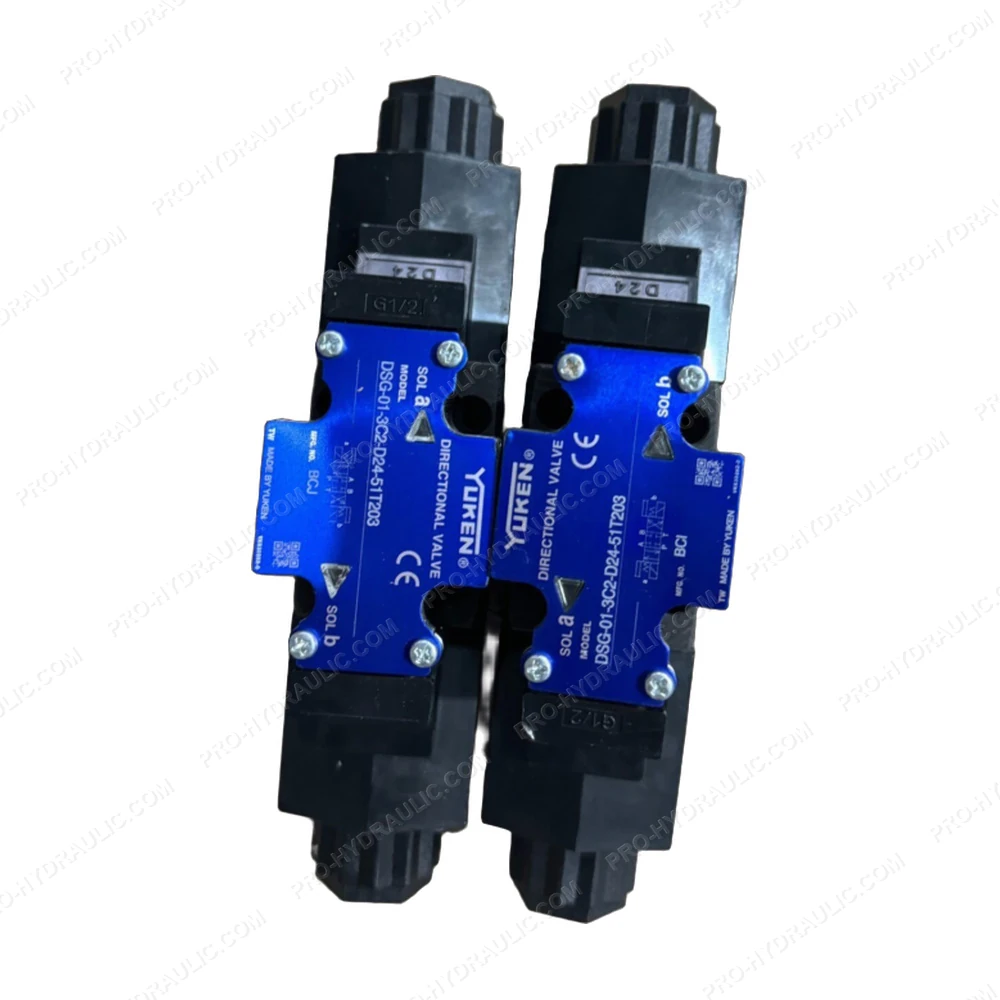

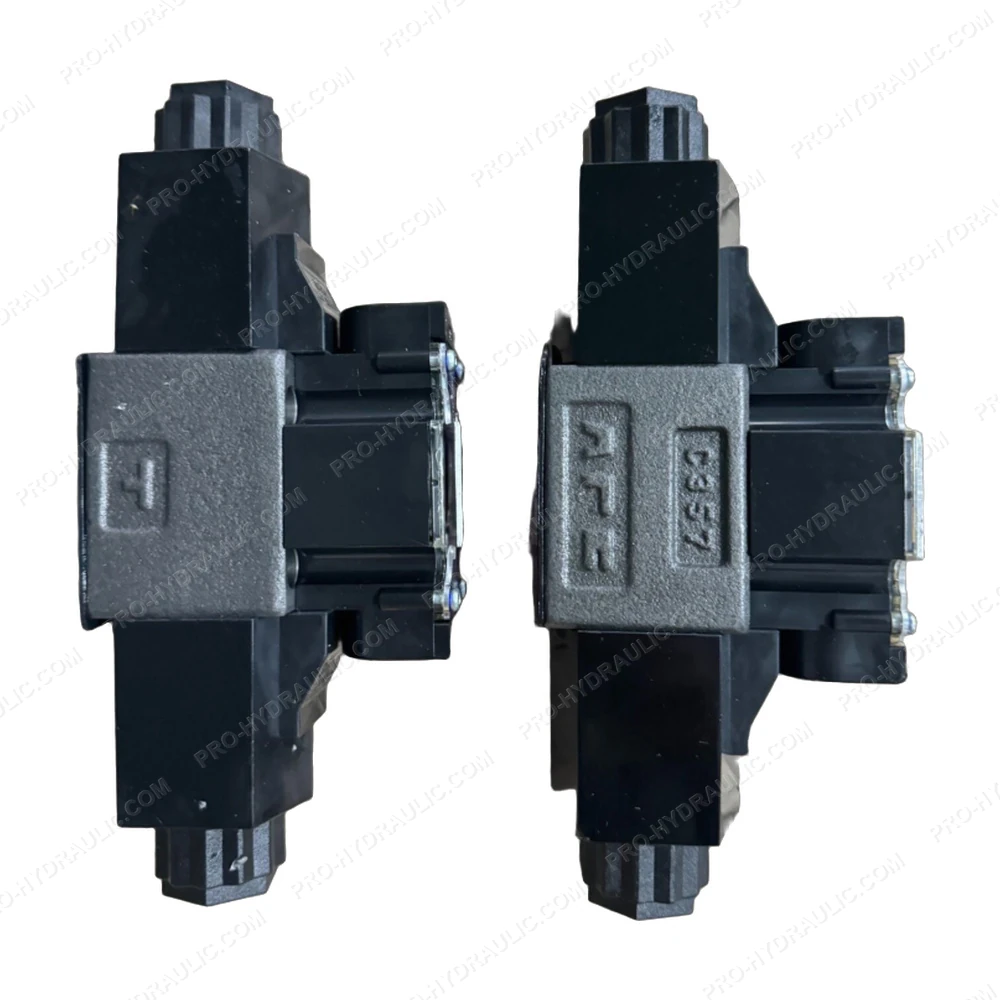

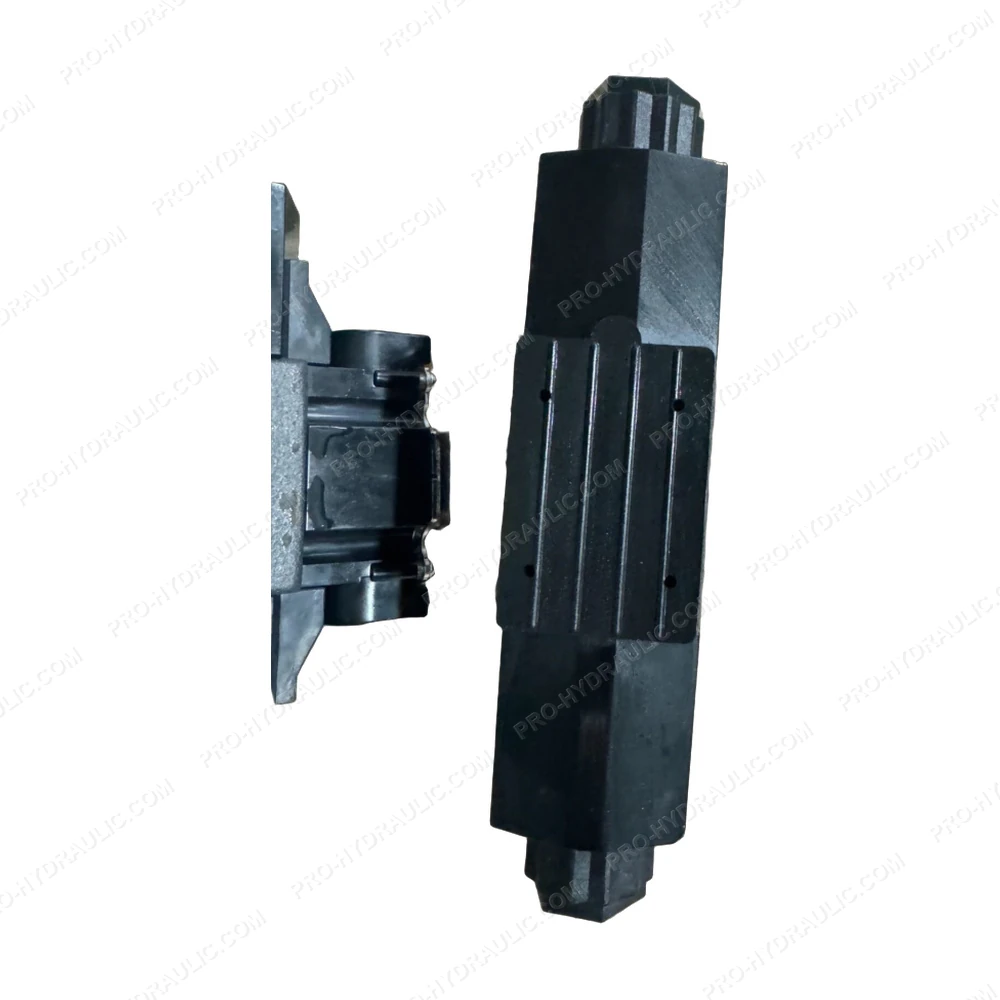

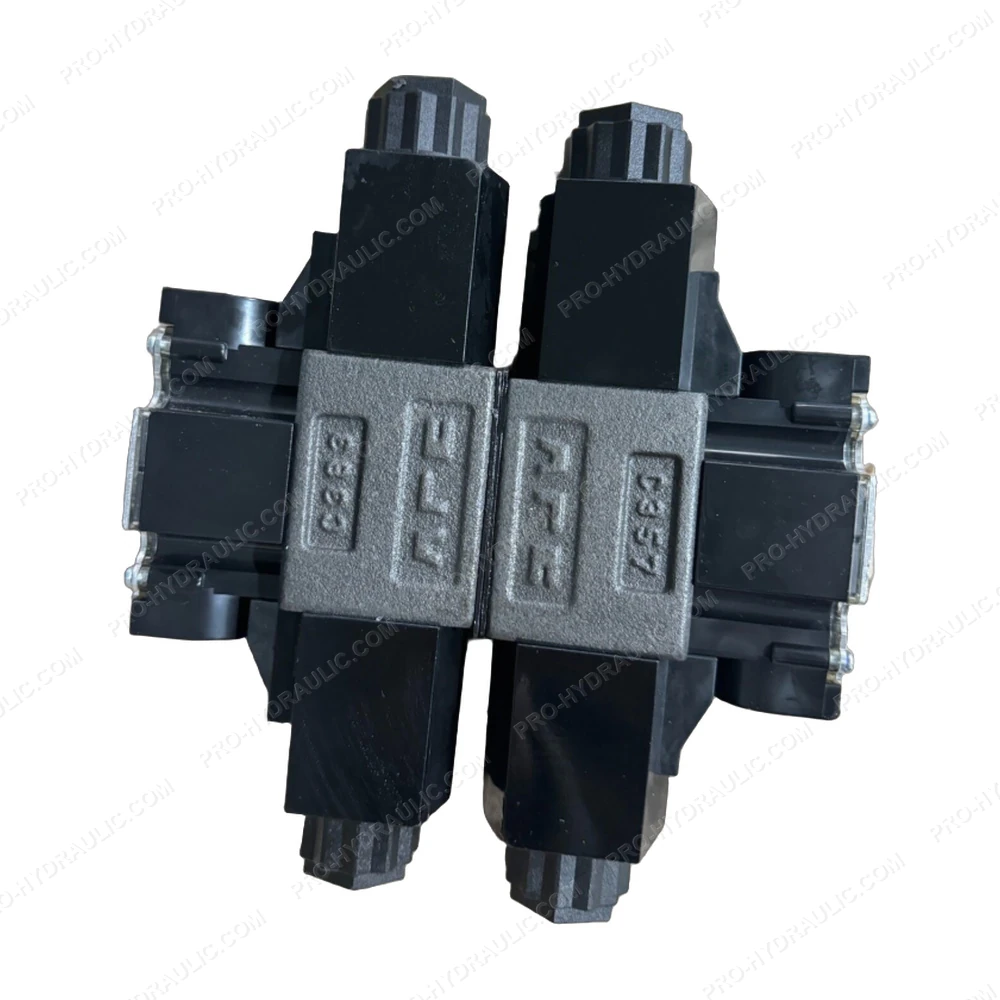

YUKEN DSG-01-3C2-D24-51T203 Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C2-D24-51T203 Solenoid Operated Directional Valve. This Japan-made 24 VDC hydraulic component features a 3-position, 4-way design with spring center, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
