Product Overview
The YUKEN DSG-01-3C2-D24-N-50 is a high-performance solenoid operated directional valve from YUKEN’s renowned DSG series, engineered to direct hydraulic fluid flow in industrial power transmission circuits with exceptional precision and repeatability. This direct-acting, wet-armature solenoid valve utilizes a precision-ground spool within a hardened valve body to shift between flow positions, enabling reliable control of actuator extension, retraction, and holding functions. The “3C2” spool configuration provides a closed-center, all-ports-blocked condition in the de-energized state, making it ideal for applications requiring load holding and precise position control. With a D24 (24V DC) solenoid coil and N (NBR nitrile) seal designation, this valve is purpose-built for demanding industrial environments where consistent response, minimal internal leakage, and long service life are critical. As a direct OEM-compatible component, the DSG-01-3C2-D24-N-50 serves as a drop-in replacement for standard DSG-01 series valves in manifold-mounted or subplate-mounted hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve (Hydraulic Valve) |
| Model Designation | DSG-01-3C2-D24-N-50 |
| Series | YUKEN DSG-01 Series |
| Spool Type | 3C2 — Closed Center (All Ports Blocked in Neutral) |
| Number of Positions | 3-Position, 4-Way (Spring Centered) |
| Solenoid Voltage | 24V DC (D24 Coil) |
| Seal Material | NBR (Nitrile) — Standard Industrial Grade |
| Operating Pressure | Up to 315 bar (Rated); 250 bar Max Recommended Continuous |
| Rated Flow | Up to 63 L/min (Nominal at 01 Size) |
| Mounting & Connection | ISO 4401-03 / CETOP 3 / NG6 Subplate or Manifold Mounting |
| Design Number | 50 (YUKEN Design Series) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional valve (hydraulic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
As a direct OEM-compatible component, the DSG-01-3C2-D24-N-50 serves as a drop-in replacement for standard DSG-01 series valves in manifold-mounted or subplate-mounted hydraulic systems.
PRODUCT IMAGES

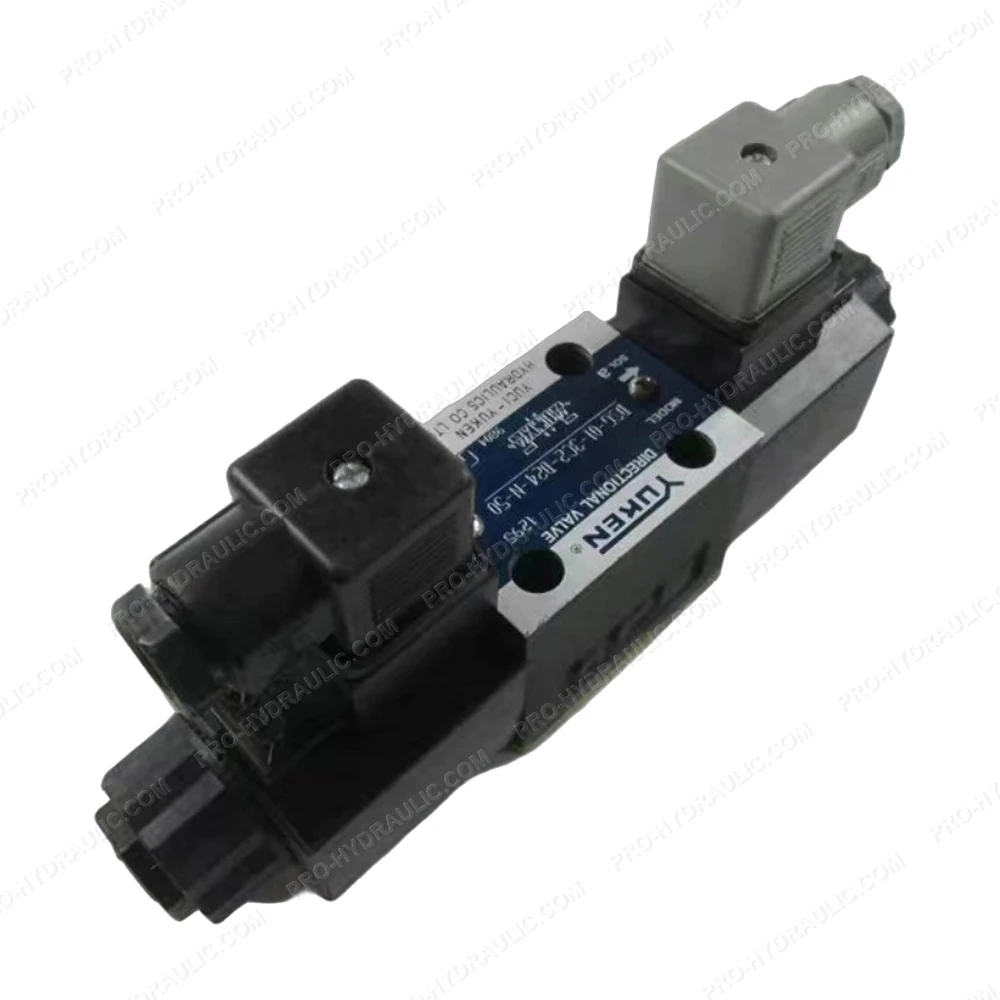

YUKEN DSG-01-3C2-D24-N-50 Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C2-D24-N-50 Solenoid Operated Directional Valve. This Japan-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
