Product Overview
The YUKEN DSG-01-3C2-D24-N1-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series. Engineered for precise flow direction control in industrial hydraulic systems, this valve utilizes a wet-armature solenoid design and a robust spool-in-body construction to deliver reliable switching performance. The DSG-01 series is a globally recognized standard for compact directional control, offering fast response times, low pressure drop, and long service life. This model features a 3C2 spool configuration (three-position, four-way, closed center) and is actuated by a D24 (24V DC) solenoid, making it ideal for demanding applications requiring accurate directional control of hydraulic actuators.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-3C2-D24-N1-51T |
| Spool Configuration | 3C2 — Three-Position, Four-Way, Closed Center |
| Solenoid Voltage | 24V DC (D24) |
| Operating Pressure | Up to 315 bar (Rated Industrial Grade) |
| Max Flow Rate | Up to 63 L/min (Nominal) |
| Mounting & Connection | ISO 4401-03 / CETOP 3 / NFPA D03 Subplate Mounting |
| Electrical Connection | DIN 43650 Connector (N1) |
| Seal Type | NBR (Nitrile) — Standard Industrial |
| Design Number | 51T Series |
Engineering Features & Advantages
- Precision Spool Metering: The 3C2 closed-center spool provides accurate directional control with minimal internal leakage, ensuring stable actuator positioning and precise load holding in demanding circuits.
- Wet-Armature Solenoid Design: The D24 solenoid features a wet-armature construction that reduces wear, enhances heat dissipation, and ensures consistent shifting force throughout the valve’s service life.
- Low Pressure Drop: Optimized internal flow paths minimize pressure loss across the valve, improving overall system efficiency and reducing energy consumption.
- Fast Response Time: High-performance solenoid actuation delivers rapid spool shifting for responsive control in high-cycle industrial applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
This model features a 3C2 spool configuration (three-position, four-way, closed center) and is actuated by a D24 (24V DC) solenoid, making it ideal for demanding applications requiring accurate directional control of hydraulic actuators.
PRODUCT IMAGES

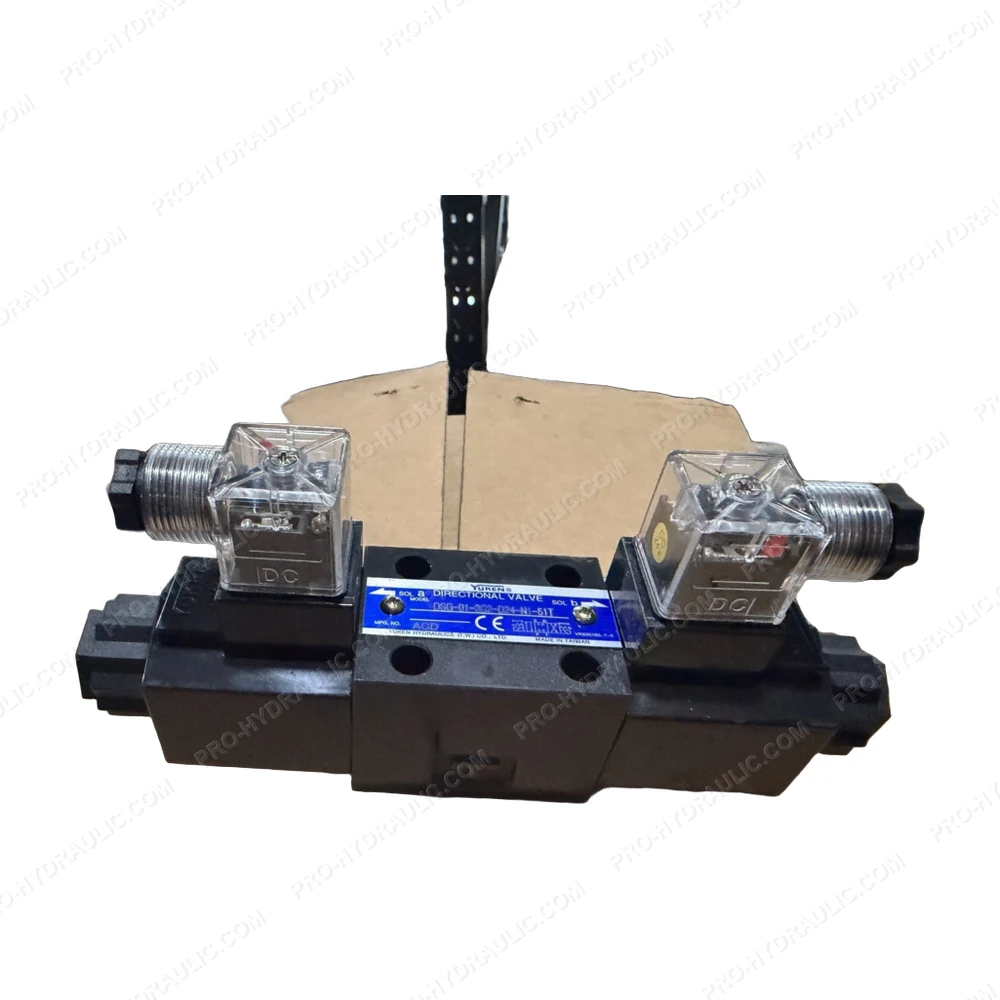

YUKEN DSG-01-3C2-D24-N1-51T Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C2-D24-N1-51T Solenoid Operated Directional Valve. This Japan-made 24V DC hydraulic component features a 3-position, 4-way, spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
