Product Overview
The YUKEN DSG-01-3C2-D24-N1-51T203 is a high-performance solenoid operated directional valve from YUKEN’s renowned DSG series, engineered to direct hydraulic flow with exceptional precision in industrial fluid power systems. This direct-acting, wet-armature solenoid valve utilizes a precision-machined spool within a hardened valve body to shift flow paths between ports, enabling reliable control of cylinder extension, retraction, and holding functions. With a 3C2 spool configuration, the valve provides a closed-center circuit in the neutral position, making it ideal for applications requiring load holding and precise actuator positioning. The DSG-01 series is globally recognized for its compact footprint, low pressure drop, and rapid response characteristics, serving as a critical control component in demanding hydraulic circuits across manufacturing, metallurgy, and heavy machinery sectors.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-01-3C2-D24-N1-51T203 |
| Series | YUKEN DSG-01 (NG6 / CETOP 3 / ISO 4401-03 Size) |
| Spool Type | 3C2 — Closed Center, Three-Position, Four-Way |
| Actuation | Dual Wet-Armature Solenoid, Spring Centered |
| Coil Voltage | D24 — 24V DC |
| Operating Pressure | Up to 315 bar (Rated Industrial Grade) |
| Rated Flow | Up to 63 L/min (Nominal at 315 bar) |
| Mounting & Connection | Subplate Mounting, ISO 4401-03 / CETOP 3 Interface |
| Electrical Connection | DIN 43650 Connector with Indicator Light (N1 Option) |
| Seal Type | NBR / FKM Compatible (Standard Industrial) |
Engineering Features & Advantages
- Precision Spool Metering: The 3C2 closed-center spool delivers accurate flow control with minimal internal leakage, ensuring stable actuator holding and precise positioning in critical motion sequences.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a 3C2 spool configuration, the valve provides a closed-center circuit in the neutral position, making it ideal for applications requiring load holding and precise actuator positioning.
PRODUCT IMAGES

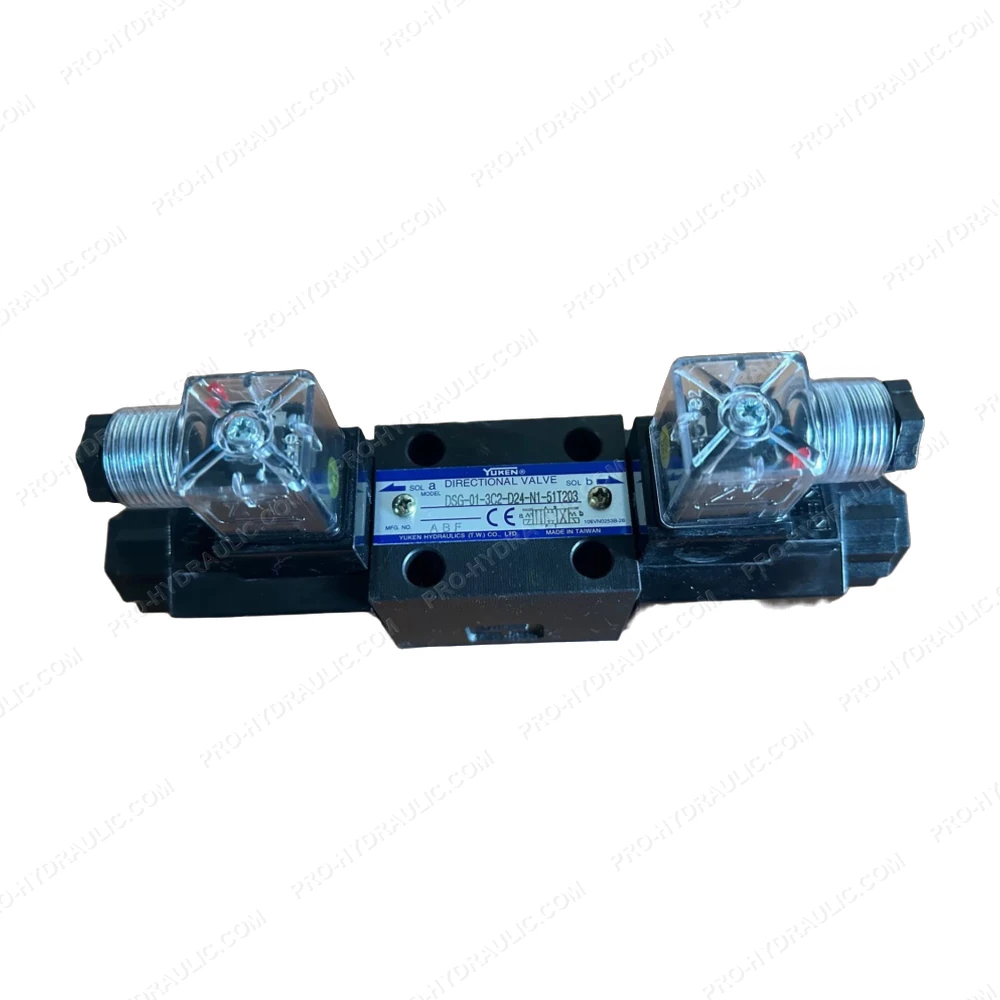

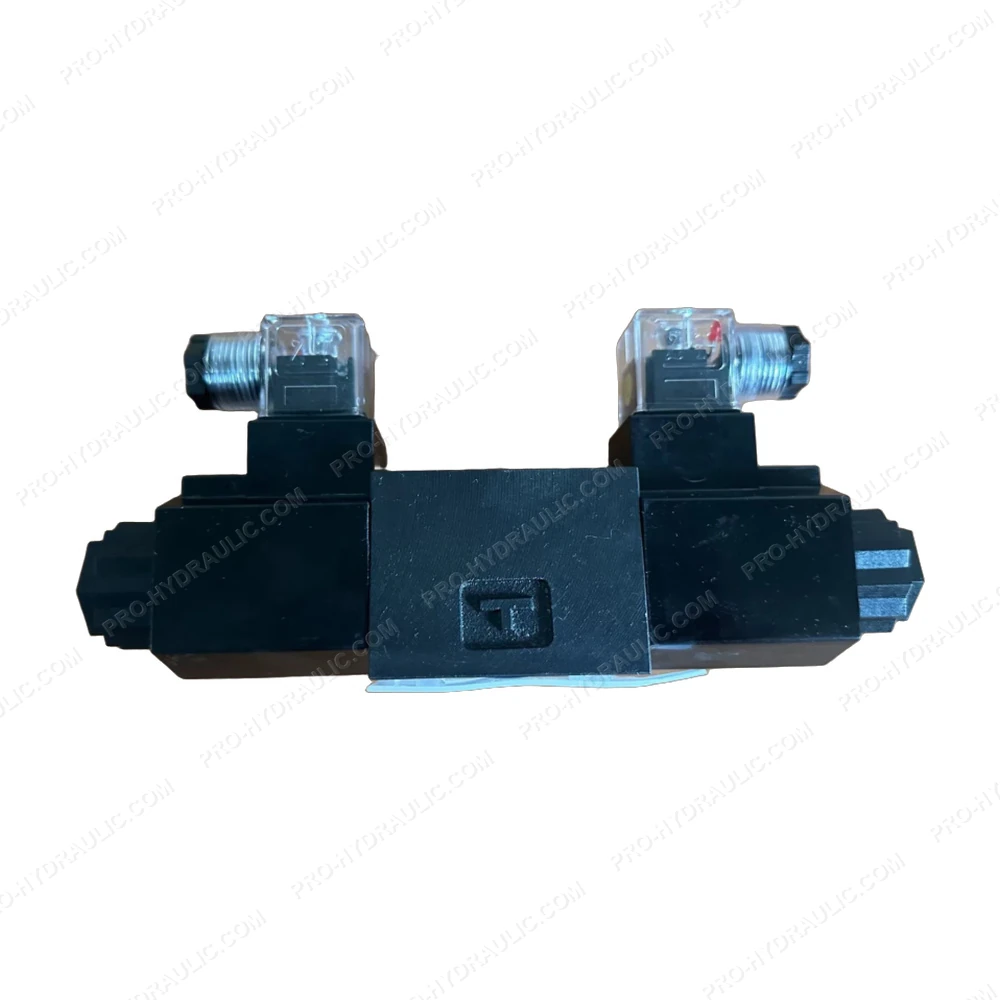

YUKEN DSG-01-3C2-D24-N1-51T203 Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C2-D24-N1-51T203 Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a 3-position, spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
