Product Overview
The YUKEN DSG-01-3C2-D24-N1-70442 is a high-performance solenoid operated directional valve from the renowned YUKEN DSG series, engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. This direct-acting, wet-armature solenoid valve features a 3-position, 4-way (3C2) spool configuration with spring-centered return, ensuring reliable neutral positioning and consistent directional control. The D24 designation indicates a 24V DC solenoid coil, while the N1 suffix denotes the standard electrical connection style. Designed for subplate mounting in accordance with ISO 4401 / CETOP 3 / NG6 interface standards, this valve delivers exceptional response times, low pressure drop, and long service life, making it an ideal choice for demanding industrial applications requiring precise actuator control and dependable directional switching.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve (Hydraulic Valve) |
| Model Designation | DSG-01-3C2-D24-N1-70442 |
| Valve Configuration | 3-Position, 4-Way (3C2 Spool Type) |
| Actuation Method | Dual Solenoid, Spring-Centered Return |
| Solenoid Voltage | 24V DC (D24 Coil Rating) |
| Operating Pressure | Up to 315 bar (Rated Working Pressure) |
| Rated Flow | Up to 63 L/min (Nominal) |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP 3 / NG6 Interface |
| Electrical Connection | N1 Style – DIN Connector with Indicator Light |
| Seal Material | NBR (Buna-N) Standard, Optional FKM Available |
| Fluid Compatibility | Mineral-Based Hydraulic Oil, Phosphate Ester (with FKM Seals) |
| Operating Temperature | -20°C to +70°C (Ambient), -20°C |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional valve (hydraulic valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 63 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Designed for subplate mounting in accordance with ISO 4401 / CETOP 3 / NG6 interface standards, this valve delivers exceptional response times, low pressure drop, and long service life, making it an ideal choice for demanding industrial applications requiring precise actuator control and dependable directional switching.
PRODUCT IMAGES

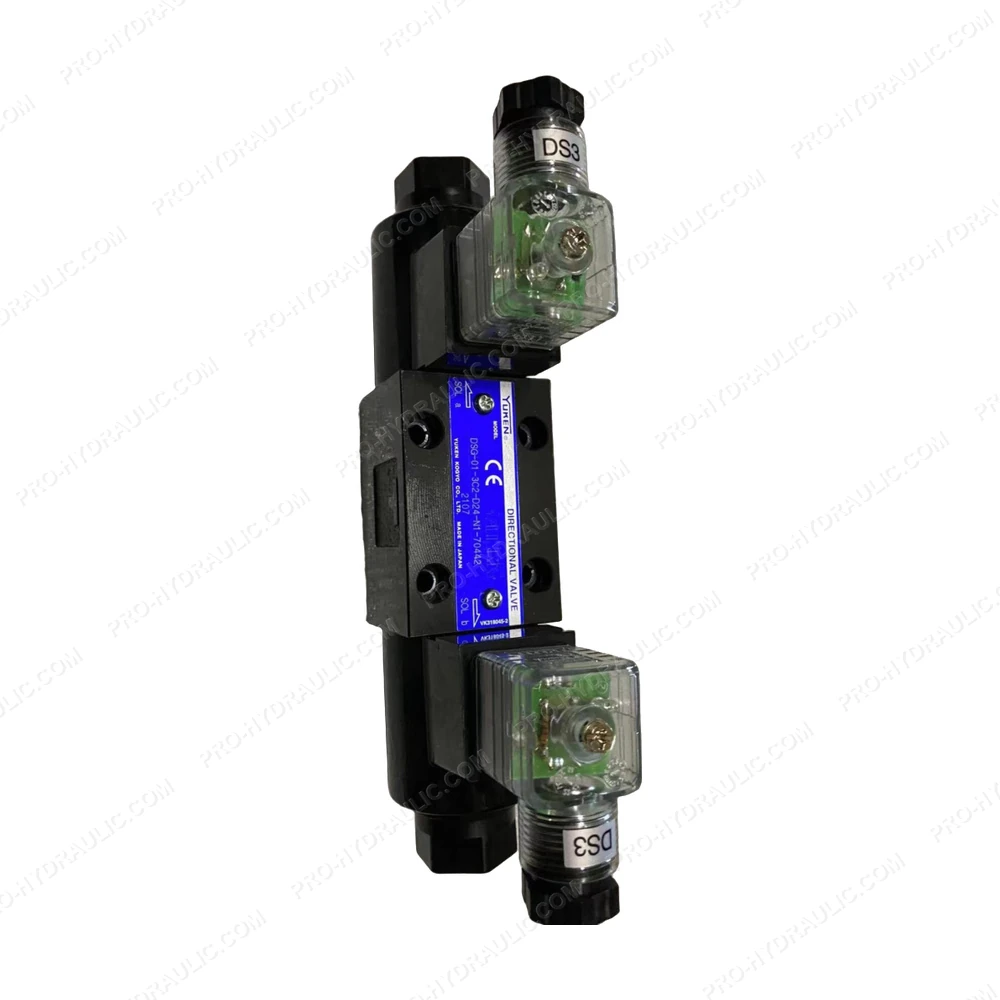

YUKEN DSG-01-3C2-D24-N1-70442 Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C2-D24-N1-70442 Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 3-position, closed center design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
