Product Overview
The YUKEN DSG-01-3C4-A220-50 is a high-performance solenoid operated directional valve from the renowned YUKEN DSG series, engineered to deliver precise and reliable control of hydraulic fluid flow direction in industrial hydraulic systems. This valve utilizes a wet-type AC solenoid (A220 designating a 220V AC coil) to actuate a precision-ground spool within a hardened valve body, achieving rapid and repeatable shifting between flow positions. The “3C4” spool configuration provides a closed-center, four-way, three-position function, making it ideal for controlling double-acting cylinders and bidirectional hydraulic motors. As a direct-acting, spring-centered directional control valve, the DSG-01-3C4-A220-50 ensures fail-safe return to the neutral position upon de-energization, offering superior system safety and operational integrity in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-01-3C4-A220-50 |
| Spool Type | 3C4 — Three-Position, Four-Way, Closed Center |
| Actuation Method | Wet-Type AC Solenoid (Spring Centered / Spring Offset) |
| Coil Voltage | 220V AC (A220 Coil Rating) |
| Operating Pressure | Up to 315 bar (Standard Industrial Grade) |
| Rated Flow | Up to 63 L/min (Nominal at 01 Size) |
| Mounting & Connection | Subplate Mounting — ISO 4401 / CETOP 3 / NG6 Interface |
| Max. Operating Temperature | Up to 70°C (Ambient) / 80°C (Fluid) |
| Filtration Requirement | ISO 4406 — 20/18/15 or better |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, low hysteresis, and consistent, repeatable shifting performance across millions of cycles.
- High-Speed Solenoid Actuation: The wet-type AC solenoid delivers fast response times for rapid directional changes, enabling high-cycle-rate operation essential for automated production machinery.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
As a direct-acting, spring-centered directional control valve, the DSG-01-3C4-A220-50 ensures fail-safe return to the neutral position upon de-energization, offering superior system safety and operational integrity in demanding industrial environments.
PRODUCT IMAGES

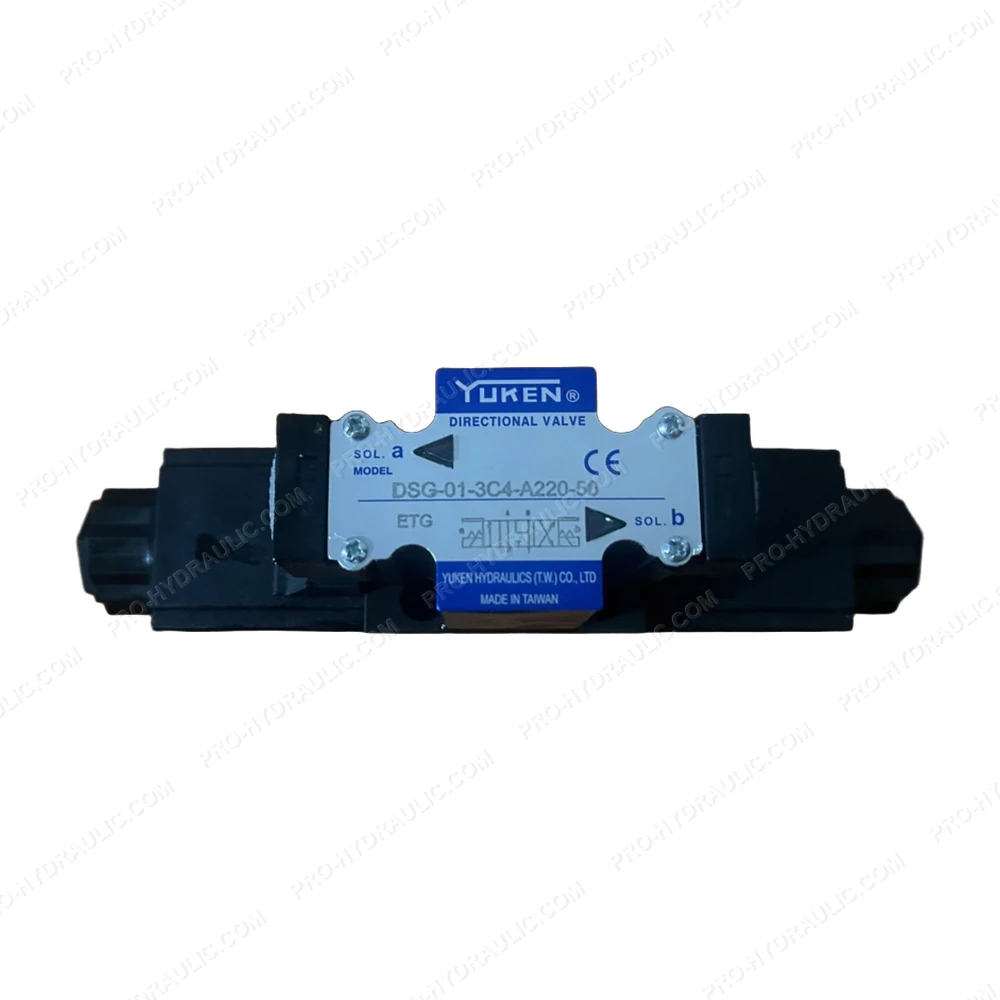

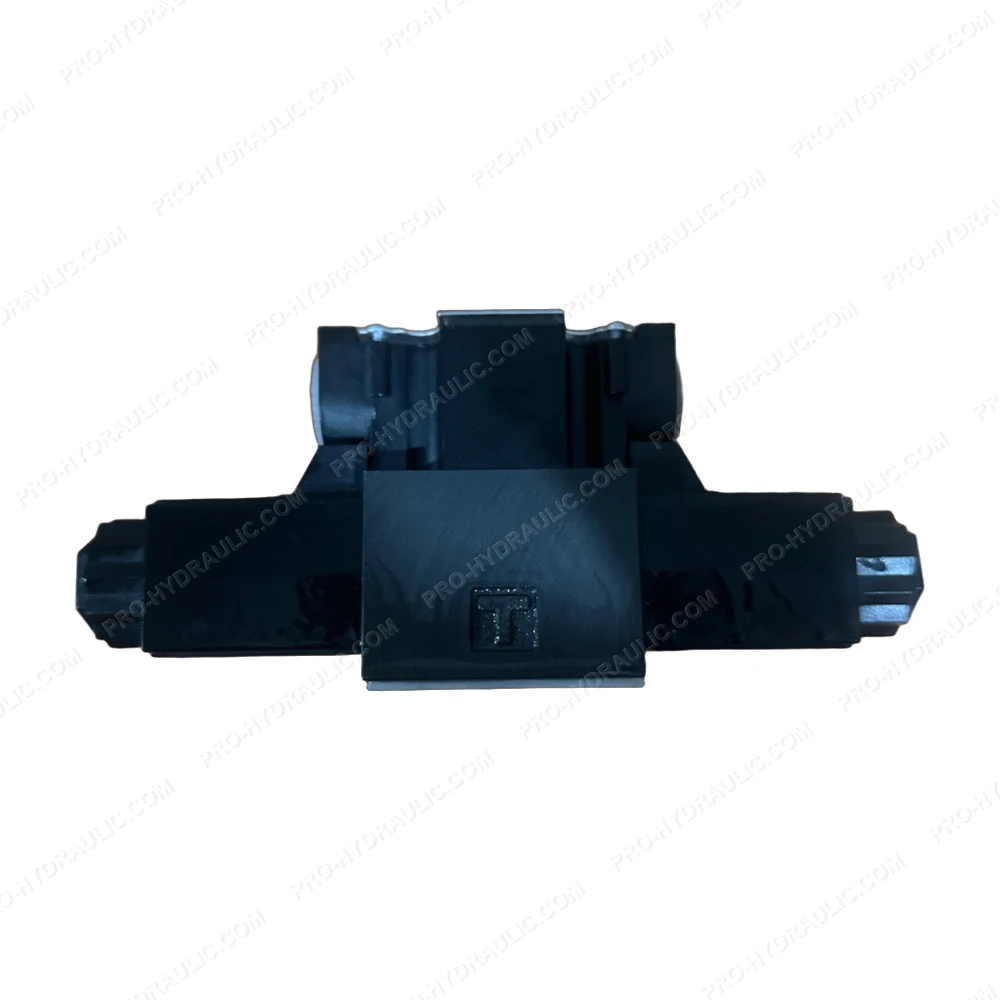

YUKEN DSG-01-3C4-A220-50 Solenoid Operated Directional Valve
