Product Overview
The YUKEN DSG-01-3C4-A220-N1-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. This direct-acting, wet-armature solenoid valve features a 3-position, 4-way (3C4) spool configuration, allowing it to manage extend, retract, and neutral functions of double-acting actuators with exceptional repeatability. The A220 designation indicates an AC 220V solenoid coil, while the N1 specifies the electrical connection style, and the 51T designates the standard spool type and spring return arrangement. Designed for subplate mounting in accordance with ISO 4401 / CETOP 3 / NFPA D03 interface standards, this valve delivers reliable, low-leakage performance in demanding industrial environments where precise directional control and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-3C4-A220-N1-51T |
| Spool Configuration | 3-Position, 4-Way (3C4) |
| Solenoid Voltage | AC 220V (A220) |
| Operating Pressure | Up to 315 bar (rated); 350 bar max intermittent |
| Rated Flow | Up to 63 L/min (at 315 bar, per DSG-01 series) |
| Mounting & Connection | Subplate mounting, ISO 4401 / CETOP 3 / NFPA D03 |
| Electrical Connection | N1 style (DIN 43650 connector, IP65 rated) |
| Return Type | Spring Centered / Spring Offset (51T design) |
| Seal Material | NBR (Buna-N) standard; FKM optional |
| Fluid Compatibility | Mineral-based hydraulic oil (ISO VG 32–68) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 63 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Designed for subplate mounting in accordance with ISO 4401 / CETOP 3 / NFPA D03 interface standards, this valve delivers reliable, low-leakage performance in demanding industrial environments where precise directional control and long service life are critical.
PRODUCT IMAGES

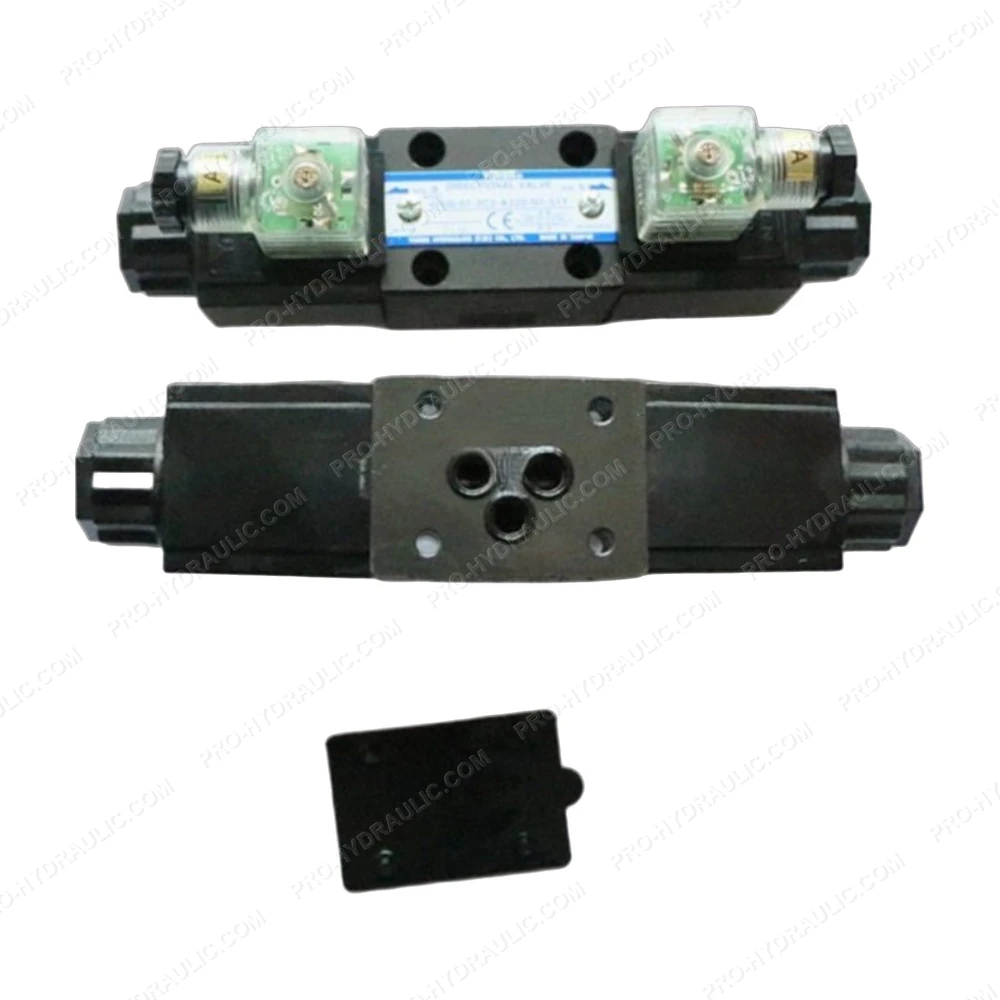

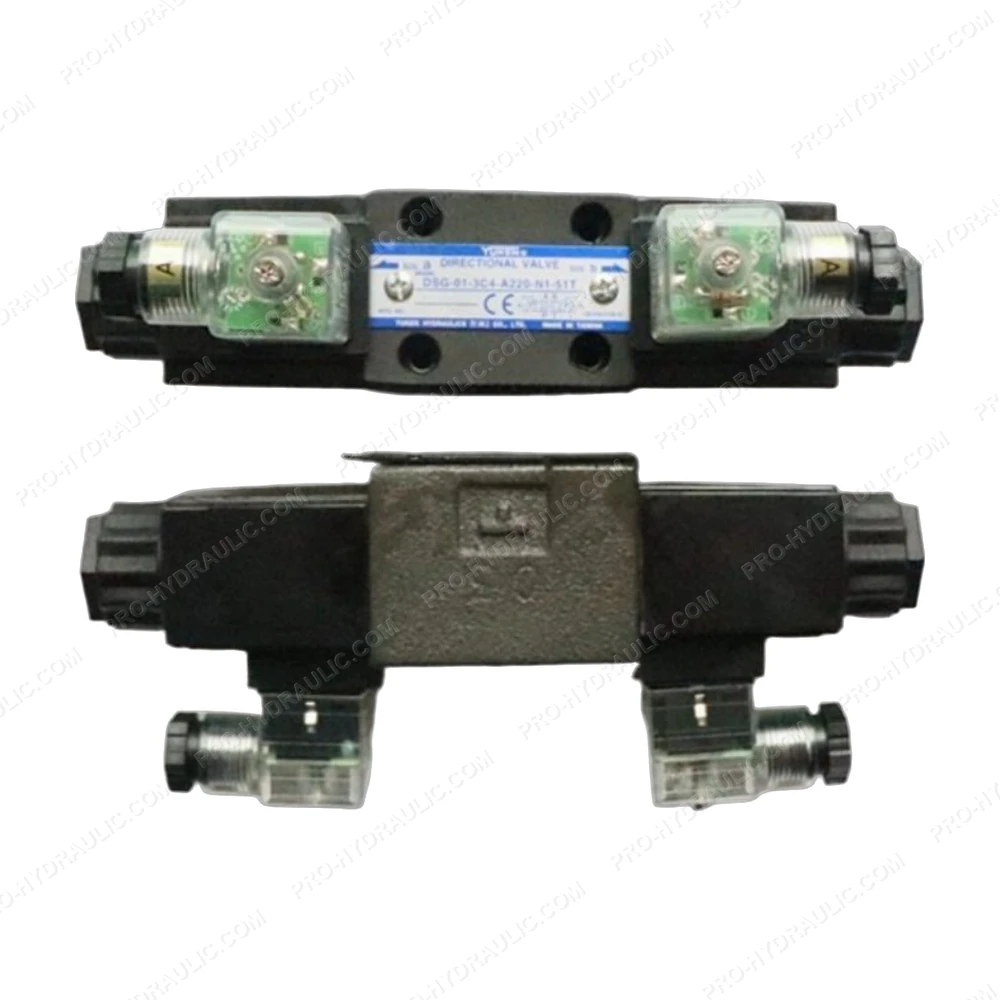

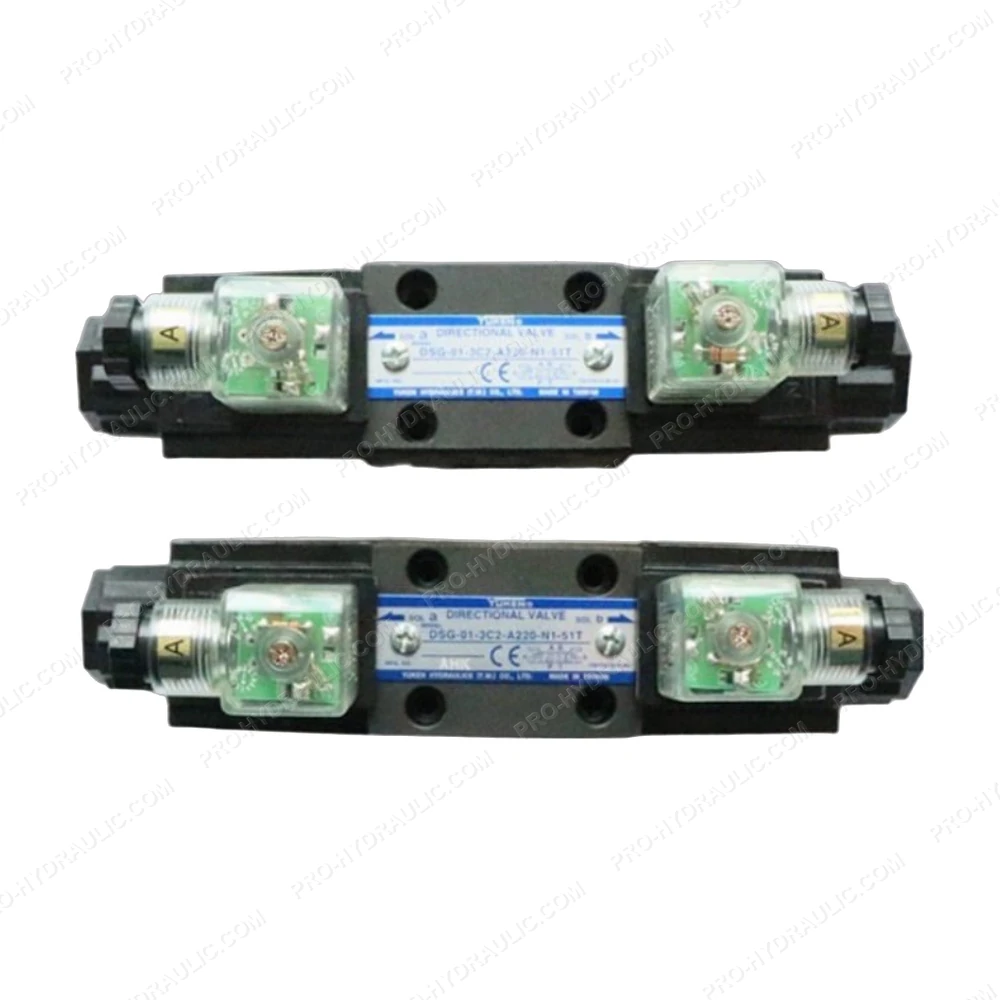

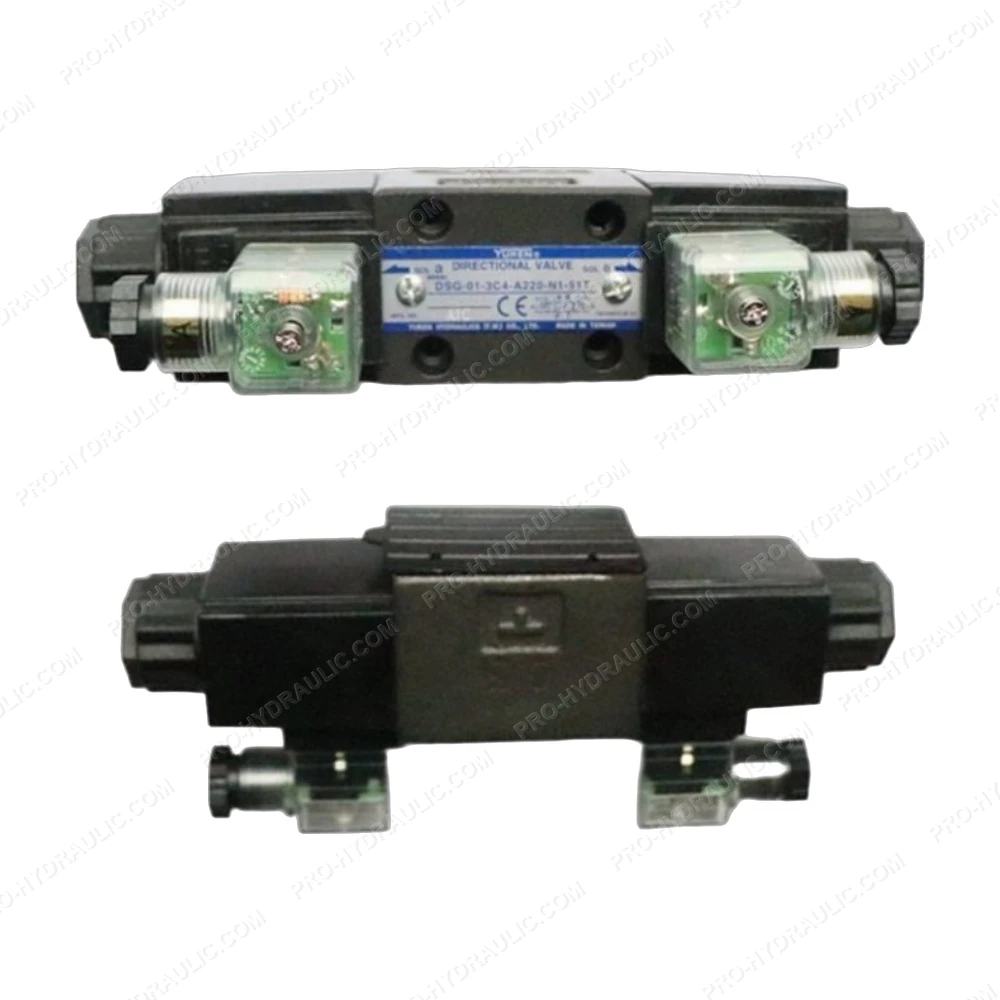

YUKEN DSG-01-3C4-A220-N1-51T Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C4-A220-N1-51T Solenoid Operated Directional Valve. This Japan-made 220V AC hydraulic component features a 3-position 4-way spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
