Product Overview
The YUKEN DSG-01-3C4-D24-50 is a high-performance solenoid operated directional valve from YUKEN’s renowned DSG series, engineered to deliver precise flow control and reliable directional switching in demanding industrial hydraulic systems. This valve utilizes a wet-type AC/DC solenoid actuator that shifts a precision-ground spool within a hardened valve body, directing hydraulic fluid to the desired circuit path with minimal pressure drop and fast response. The DSG-01 series is a globally recognized standard for compact directional control, offering excellent repeatability, low leakage, and long service life. With a 3C4 spool configuration and D24 (24V DC) solenoid rating, this model is ideally suited for integration into manifold-mounted or subplate-mounted hydraulic power units, providing dependable directional control for actuators, cylinders, and motors across a wide range of industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-01-3C4-D24-50 |
| Series | YUKEN DSG-01 Series (NG6 / CETOP 3 / ISO 4401-03 Size) |
| Spool Configuration | 3C4 — Three-position, four-way, closed center (all ports blocked in neutral) |
| Actuation Type | Dual wet-type solenoid, spring centered |
| Solenoid Voltage | 24V DC (D24 coil rating) |
| Operating Pressure | Up to 315 bar (rated working pressure) |
| Rated Flow | Up to 63 L/min (nominal at rated conditions) |
| Mounting & Connection | Subplate / manifold mounting per ISO 4401-03, CETOP 3, NG6 interface |
| Design Number | 50 (YUKEN design series) |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: The hardened, precision-ground spool and honed body bore ensure minimal internal leakage, consistent shifting forces, and repeatable directional control across millions of operating cycles.
- Wet-Type Solenoid Design: The D24 solenoid operates in hydraulic fluid, providing superior heat dissipation, reduced wear, quieter operation, and reliable performance under high duty cycles compared to dry-type alternatives.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a 3C4 spool configuration and D24 (24V DC) solenoid rating, this model is ideally suited for integration into manifold-mounted or subplate-mounted hydraulic power units, providing dependable directional control for actuators, cylinders, and motors across a wide range of industrial machinery.
PRODUCT IMAGES

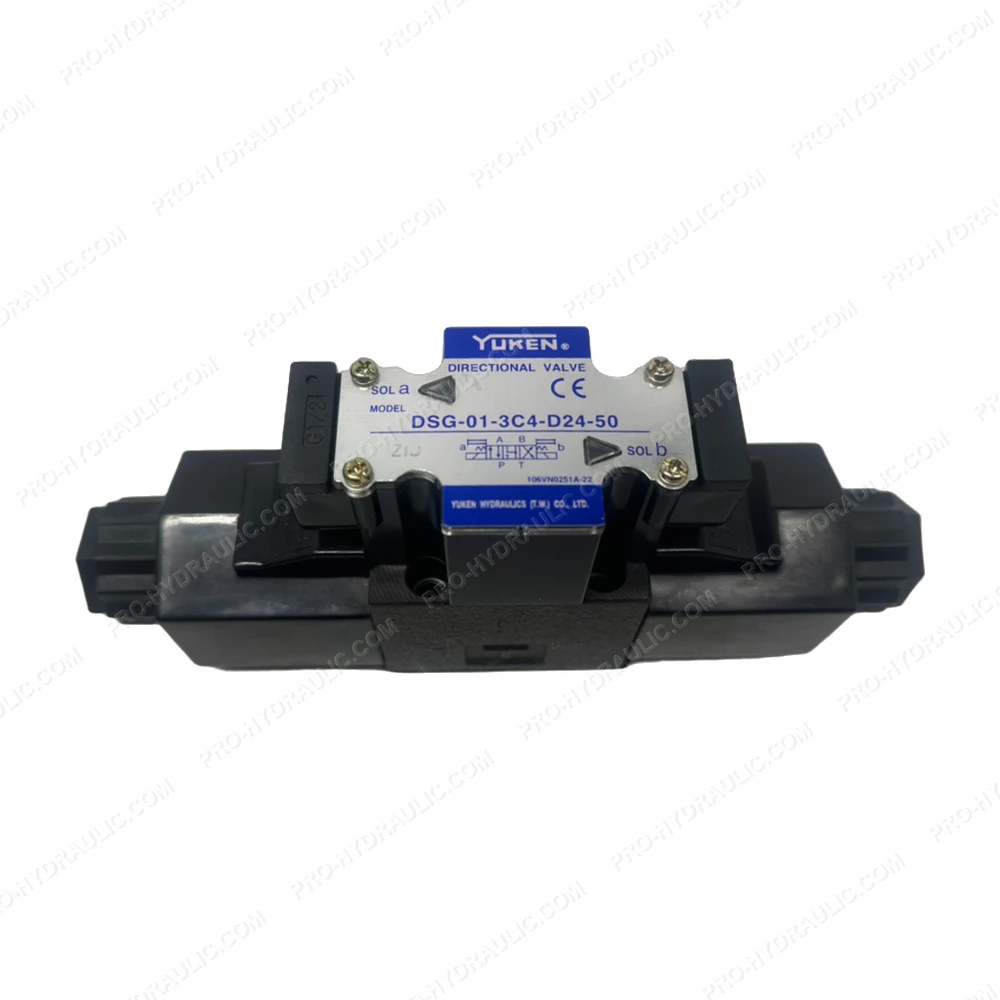

YUKEN DSG-01-3C4-D24-50 Solenoid Operated Directional Valve
