Product Overview
The YUKEN DSG-01-3C4-D24-N1-50 is a high-performance solenoid operated directional valve from the renowned YUKEN DSG series, engineered for precise control of hydraulic fluid flow direction in industrial power systems. This direct-acting, spring-centered valve utilizes a wet-type AC/DC solenoid to shift a precision-ground spool within a hardened valve body, directing pressurized oil to the designated actuator ports. The DSG-01 series is globally recognized for its exceptional response time, low pressure drop, and reliable shifting performance, making it a critical control component in complex hydraulic circuits requiring dependable directional control and load holding capability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve (Hydraulic Valve) |
| Model Designation | DSG-01-3C4-D24-N1-50 |
| Spool Configuration | 3C4 (Three-position, four-way, closed center) |
| Solenoid Voltage | D24 (24V DC) |
| Operating Pressure | Up to 315 bar (Rated industrial grade) |
| Rated Flow | Up to 63 L/min (Nominal) |
| Mounting & Connection | ISO 4401-03 (CETOP 3 / NFPA D03) Subplate Mounting |
| Electrical Connection | DIN 43650 Standard Connector |
| Seal Type | N1 (Nitrile Rubber / Buna-N) |
| Design Number | 50 Series |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The DSG-01 utilizes a precision-honed spool and sleeve assembly that ensures minimal internal leakage, precise metering characteristics, and smooth shifting without sticking, even after prolonged periods of inactivity.
- High-Power Wet Solenoid: The D24 (24V DC) solenoid features a wet-armature design that provides high magnetic force for reliable shifting against high flow forces, while the oil immersion effectively dampens noise and dissipates heat for extended coil life.
- Low Pressure Drop: Optimized internal flow paths within the valve body minimize pressure losses across the valve, reducing heat generation and improving overall system energy efficiency.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The YUKEN DSG-01-3C4-D24-N1-50 is a high-performance solenoid operated directional valve from the renowned YUKEN DSG series, engineered for precise control of hydraulic fluid flow direction in industrial power systems.
PRODUCT IMAGES

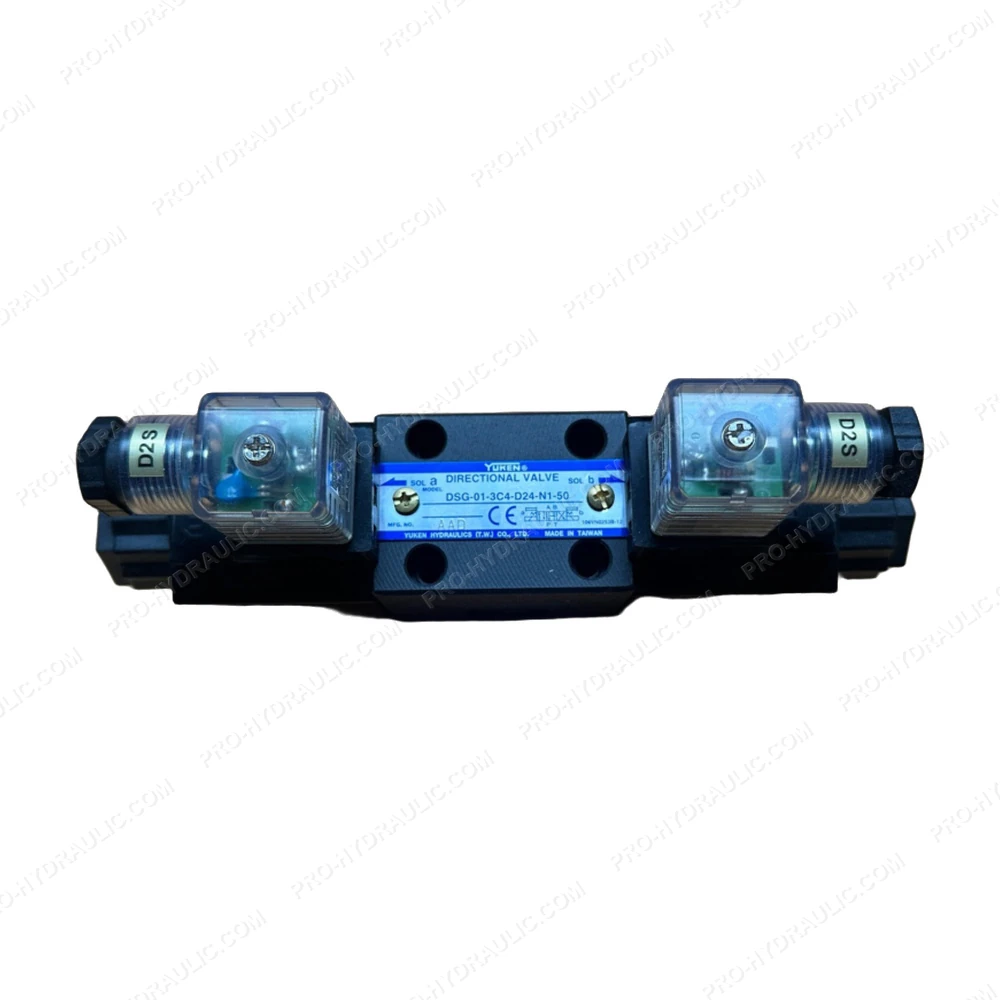

YUKEN DSG-01-3C4-D24-N1-50 Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C4-D24-N1-50 Solenoid Directional Control Valve. This Japan-made 24V DC hydraulic component features a 4-way, 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
