Product Overview
The YUKEN DSG-01-3C4-D24-N1-51T is a high-performance solenoid operated directional valve from the YUKEN DSG-01 series, engineered for precise control of hydraulic fluid flow direction in industrial power systems. This direct-acting, wet-armature solenoid valve utilizes a robust spool-and-sleeve design to shift hydraulic flow paths with exceptional repeatability and minimal pressure drop. The DSG-01-3C4 configuration features a 3-position, 4-way spool type with a tandem center condition, allowing smooth directional control of double-acting cylinders and bidirectional hydraulic motors. With a D24 designation indicating a 24V DC solenoid coil and N1 representing the standard electrical connection style, this valve is designed for seamless integration into modern industrial control panels. The 51T design series suffix denotes YUKEN’s enhanced internal geometry for improved flow capacity and reduced hysteresis, making it an ideal choice for demanding applications requiring precise actuation and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-01-3C4-D24-N1-51T |
| Spool Configuration | 3-Position, 4-Way (3C4) |
| Center Condition | Tandem Center |
| Solenoid Voltage | 24V DC (D24 Coil) |
| Electrical Connection | N1 Standard Terminal Box |
| Operating Pressure | Up to 315 bar (Rated) |
| Rated Flow | Up to 63 L/min (Nominal) |
| Mounting Pattern | ISO 4401-03 / CETOP 3 / NG6 |
| Seal Material | NBR (Buna-N) Standard |
| Operating Temperature | -20°C to +70°C (Ambient) |
Engineering Features & Advantages
- Precision Spool Metering: The DSG-01-3C4 spool is precision-ground and matched to the valve body bore, ensuring minimal internal leakage, low hysteresis, and consistent flow metering for accurate actuator positioning.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The 51T design series suffix denotes YUKEN’s enhanced internal geometry for improved flow capacity and reduced hysteresis, making it an ideal choice for demanding applications requiring precise actuation and long service life.
PRODUCT IMAGES

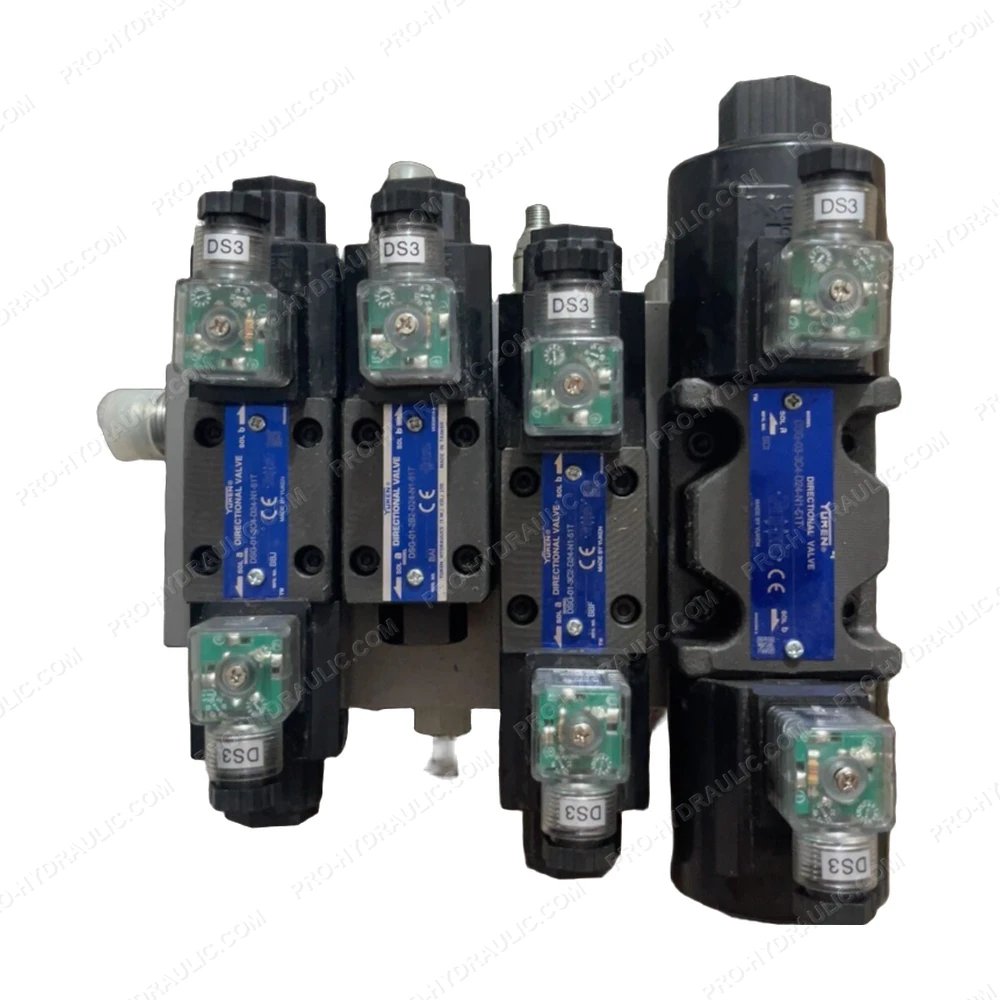

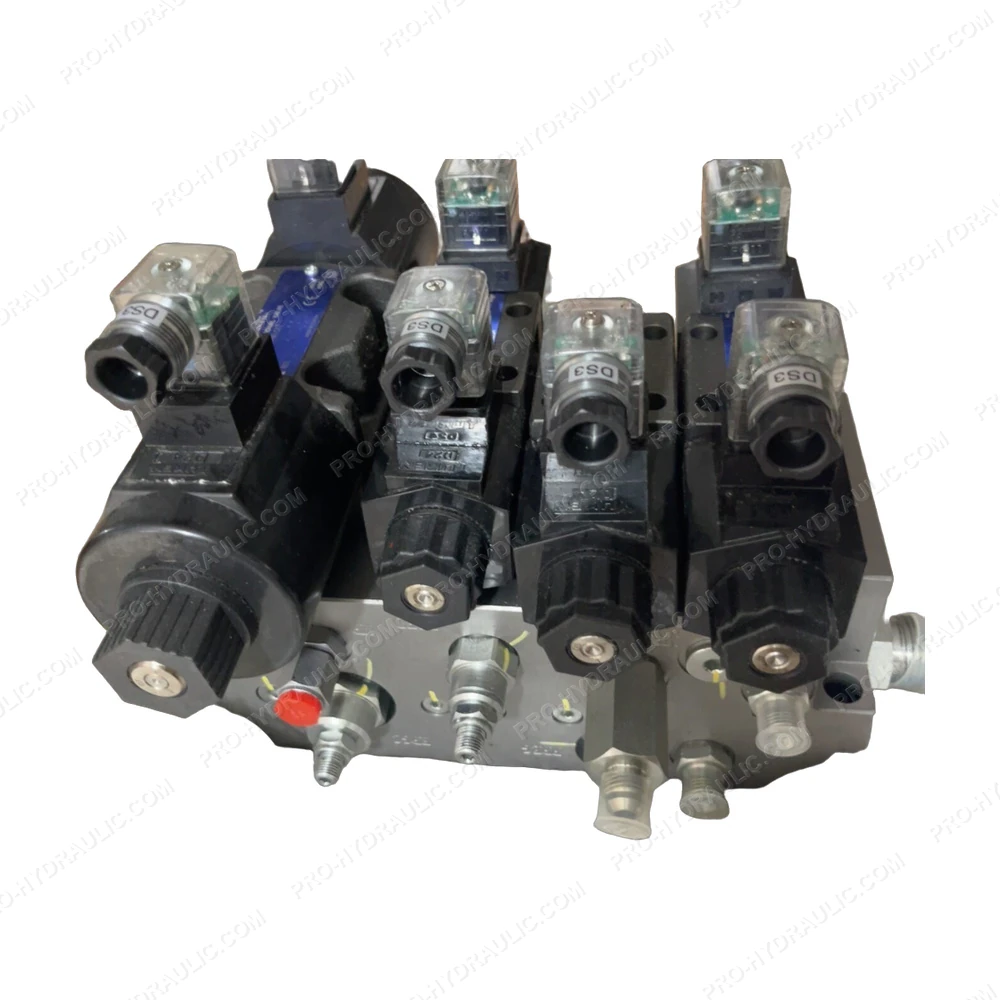

YUKEN DSG-01-3C4-D24-N1-51T Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C4-D24-N1-51T Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a 4-way, spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
