Product Overview
The YUKEN DSG-01-3C5-A240-N1-50 is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered to direct and control the flow of hydraulic fluid in industrial hydraulic systems. This valve utilizes a wet-type AC solenoid with a spring-centered, spring-offset spool design, providing reliable and repeatable directional control of actuators, cylinders, and motors. The DSG-01 series is a globally recognized standard for compact, high-flow directional valves, and the 3C5 spool configuration delivers a specific center condition for precise circuit behavior. With a 240V AC solenoid coil and N1 electrical connection, this model is configured for direct integration into standard industrial control panels. As a direct-fit replacement for OEM YUKEN components, it ensures dimensional and functional compatibility without modification.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-3C5-A240-N1-50 |
| Series | YUKEN DSG-01 Series |
| Spool Type | 3C5 Spool Configuration (Spring Centered) |
| Number of Positions | 3-Position, 4-Way |
| Solenoid Voltage | 240V AC (A240 Coil) |
| Electrical Connection | N1 Terminal Box / DIN Connector |
| Operating Pressure | Up to 315 bar (Rated Industrial Grade) |
| Max Flow Rate | Up to 63 L/min (Nominal) |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP 3 / NG6 Interface |
| Seal Type | NBR (Nitrile) Standard, Optional FKM Available |
Engineering Features & Advantages
- Precise Spool Control: The 3C5 spool configuration provides a defined center condition for controlled actuator positioning and smooth directional transitions, minimizing hydraulic shock during operation.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a 240V AC solenoid coil and N1 electrical connection, this model is configured for direct integration into standard industrial control panels.
PRODUCT IMAGES

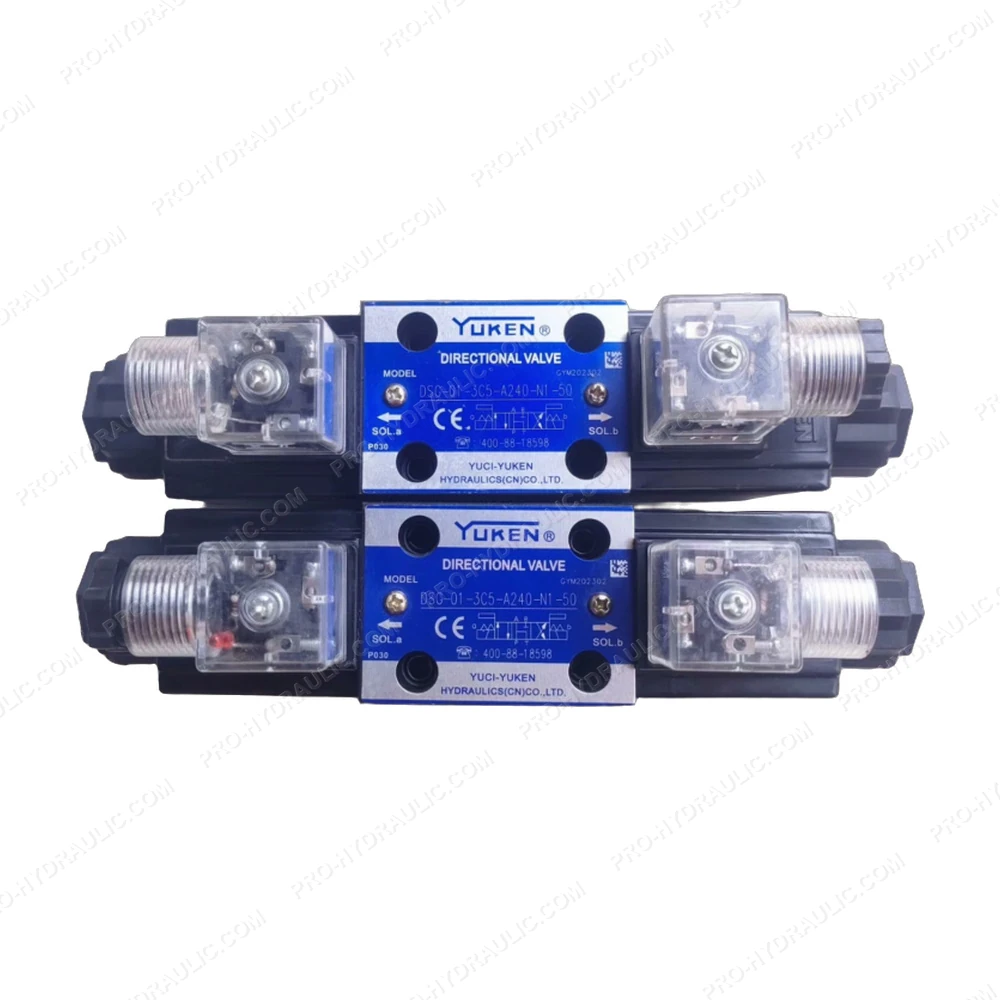

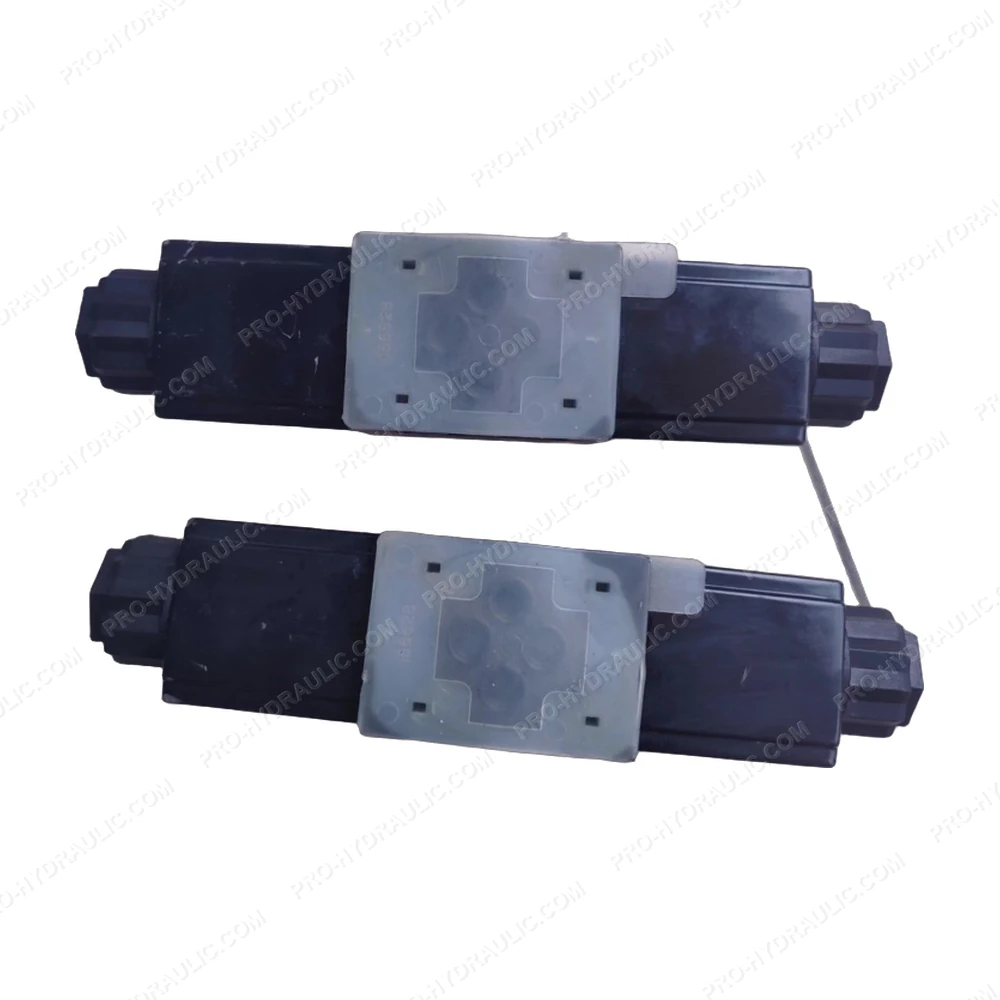

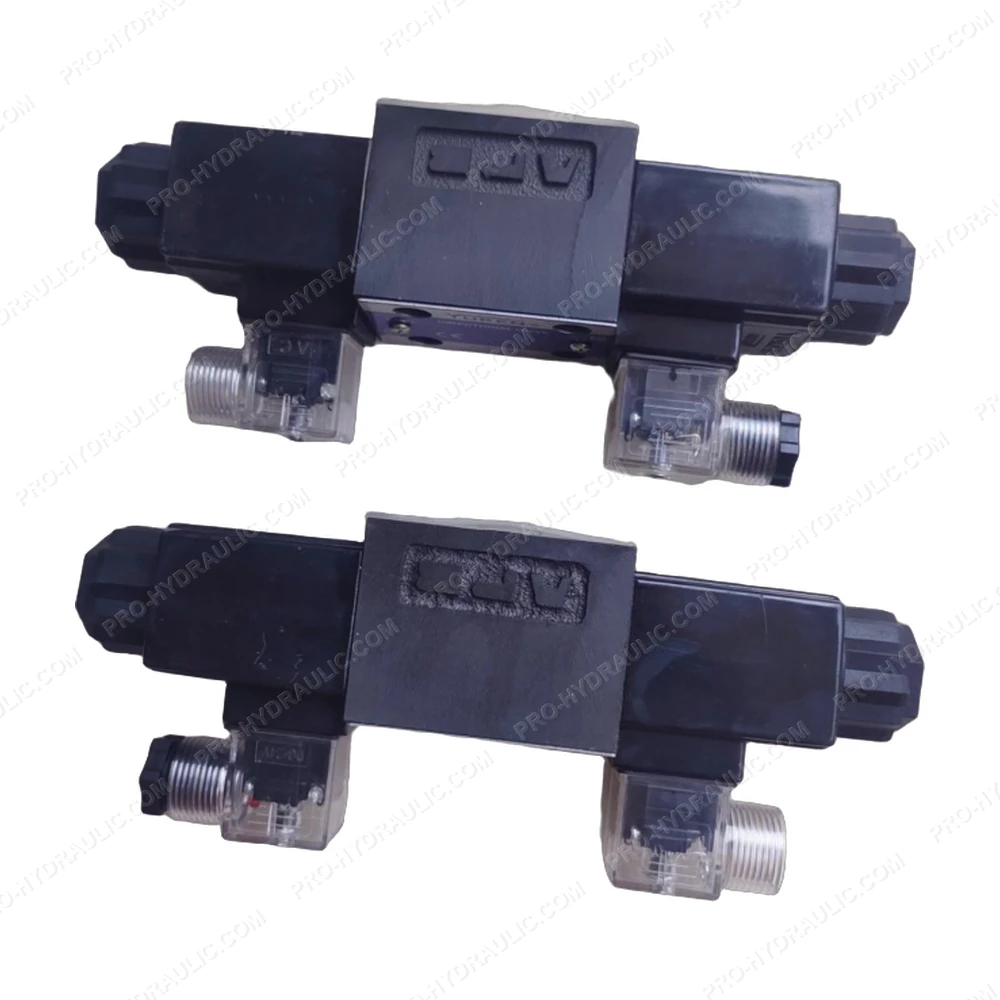

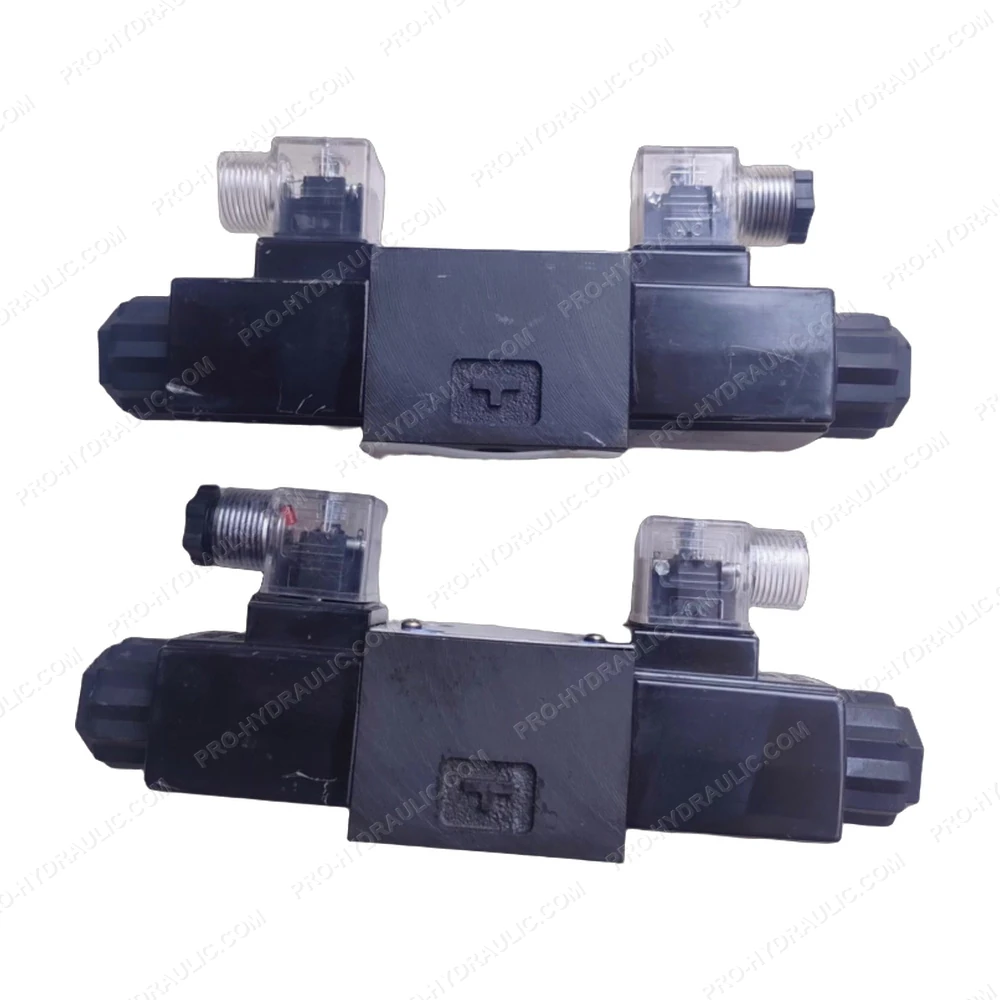

YUKEN DSG-01-3C5-A240-N1-50 Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C5-A240-N1-50 Solenoid Operated Directional Valve. This Japan-made 240V AC hydraulic component features a 3-position, 4-way spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
