Product Overview
The YUKEN DSG-01-3C60-D24-N1-70442 is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series. Engineered for precise flow direction control in industrial hydraulic systems, this valve utilizes a wet-type AC/DC solenoid actuator to shift a precision-ground spool within a hardened valve body. The DSG-01 series is a globally recognized standard for reliable directional control, offering fast response, low pressure drop, and exceptional service life. This model features a 3-position, 4-way configuration with a tandem center spool type (3C60), designed to direct hydraulic flow to actuators while allowing pump unloading in the neutral position. The D24 designation indicates a 24V DC solenoid coil, and the N1 suffix denotes the standard electrical connection style. The 70442 code represents a specific factory configuration or design revision. This valve is a direct-fit replacement for OEM YUKEN installations and is widely used in plastic injection molding machines, machine tools, and general industrial hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-01-3C60-D24-N1-70442 |
| Series | YUKEN DSG-01 (NG6 / CETOP 3 / ISO 4401-03) |
| Spool Configuration | 3-Position, 4-Way, Tandem Center (3C60) |
| Solenoid Voltage | 24V DC (D24 Coil) |
| Operating Pressure | Up to 315 bar (Rated); 250 bar (Max. Tank Port) |
| Rated Flow | Up to 63 L/min (Nominal) |
| Mounting & Connection | Subplate Mounting (ISO 4401-03 / CETOP 3); N1 Electrical Connection |
| Seal Material | NBR (Buna-N) Standard; FKM Optional |
| Fluid Compatibility | Mineral-based hydraulic oil (ISO VG 32-68) |
| Operating Temperature | -20°C to +70°C (Fluid Range) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
This valve is a direct-fit replacement for OEM YUKEN installations and is widely used in plastic injection molding machines, machine tools, and general industrial hydraulic power units.
PRODUCT IMAGES

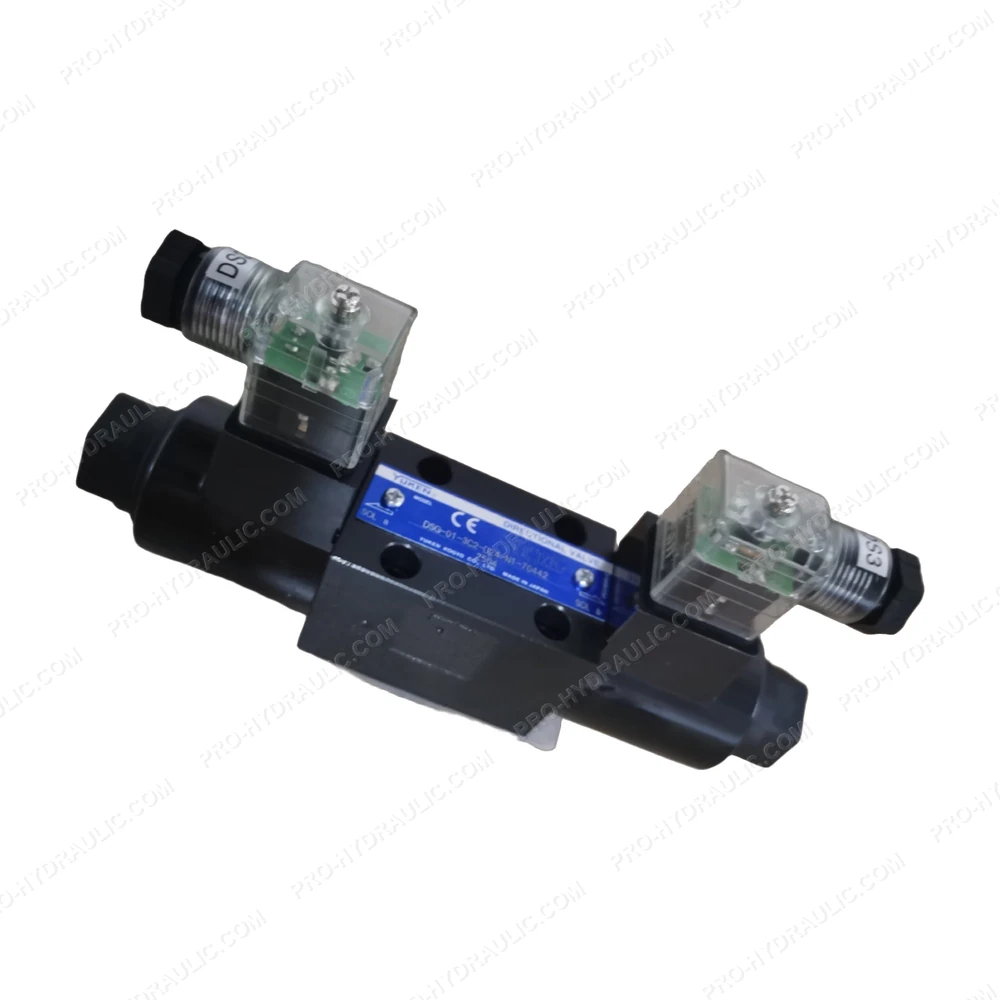

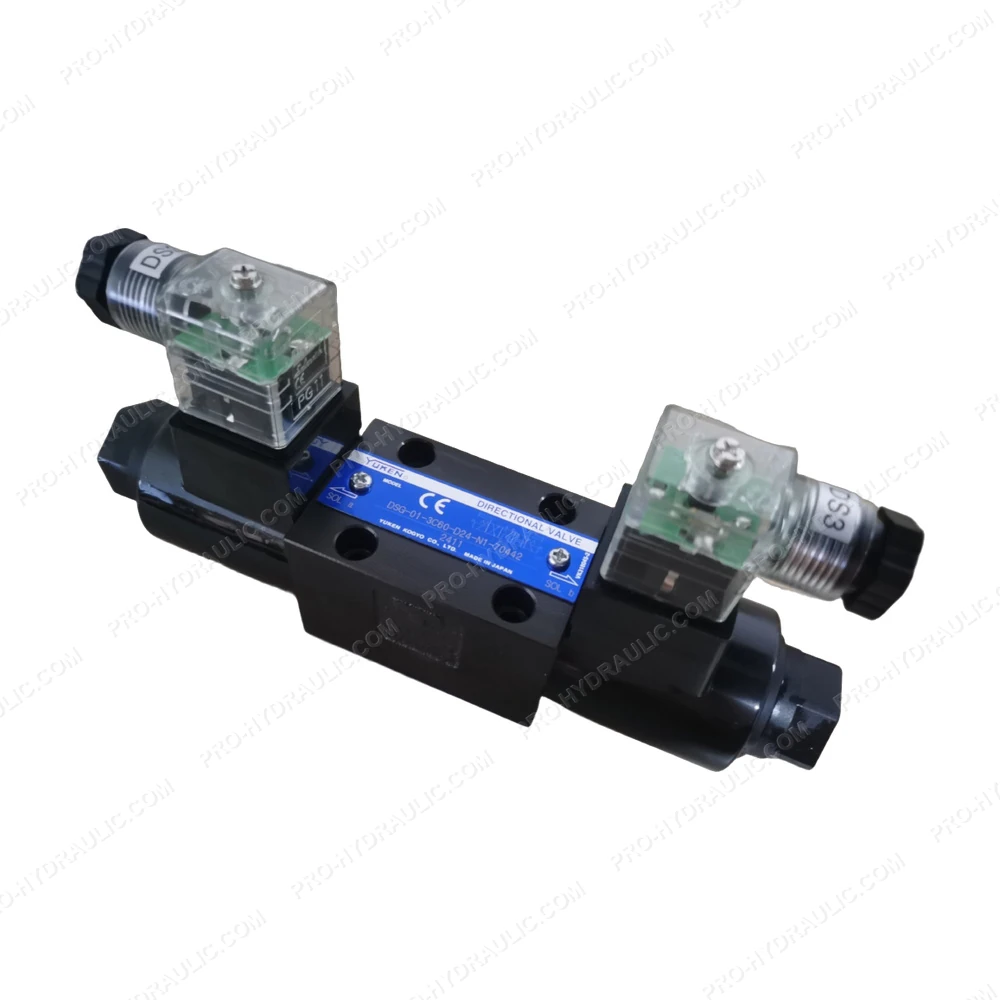

YUKEN DSG-01-3C60-D24-N1-70442 Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-01-3C60-D24-N1-70442 Solenoid Operated Directional Valve. This Japan-made 24 VDC hydraulic component features a 3-position 4-way spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
