Product Overview
The YUKEN DSG-03-2B2-D24-N1-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series. Engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems, this valve features a robust wet-armature solenoid design that ensures reliable shifting and long service life. The DSG-03 series is a direct-acting, spring-centered directional valve with a nominal size of 03 (NG6 / CETOP 3 / ISO 4401-03 mounting pattern), making it a compact yet powerful solution for demanding hydraulic circuits. With a 2B2 spool configuration, this valve provides a closed-center, two-position, four-way function, ideal for applications requiring load holding and precise actuator control. The D24 designation indicates a 24V DC solenoid coil, while the N1 option denotes the electrical connection style. The 51T designates the valve’s design number and seal type. This valve is widely used as a pilot or main stage control element in plastic injection molding machines, machine tools, and other industrial hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-03-2B2-D24-N1-51T |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Spool Type | 2B2 – Two-position, four-way, closed center |
| Solenoid Voltage | 24V DC (D24) |
| Electrical Connection | N1 – DIN 43650 connector (standard) |
| Operating Pressure | Up to 315 bar (rated); 350 bar peak |
| Rated Flow | Up to 63 L/min (at ΔP = 7 bar) |
| Mounting & Connection | ISO 4401-03 subplate mounting; manifold or subplate interface |
| Seal Type | NBR (Buna-N) – 51T design |
| Operating Temperature | -20°C to +70°C (fluid dependent) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 63 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is widely used as a pilot or main stage control element in plastic injection molding machines, machine tools, and other industrial hydraulic power units.
PRODUCT IMAGES

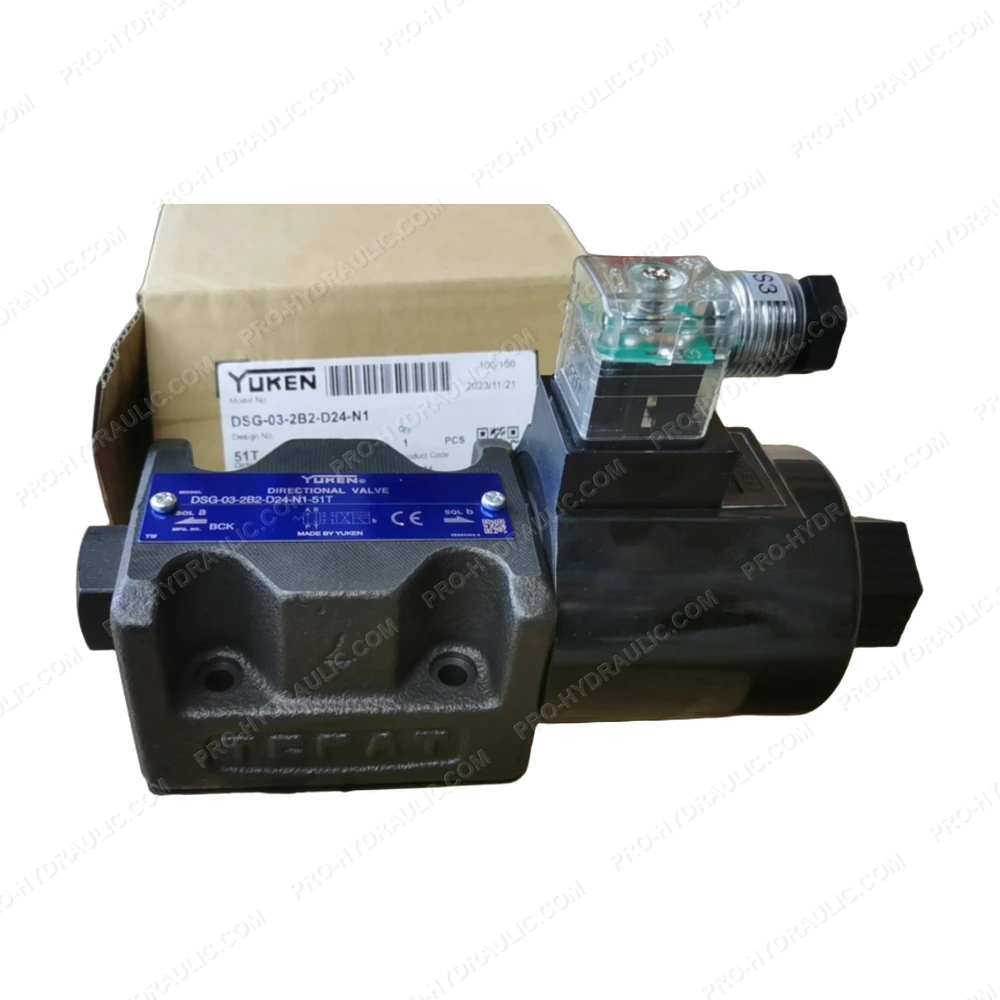

YUKEN DSG-03-2B2-D24-N1-51T Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-03-2B2-D24-N1-51T Solenoid Operated Directional Valve. This Japan-made 24 VDC hydraulic component features a 2-position, 4-way design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
