The YUKEN DSG-03-3C2-D24-N1-50T203 is a heavy-duty industrial directional control valve engineered for precise flow direction and reliable operation in hydraulic systems. This solenoid-operated, spring-centered 3-position 4-way valve features a CETOP 3 (NG6) mounting pattern and is designed for demanding applications requiring high pressure and flow capacity.
YUKEN DSG-03-3C2-D24-N1-50T203 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Directional Control Valve, 4-way, 3-position, spring-centered |
| Spool Type | 3C2 (closed center) |
| Actuation | Solenoid operated, spring return |
| Coil Voltage | 24 V DC |
| Max. Operating Pressure | 315 bar (4570 psi) |
| Max. Flow Rate | 63 L/min (16.6 gpm) |
| Mounting Interface | CETOP 3 (NG6) / ISO 4401-03 |
| Fluid Temperature Range | -20 °C to +70 °C |
| Viscosity Range | 15 to 300 cSt |
| Filtration | ISO 4406 18/16/13 or better |
| Electrical Connection | DIN 43650 connector |
| Protection Class | IP65 (with mating connector) |
Key Engineering Features
- High-pressure capability up to 315 bar for demanding hydraulic circuits
- Precise spool design ensures minimal internal leakage and reliable shifting
- Spring-centered return provides fail-safe neutral position
- Compact CETOP 3 mounting for space-saving manifold integration
- Durable solenoid coil with 24 V DC rating and DIN connector
- Wide viscosity range accommodates various hydraulic fluids
Industrial Applications
- Machine tool hydraulic systems
- Industrial automation and robotics
- Presses and forming equipment
- Material handling and lifting systems
- Marine and offshore hydraulic circuits
- Mobile equipment directional control
For technical inquiries, dimensional drawings, or replacement support for YUKEN DSG-03-3C2-D24-N1-50T203, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

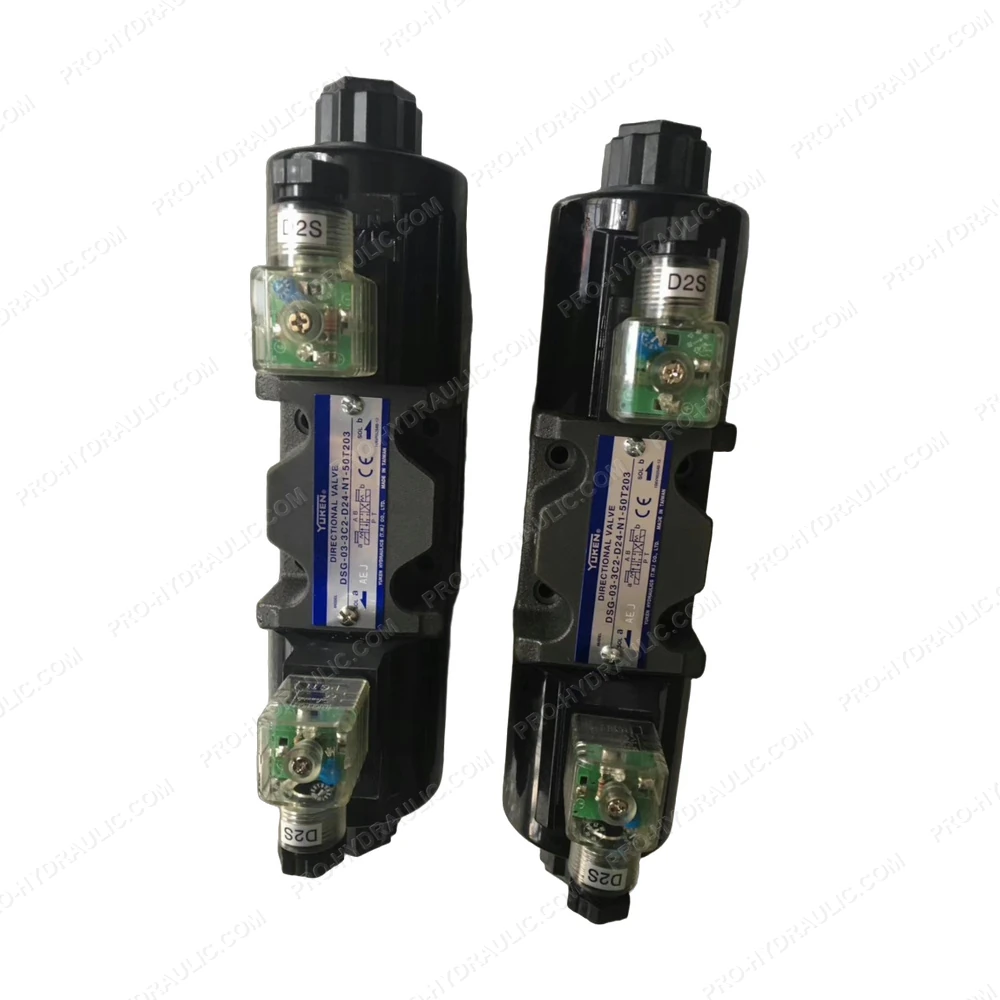

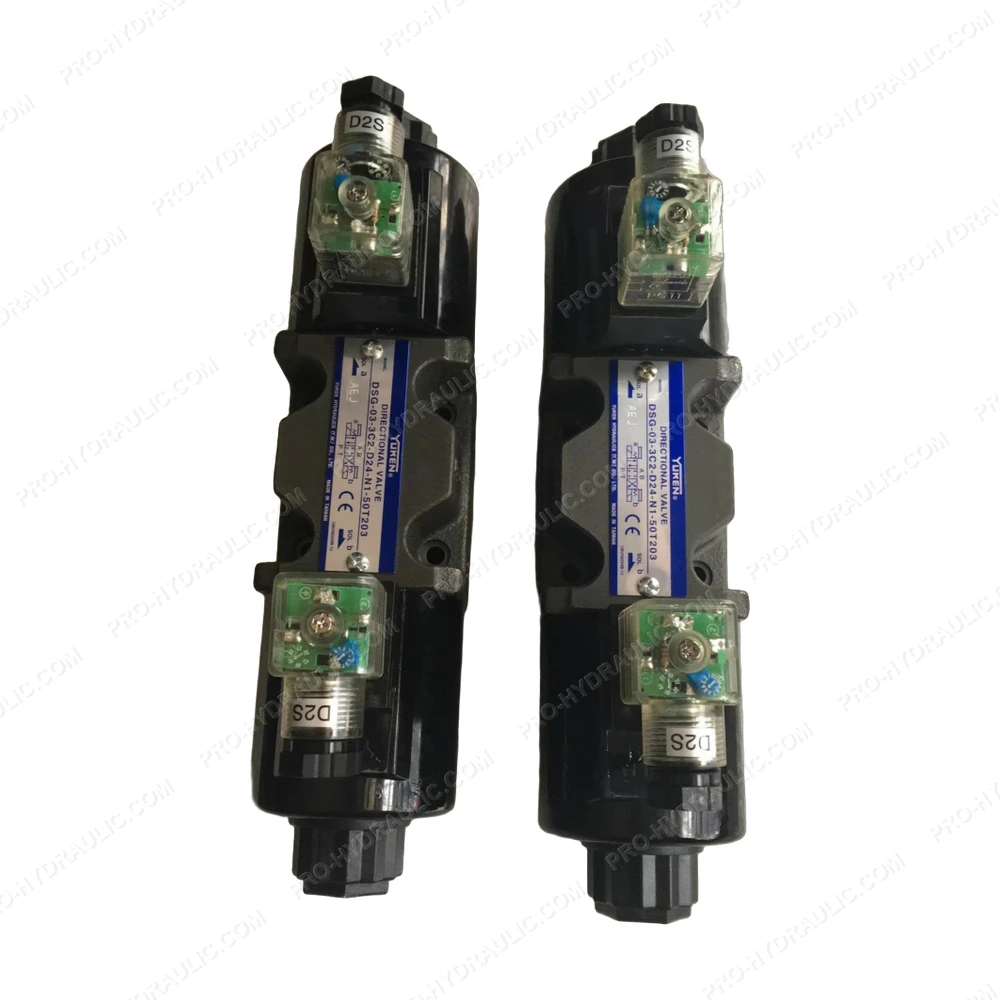

YUKEN DSG-03-3C2-D24-N1-50T203 Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN DSG-03-3C2-D24-N1-50T203 Directional Valve. This precision-engineered hydraulic component delivers reliable performance and accurate flow control for demanding industrial systems.
