Product Overview
The YUKEN DSG-03-3C2-D24-N1-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered to direct and control the flow of hydraulic fluid in industrial hydraulic systems. Utilizing a wet-type AC/DC solenoid with a spring-centered, spring-offset spool design, this valve provides reliable directional control for double-acting cylinders and hydraulic motors. The DSG-03 series is a globally recognized standard for compact, high-flow directional valves, offering low pressure drop, fast response, and long service life. The “51T” designation indicates a specific design series with enhanced solenoid insulation and a terminal box electrical connection, making it ideal for demanding industrial environments where precise directional control and dependable cycling are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-03-3C2-D24-N1-51T |
| Spool Type | 3C2 — Three-position, four-way, spring-centered, closed-center |
| Solenoid Voltage | D24 — 24V DC |
| Electrical Connection | N1 — Terminal box with indicator light |
| Design Series | 51T — Enhanced solenoid insulation, terminal box type |
| Maximum Operating Pressure | Up to 315 bar (31.5 MPa) — standard industrial grade |
| Rated Flow | Up to 63 L/min (nominal at 03 size) |
| Mounting & Connection | Subplate mounting — ISO 4401 / CETOP 3 / NG6 interface |
| Operating Temperature | -20°C to +70°C (ambient); fluid up to 70°C |
| Filtration Requirement | ISO 4406 cleanliness code 18/16/13 or better |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: The 3C2 closed-center spool configuration provides accurate directional control with minimal internal leakage, ensuring precise actuator positioning and reliable load holding in neutral position.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The “51T” designation indicates a specific design series with enhanced solenoid insulation and a terminal box electrical connection, making it ideal for demanding industrial environments where precise directional control and dependable cycling are essential.
PRODUCT IMAGES

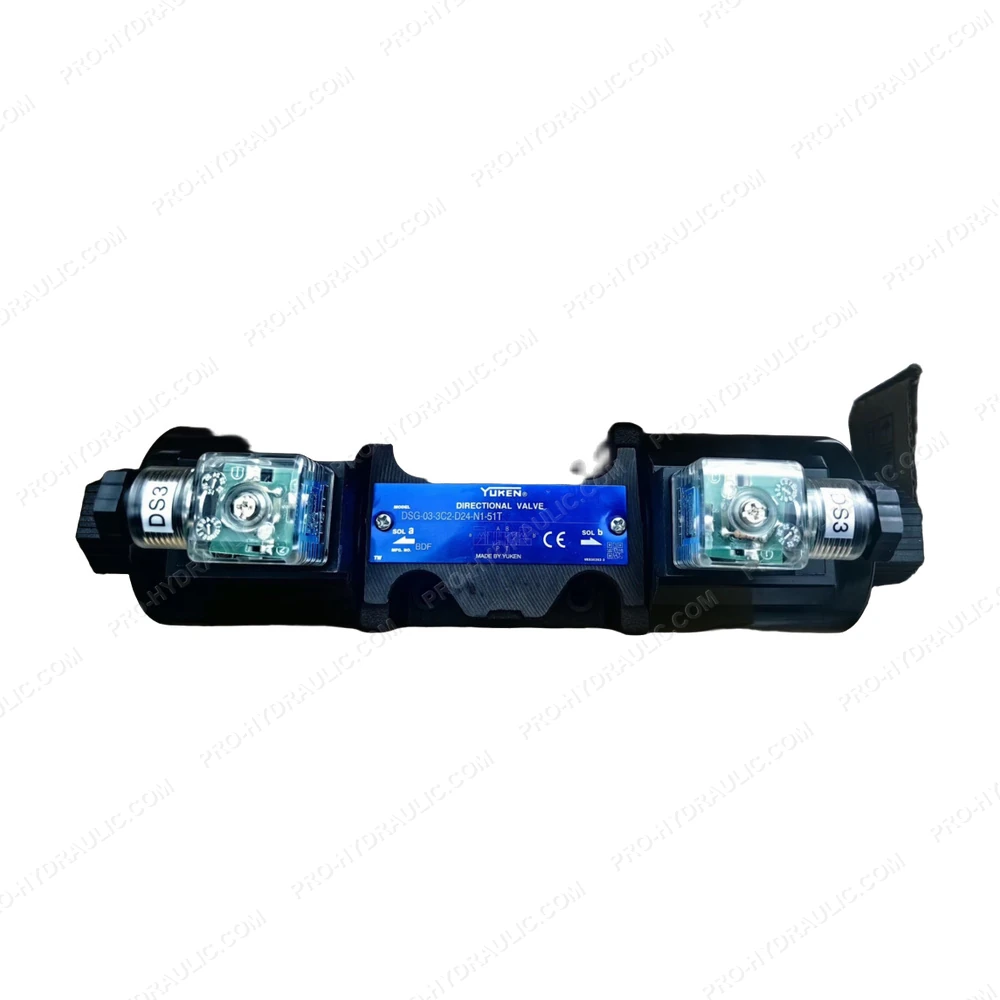

YUKEN DSG-03-3C2-D24-N1-51T Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-03-3C2-D24-N1-51T Solenoid Operated Directional Valve. This Japan-made 24 VDC hydraulic component features a 3-position, 4-way spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
