Product Overview
The YUKEN DSG-03-3C4-A220-N1-50 is a high-performance solenoid operated directional valve from YUKEN’s renowned DSG series, engineered to direct and control hydraulic fluid flow in industrial power circuits. Featuring a 3-position, 4-way (3C4) spool configuration, this valve utilizes a wet-type AC solenoid (A220) to shift the spool between positions, providing reliable directional control of actuators such as cylinders and motors. The N1 designation indicates a standard electrical connection, while the 50 designates the series generation. Designed for subplate mounting in accordance with ISO 4401 / CETOP 3 (NG6) interface standards, this valve delivers precise, repeatable flow switching with minimal pressure drop, making it an essential control component in demanding hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-03-3C4-A220-N1-50 |
| Spool Configuration | 3-Position, 4-Way (3C4) |
| Solenoid Type | AC Solenoid, 220V (A220) |
| Operating Pressure | Up to 315 bar (Rated) |
| Rated Flow | Up to 63 L/min (NG6 / CETOP 3) |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP 3 (NG6) Interface |
| Electrical Connection | N1 Standard Terminal Box / DIN Connector |
| Series Generation | 50 Series |
Engineering Features & Advantages
- Precision Spool Control: The 3C4 spool configuration provides accurate, repeatable directional switching with well-defined center condition, ensuring precise actuator positioning and smooth motion control in complex hydraulic circuits.
- High-Pressure Capability: Rated for continuous operation up to 315 bar, the DSG-03 valve is engineered to withstand the rigorous demands of high-pressure industrial hydraulic systems without compromising sealing integrity or response time.
- Wet-Type Solenoid Design: The A220 wet-armature solenoid offers superior heat dissipation, reduced wear, and quieter operation compared to dry-type alternatives, extending service life and minimizing maintenance intervals.
- Low Pressure Drop: Optimized internal flow passages minimize pressure loss across the valve, improving overall system efficiency and reducing energy consumption.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Designed for subplate mounting in accordance with ISO 4401 / CETOP 3 (NG6) interface standards, this valve delivers precise, repeatable flow switching with minimal pressure drop, making it an essential control component in demanding hydraulic systems.
PRODUCT IMAGES

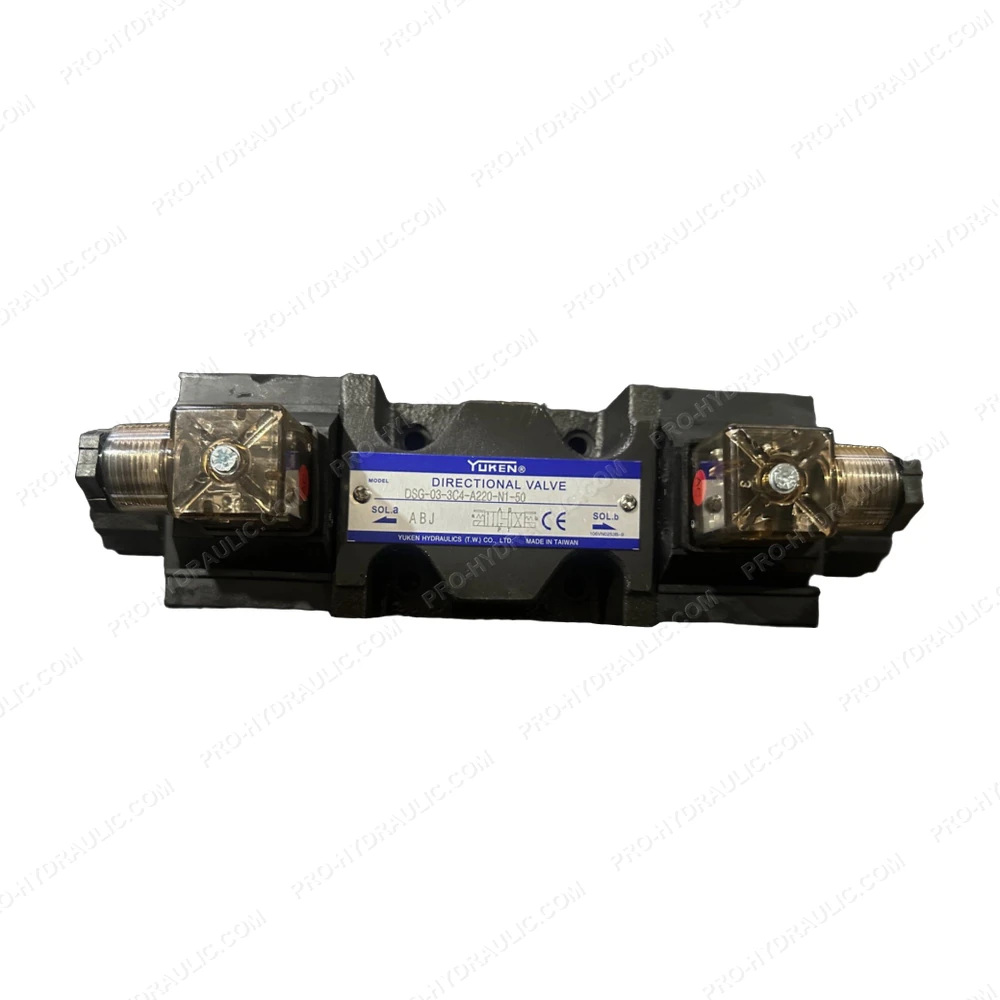

YUKEN DSG-03-3C4-A220-N1-50 Solenoid Operated Directional Valve
