Product Overview
The YUKEN DSG-03-3C4-A220-N1-51T is a high-performance solenoid operated directional valve from the renowned YUKEN DSG series, engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. This direct-acting, wet-armature solenoid valve features a 3-position, 4-way (3C4) spool configuration, allowing it to manage extend, retract, and neutral functions of double-acting actuators with exceptional repeatability. The “A220” designation indicates an AC 220V solenoid coil, while “N1” specifies the electrical connection style, and “51T” denotes the design number and optional features. Designed for manifold mounting in accordance with ISO 4401 / CETOP 03 / NG6 standards, this valve delivers reliable, low-leakage performance and is a direct fit replacement for original YUKEN components in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Valve |
| Model Designation | DSG-03-3C4-A220-N1-51T |
| Spool Configuration | 3-Position, 4-Way (3C4) |
| Solenoid Voltage | AC 220V (A220) |
| Operating Pressure | Up to 315 bar (Rated) |
| Rated Flow | Up to 63 L/min (Nominal) |
| Mounting & Connection | ISO 4401 / CETOP 03 / NG6 Subplate Mounting |
| Electrical Connection | N1 Style (DIN Connector) |
| Design Number | 51T Series |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The DSG-03 series utilizes a precision-ground spool and sleeve assembly that ensures minimal internal leakage, fast response times, and highly accurate flow metering for critical positioning tasks.
- Wet-Armature Solenoid Technology: The wet-armature solenoid design provides smooth, quiet operation, excellent resistance to contamination, and extended coil life, ensuring reliable performance in continuous-duty industrial cycles.
- High-Pressure Capability: Rated for continuous operation up to 315 bar, this valve is suitable for high-pressure hydraulic systems without compromising sealing integrity or response characteristics.
- Direct Fit Replacement: Manufactured to exact YUKEN dimensional and functional standards, ensuring seamless interchangeability with original OEM valves and minimal downtime during maintenance.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
Typical Industrial Applications
Designed for manifold mounting in accordance with ISO 4401 / CETOP 03 / NG6 standards, this valve delivers reliable, low-leakage performance and is a direct fit replacement for original YUKEN components in demanding industrial environments.
PRODUCT IMAGES

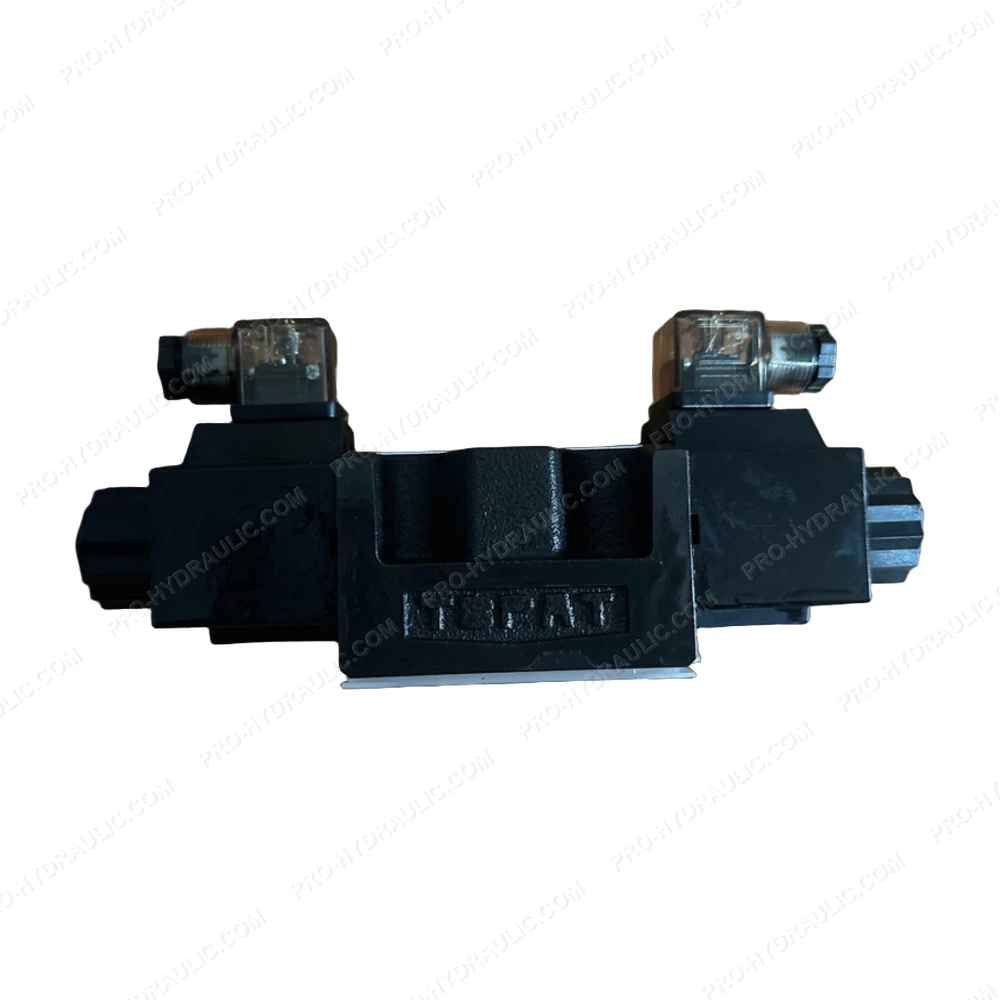

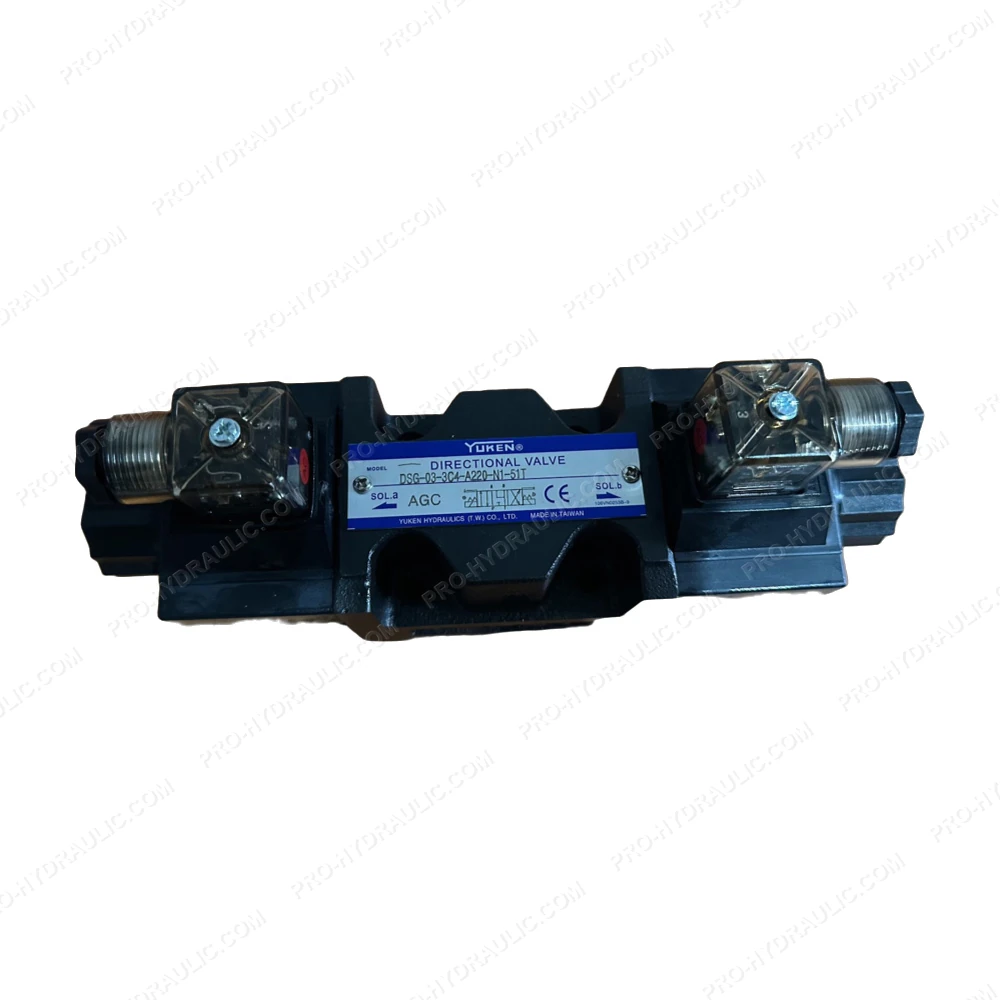

YUKEN DSG-03-3C4-A220-N1-51T Solenoid Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-03-3C4-A220-N1-51T Solenoid Directional Valve. This Japan-made hydraulic component features a 4-way, 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
