Product Overview
The YUKEN DSG-03-3C4-D24-N1-51 is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. This valve utilizes a wet-type AC/DC solenoid actuator acting on a hardened, precision-ground spool to direct flow between ports with exceptional repeatability and minimal pressure drop. The DSG-03 series is a globally recognized standard for reliable directional control, offering fast response times, low leakage characteristics, and long service life. The “3C4” spool configuration provides a closed-center, four-way, three-position function, making it ideal for controlling double-acting cylinders and bidirectional hydraulic motors in demanding industrial circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-03-3C4-D24-N1-51 |
| Spool Configuration | 3C4 — Three-Position, Four-Way, Closed Center |
| Operating Pressure | Up to 315 bar (Rated); 350 bar (Peak) |
| Rated Flow | Up to 100 L/min (at 315 bar, per DSG-03 series standard) |
| Solenoid Voltage | D24 — 24V DC Solenoid |
| Electrical Connection | N1 — DIN 43650 Connector (Standard Industrial Plug) |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP 3 / NG6 Interface |
| Design Number | 51 (YUKEN Design Series) |
| Seal Type | NBR (Nitrile) Standard; FKM Optional |
| Operating Temperature | -20°C to +70°C (Standard NBR Seals) |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: The hardened, precision-ground spool and honed sleeve provide minimal internal leakage, low hysteresis, and consistent shift performance over millions of cycles.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The “3C4” spool configuration provides a closed-center, four-way, three-position function, making it ideal for controlling double-acting cylinders and bidirectional hydraulic motors in demanding industrial circuits.
PRODUCT IMAGES

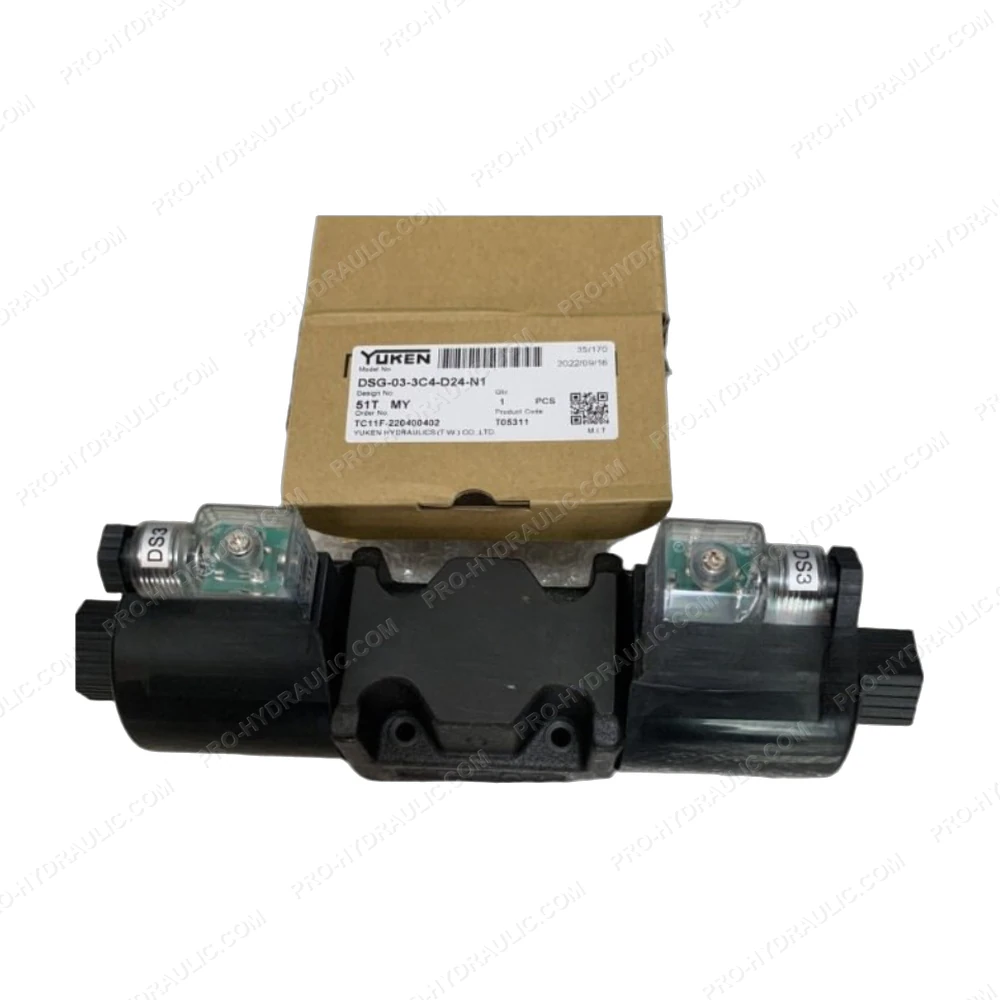

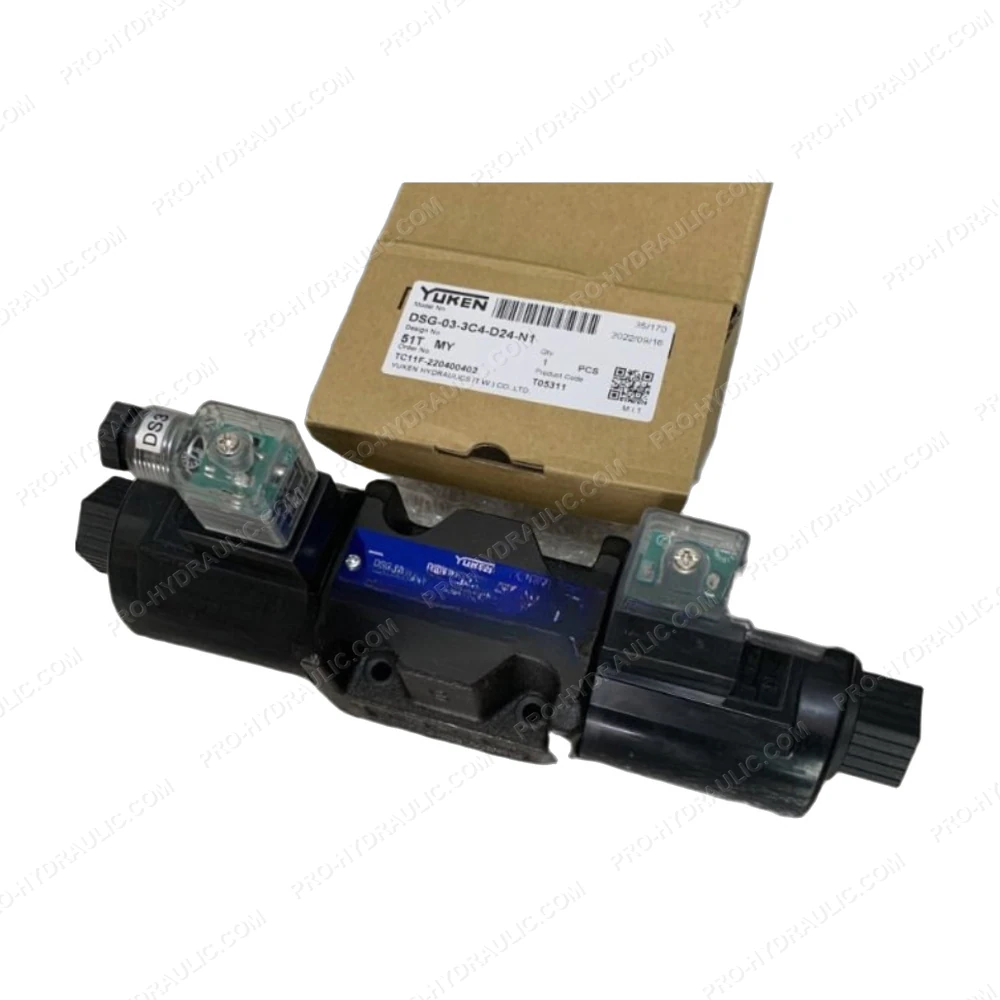

YUKEN DSG-03-3C4-D24-N1-51 Solenoid Operated Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSG-03-3C4-D24-N1-51 Solenoid Operated Directional Valve. This Japan-made 24 VDC hydraulic component features a 3-position 4-way spring-centered design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
