Product Overview
The YUKEN DSG-03-3C4-D24-N1-51T is a high-performance solenoid operated directional control valve from YUKEN’s renowned DSG series, engineered for precise control of hydraulic fluid flow direction in industrial hydraulic systems. This valve utilizes a wet-type AC/DC solenoid actuator acting on a precision-ground spool within a high-strength cast iron body, enabling reliable switching, holding, and unloading of hydraulic circuits. The DSG-03 series is a globally recognized standard for directional control, offering fast response, low pressure drop, and long service life in demanding continuous-duty applications. With a 3C4 spool configuration (three-position, four-way, closed center), this valve is ideally suited for controlling double-acting cylinders and bidirectional hydraulic motors where load holding and precise directional control are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Control Valve |
| Model Designation | DSG-03-3C4-D24-N1-51T |
| Series | YUKEN DSG-03 Series (NG10 / CETOP 5 / ISO 4401 Size 05) |
| Spool Configuration | 3C4 — Three-Position, Four-Way, Closed Center |
| Solenoid Voltage | D24 — 24V DC Solenoid |
| Electrical Connection | N1 — DIN 43650 Connector (Plug-in Type) |
| Design Number | 51T — Series 51 Designation |
| Maximum Operating Pressure | Up to 315 bar (Rated); 350 bar (Proof) |
| Maximum Flow Rate | Up to 120 L/min (NG10 / CETOP 5) |
| Mounting Interface | ISO 4401-05 / CETOP 5 / NFPA D05 Subplate Mounting |
| Operating Fluid | Mineral-based hydraulic oil (ISO VG 32–68) |
| Fluid Temperature Range | -20°C to +70°C |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a 3C4 spool configuration (three-position, four-way, closed center), this valve is ideally suited for controlling double-acting cylinders and bidirectional hydraulic motors where load holding and precise directional control are critical.
PRODUCT IMAGES

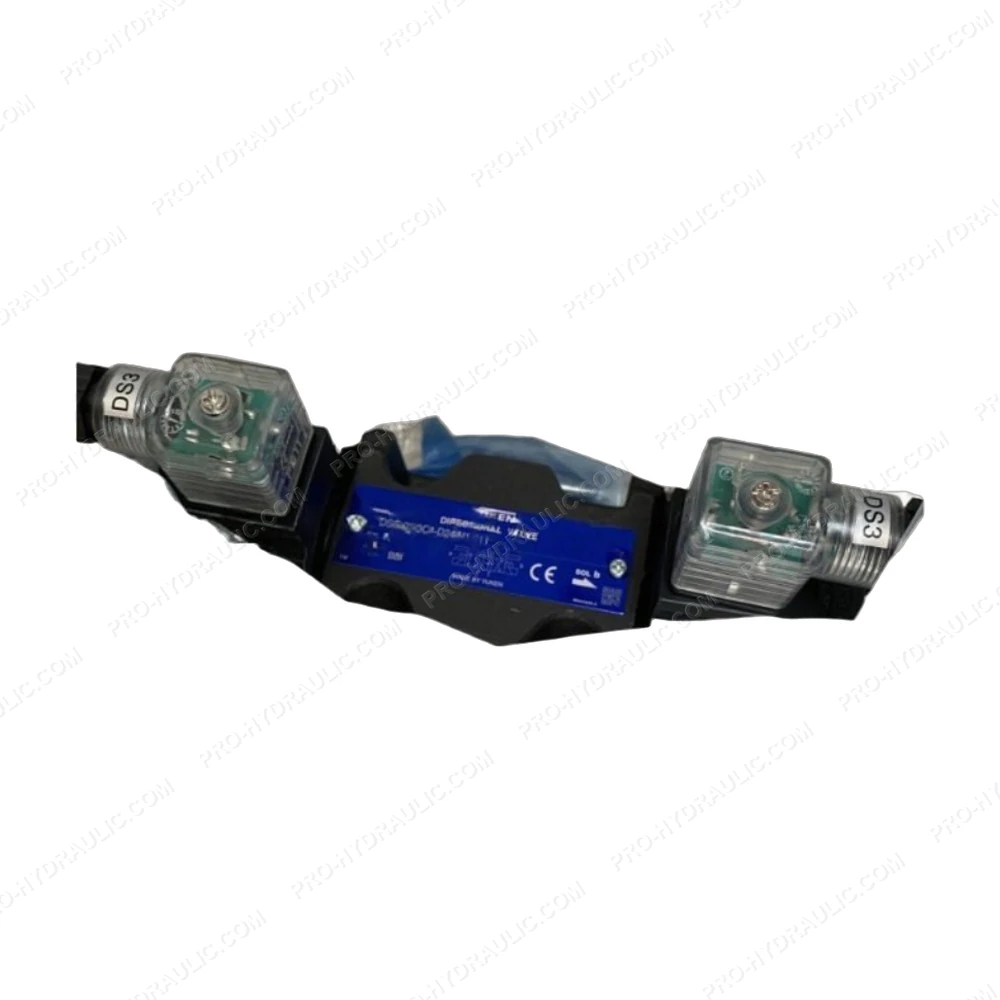

YUKEN DSG-03-3C4-D24-N1-51T Solenoid Operated Directional Valve
