Product Overview
The YUKEN DSHG-04-2B2B-D24-52 is a solenoid controlled pilot operated directional valve engineered for precise control of hydraulic fluid flow direction in high-pressure industrial circuits. Manufactured by YUKEN, a globally recognized leader in hydraulic component technology, this valve utilizes a two-stage design in which a small solenoid-actuated pilot valve controls the larger main spool, enabling reliable switching of high flow rates with minimal electrical power. The DSHG-04 series is a proven workhorse in demanding hydraulic systems, offering fast response, low pressure drop, and dependable long-term operation. With a 2B2B spool configuration and D24 solenoid rating, this model is configured for standard industrial DC voltage control and is widely used as a direct replacement in OEM and aftermarket hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Controlled Pilot Operated Directional Valve |
| Model Designation | DSHG-04-2B2B-D24-52 |
| Series | YUKEN DSHG-04 Series (NG10 / CETOP 5 Interface) |
| Spool Type | 2B2B Configuration (Spring Centered, Two-Position, Four-Way) |
| Solenoid Rating | D24 — 24V DC Solenoid Coil |
| Operating Pressure | Up to 315 bar (Rated); Pilot Pressure Range 3.5–210 bar |
| Rated Flow | Up to 100 L/min (NG10 nominal) |
| Mounting & Connection | Subplate Mounting — ISO 4401 / CETOP 5 / NG10 Standard Interface |
| Electrical Connection | DIN 43650 Standard Connector |
| Seal Material | NBR (Buna-N) Standard; FKM Optional |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32–68) |
Engineering Features & Advantages
- Precision Performance: The solenoid controlled pilot operated directional valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a 2B2B spool configuration and D24 solenoid rating, this model is configured for standard industrial DC voltage control and is widely used as a direct replacement in OEM and aftermarket hydraulic power units.
PRODUCT IMAGES

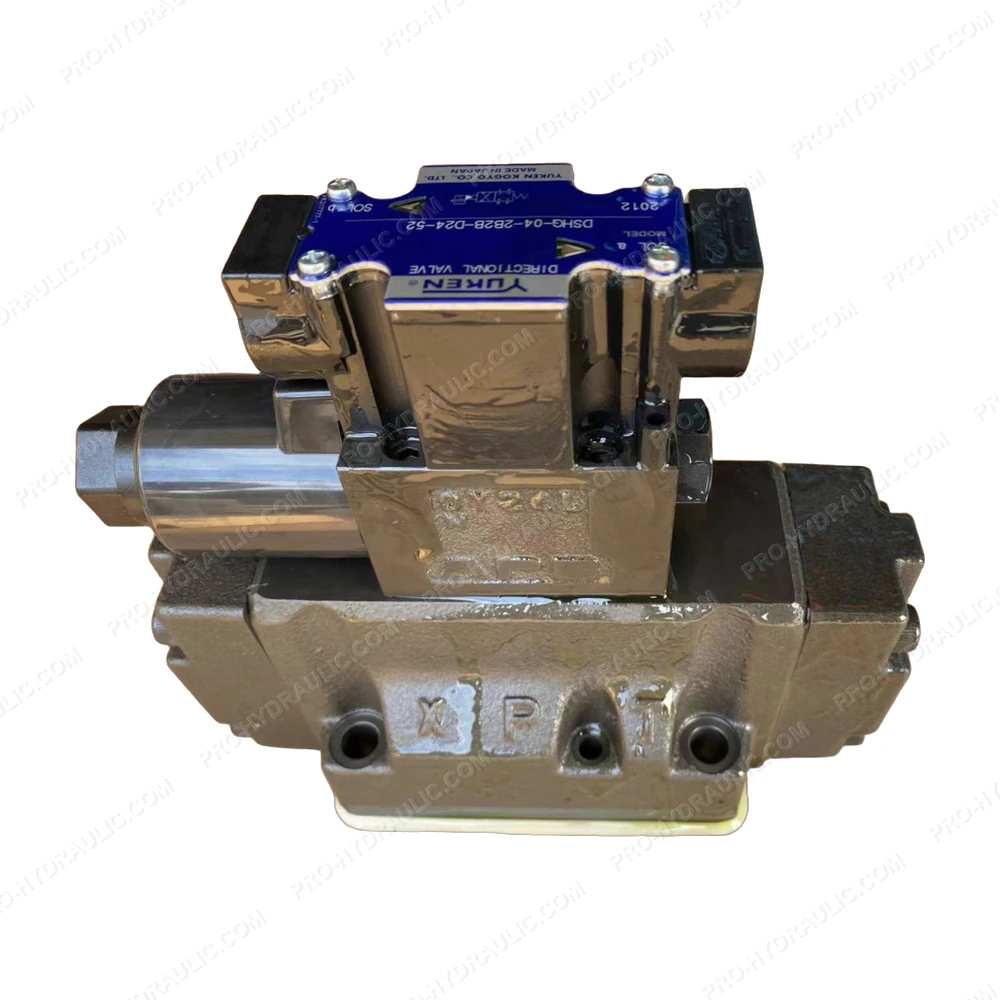

YUKEN DSHG-04-2B2B-D24-52 Solenoid Controlled Pilot Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSHG-04-2B2B-D24-52 Solenoid Operated Directional Valve. This Japan-made 24V DC hydraulic component features a wet armature design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
