Product Overview
The YUKEN DSHG-04-3C4-D24-N1-51T is a high-performance solenoid controlled pilot operated directional valve manufactured by YUKEN, a globally recognized leader in hydraulic component engineering. This valve utilizes a two-stage design in which a small solenoid-actuated pilot valve controls the hydraulic pressure that shifts the main spool, enabling precise directional control of high-flow hydraulic circuits with minimal electrical power input. The DSHG-04 series is engineered for demanding industrial applications requiring reliable switching, low pressure drop, and fast response times. With a 3C4 spool configuration and D24 (24V DC) solenoid, this valve is designed for seamless integration into complex hydraulic systems where accurate flow direction and load holding are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Controlled Pilot Operated Directional Control Valve |
| Model Designation | DSHG-04-3C4-D24-N1-51T |
| Spool Configuration | 3C4 — Three-position, four-way, closed center |
| Solenoid Voltage | D24 — 24V DC solenoid |
| Operating Pressure | Up to 315 bar (rated); pilot pressure range 3.5–315 bar |
| Rated Flow Capacity | Up to 300 L/min (dependent on spool and circuit configuration) |
| Mounting & Connection | ISO 4401 / CETOP 5 (NG10) subplate mounting; DIN 43650 electrical connector |
| Seal Type | N1 — Nitrile (Buna-N) seals, suitable for mineral oil based hydraulic fluids |
| Design Number | 51T — YUKEN series design standard |
Engineering Features & Advantages
- Precision Pilot Operation: The two-stage pilot operated design allows a compact solenoid to control high-flow, high-pressure main stage spool movement, ensuring fast and consistent directional shifting with minimal electrical consumption.
- Closed Center Spool (3C4): In the neutral position, all ports are blocked, enabling load holding and preventing actuator drift — ideal for applications requiring mid-position locking.
- Low Pressure Drop: Optimized internal flow paths and precision-machined spool lands minimize pressure losses, improving overall system efficiency and reducing heat generation.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid construction and proven YUKEN pilot stage durability.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a 3C4 spool configuration and D24 (24V DC) solenoid, this valve is designed for seamless integration into complex hydraulic systems where accurate flow direction and load holding are critical.
PRODUCT IMAGES

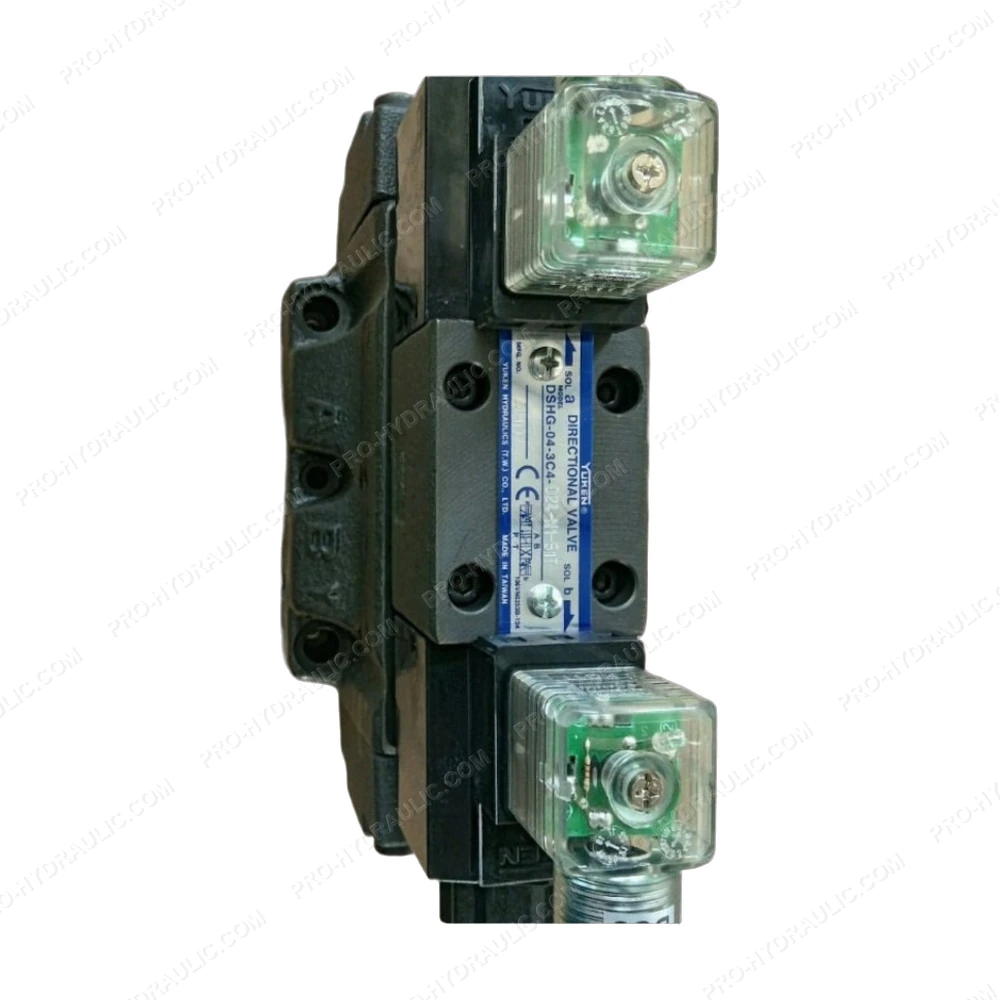

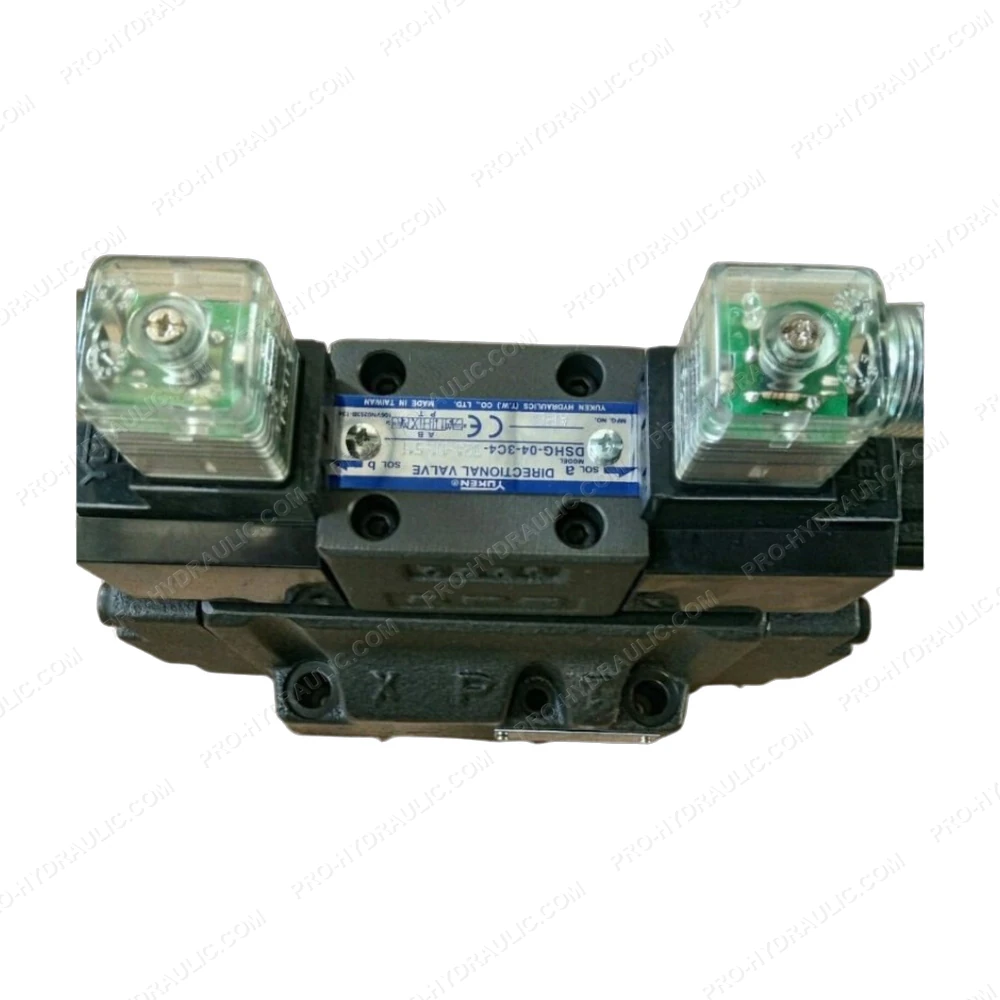

YUKEN DSHG-04-3C4-D24-N1-51T Solenoid Controlled Pilot Operated Directional Valve
