Product Overview
The YUKEN DSHG-06-2N2-C2-T-A120-53 is a solenoid controlled pilot operated directional valve from YUKEN’s renowned DSHG series, engineered to direct and control the flow of hydraulic fluid in high-pressure industrial circuits. This valve utilizes a two-stage design in which a compact solenoid-actuated pilot stage shifts the main spool of the second stage, allowing the handling of large flow rates with minimal electrical input power. The DSHG-06 designation corresponds to a nominal size 06 (3/4 inch) interface, while the “2N2” spool configuration provides a two-position, spring-centered or spring-offset function with a specific porting arrangement for precise actuator control. The “C2” indicates the electrical connection style, “T” denotes the internal drain or tank connection variant, and “A120” specifies a 120 V AC solenoid coil. The “-53” suffix identifies the design number, ensuring compatibility with current YUKEN production standards. This valve is a direct-fit, high-cycle component used in demanding hydraulic systems where reliable directional control, fast response, and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Controlled Pilot Operated Directional Valve |
| Model Designation | DSHG-06-2N2-C2-T-A120-53 |
| Nominal Size | 06 (3/4 inch) |
| Spool Type | 2N2 — Two-position, spring-centered/offset configuration |
| Operating Pressure | Up to 315 bar (standard industrial grade for DSHG series) |
| Solenoid Voltage | 120 V AC (A120 coil) |
| Electrical Connection | C2 — DIN connector / terminal box style |
| Drain Connection | T — Internal drain configuration |
| Mounting & Connection | Standard ISO / YUKEN subplate interface, size 06 |
| Design Number | 53 |
Engineering Features & Advantages
- Precision Performance: The pilot-operated, two-stage design enables precise spool positioning and rapid response times, ensuring accurate directional control of large hydraulic flows with minimal pressure drop and low electrical power consumption.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust solenoid construction, hardened spool and sleeve components, and proven YUKEN manufacturing quality for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
This valve is a direct-fit, high-cycle component used in demanding hydraulic systems where reliable directional control, fast response, and long service life are essential.
PRODUCT IMAGES

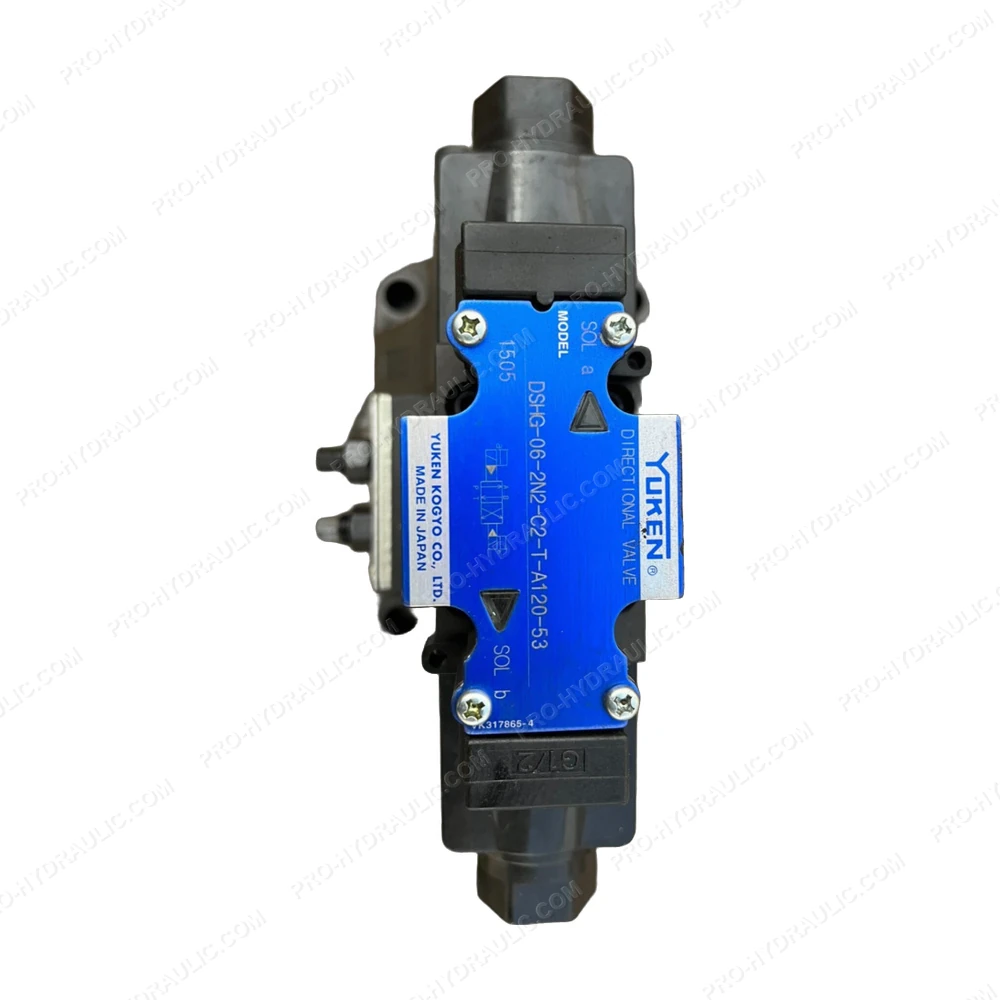

YUKEN DSHG-06-2N2-C2-T-A120-53 Solenoid Controlled Pilot Operated Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN DSHG-06-2N2-C2-T-A120-53 Solenoid Operated Directional Valve. This Japan-made hydraulic component features a wet armature design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
