Product Overview
The YUKEN EDG-01V-C-PNT11-60T is a proportional electro-hydraulic pilot relief valve from YUKEN’s EDG series, engineered for precise, infinitely variable pressure control in industrial hydraulic systems. This valve combines a high-performance proportional solenoid with a balanced pilot relief poppet stage, enabling stepless pressure adjustment proportional to the input electrical command signal. Unlike fixed-setting relief valves, the EDG-01V-C-PNT11-60T allows remote and programmable pressure regulation, making it a critical component in closed-loop pressure control architectures. The “C” designation indicates a normally closed configuration, while the PNT11 amplifier-compatible solenoid coil ensures linear response and low hysteresis across the full control range. The valve is designed for subplate mounting in accordance with ISO 6264 and YUKEN’s own interface standards, providing drop-in compatibility with existing manifold blocks and system piping.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Electro-Hydraulic Pilot Relief Valve |
| Model Designation | EDG-01V-C-PNT11-60T |
| Operating Pressure | Standard Industrial Grade (Up to 31.5 MPa / 315 bar rated) |
| Mounting & Connection | Subplate Mounting per ISO 6264 / YUKEN Interface |
| Control Configuration | Normally Closed (C) — pressure increases with command signal |
| Solenoid / Coil Type | PNT11 Proportional Solenoid (amplifier-compatible) |
| Pressure Adjustment Range | Proportional, stepless — up to rated pressure (model-dependent) |
| Hysteresis | Low hysteresis, <3% of rated pressure (typical) |
| Response Time | Fast dynamic response suitable for closed-loop control |
| Fluid Compatibility | Mineral-based hydraulic oil (ISO VG 32–68) |
| Seal Material | NBR / FKM (standard industrial) |
Engineering Features & Advantages
- Precision Performance: The proportional electro-hydraulic pilot relief valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The YUKEN EDG-01V-C-PNT11-60T is a proportional electro-hydraulic pilot relief valve from YUKEN’s EDG series, engineered for precise, infinitely variable pressure control in industrial hydraulic systems.
PRODUCT IMAGES

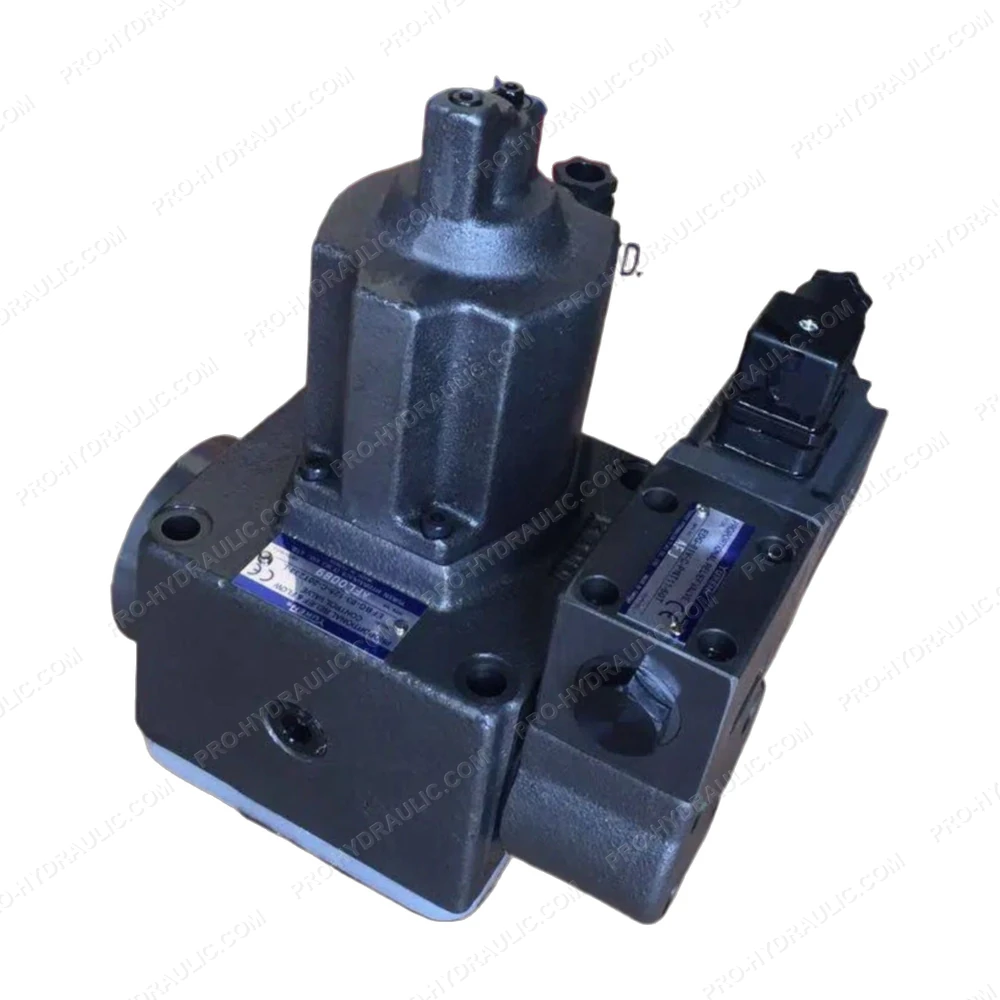

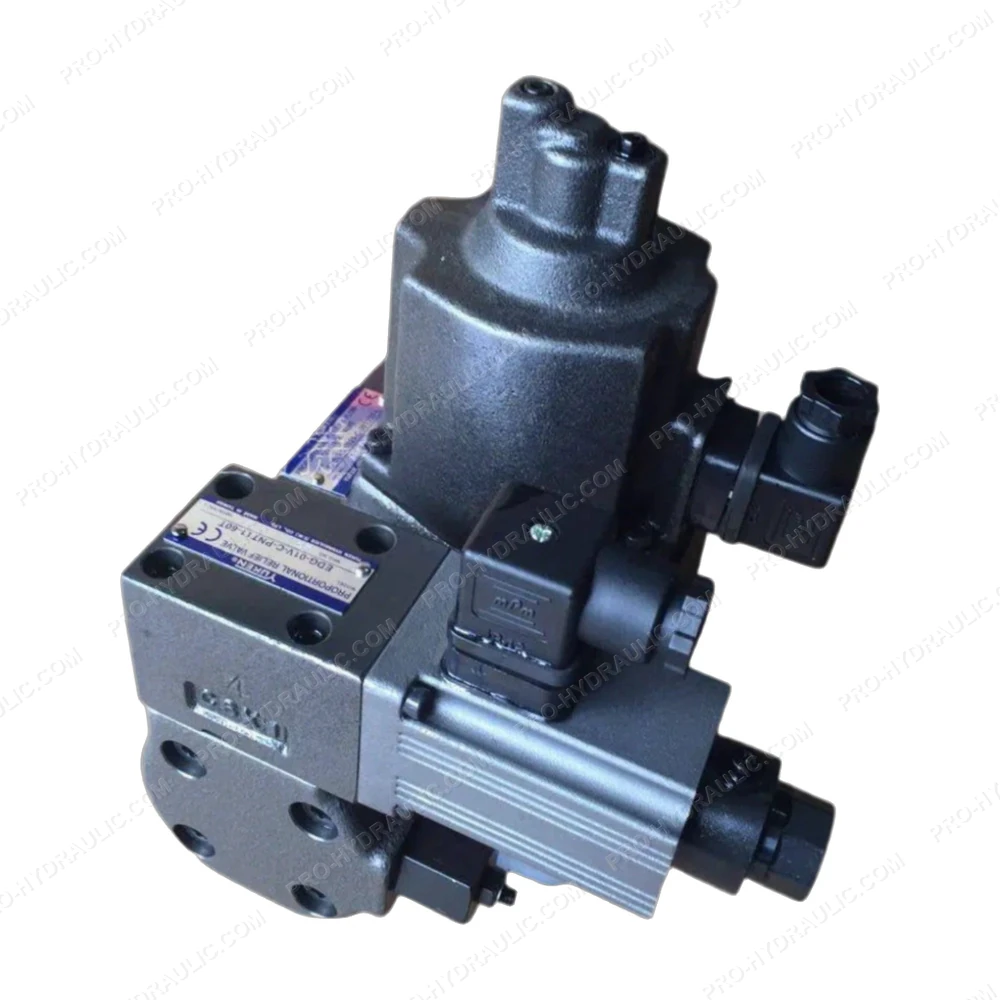

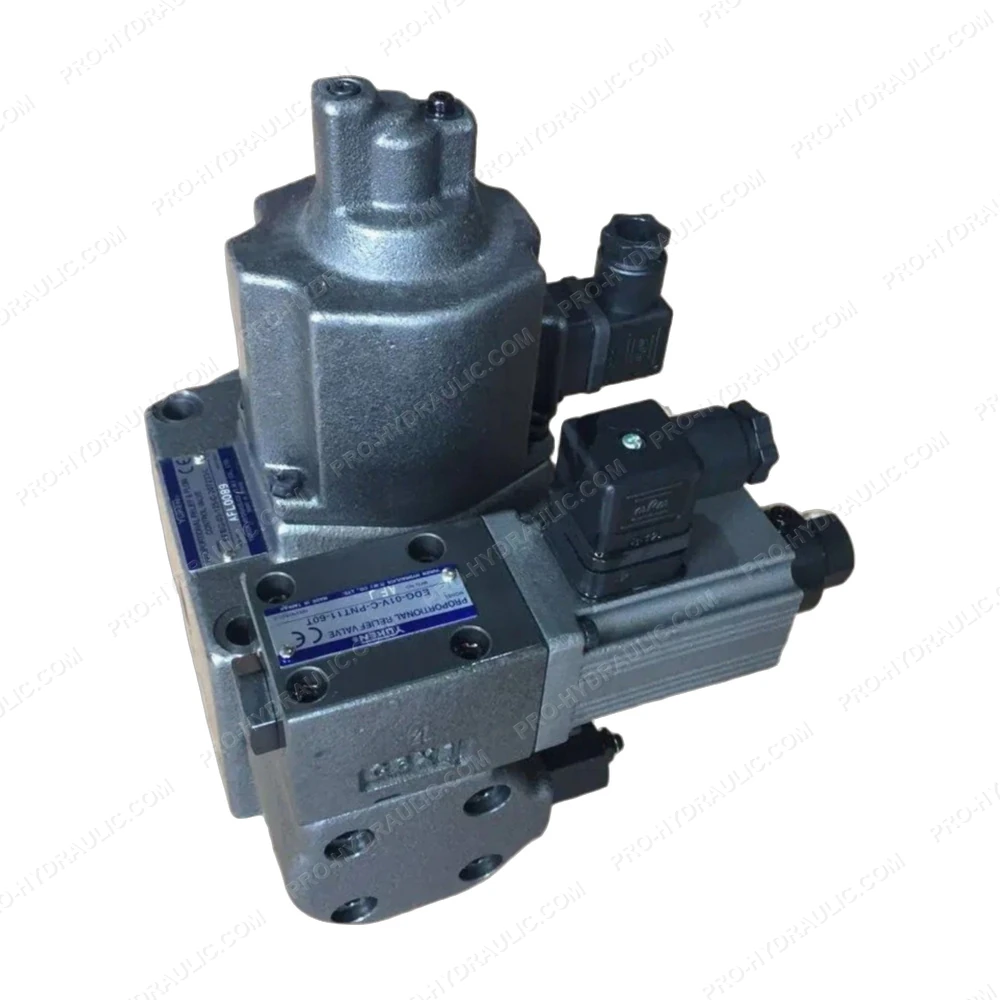

YUKEN EDG-01V-C-PNT11-60T Proportional Electro-Hydraulic Pilot Relief Valve
