The YUKEN EFBG-03-125-C-60T248 is a heavy-duty industrial proportional valve engineered for precise electro-hydraulic control in demanding hydraulic systems. It combines a proportional solenoid with a robust spool design to provide infinitely variable flow and pressure regulation.
YUKEN EFBG-03-125-C-60T248 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Proportional Directional & Pressure Control Valve |
| Nominal Size | NG6 (CETOP 3, ISO 4401) |
| Max. Operating Pressure | 315 bar (Ports P, A, B); 210 bar (Port T) |
| Max. Flow Rate | 125 L/min |
| Control Spool | Closed center, progressive flow characteristics |
| Actuation | Proportional solenoid, single or dual |
| Coil Voltage | 24 V DC (standard) |
| Electrical Connection | DIN 43650 connector |
| Mounting | Subplate mounting per ISO 4401-03 |
| Fluid Temperature Range | -20 °C to +70 °C |
| Viscosity Range | 10 to 400 mm²/s |
| Filtration | ISO 4406 18/16/13 or better |
Key Engineering Features
- Proportional solenoid with low hysteresis and high repeatability
- Integrated pressure compensation for stable flow control
- Rugged spool and sleeve design for long service life
- Manual override option for emergency operation
- Compatible with proportional amplifier cards
Industrial Applications
- Injection molding machines
- Hydraulic presses
- Machine tools and CNC equipment
- Material handling and lifting systems
- Marine and offshore hydraulic systems
For technical inquiries, dimensional drawings, or replacement support for YUKEN EFBG-03-125-C-60T248, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

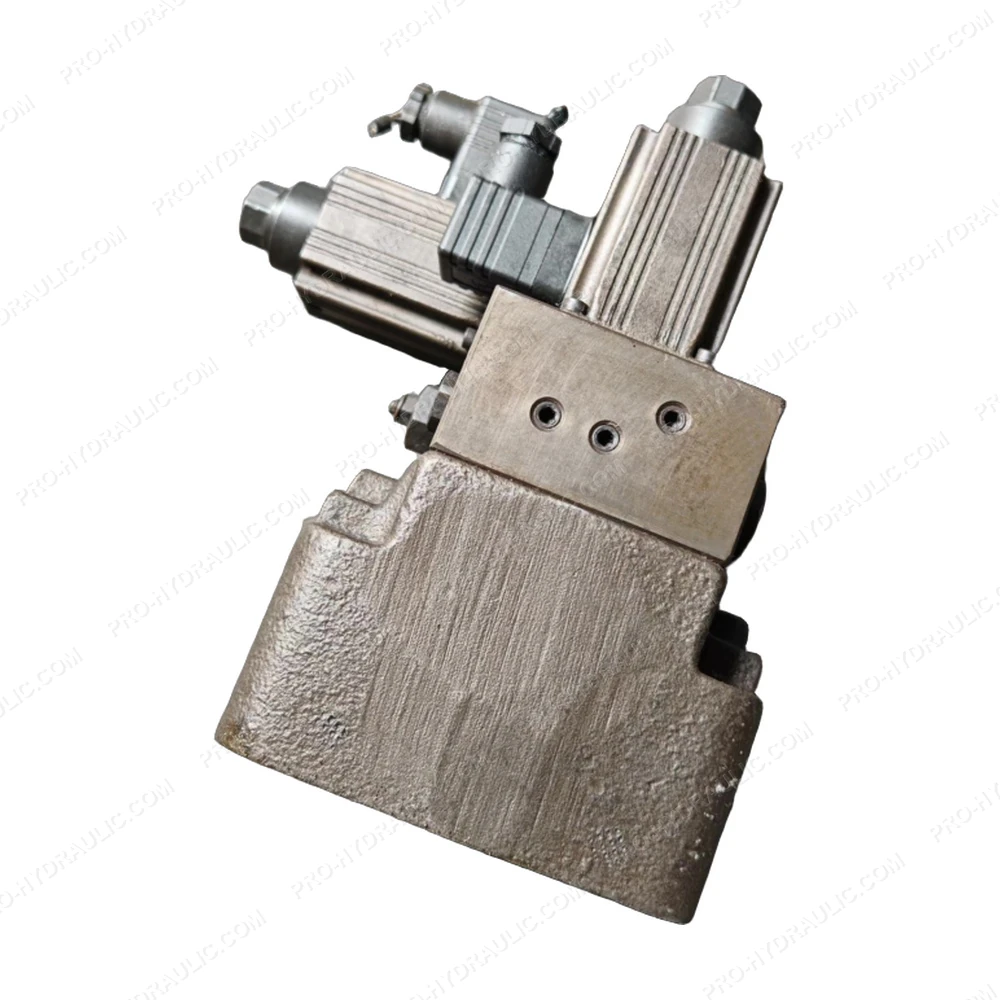

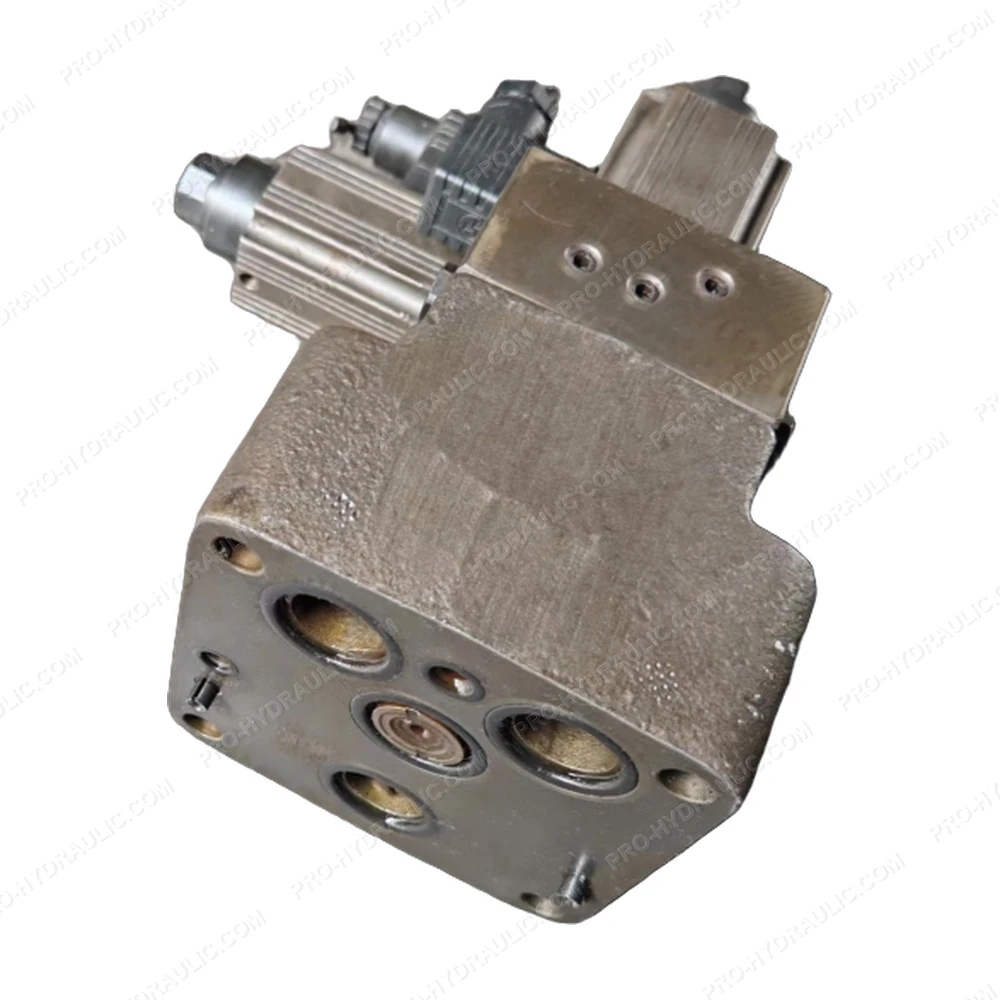

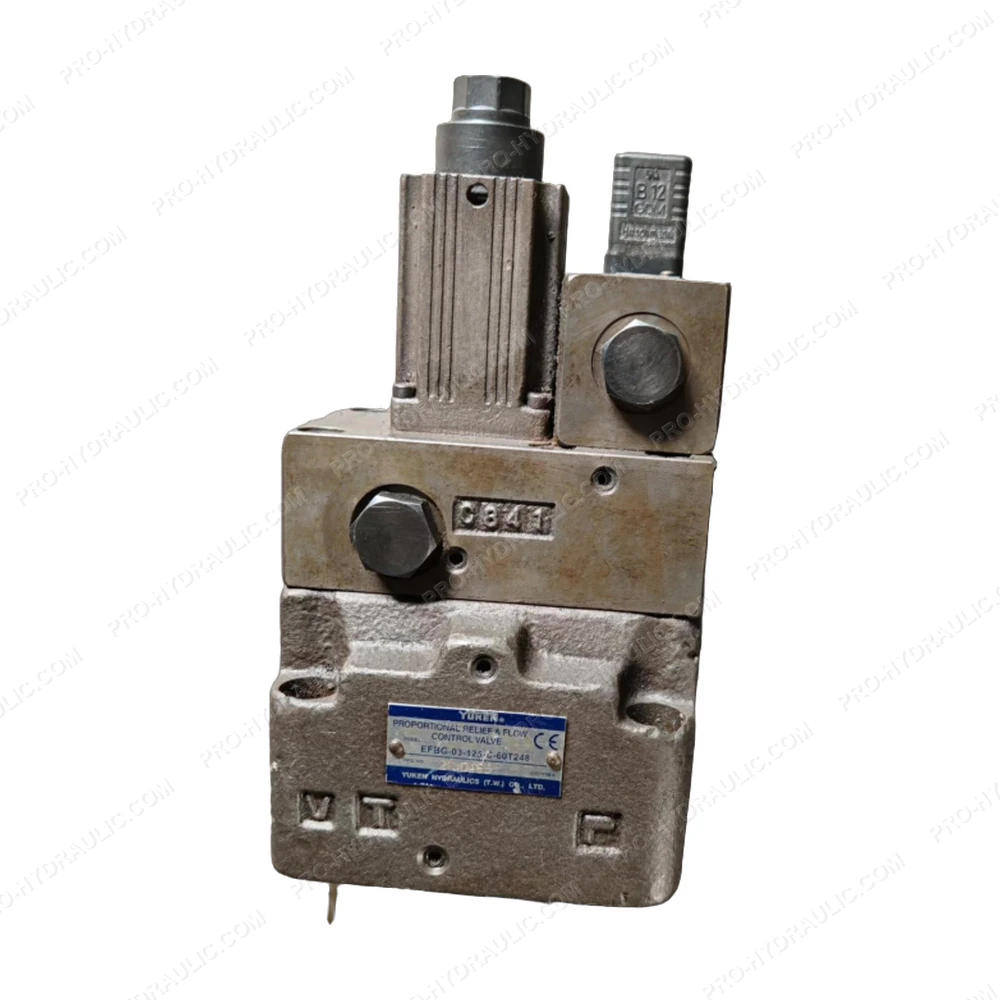

YUKEN EFBG-03-125-C-60T248 Proportional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN EFBG-03-125-C-60T248 Proportional Valve. This precision-engineered hydraulic component delivers reliable performance and accurate flow/pressure control for demanding industrial systems.
