Product Overview
The YUKEN EFBG-03-125-H-21T233-L is a high-performance proportional electro-hydraulic flow control and relief valve from YUKEN’s renowned EFBG series. This dual-function component integrates precise proportional flow control with an integral pilot-operated relief valve, allowing simultaneous regulation of actuator speed and system pressure within a single compact body. The valve operates on a proven proportional solenoid principle: an electrical command signal drives the proportional solenoid, which positions the metering spool against a spring force to deliver infinitely variable flow output proportional to the input current. The integrated relief function provides system overpressure protection and permits pressure-compensated flow control, ensuring stable actuator motion regardless of load fluctuations. With a nominal size of 03 (NG10 / CETOP 5 interface), the EFBG-03-125-H-21T233-L is engineered for demanding industrial hydraulic circuits requiring precise velocity and pressure management, making it an ideal choice for injection molding machines, hydraulic presses, and advanced motion control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Electro-Hydraulic Flow Control and Relief Valve |
| Model Designation | EFBG-03-125-H-21T233-L |
| Nominal Size | 03 (NG10 / CETOP 5 / ISO 4401-05) |
| Rated Flow Capacity | 125 L/min (nominal rated flow) |
| Operating Pressure | Up to 315 bar (standard industrial grade, pressure-compensated) |
| Control Signal | Proportional solenoid, current-controlled (0–800 mA typical) |
| Pressure Adjustment Range | H range (high pressure, up to 315 bar) |
| Electrical Connection | DIN 43650 / Hirschmann connector (21T233-L variant) |
| Mounting & Connection | Subplate mounting, ISO 4401-05 / CETOP 5 interface |
| Seal Material | NBR (Buna-N), compatible with mineral-based hydraulic fluids |
| Fluid Temperature Range | -20°C to +70°C (standard industrial range) |
Engineering Features & Advantages
- Precision Performance: The proportional electro-hydraulic flow control and relief valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 125 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal size of 03 (NG10 / CETOP 5 interface), the EFBG-03-125-H-21T233-L is engineered for demanding industrial hydraulic circuits requiring precise velocity and pressure management, making it an ideal choice for injection molding machines, hydraulic presses, and advanced motion control systems.
PRODUCT IMAGES

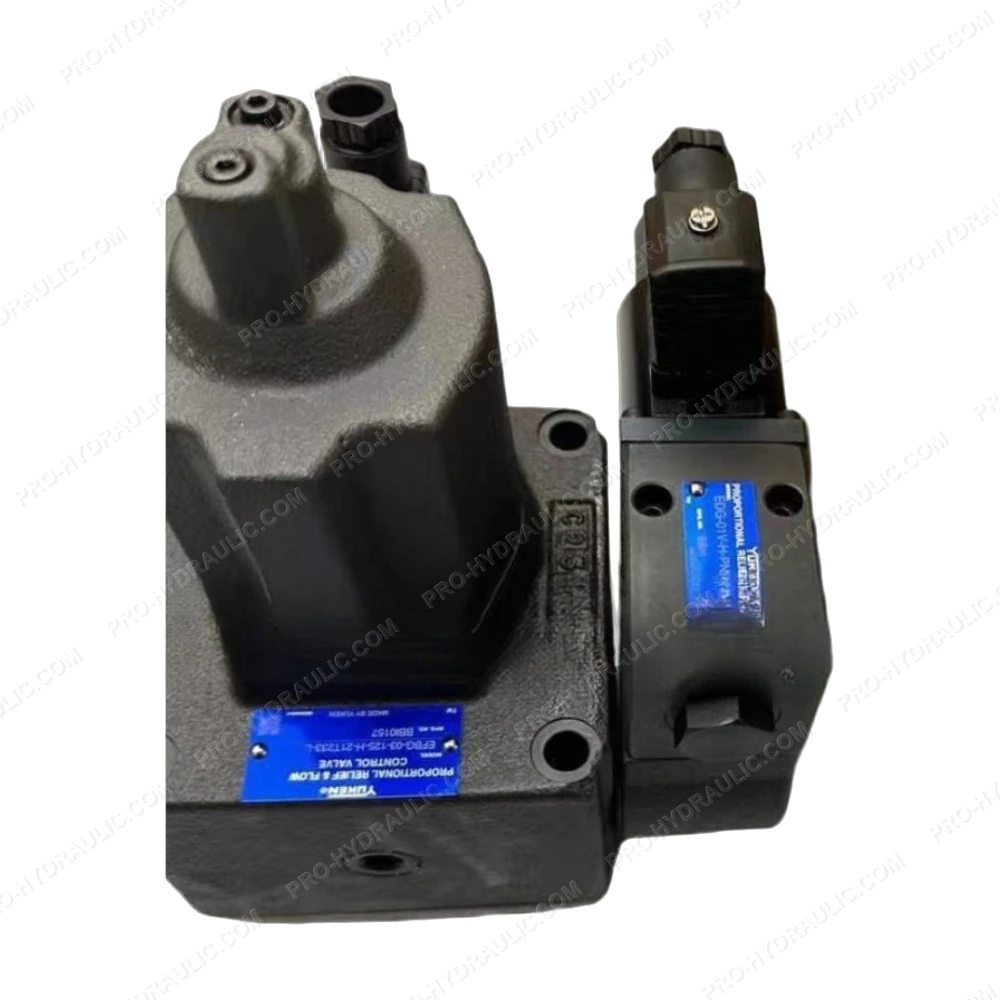

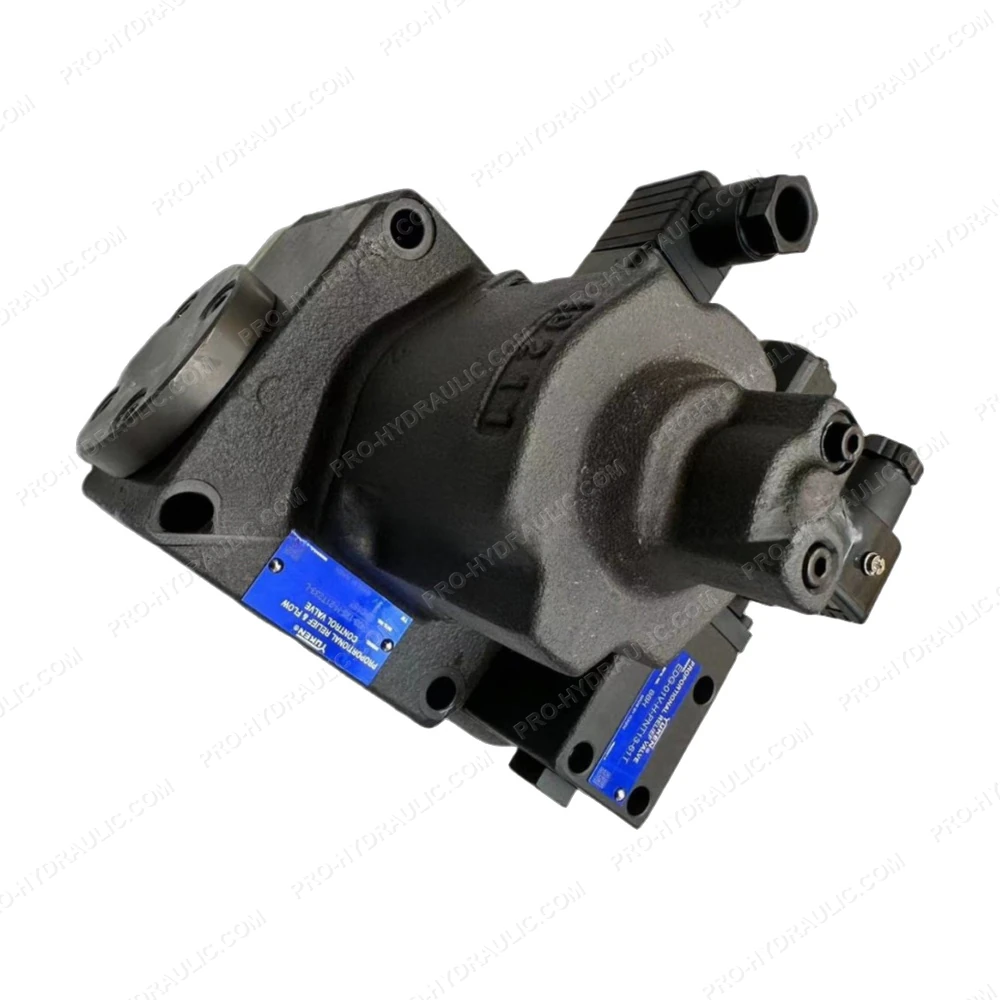

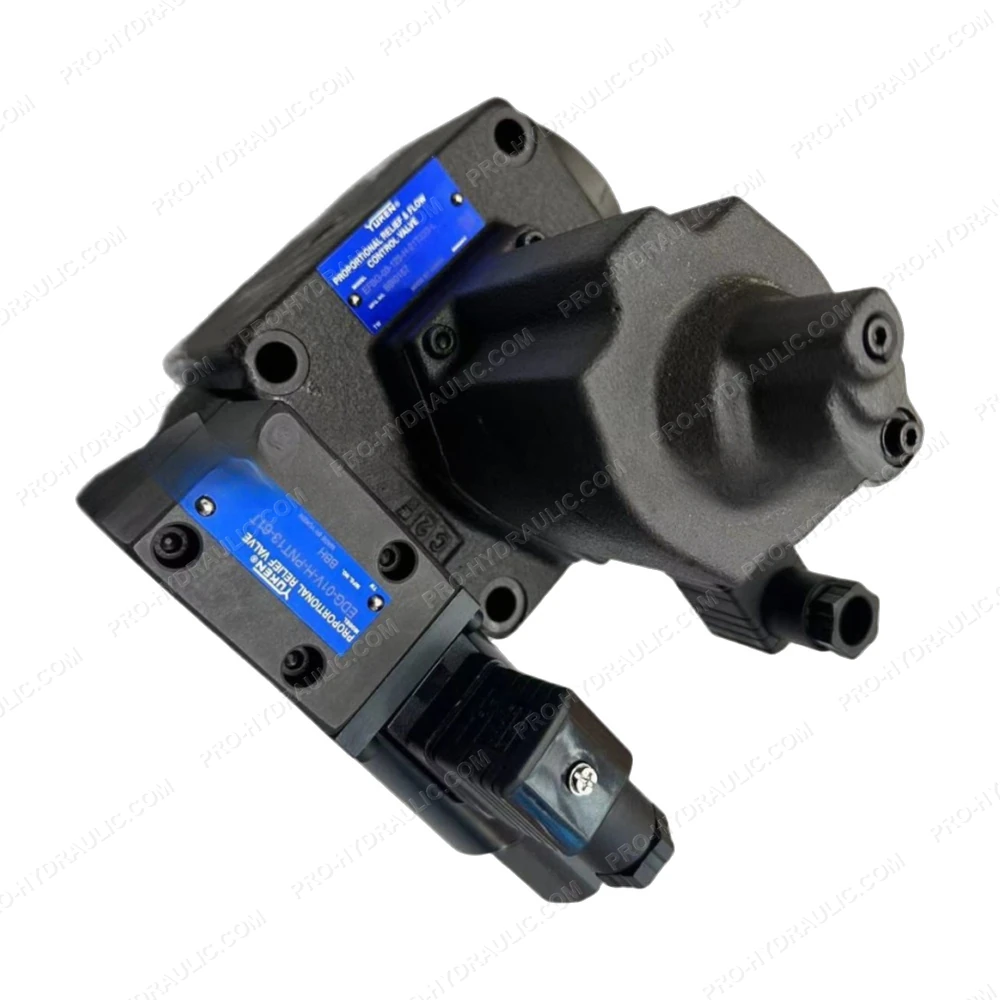

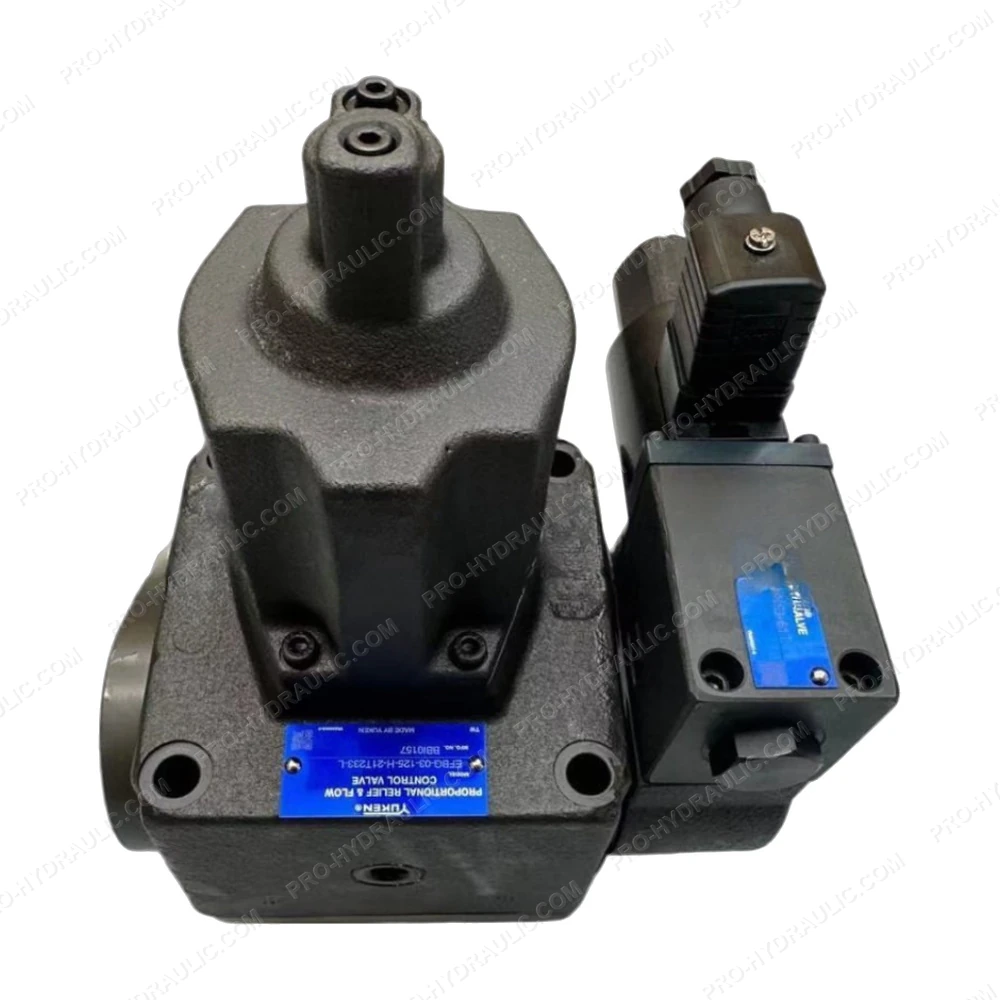

YUKEN EFBG-03-125-H-21T233-L Proportional Electro-Hydraulic Flow Control and Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN EFBG-03-125-H-21T233-L Proportional Electro-Hydraulic Directional and Flow Control Valve. This Japan-made 125 L/min hydraulic component features a proportional solenoid with LVDT feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
