Product Overview
The YUKEN EFBG-03-160-H-21T233-L / EDG-01V-H-PNT13-61T is a high-performance proportional electro-hydraulic relief and flow control valve assembly manufactured by YUKEN, a global leader in hydraulic component engineering. This combined valve package integrates the EFBG-03-160-H-21T233-L proportional electro-hydraulic relief and flow control valve with the EDG-01V-H-PNT13-61T proportional amplifier module, delivering precise, infinitely variable pressure and flow control in response to electrical command signals. The EFBG series valve utilizes a proportional solenoid to actuate a precision-machined spool within the valve body, simultaneously modulating system pressure relief and metered flow output. The companion EDG-01V amplifier provides closed-loop current feedback to the proportional solenoid, ensuring stable, repeatable performance across the full command range. This valve assembly is engineered for demanding industrial hydraulic systems requiring accurate electro-hydraulic modulation of actuator speed and force, making it an essential control element in injection molding machines, hydraulic presses, and advanced motion control platforms.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Electro-Hydraulic Relief and Flow Control Valve |
| Model Designation | EFBG-03-160-H-21T233-L / EDG-01V-H-PNT13-61T |
| Manufacturer | YUKEN |
| Valve Size | 03 (NG10 / CETOP 5 / ISO 4401-05) |
| Pressure Rating | 160 bar (16 MPa) Rated Working Pressure |
| Control Type | Proportional Solenoid with Electro-Hydraulic Pilot Actuation |
| Amplifier Module | EDG-01V-H-PNT13-61T Proportional Amplifier with Current Feedback |
| Mounting & Connection | Subplate Mounting per ISO 4401 / CETOP 5 Standard Interface |
| Electrical Command Signal | Analog Voltage / Current Command (0–10 V DC or 4–20 mA) |
| Seal Material | NBR (Buna-N) Standard / FKM Optional |
| Fluid Compatibility | Mineral-Based Hydraulic Oil (ISO VG 32–68) |
Engineering Features & Advantages
- Precision Performance: The proportional electro-hydraulic relief and flow control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 160 bar (16 MPa) Rated Working Pressure, supporting stable operation across the full working range.
Typical Industrial Applications
This valve assembly is engineered for demanding industrial hydraulic systems requiring accurate electro-hydraulic modulation of actuator speed and force, making it an essential control element in injection molding machines, hydraulic presses, and advanced motion control platforms.
PRODUCT IMAGES

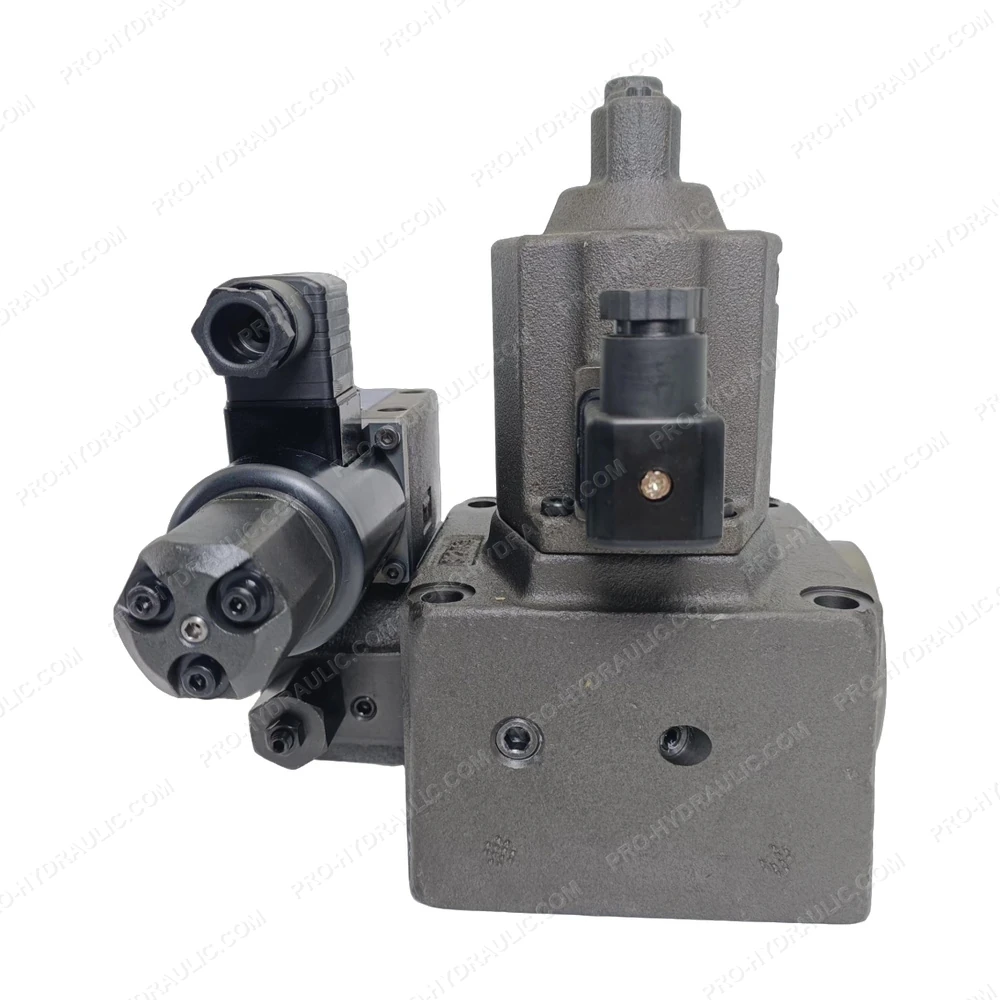

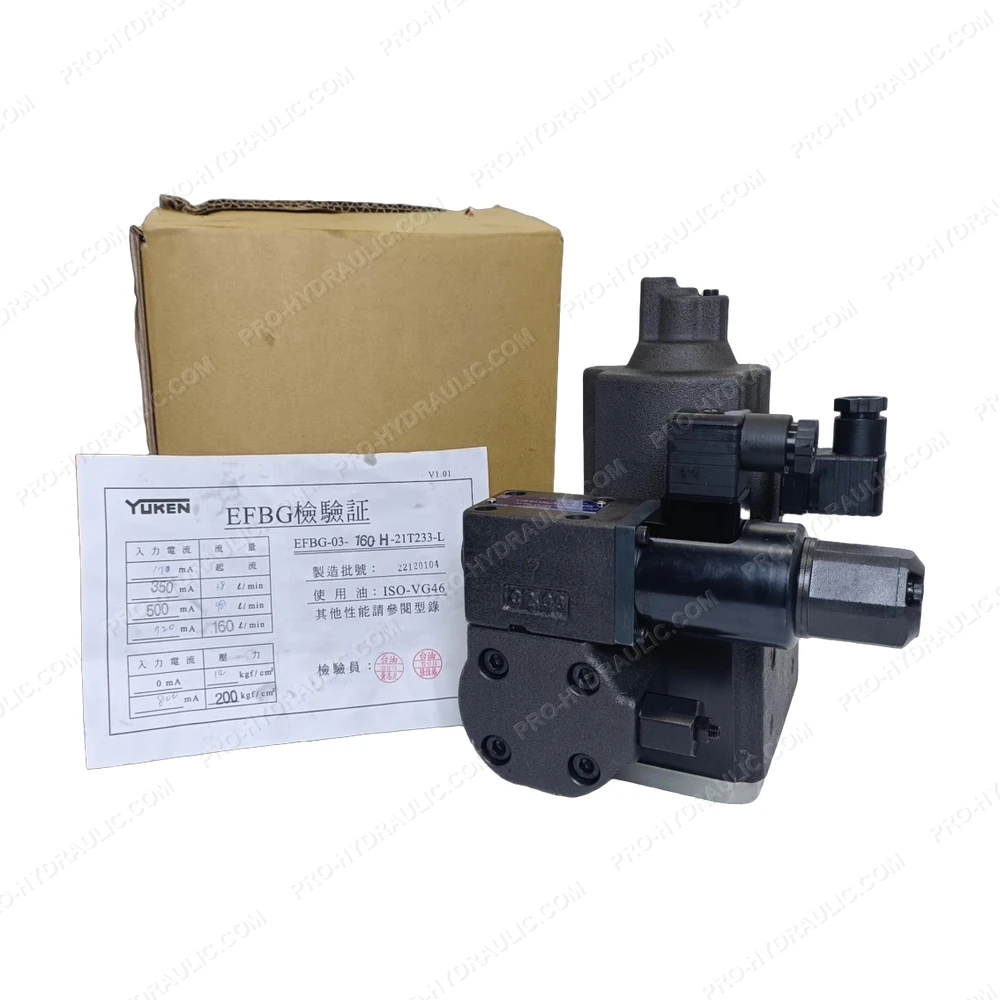

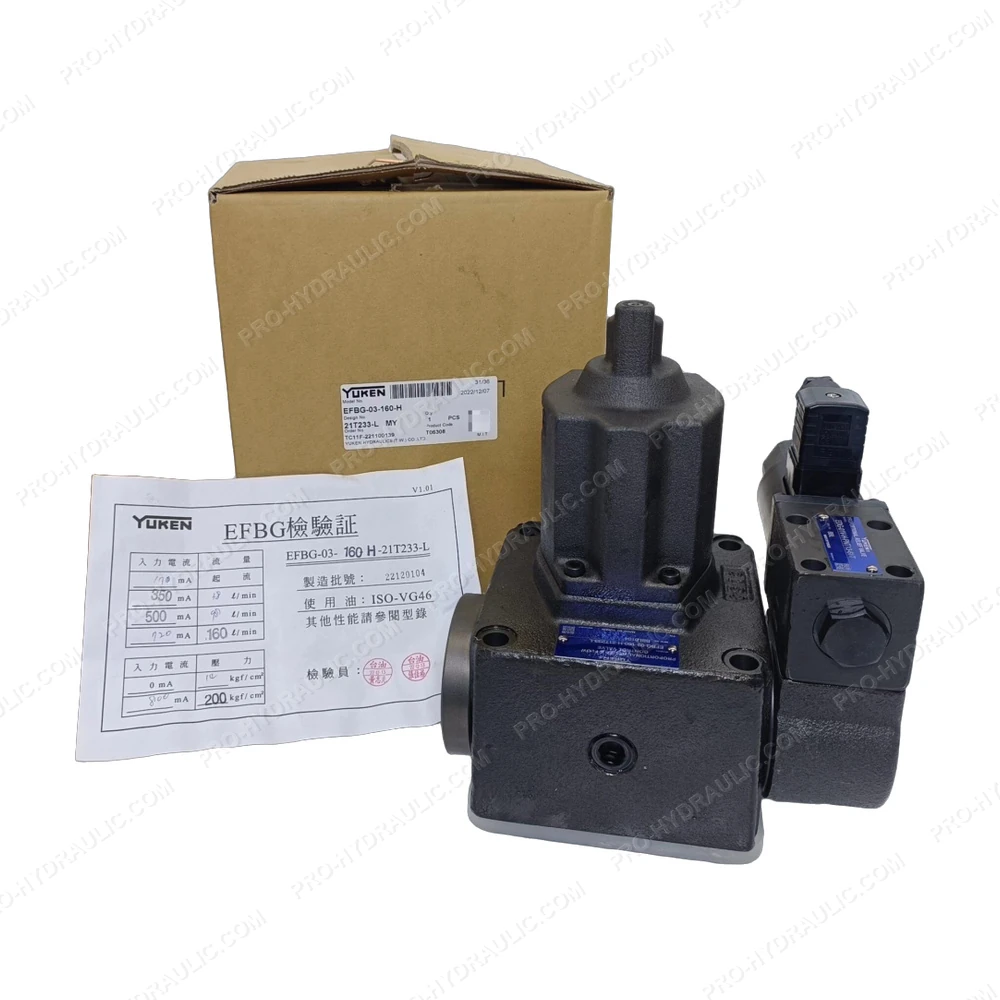

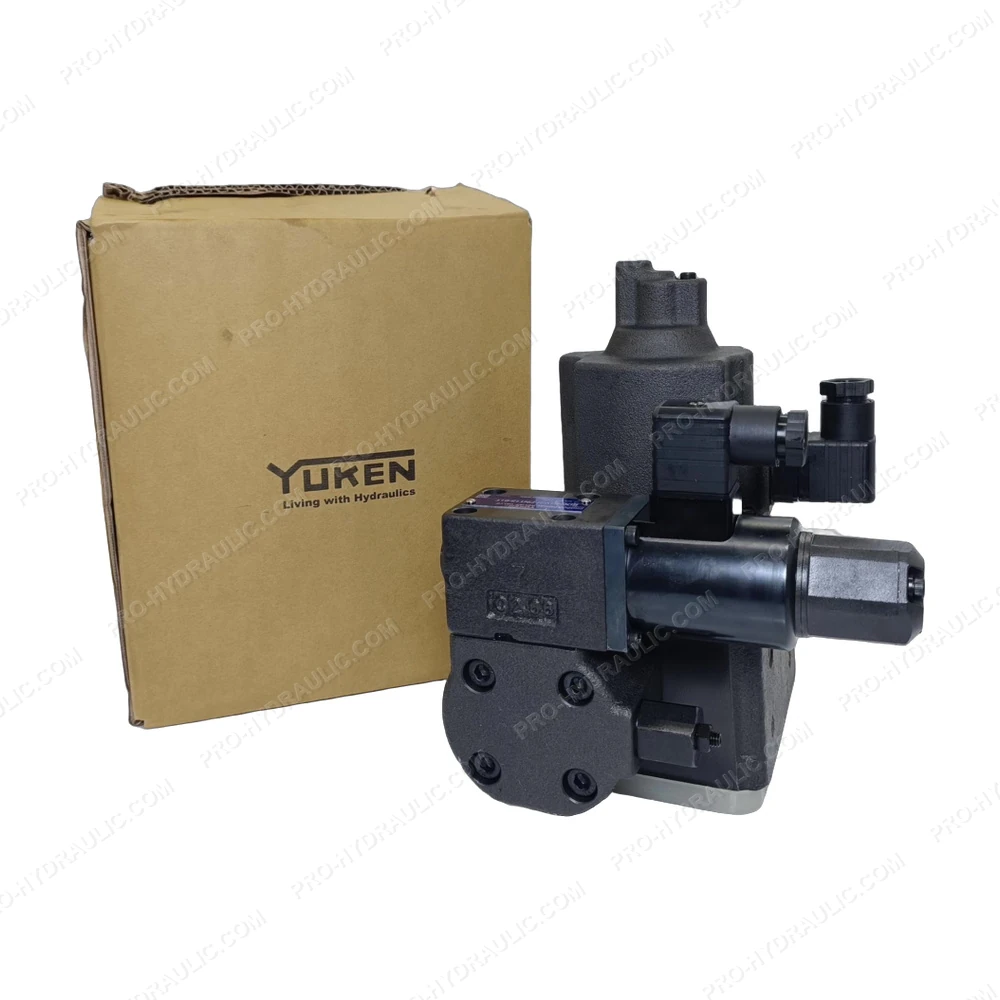

YUKEN EFBG-03-160-H-21T233-L / EDG-01V-H-PNT13-61T Proportional Electro-Hydraulic Relief and Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN EFBG-03-160-H-21T233-L / EDG-01V-H-PNT13-61T Solenoid Operated Directional Valve. This Japan-made hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
