Product Overview
The YUKEN EFG-02-30-22 is a high-performance proportional electro-hydraulic flow control valve engineered by YUKEN, a globally recognized leader in hydraulic component technology. This valve operates on a precise electro-hydraulic proportional principle, where an electrical input signal commands a proportional solenoid to modulate the spool position, thereby delivering infinitely variable flow control proportional to the command signal. Designed for demanding industrial hydraulic systems, the EFG-02-30-22 serves as a critical interface between electronic control systems and hydraulic power circuits, enabling smooth, accurate, and repeatable flow regulation for actuators, motors, and cylinders. Its robust construction and precision metering characteristics make it an ideal solution for applications requiring dynamic response and fine-tuned velocity control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Electro-Hydraulic Flow Control Valve |
| Model Designation | EFG-02-30-22 |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Nominal Flow Rate | Up to 30 L/min (dependent on pressure differential) |
| Control Signal | Proportional Solenoid, Current-Controlled (0–800 mA typical) |
| Hysteresis | ≤ 5% of Rated Flow |
| Response Time | Fast dynamic response suitable for closed-loop control |
Engineering Features & Advantages
- Precision Proportional Control: The valve spool is directly positioned by a proportional solenoid, ensuring infinitely variable flow adjustment with high resolution and minimal hysteresis, enabling accurate velocity and motion control of hydraulic actuators.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the EFG-02-30-22 features a robust housing, wear-resistant spool and sleeve assembly, and a durable solenoid coil designed to withstand high cycle rates and demanding duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN OEM standards, ensuring drop-in replacement without modification to existing manifolds or control systems.
- Excellent Linearity: The flow output is highly linear with respect to the input current, simplifying system calibration and ensuring predictable performance across the entire control range.
- Low Pressure Drop: Optimized internal flow paths minimize energy losses and heat generation, contributing to overall system efficiency.
Typical Industrial Applications
The YUKEN EFG-02-30-22 proportional electro-hydraulic flow control valve is widely deployed in heavy industrial scenarios requiring precise and dynamic flow regulation. Typical applications include plastic injection molding machines for accurate injection speed and pressure profiling, metallurgical presses for controlled ram velocity and force, CNC machine tools for smooth tool feed and positioning, and construction & marine hydraulics for proportional
PRODUCT IMAGES

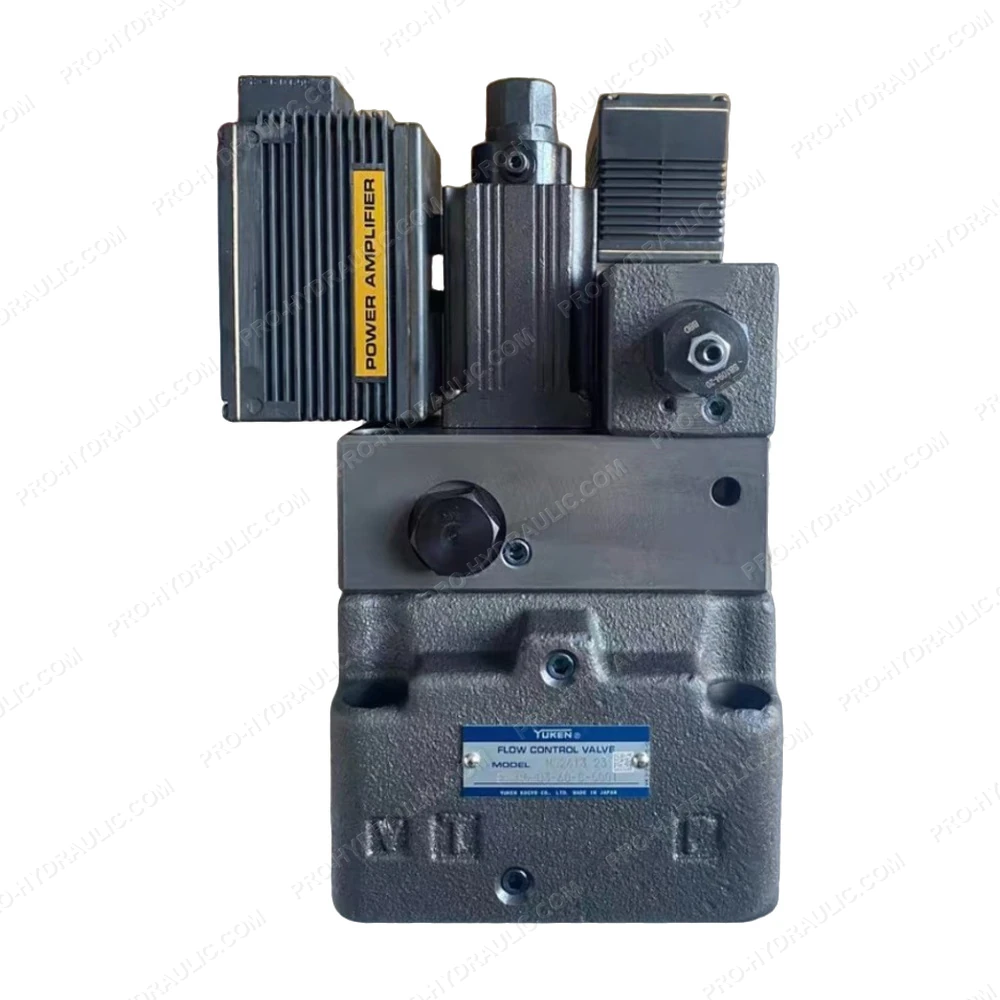

YUKEN EFG-02-30-22 Proportional Electro-Hydraulic Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN EFG-02-30-22 Proportional Valve. This Japan-made 24V DC hydraulic component features a precise proportional solenoid design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
