Product Overview
The YUKEN ELDFG-01EH-10-3C2L-XY-C-D is a high-performance proportional electro-hydraulic directional valve manufactured by YUKEN, a globally recognized leader in fluid power technology. This valve operates on the principle of proportional solenoid actuation, where an electrical input signal proportionally controls the spool position, thereby regulating both the direction and magnitude of hydraulic flow. Unlike standard on/off directional valves, the ELDFG series provides infinitely variable flow control with exceptional linearity and repeatability. As a critical control element in modern industrial hydraulic systems, it enables precise motion control, smooth acceleration and deceleration profiles, and seamless integration with electronic control systems such as PLCs and industrial amplifiers. The “XY” and “C” designations in the model code indicate specific spool configuration and electrical connection options tailored for demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Electro-Hydraulic Directional Valve |
| Model Designation | ELDFG-01EH-10-3C2L-XY-C-D |
| Manufacturer | YUKEN |
| Valve Size (Nominal) | 01 (NG6 / CETOP 3 / ISO 4401-03) |
| Spool Type | 3C2L — Proportional, Spring-Centered, Closed-Center Configuration |
| Actuation Method | Proportional Solenoid (Single or Dual Solenoid per Configuration) |
| Operating Pressure | Up to 315 bar (Rated Industrial Grade) |
| Rated Flow Capacity | Up to 30 L/min (Nominal at ΔP = 35 bar per land) |
| Hysteresis | ≤ 3% of Rated Current |
| Repeatability | ≤ 1% of Rated Current |
| Mounting & Connection | Subplate Mounting — ISO 4401-03 / CETOP 3 / NG6 Interface |
Engineering Features & Advantages
- Precision Performance: The proportional electro-hydraulic directional valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original YUKEN specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 30 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The “XY” and “C” designations in the model code indicate specific spool configuration and electrical connection options tailored for demanding industrial environments.
PRODUCT IMAGES

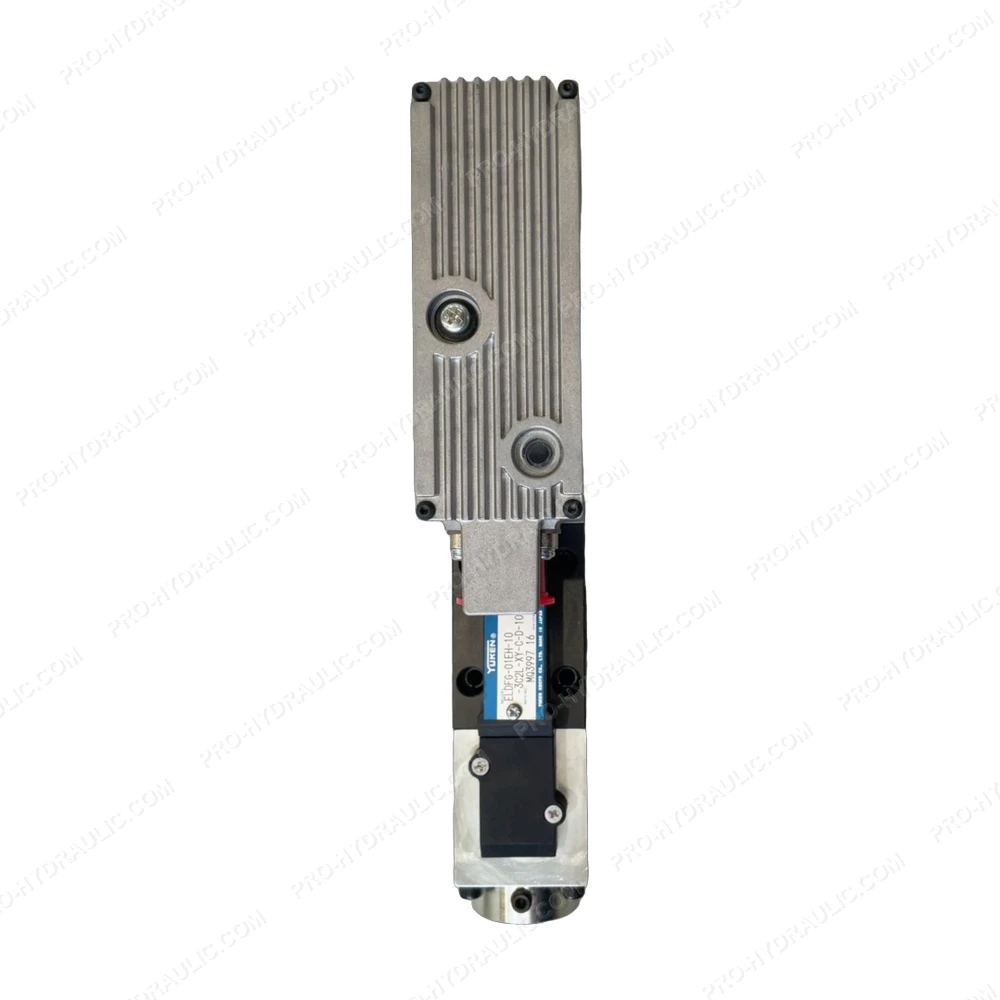

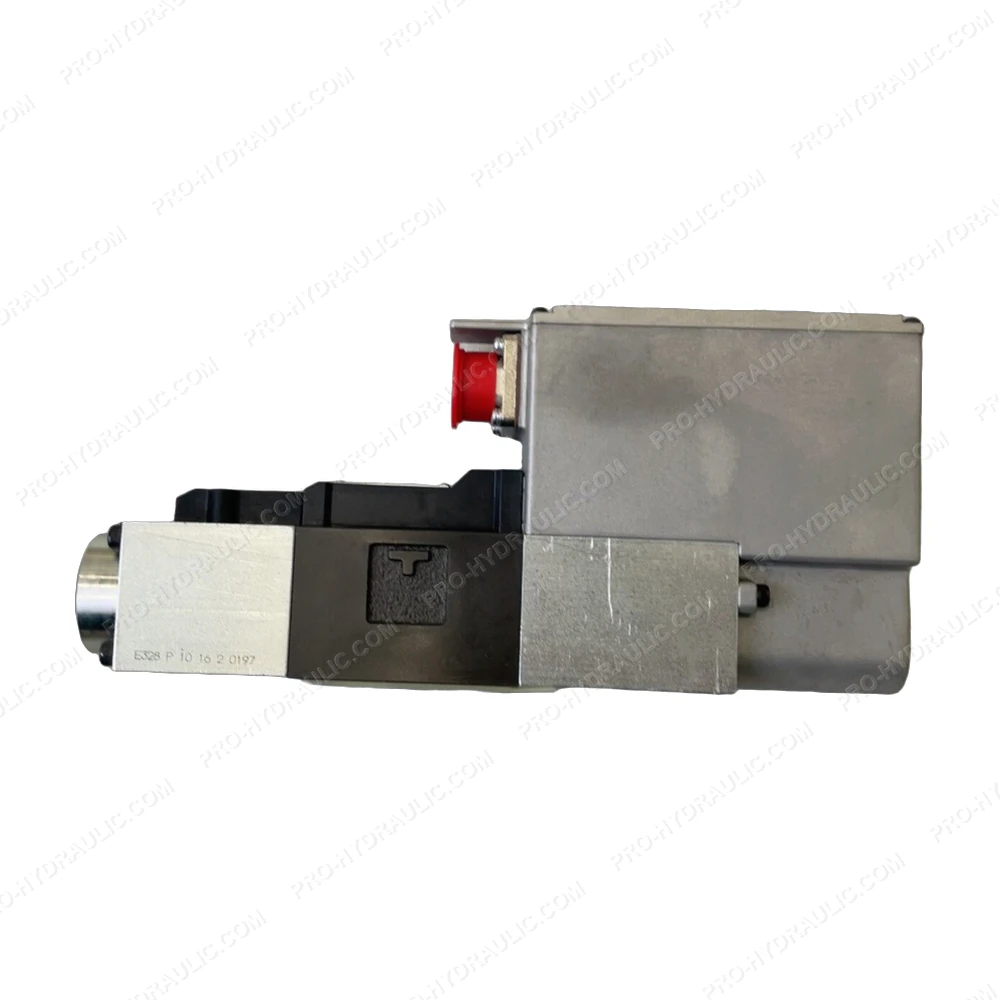

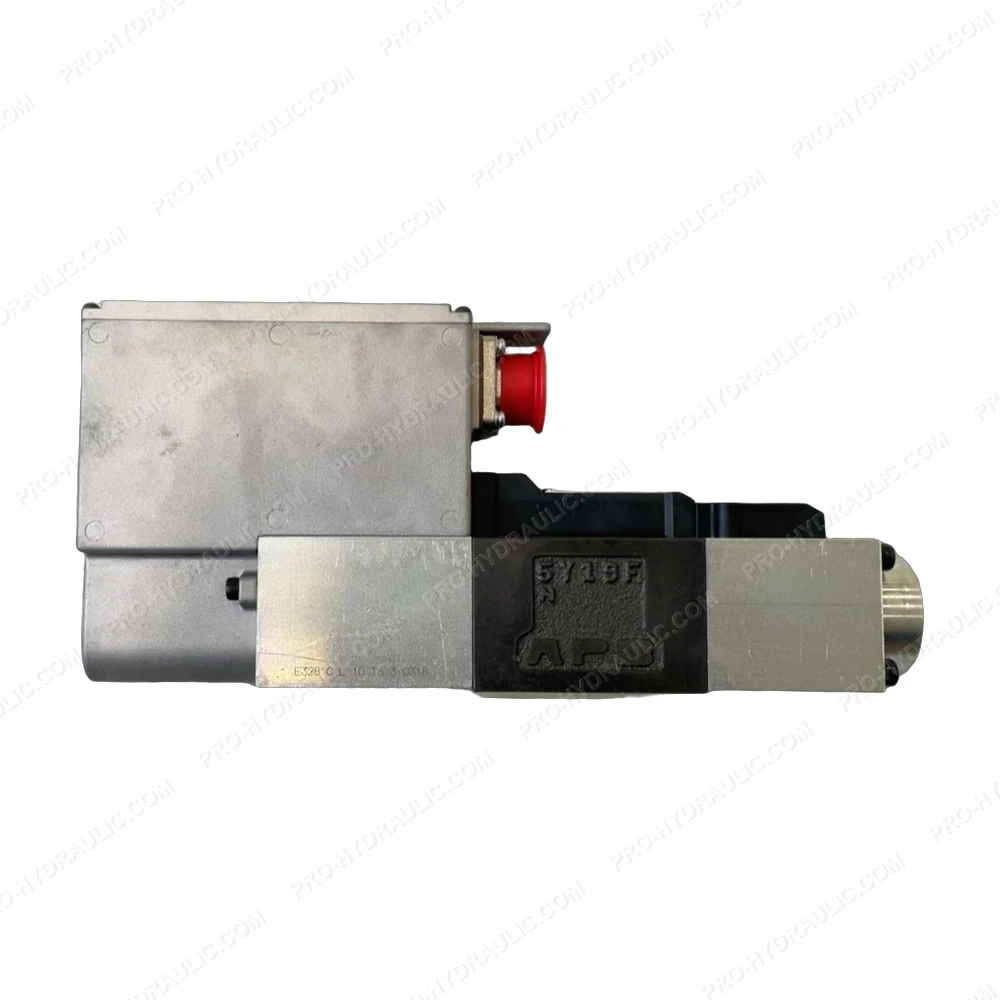

YUKEN ELDFG-01EH-10-3C2L-XY-C-D Proportional Electro-Hydraulic Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN ELDFG-01EH-10-3C2L-XY-C-D Solenoid Operated Directional Valve. This Japan-made hydraulic component features a wet armature design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
