The YUKEN MPB-01-2-4001 is a heavy-duty modular flow control valve engineered for precise regulation of hydraulic fluid flow in industrial circuits. Designed for sandwich mounting between directional valves and manifold blocks, it provides reliable pressure-compensated flow control for actuators and return lines.
YUKEN MPB-01-2-4001 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Modular flow control valve (sandwich plate) |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Max. Operating Pressure | 315 bar (port P, A, B) |
| Max. Flow Rate | 40 L/min |
| Flow Control Range | 0.5 – 30 L/min (adjustable) |
| Control Type | Pressure-compensated, manual adjustment |
| Fluid Temperature Range | -20 °C to +70 °C |
| Hydraulic Fluid | Mineral oil, viscosity 10–400 cSt |
| Mounting Interface | ISO 4401-03 / CETOP 3, 4 mounting holes |
| Body Material | Cast iron |
| Seal Material | NBR (standard) |
Key Engineering Features
- Pressure-compensated flow regulation maintains constant flow independent of load pressure variations.
- Sandwich plate design enables direct stacking between directional valve and manifold, minimizing piping.
- Manual adjustment with locknut for precise flow setting and tamper resistance.
- High-strength cast iron body for rigidity and long service life under high pressure.
- Standard CETOP 3 interface ensures compatibility with common hydraulic valve stacks.
Industrial Applications
- Machine tool hydraulic systems requiring accurate actuator speed control.
- Press and forming equipment with synchronized cylinder movements.
- Injection molding machines and die-casting units.
- Material handling and lifting equipment with controlled descent circuits.
- General industrial hydraulic power units and modular valve assemblies.
For technical inquiries, dimensional drawings, or replacement support for YUKEN MPB-01-2-4001, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

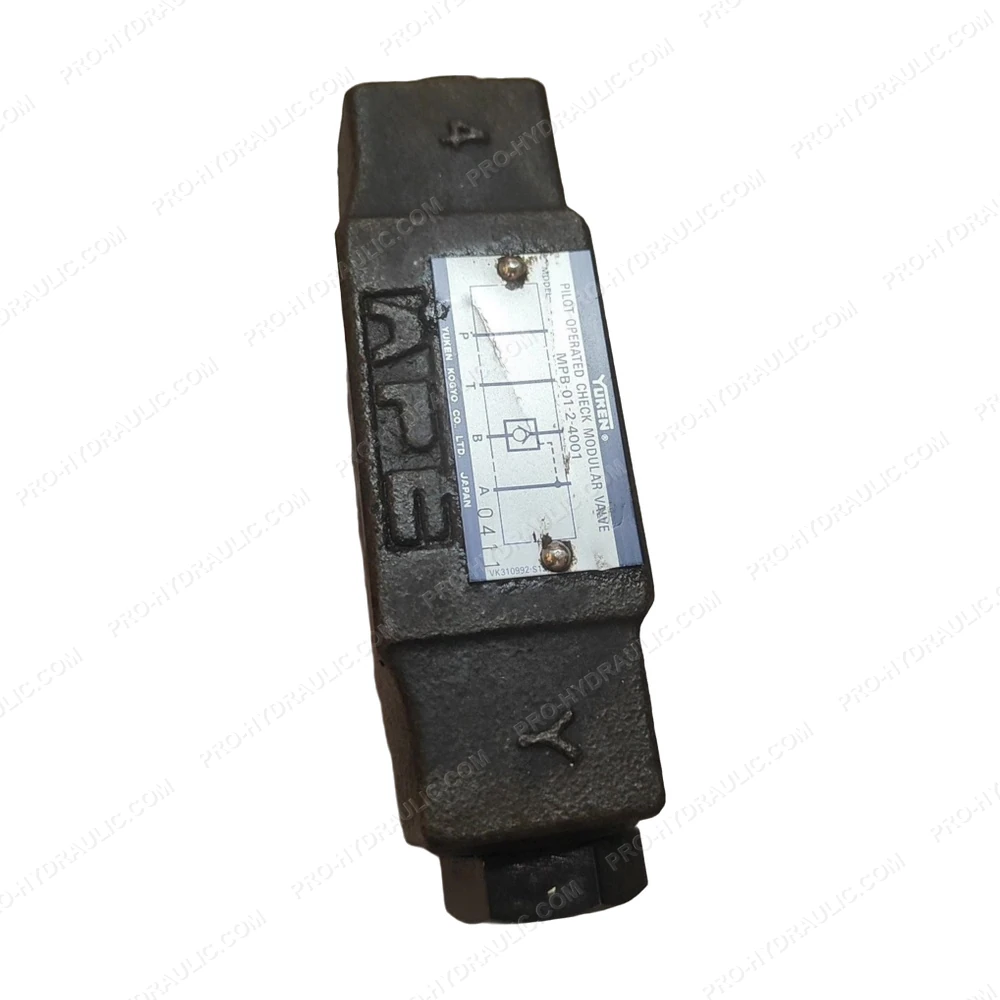

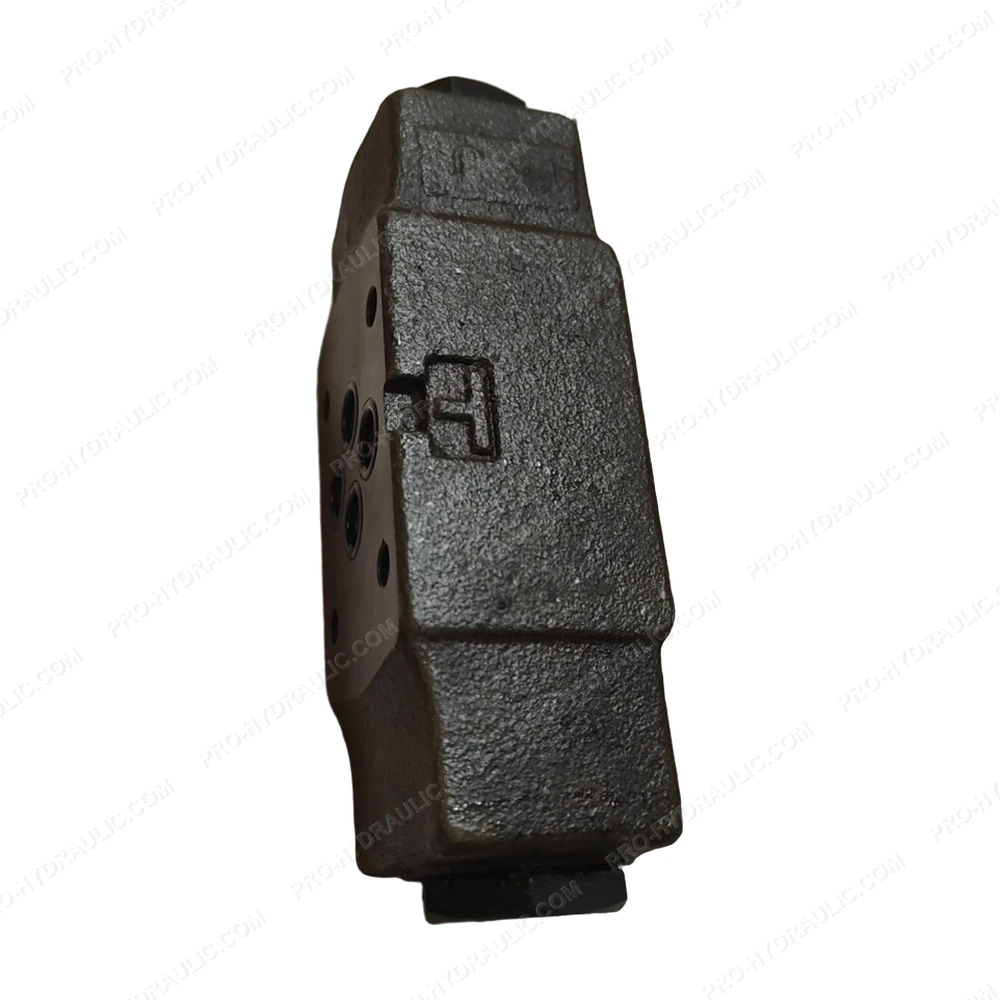

YUKEN MPB-01-2-4001 Modular Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN MPB-01-2-4001 Modular Flow Control Valve. This precision-engineered hydraulic component delivers reliable flow regulation and accurate operation for demanding industrial systems.
