The YUKEN MPW-03-2-2001 is a heavy-duty industrial modular flow control valve engineered for precise regulation of hydraulic actuator speed in demanding fluid power systems. Designed for sandwich mounting between directional valves and subplates, it provides reliable meter-in or meter-out control with minimal pressure loss.
YUKEN MPW-03-2-2001 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Modular flow control valve (sandwich plate) |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Max. Operating Pressure | 315 bar |
| Max. Flow Rate | 40 L/min |
| Flow Control Range | 0.5 to 30 L/min (adjustable) |
| Control Direction | Meter-in (standard) |
| Adjustment Type | Manual rotary knob with lock |
| Mounting Interface | ISO 4401-03-02-0-05 |
| Hydraulic Fluid | Mineral oil, ISO VG 32-68 |
| Fluid Temperature Range | -20 °C to +70 °C |
| Body Material | Cast iron |
| Seal Material | NBR (Buna-N) |
Key Engineering Features
- Sandwich plate design for direct mounting between directional valve and manifold
- Precision needle valve with fine adjustment for accurate flow setting
- Pressure-compensated flow control maintains constant flow regardless of load variations
- Integrated reverse flow check valve for unrestricted return flow
- Locking mechanism prevents accidental adjustment drift
- Robust cast iron body for high pressure and long service life
Industrial Applications
- Machine tool hydraulic systems
- Injection molding machines
- Presses and forming equipment
- Material handling and lifting systems
- General industrial fluid power circuits requiring precise actuator speed control
For technical inquiries, dimensional drawings, or replacement support for YUKEN MPW-03-2-2001, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

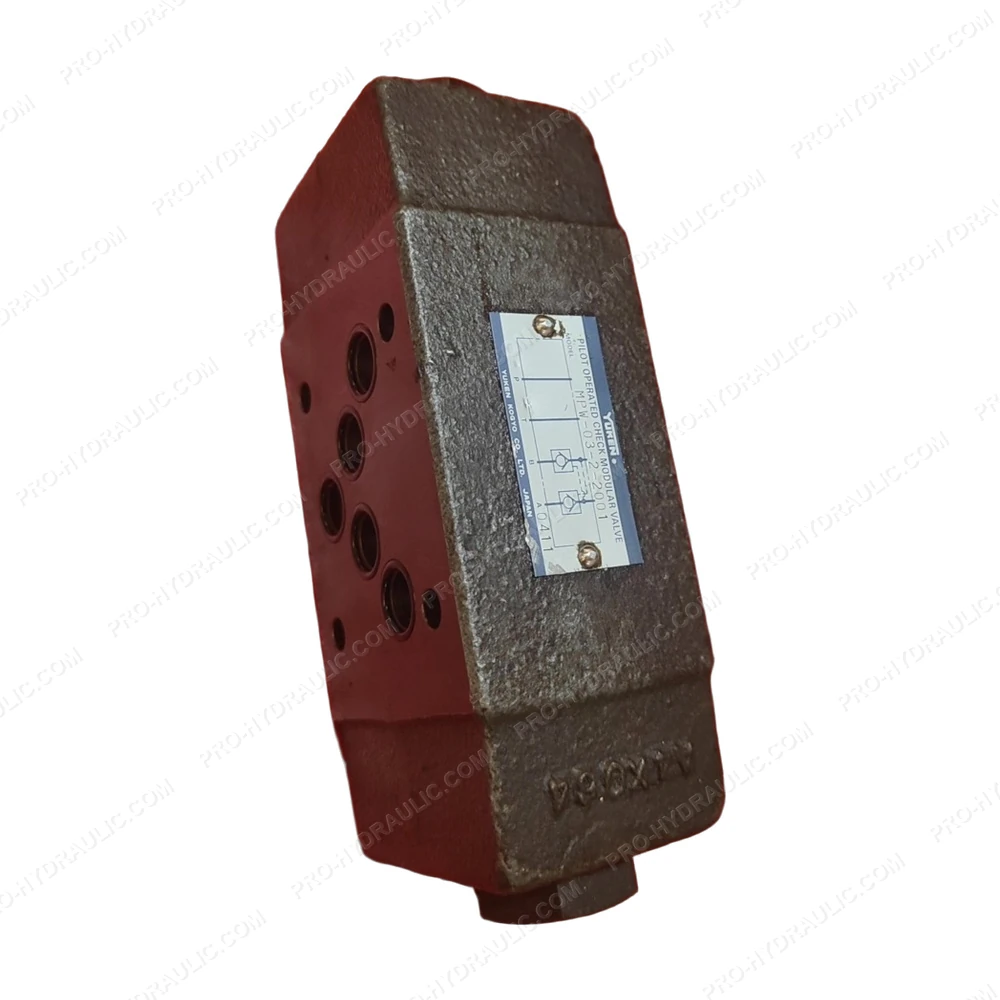

YUKEN MPW-03-2-2001 Modular Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN MPW-03-2-2001 Modular Flow Control Valve. This precision-engineered hydraulic component delivers reliable flow regulation and accurate operation for demanding industrial systems.
