Product Overview
The YUKEN MSB-01-X-70 is a solenoid operated modular valve from YUKEN’s MSB series, designed as a compact sandwich-style control element for hydraulic manifold systems. As a modular valve, it mounts between a directional control valve and its subplate, providing pilot-operated or direct-acting flow control and pressure/flow logic functions without additional piping. The MSB-01-X-70 is engineered for precise metering and reliable switching of hydraulic flow in industrial circuits, offering fast response, low leakage, and consistent performance across a wide range of operating pressures. Its modular construction allows seamless integration into standardized YUKEN stacking valve assemblies, reducing installation time and minimizing potential leak points in complex hydraulic power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Solenoid Operated Modular Valve |
| Model Designation | MSB-01-X-70 |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Modular sandwich mounting per ISO 4401 / YUKEN stacking interface |
| Actuation Type | Solenoid operated, wet-pin DC or AC solenoid |
| Nominal Flow Capacity | Up to 70 L/min (size 01 modular interface) |
| Seal Material | NBR / FKM options for mineral oil and synthetic fluids |
Engineering Features & Advantages
- Precision Performance: Solenoid actuation provides rapid, repeatable spool positioning for accurate flow control and pressure logic within modular hydraulic circuits, minimizing response lag in sequential operations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation, hardened spool and sleeve, and contamination-tolerant clearances for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original YUKEN MSB series modular valves and standard ISO 4401 subplate interfaces, ensuring drop-in replacement without modification.
- Modular Integration: Sandwich design eliminates external piping between directional, pressure, and flow control functions, reducing leak paths and simplifying manifold assembly.
Typical Industrial Applications
The YUKEN MSB-01-X-70 is widely used in plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial hydraulic power units where precise modular flow and pressure control is required. It is also suitable for construction and marine hydraulic systems demanding reliable solenoid-operated valve performance in compact stacking configurations.
PRODUCT IMAGES

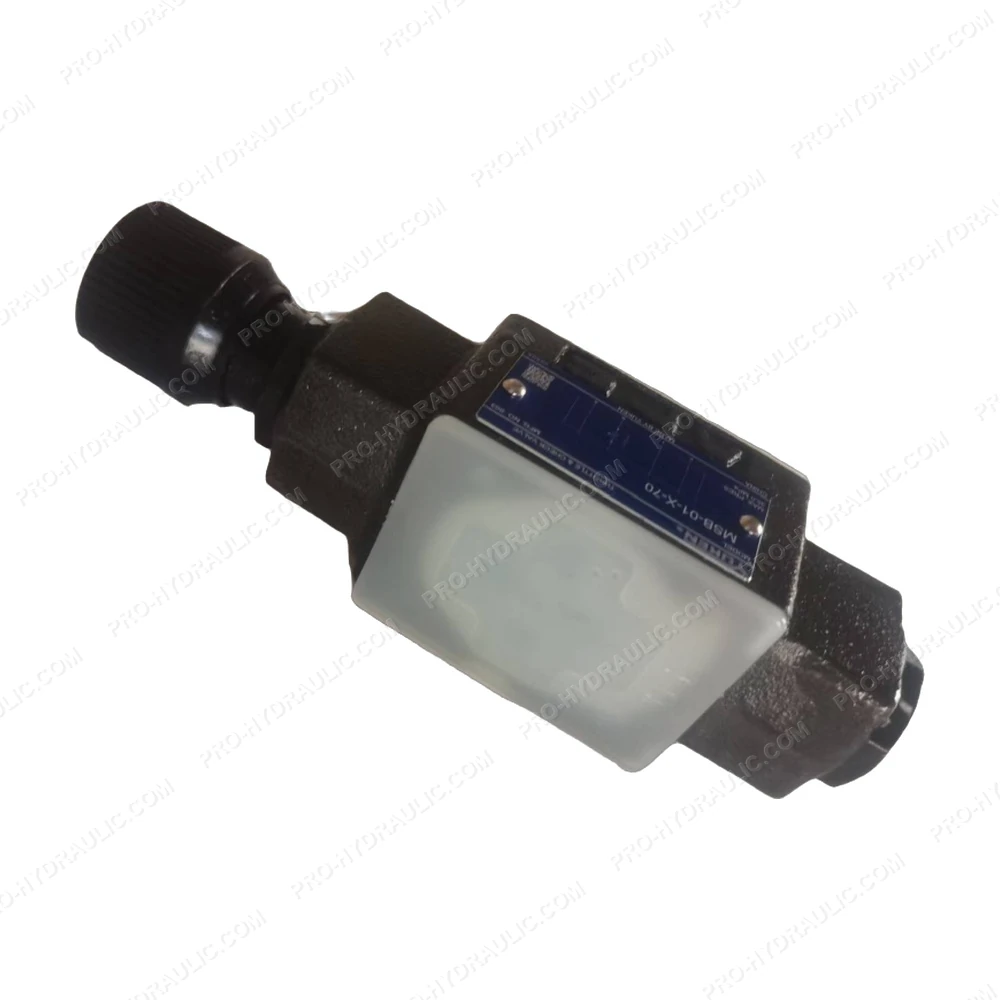

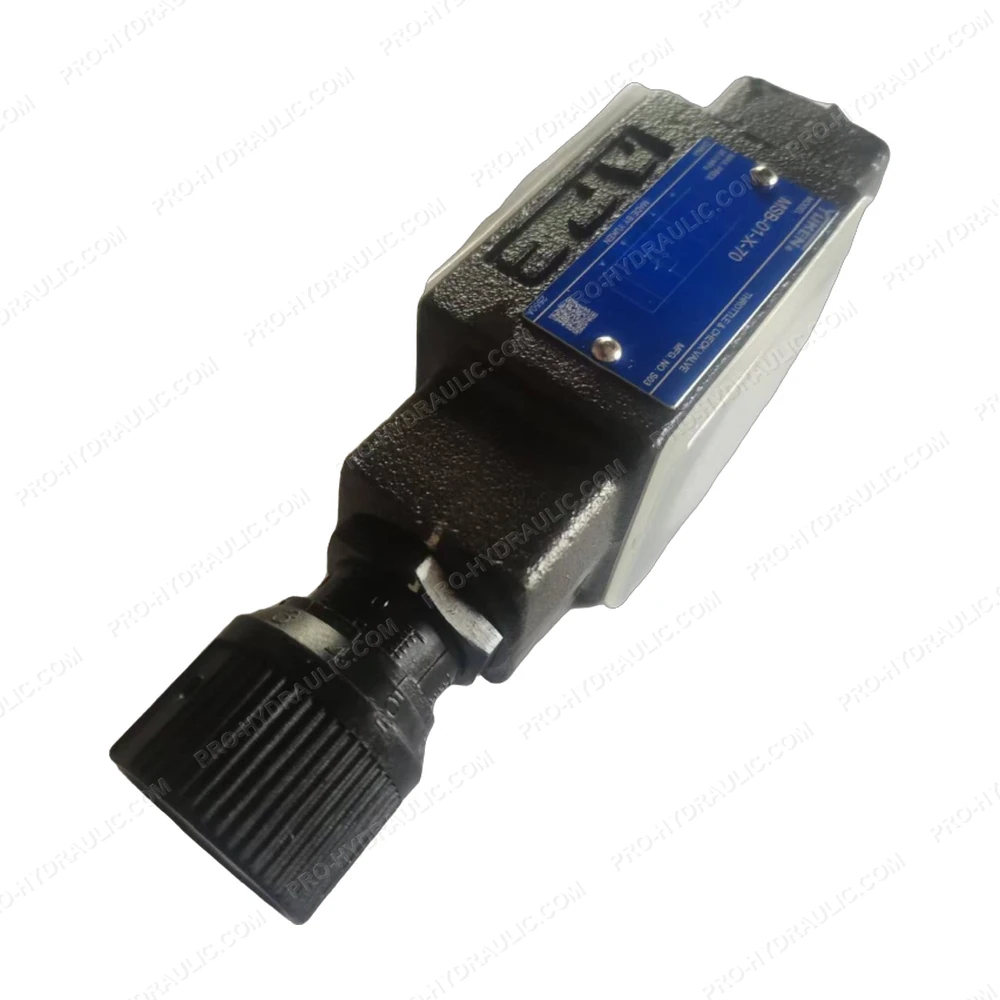

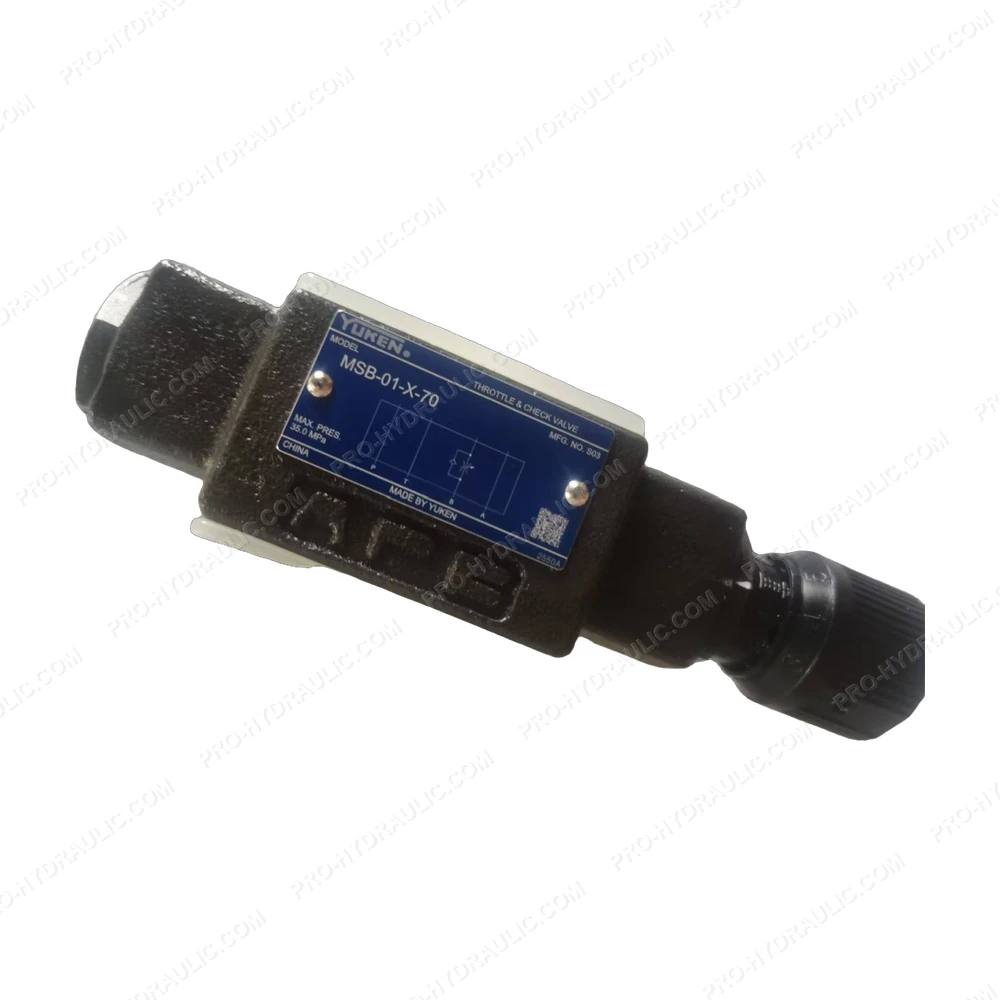

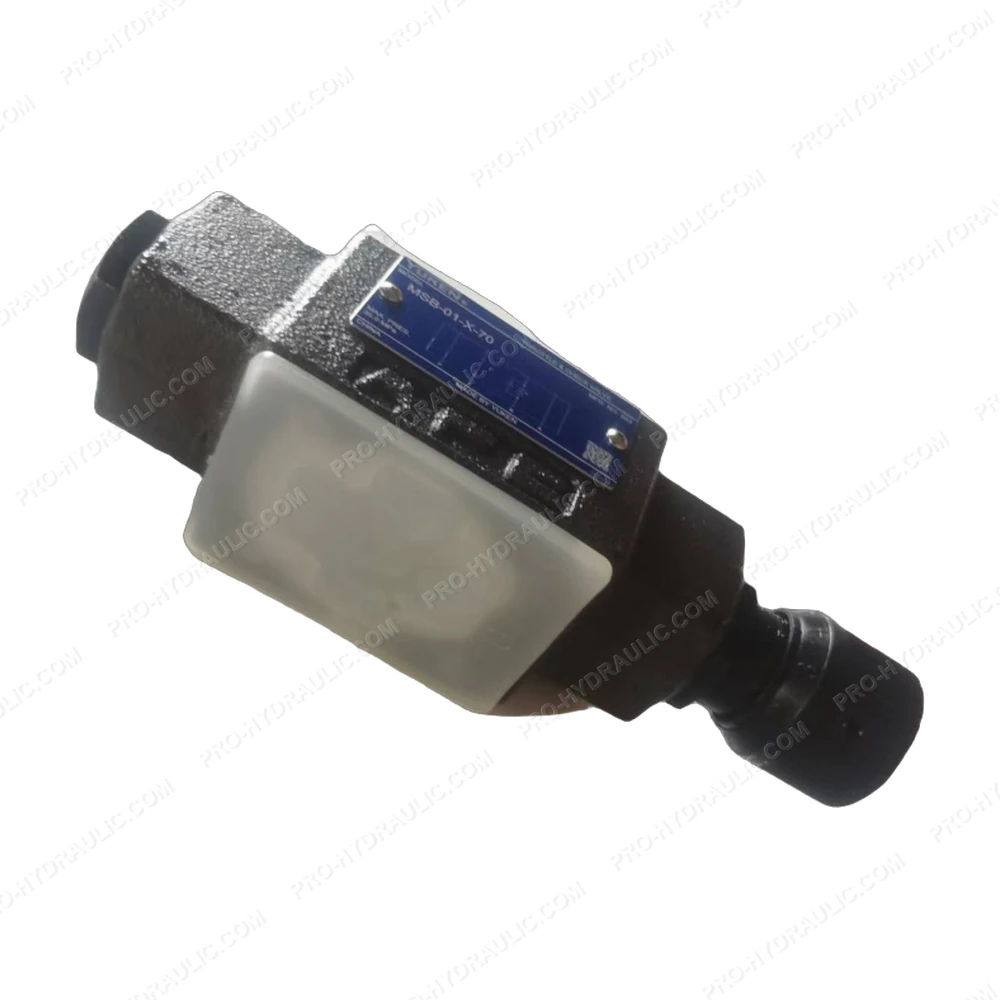

YUKEN MSB-01-X-70 Solenoid Operated Modular Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine YUKEN MSB-01-X-70 Solenoid Directional Valve. This Japan-made 24V DC hydraulic component features a spring-return design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
