The YUKEN MSCP-01-30 is a heavy-duty industrial modular flow control valve engineered for precise regulation of hydraulic fluid flow in demanding power and motion control circuits. Designed for sandwich mounting between directional valves and subplates, it provides reliable pressure-compensated flow control with minimal pressure drop.
YUKEN MSCP-01-30 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Modular Flow Control Valve (sandwich plate) |
| Mounting Standard | CETOP 3 / ISO 4401-03 / NG6 |
| Nominal Flow Rate | Up to 30 L/min |
| Maximum Operating Pressure | 315 bar |
| Adjustment Type | Manual rotary knob with lock |
| Fluid Compatibility | Mineral oil (ISO VG 32–68), phosphate ester |
| Fluid Temperature Range | -20 °C to +70 °C |
| Filtration Requirement | ISO 4406 18/16/13 or better |
| Body Material | Cast iron / steel |
| Port Connections | Subplate mounting with O-ring seals |
Key Engineering Features
- Pressure-compensated flow control for stable actuator speed independent of load variations
- Modular sandwich design enables direct stacking with CETOP 3 directional valves
- Precision needle valve adjustment with fine-thread control and locking mechanism
- High-pressure cast iron body for rigidity and long service life
- Integrated reverse flow check valve for free return flow
- Compact footprint reduces manifold space requirements
Industrial Applications
- Machine tool hydraulic systems requiring precise feed rate control
- Press and forming equipment with variable speed actuators
- Injection molding machines and die-casting units
- Material handling and lifting equipment with controlled descent
- General industrial power units with modular valve stacks
For technical inquiries, dimensional drawings, or replacement support for YUKEN MSCP-01-30, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

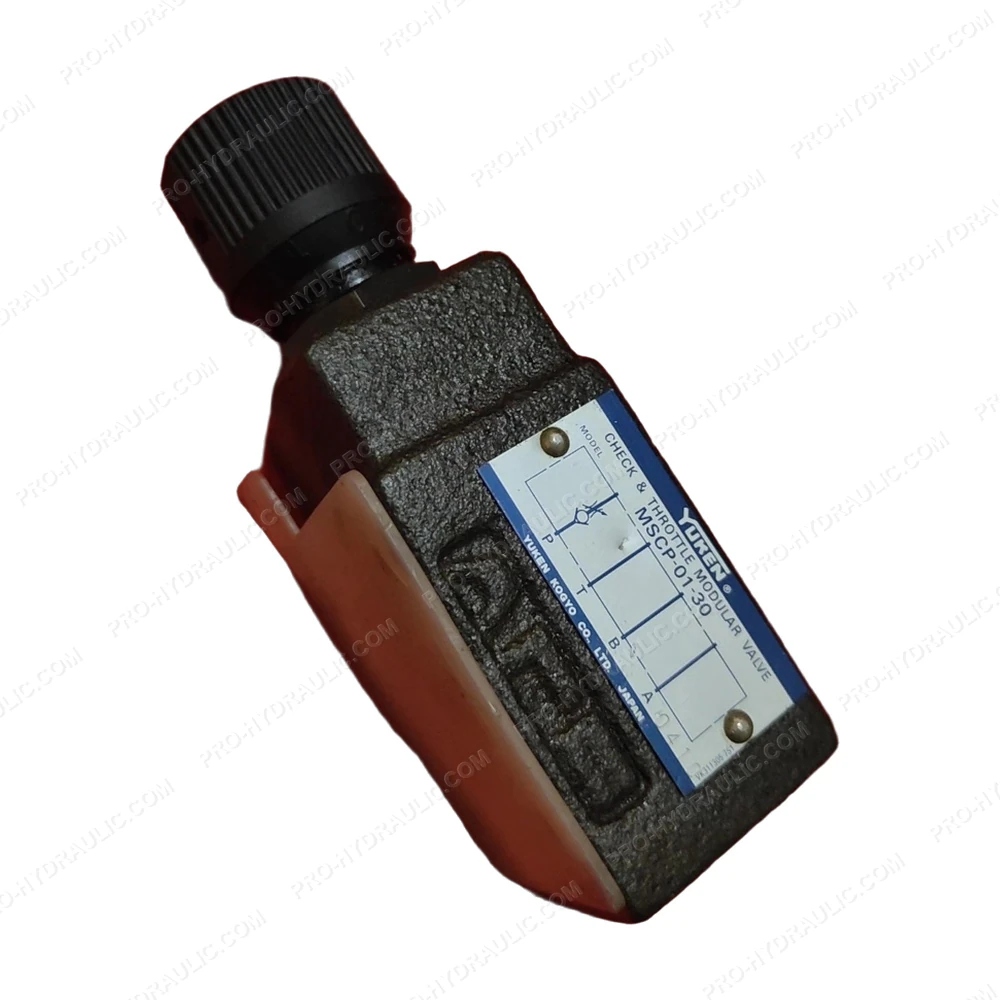

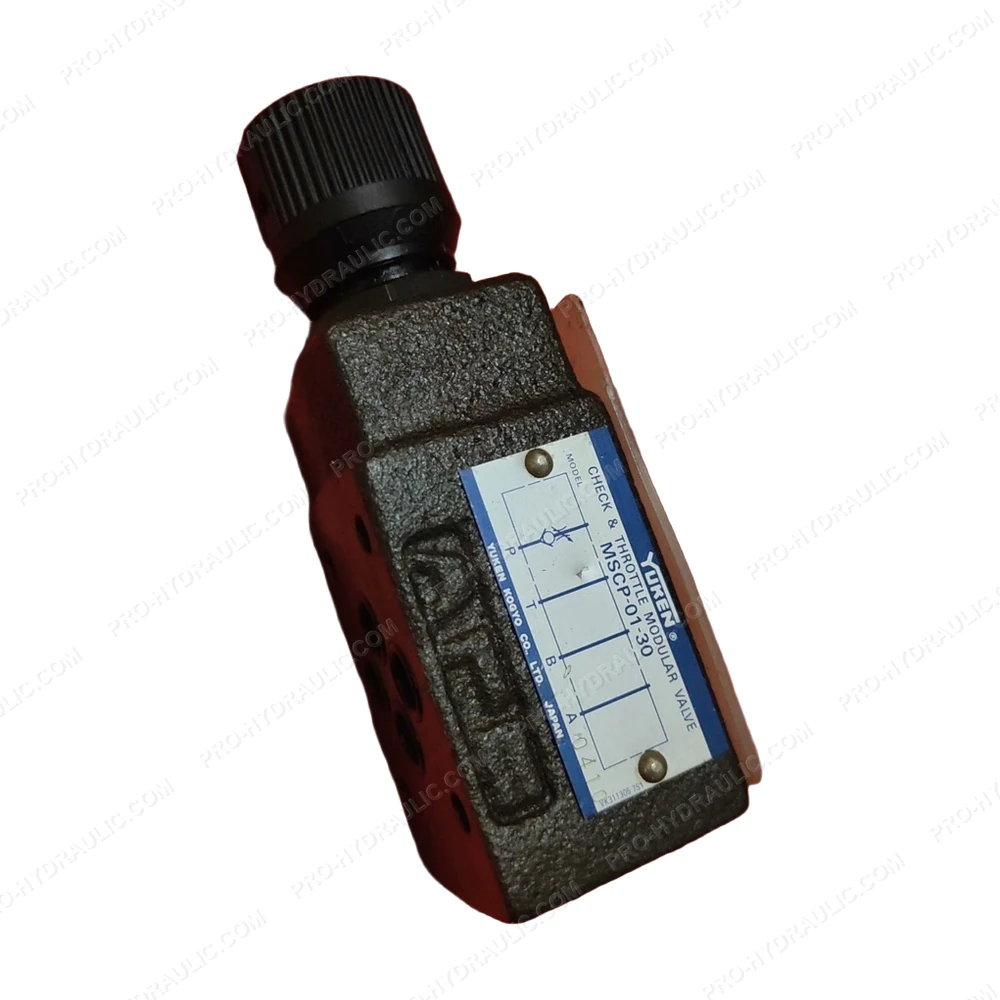

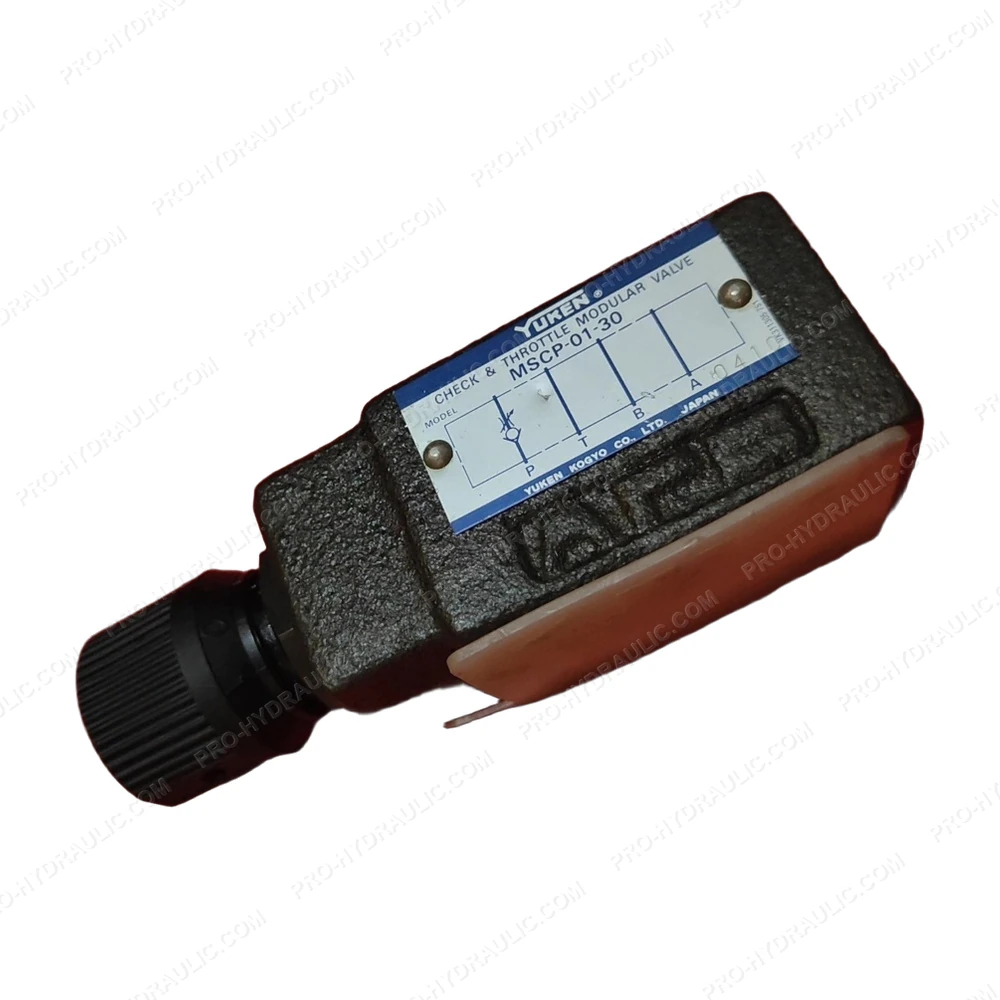

YUKEN MSCP-01-30 Modular Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN MSCP-01-30 Modular Flow Control Valve. This precision-engineered hydraulic component delivers reliable flow regulation and accurate operation for demanding industrial systems.
