The YUKEN MSP-03-30 is a heavy-duty industrial modular flow control valve engineered for precise flow regulation in hydraulic systems. Designed for sandwich mounting between directional valves and manifold blocks, it provides reliable meter-in or meter-out control for actuator speed adjustment.
YUKEN MSP-03-30 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | Modular Flow Control Valve (Sandwich Plate) |
| Nominal Size | NG6 (CETOP 3, ISO 4401-03) |
| Max. Operating Pressure | 315 bar |
| Max. Flow Rate | 30 L/min |
| Flow Control Range | 0.5 to 30 L/min |
| Adjustment Type | Manual Knob with Locking |
| Mounting Interface | ISO 4401-03-02-0-05 |
| Hydraulic Fluid | Mineral oil based, viscosity 10-400 cSt |
| Operating Temperature | -20°C to +70°C |
| Body Material | Cast Iron |
| Seal Material | NBR (Buna-N) |
| Port Connections | Threaded ports (G1/4, G3/8) or subplate mounting |
Key Engineering Features
- Modular sandwich design for space-saving integration between directional valve and manifold
- Precision needle valve with fine adjustment for accurate flow setting
- Pressure-compensated flow control maintains constant flow regardless of load variations
- Locking mechanism prevents accidental adjustment during operation
- High-quality cast iron body for durability and vibration resistance
- Compatible with standard ISO 4401-03 mounting patterns
- Optional reverse flow check valve for meter-in or meter-out configurations
Industrial Applications
- Machine tool hydraulic systems
- Press and forming equipment
- Injection molding machines
- Material handling and lifting equipment
- Industrial automation and robotics
- Test stands and hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for YUKEN MSP-03-30, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

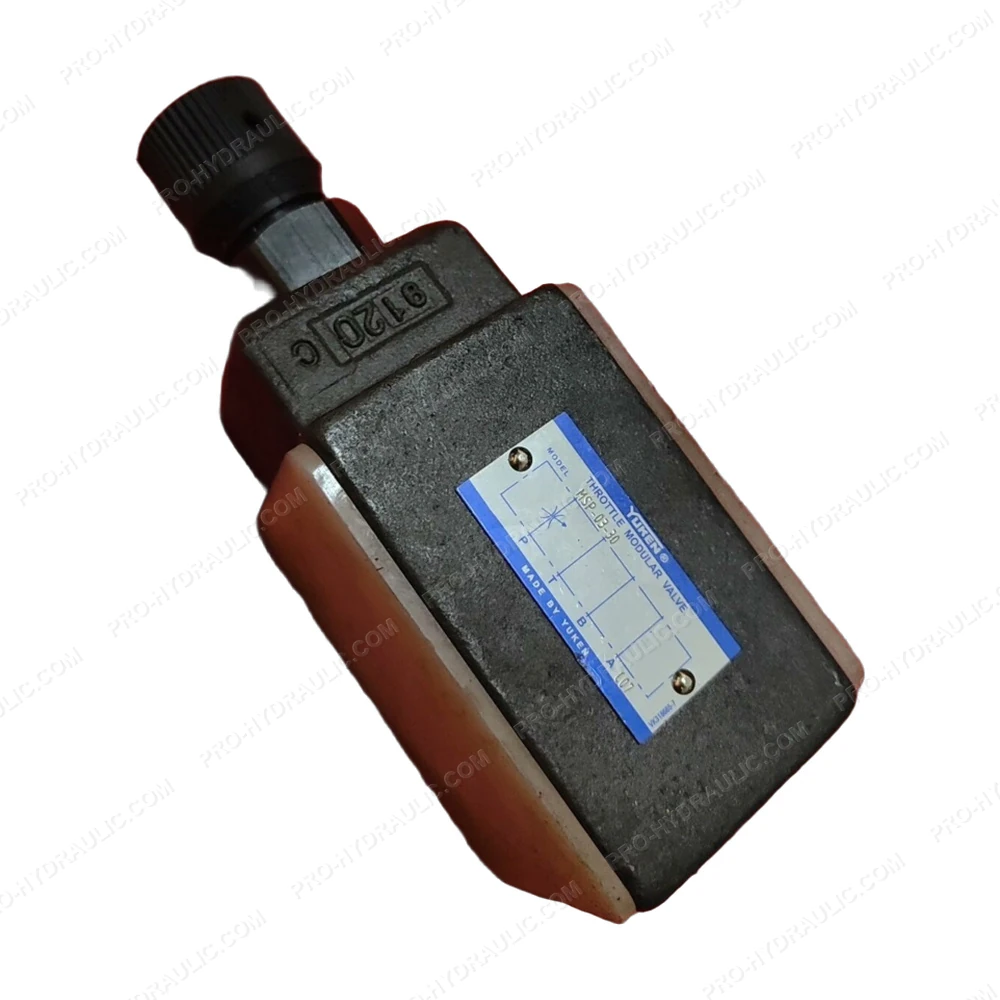

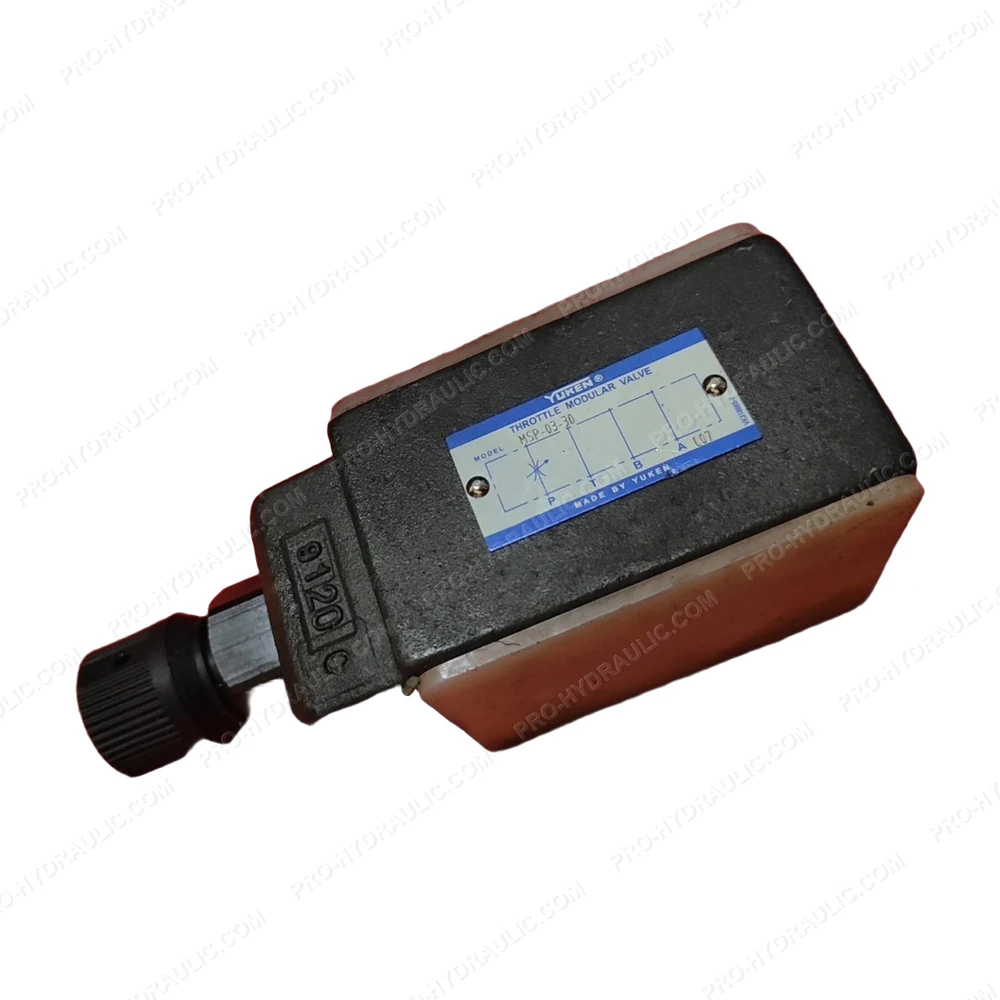

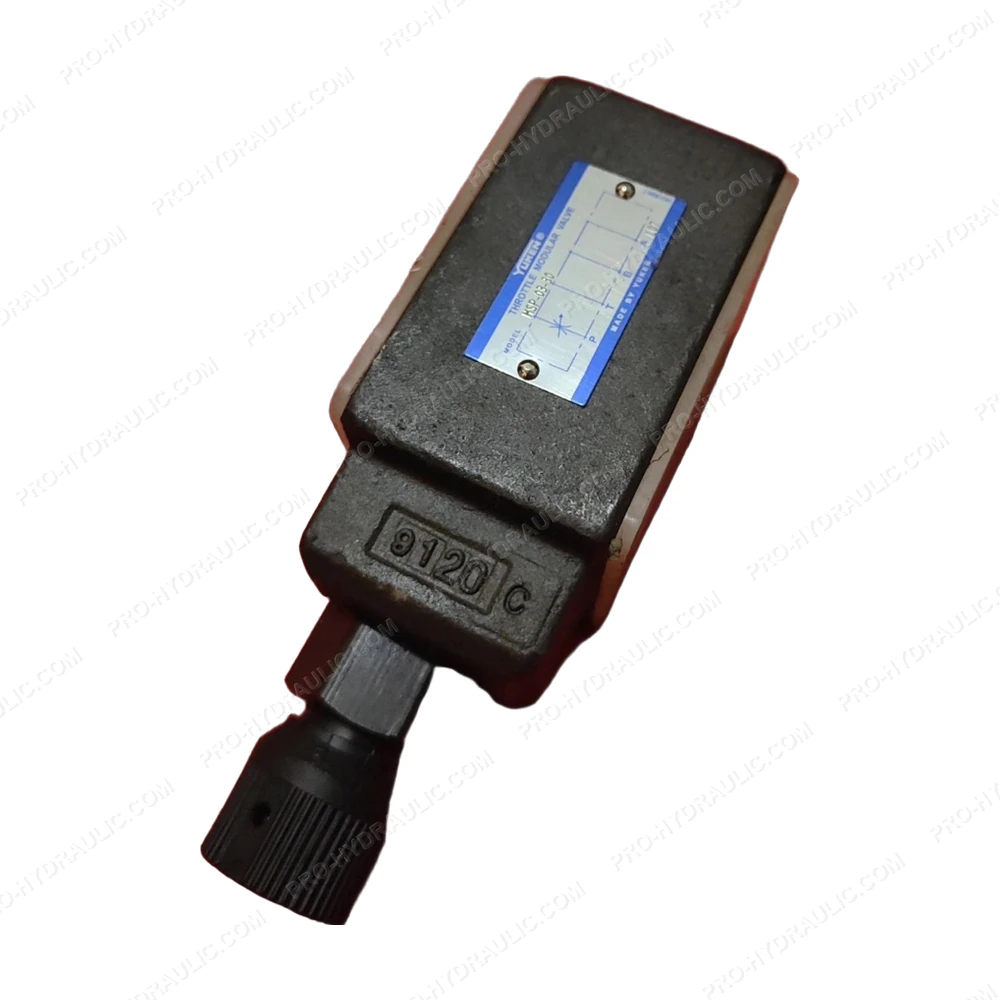

YUKEN MSP-03-30 Modular Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the YUKEN MSP-03-30 Modular Flow Control Valve. This precision-engineered hydraulic component delivers reliable performance and accurate flow regulation for demanding industrial systems.
